مميزات خاصة

【Saving Tapping Support】The patented cantilever design reduces required downward force by 70%, allowing single-handed control for smooth, consistent tapping. It eliminates fatigue and ensures even thread formation, even for long work sessions.

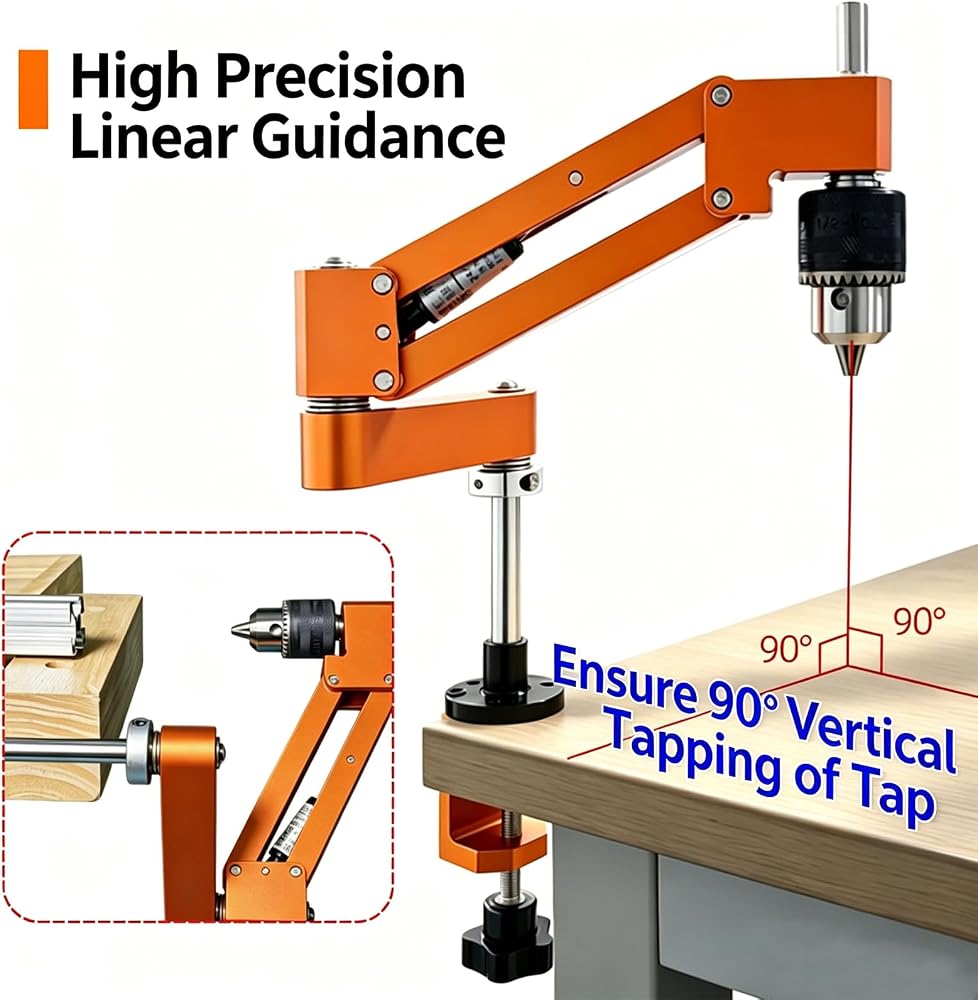

【Precision 90° Vertical Alignment】Built-in linear guide system guarantees 90° perpendicular entry for every tap, preventing crooked threads, broken taps, and damaged workpieces. Achieve professional-grade accuracy on every hole.

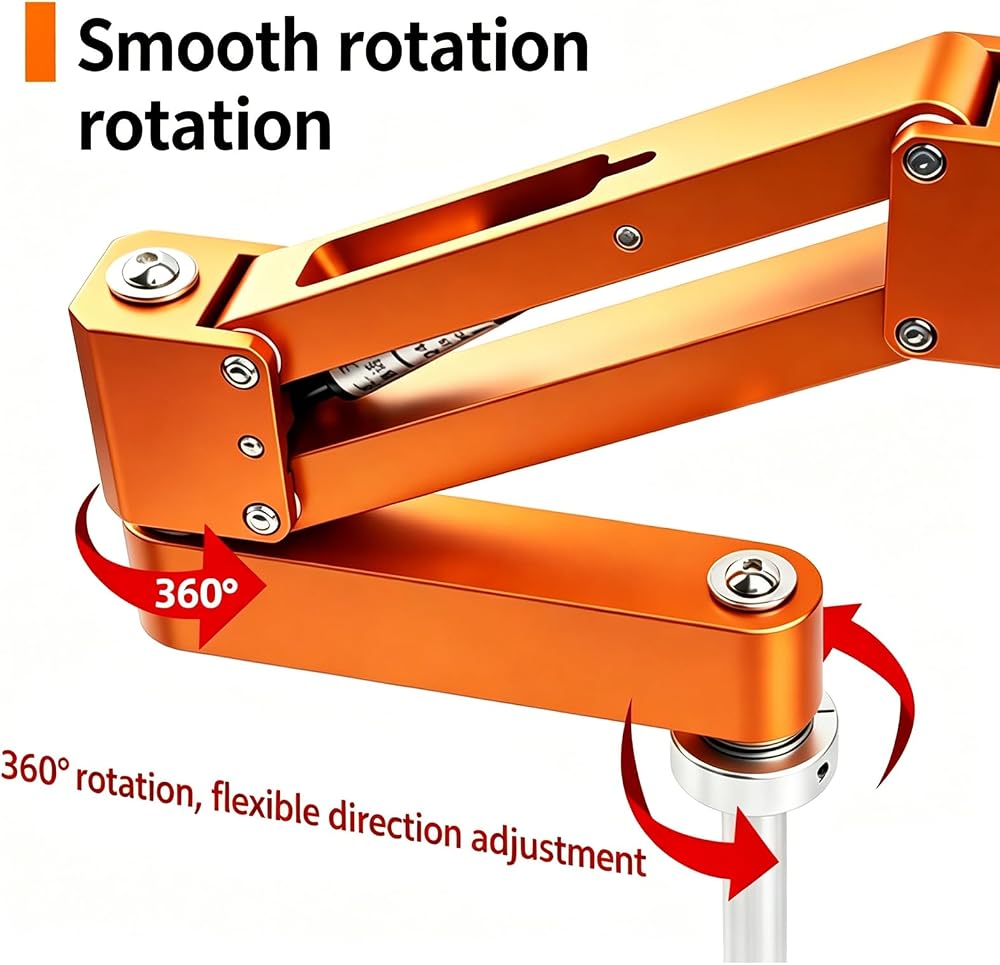

【360° Flexible Rotation & Wide Reach】The articulated arm rotates 360° with a 155mm upper arm radius and 100mm lower arm radius, letting you tackle multiple holes and workpieces without re-clamping or repositioning.
【Two Installation & Working Modes】Comes with both a clamp-on mount (0-40mm range) and a screw-down base, fitting any workbench. Supports both vertical and horizontal tapping, adapting to various workshop needs.
【Durable CNC Aluminum Construction】Crafted from high-quality CNC aluminum alloy with an anodized finish for lasting durability. The 1.5-10mm chuck fits most standard taps, making it ideal for wood, metal, and aluminum profile projects.

وصف

Note: This product is for tapping only and not for drilling!

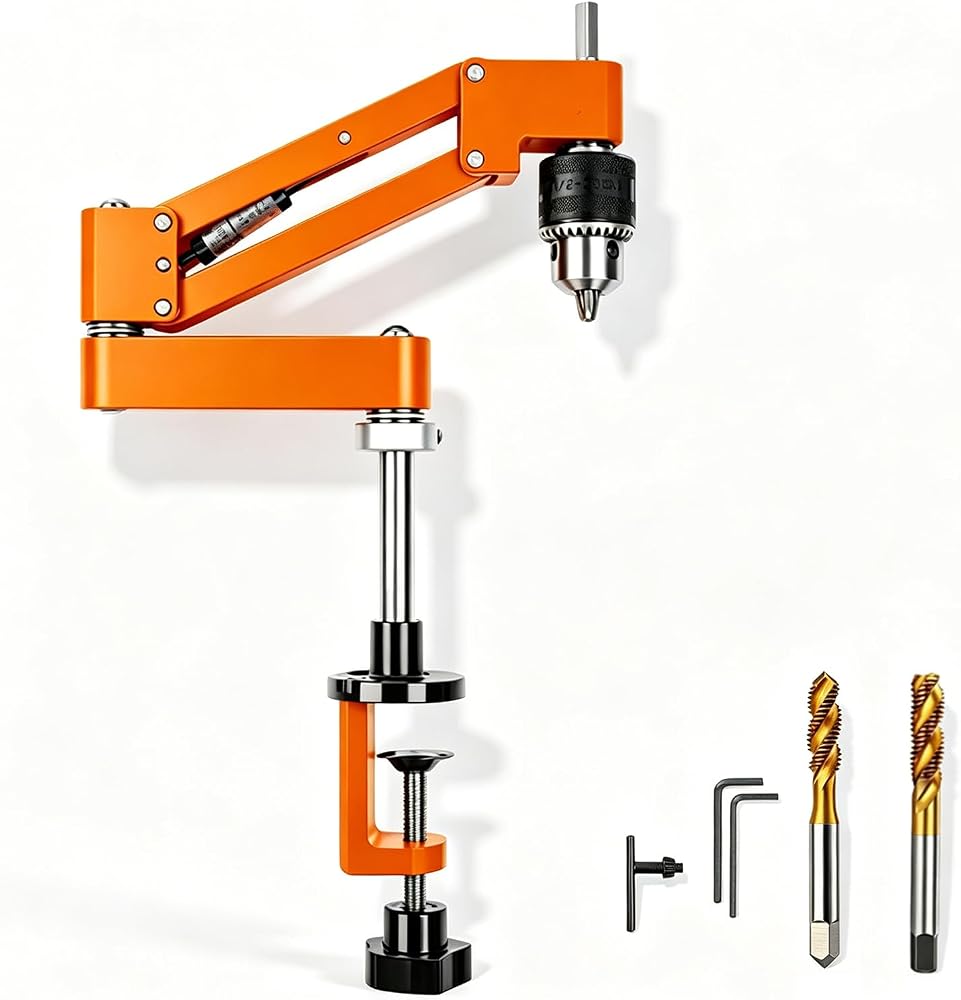

Product Name: Articulated Arm Tapping Guide Rail

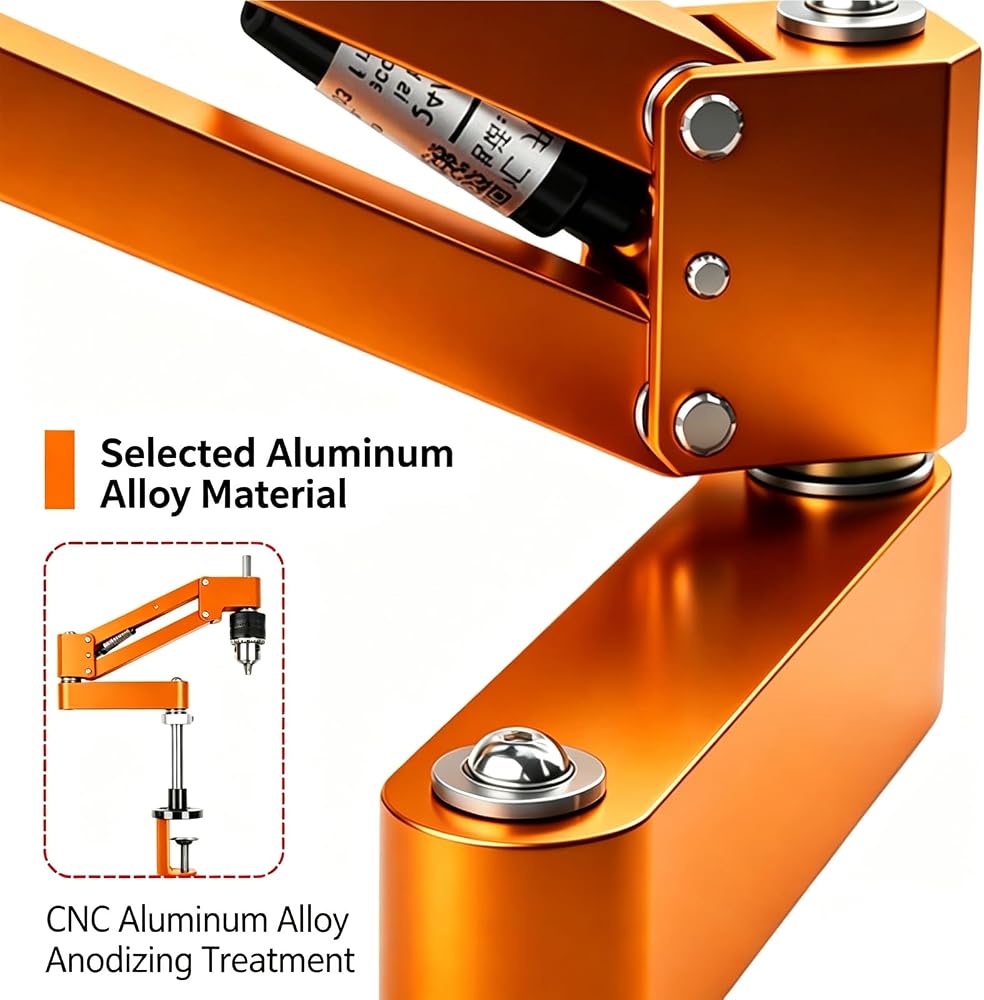

Material: CNC Machined Aluminum Alloy

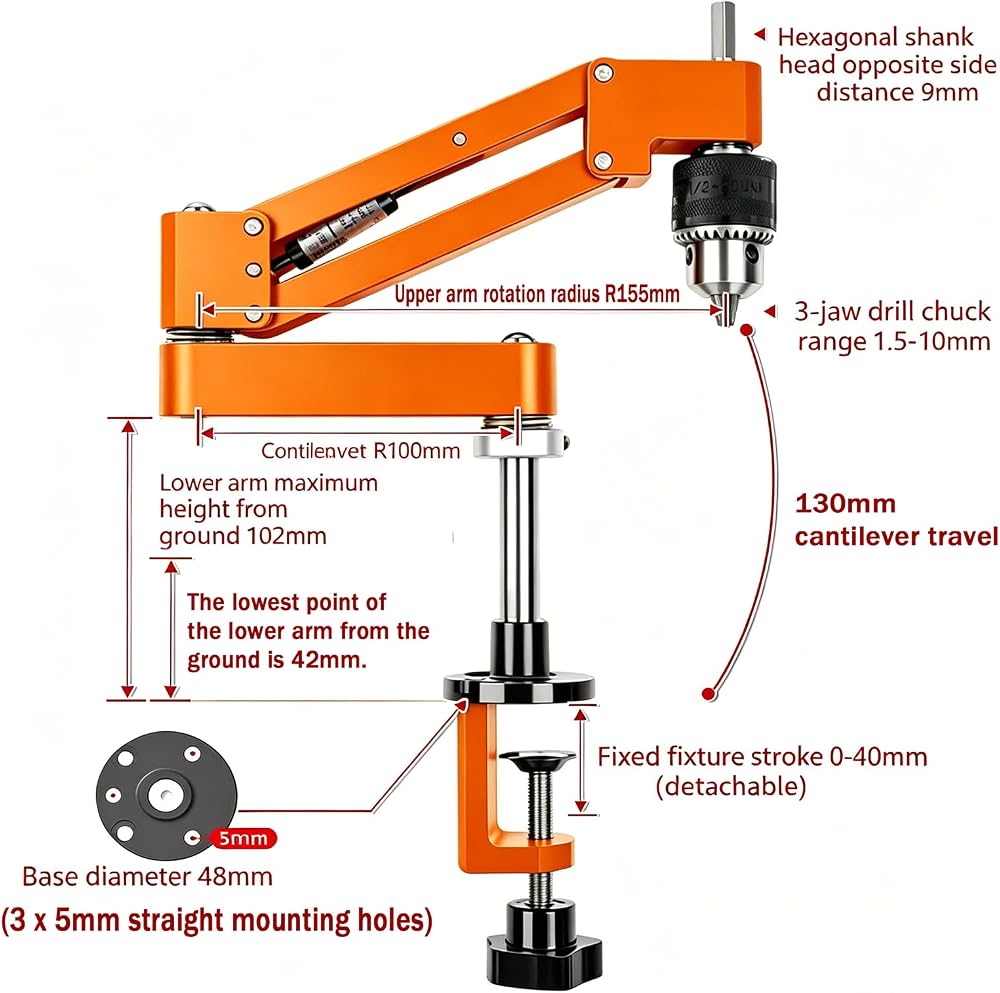

Upper Arm Rotation Radius: R155mm
Lower Arm Rotation Radius: R100mm
Cantilever Stroke: 130mm
Lower Arm Ground Clearance: 42mm
Chuck Range: 1.5-10mm
Hex Shank Size: 9mm (Across Flats)
Clamp Mounting Range: 0-40mm (Removable)
Base Diameter: 48mm (3 x 5mm Mounting Holes)
Rotation Range: 360° Full Rotation

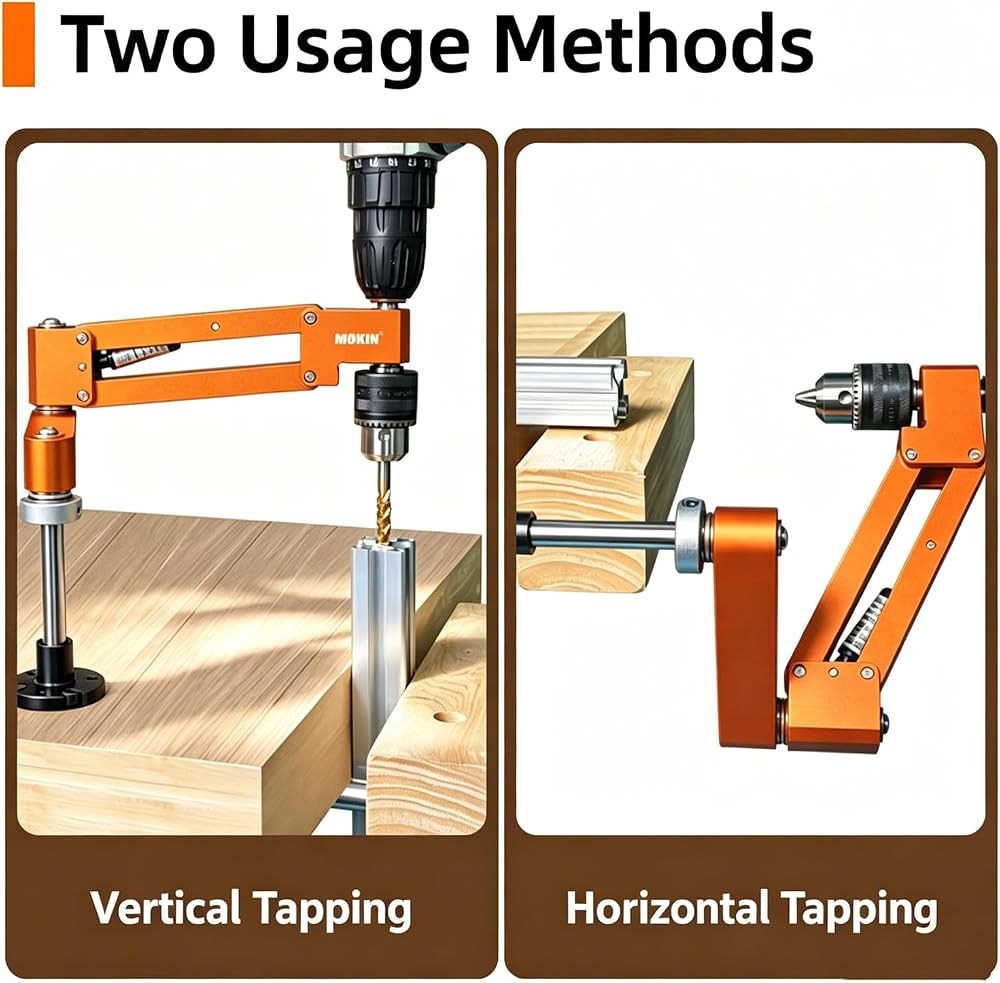

Working Mode: Vertical/Horizontal Tapping

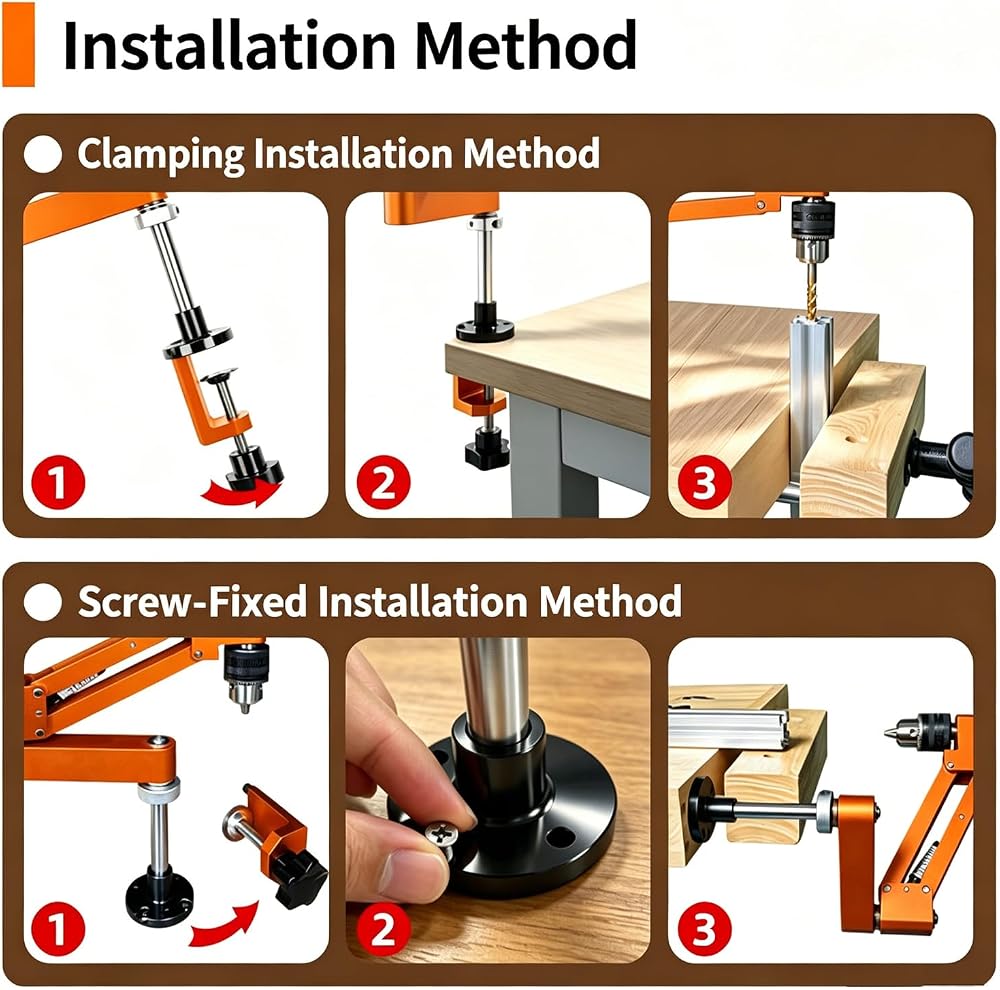

Installation Method: Clamping or Screw Fixing

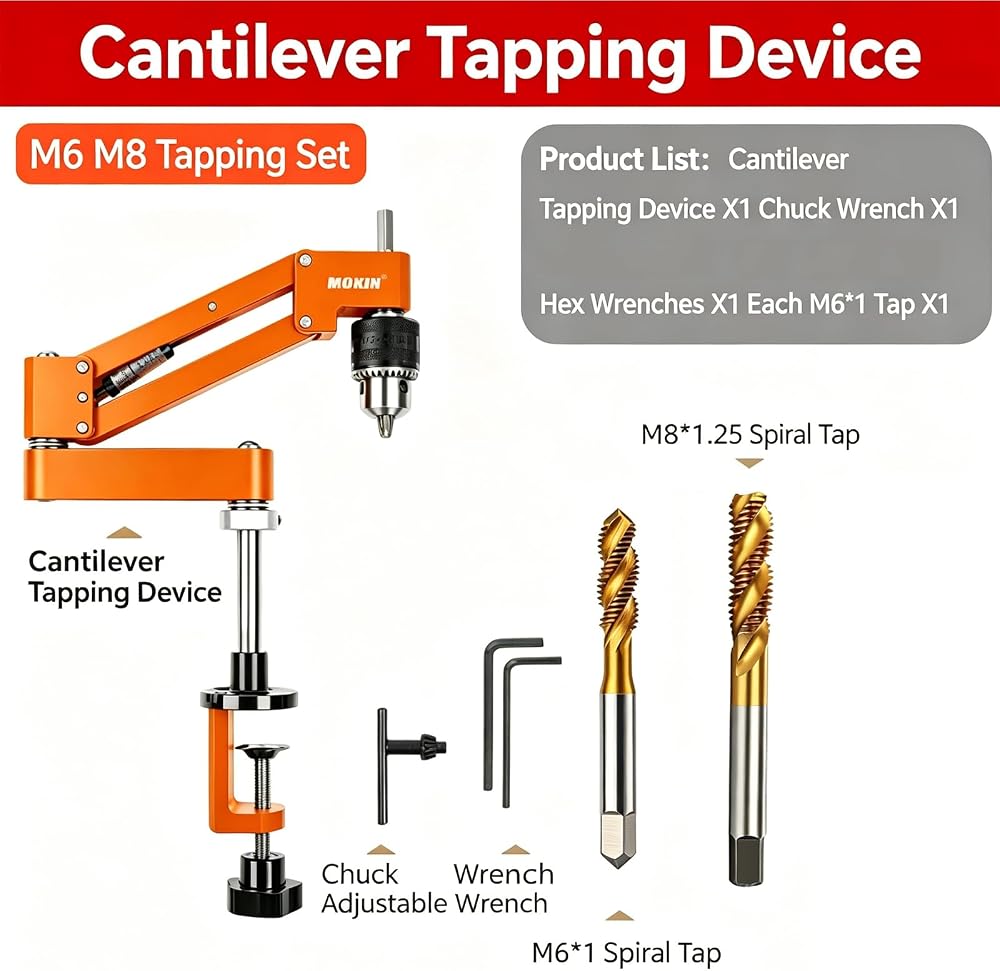

Product List:
1 x Articulated Arm Tapping Guide Rail
