مميزات خاصة

【Principle of Luminescence】Based on the phenomenon of low-pressure discharge, different gases are filled into a vacuum glass tube, and a voltage is applied across its ends to induce a glow discharge in the gas, thereby emitting light of a specific color.

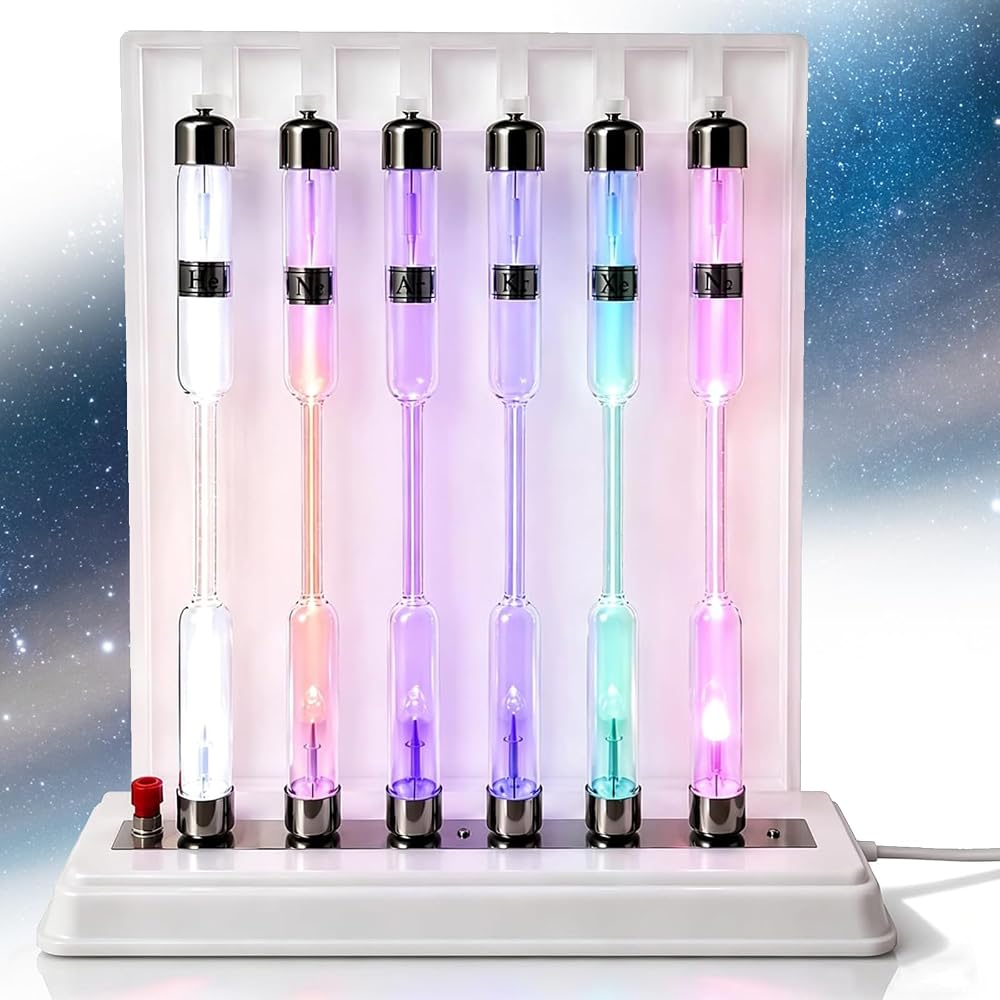

【Complete Noble Gas Set】 Includes 6 sealed tubes filled with He,Ne, Ar, Kr, Xe, Hg, use a metal rod to connect to the top electrode of any spectral tube, causing the gas inside the tube to undergo glow discharge. Different spectral tubes emit spectra of varying colors and shapes.
[Safe & Durable Design]: Features sealed glass tubes and a stable base to ensure safe operation in educational environments, with long-lasting performance suitable for repeated demonstrations
【Procedure】Connect one end of the induction coil or high-voltage power supply to the electrode connected to the base, and connect the other end via a wire to the metal rod with an insulated handle.
【Applications】Spectral tubes are primarily used to observe the emission spectra of gases. They are commonly employed in laboratories and research settings to aid in the analysis of gas composition and properties.

وصف

This spectrum discharge tube comes with a storage base, the spectral tube is removable and equipped with a metal threaded rod and clamps for easy use

Product Name: Gas Discharge Tube Set
Spectrometer Tube Assembly: He, Ne, Ar, H2, N2, Hg
Material: Glass, metal, plastic
Function: Observation of spectral states
Dimensions: 270 × 110 × 280 mm

Package Contents:
1 × Spectral discharge tube

Note:
Operating voltage: Approximately 5KV, should not exceed 10KV. A high-voltage excitation power supply must be purchased separately; otherwise, experiments cannot be performed.
