مميزات خاصة

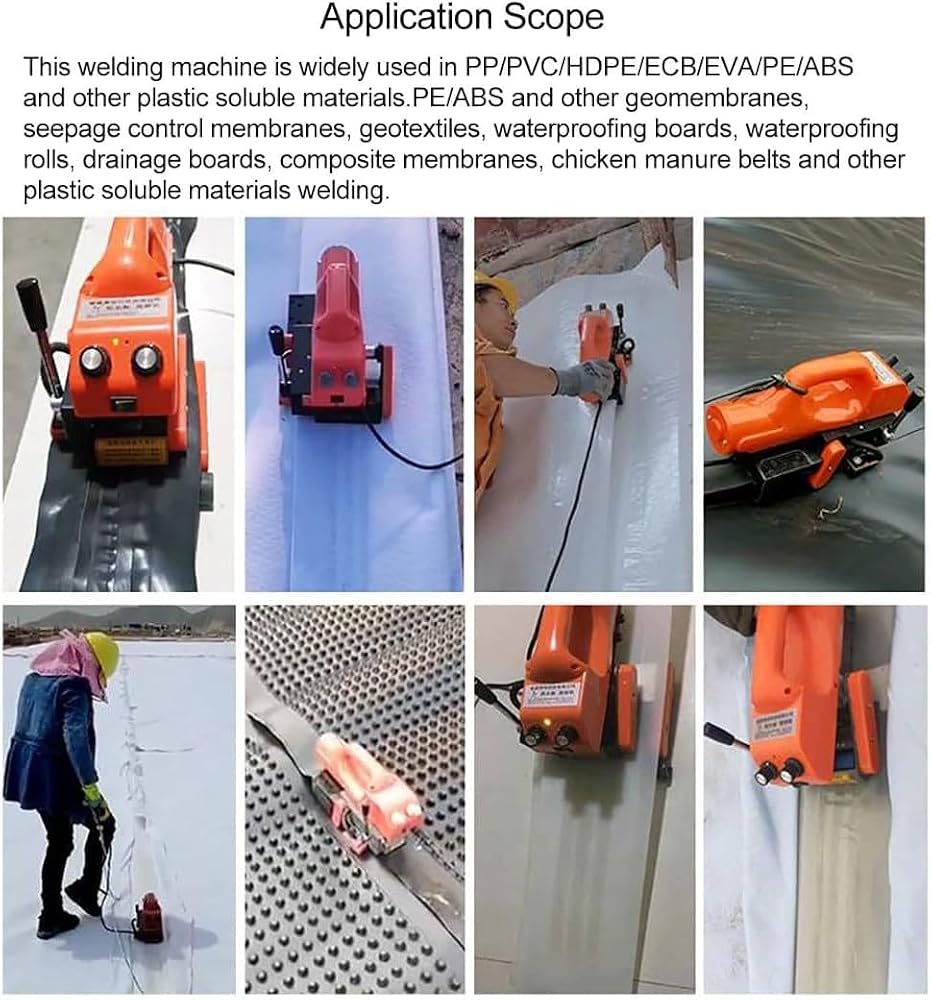

【Geomembrane Welding Machine】: This welding machine is widely used and can be used to weld various plastic soluble materials, such as PP, PVC, HDPE, ECB, EVA, PE, ABS, etc. Commonly used in anti-seepage applications such as membranes, geotextiles, waterproof boards, drainage boards, composite membranes, etc.
【Technical parameters】: Frequency: 50Hz; Power: 800W; Welding speed: 0.5-5m/min; Heating temperature: 0-450 degrees; Overlap width: 10cm; Welding width: 12.5mm×2 , inner cavity 12mm; seam strength: >85% base material (tensile strength in shear direction), complete machine weight: 5Kg; insulation level: Level II.

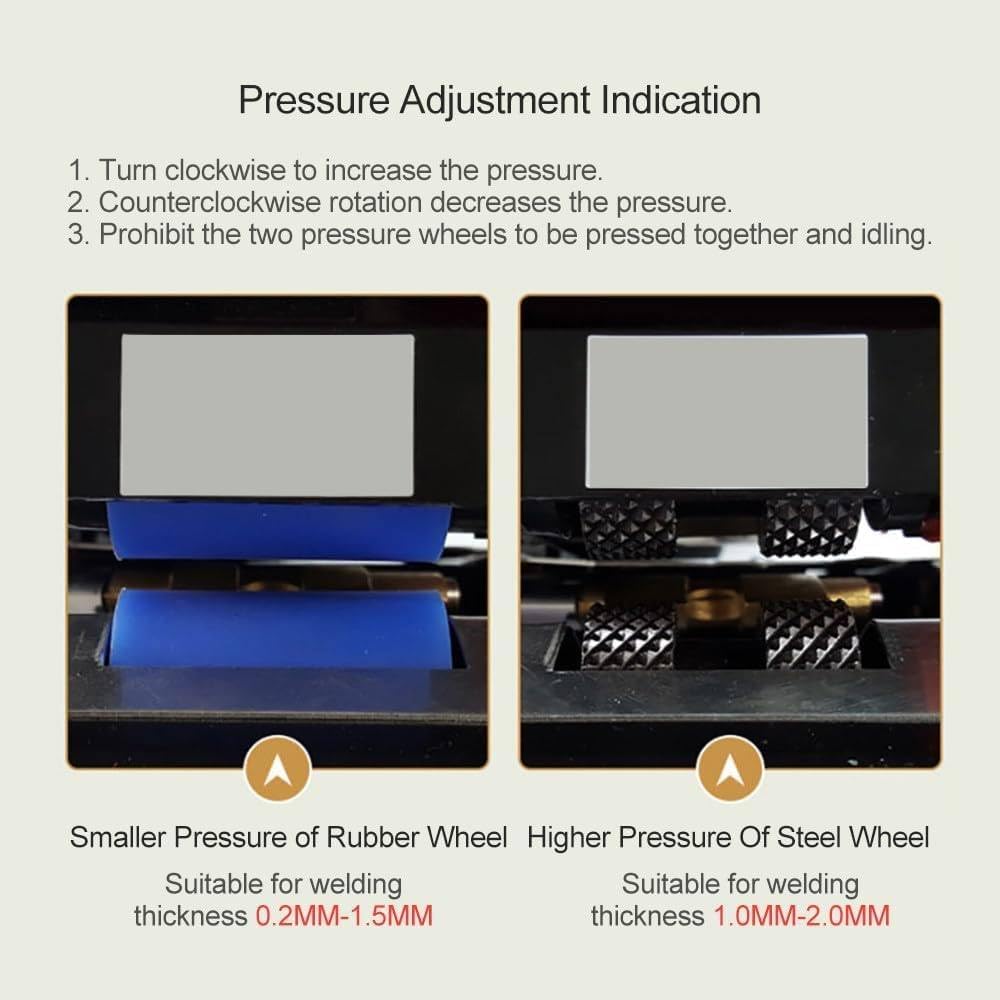

【Double high-quality pressure wheels】: The machine comes with two pressure wheels, which are resistant to high temperatures and have smooth and firm welding results. The pressure can be adjusted according to the thickness of the film. The rubber wheel with smaller pressure is suitable for welding thickness from 0.2mm to 1.5mm, and the steel wheel with higher pressure is suitable for thickness from 1.0mm to 2.0mm.
【Supporting Heating System】: This machine is equipped with a special copper series double-rail wedge-shaped knife and a high-power heating tube. This heating system allows for faster, more efficient heating and a longer service life. Different sizes and materials (alloy/copper) available on request.
If you have any questions, please feel free to contact us, we will reply you as soon as possible within 24 hours

وصف

Application:

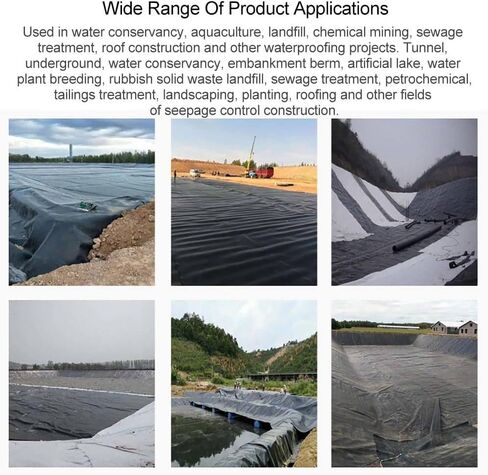

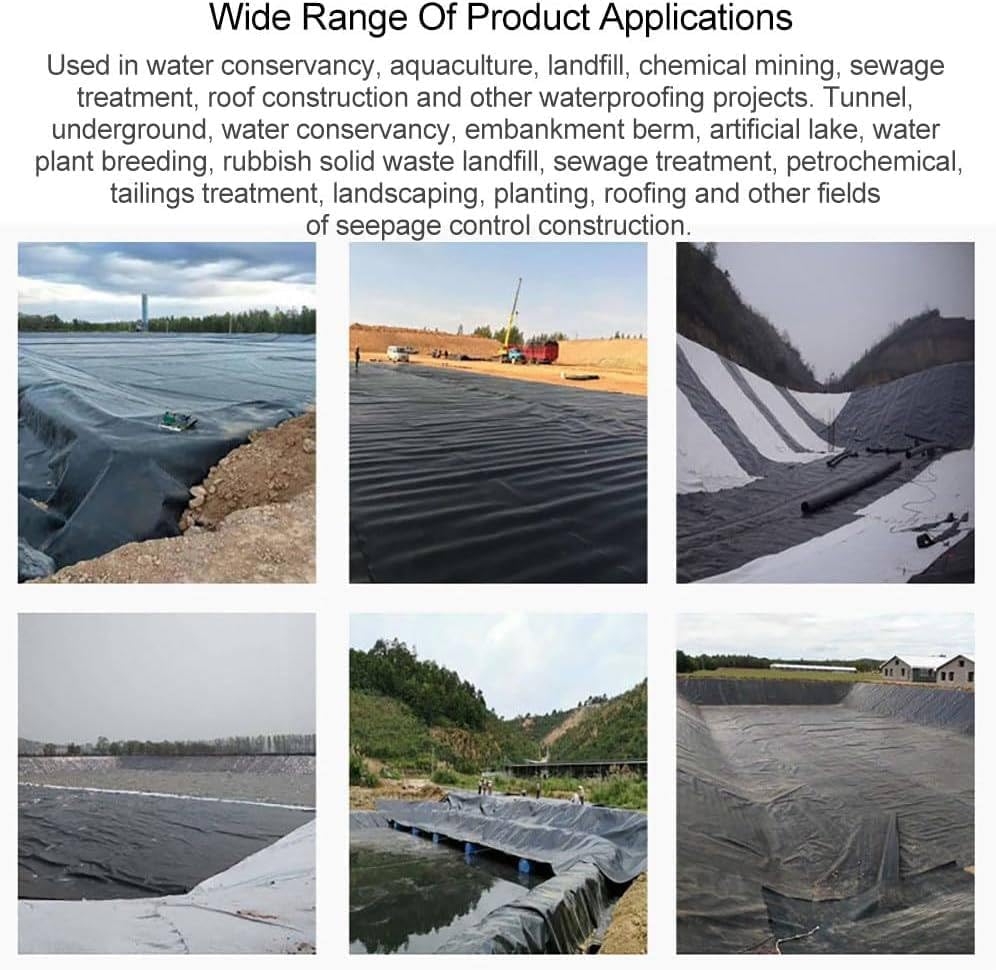

Water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roof construction and other waterproofing projects.

This series of welding machines has powerful functions, high welding speed and good welding quality. It can be used to weld PE, PVC, EVA, HDPE, PP and other hot melt materials.

Material welding:
Welding material thickness: rubber wheel 0.2-1.5mm/steel wheel 1-2mm
Power: 800W
Frequency: 50Hz;
Welding speed: 0.5-5m/min;
Heating temperature: 0-450 degrees;
Overlap width: 10cm;
Welding width: 12.5mm×2, inner cavity 12mm;
Seam strength: >85% base material (tensile strength in shear direction),
Machine weight: 5Kg;
Insulation level: Class II.

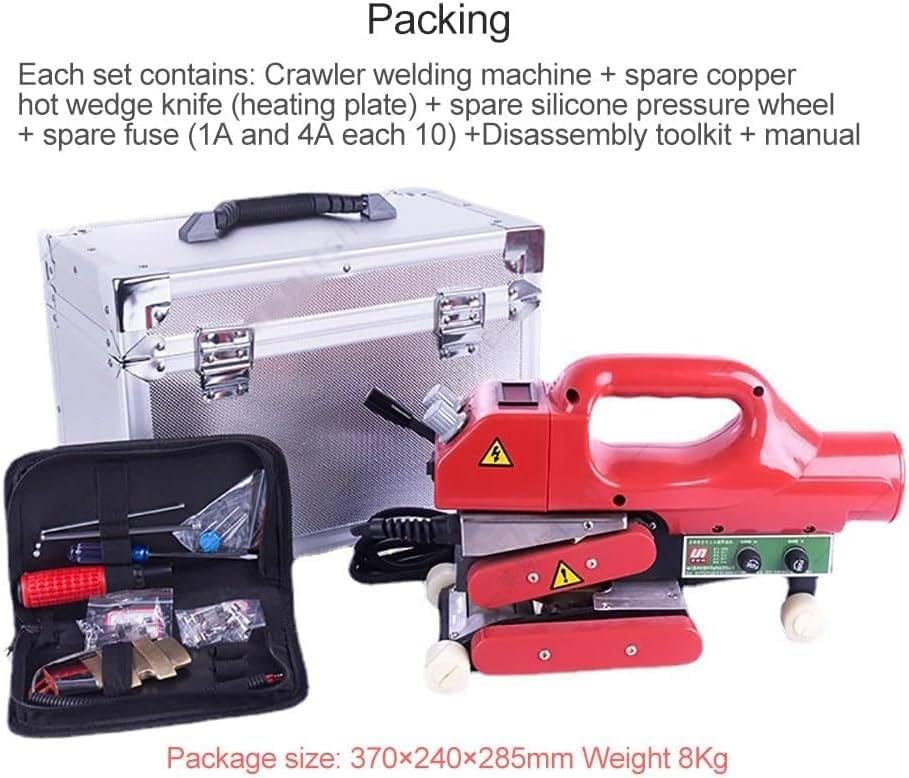

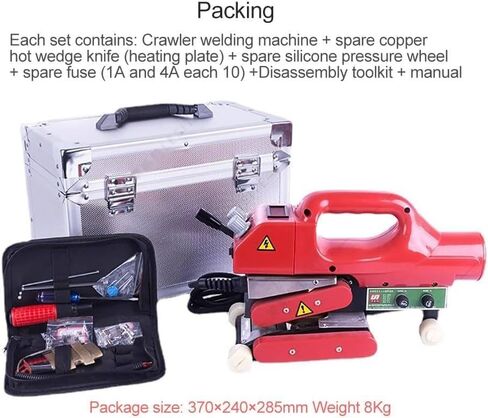

Packaging list:
1 x geomembrane welding machine
