TUOPUONE RGB Full-Color LED Matrix Panel, 4mm Pitch, 80×40 Pixels, Adjustable Brightness

KWD 16
Brand
TUOPUONE
Weight
400 g
– 1 +

Special Features

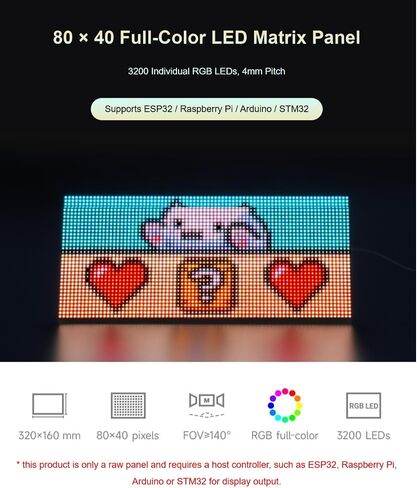

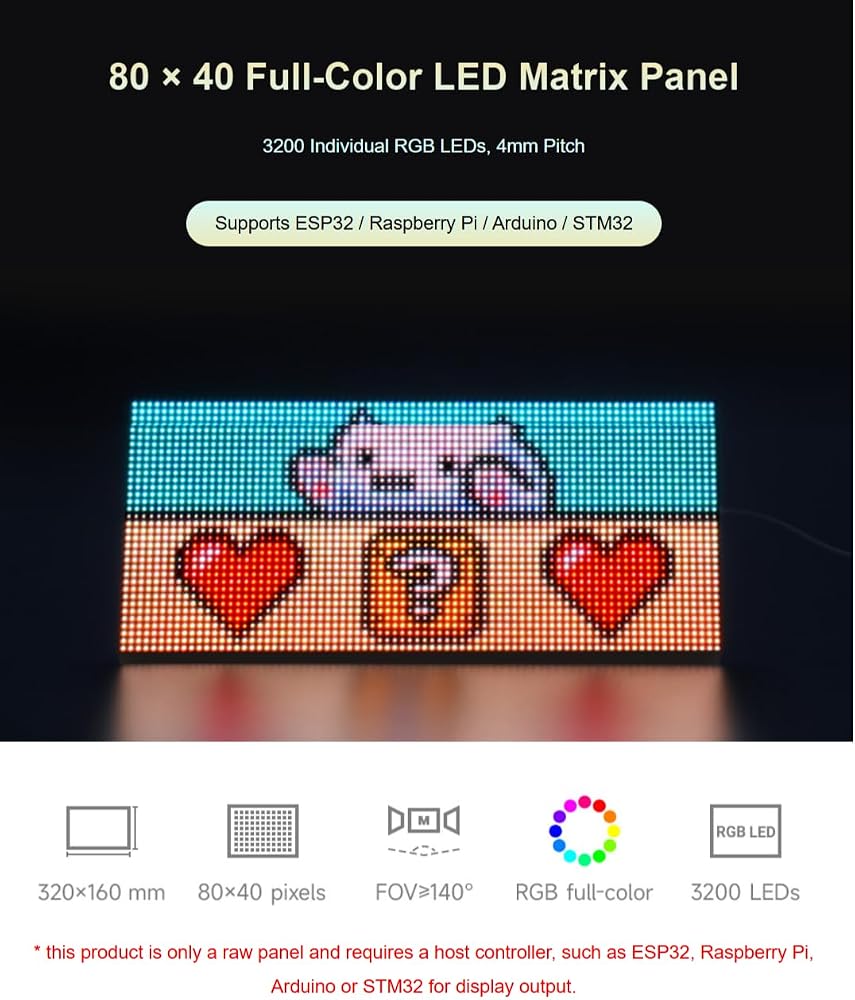

  • 80 × 40 pixels, 4mm pitch, allows displaying text, colorful image, or animation
  • 320 × 160 (mm) dimensions, moderate size, suitable for DIY desktop display or wall mount display
  • 3200 individual RGB LEDs, full-color display, adjustable brightness
  • Onboard dual HUB75 headers, one for controller data input, one for output, chain support
  • Provides open source development resources (examples for ESP32 / RaspbPi / STM32)

Description

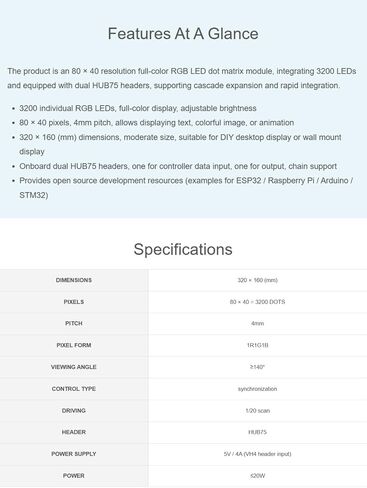

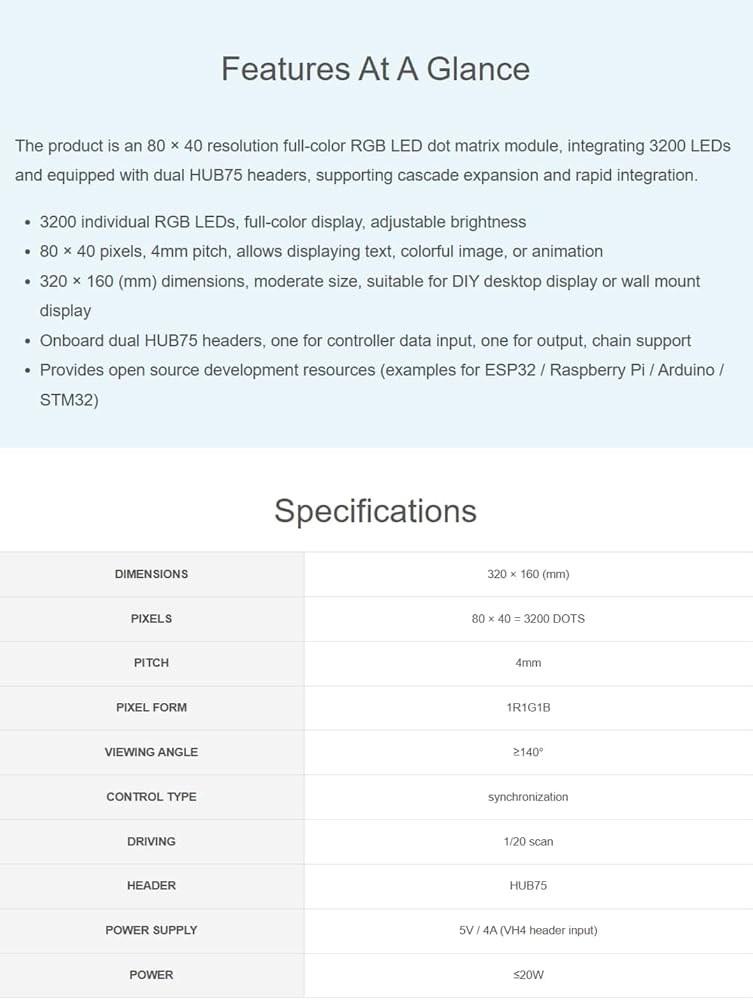

Features at a glance
The product is an 80 × 40 resolution full-color RGB LED dot matrix module, integrating 3200 LEDs and equipped with dual HUB75 headers, supporting cascade expansion and rapid integration.
3200 individual RGB LEDs, full-color display, adjustable brightness

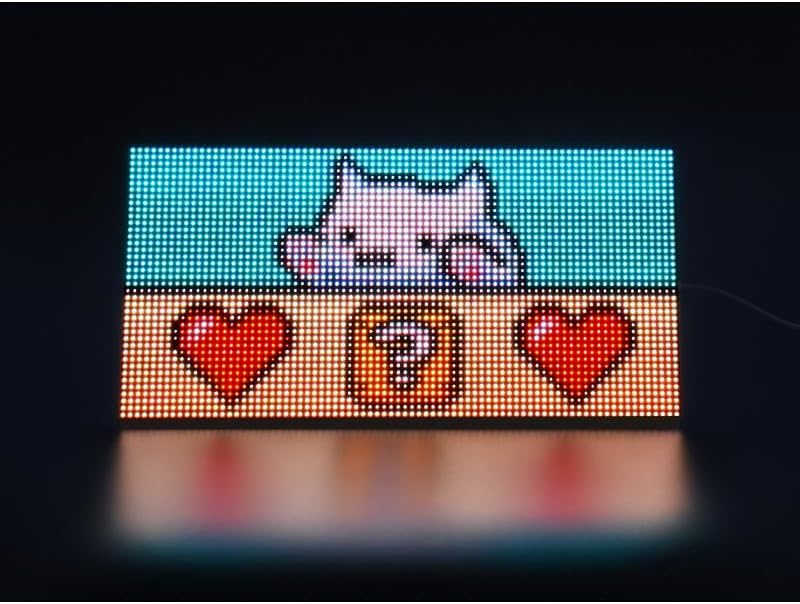

80 × 40 pixels, 4mm pitch, allows displaying text, colorful image, or animation

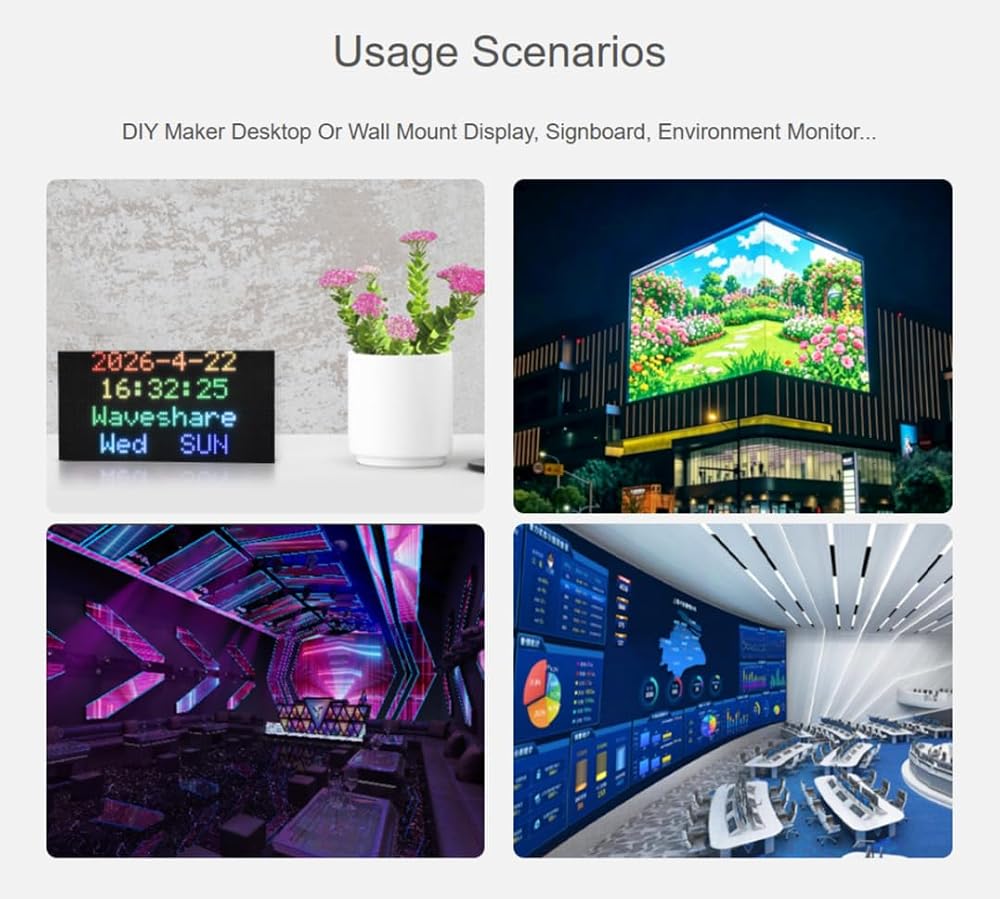

320 × 160 (mm) dimensions, moderate size, suitable for DIY desktop display or wall mount display

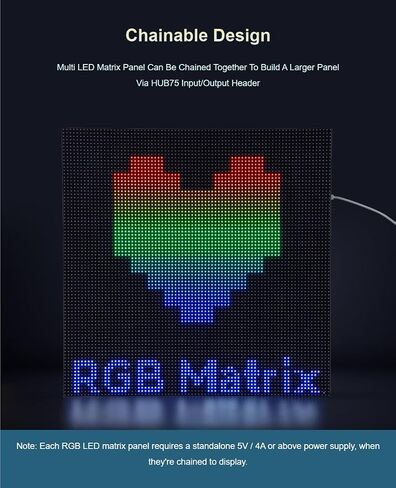

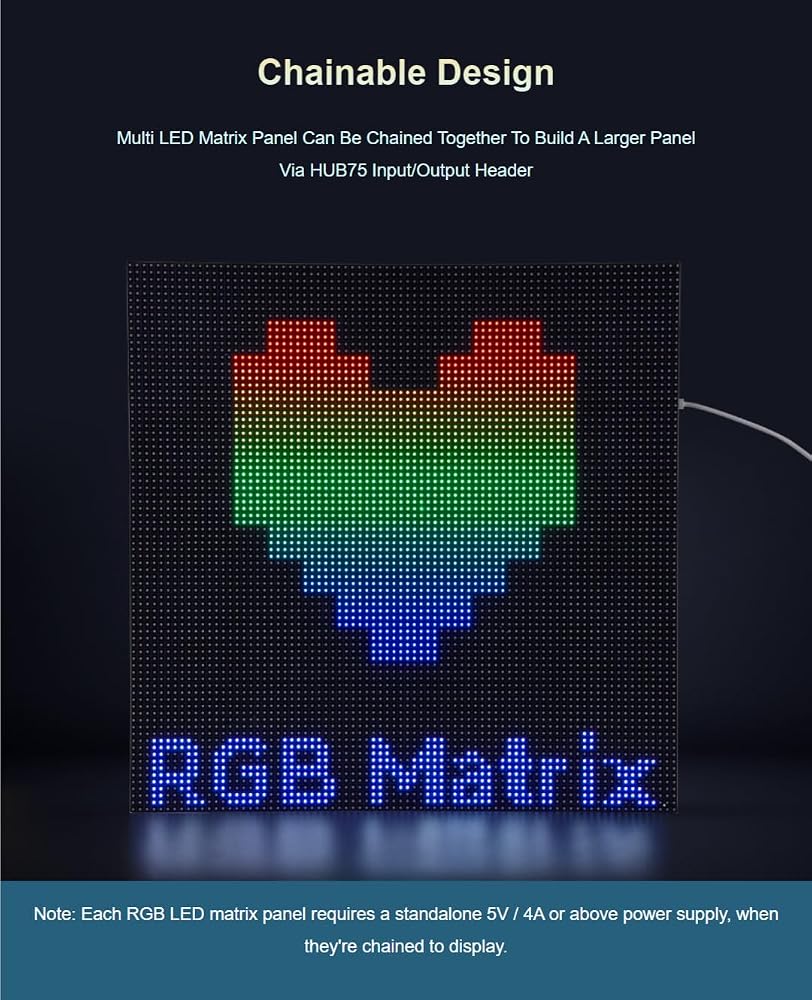

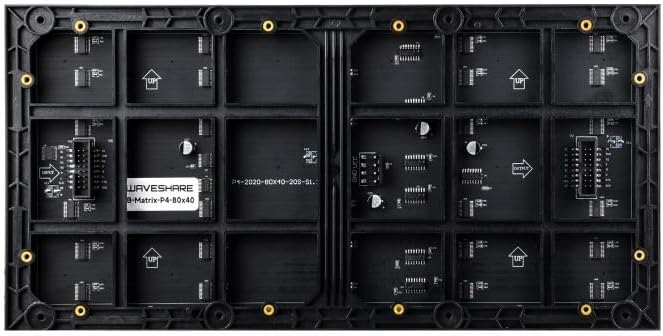

Onboard dual HUB75 headers, one for controller data input, one for output, chain support
Provides open source development resources (examples for ESP32 / RaspbPi / STM32

Specifications

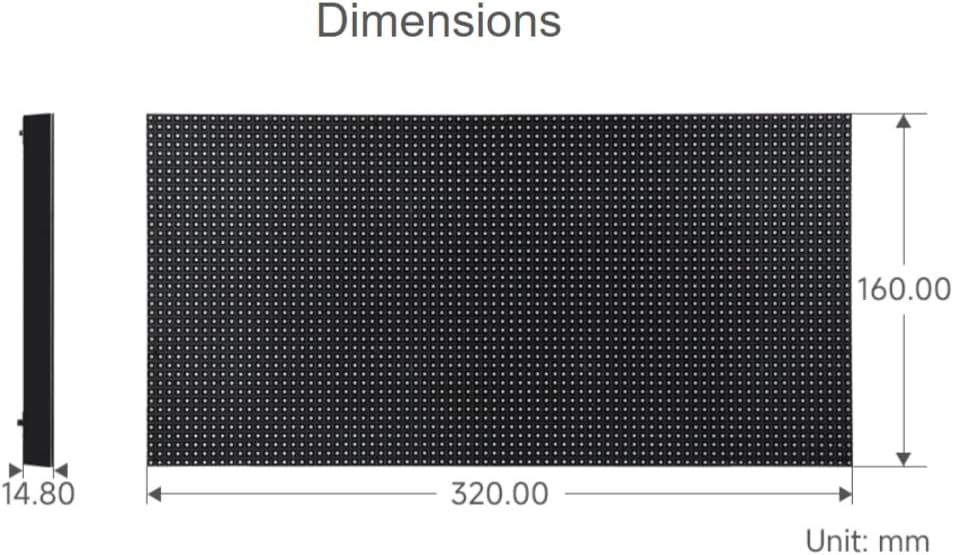

Dimensions：320 × 160 (mm)
Pixels：80 × 40 = 3200 DOTS
Pitch：4mm
Pixel form：1R1G1B
Viewing angle：≥140°
Control type：synchronization
Driving：1/20 scan

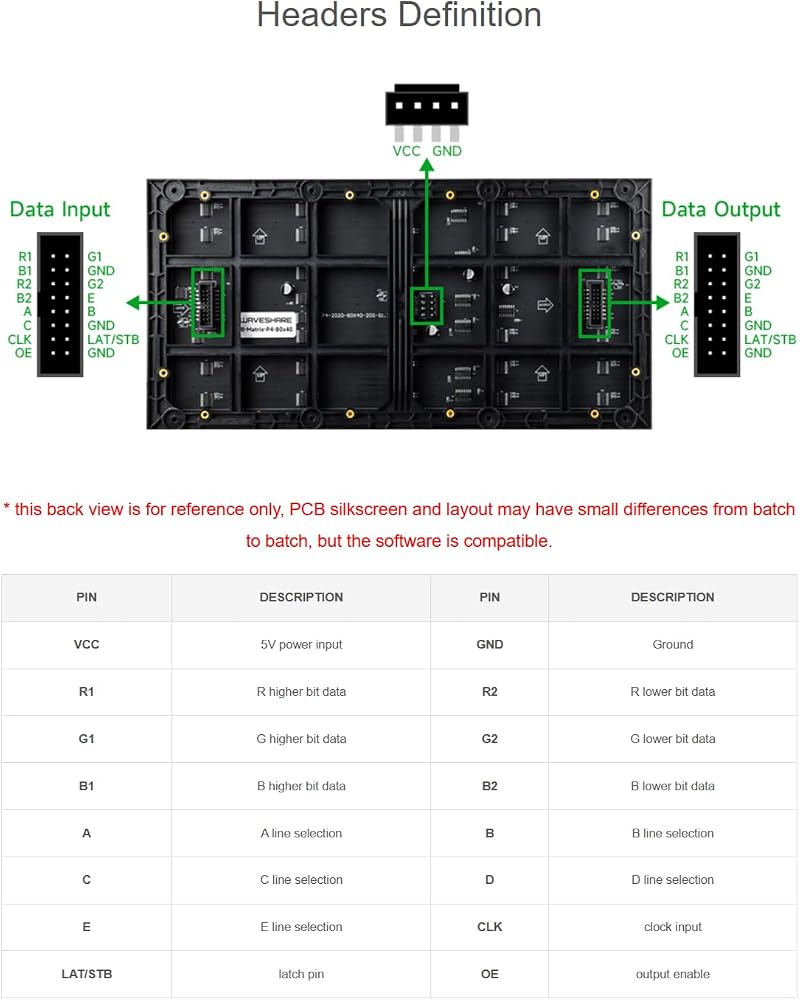

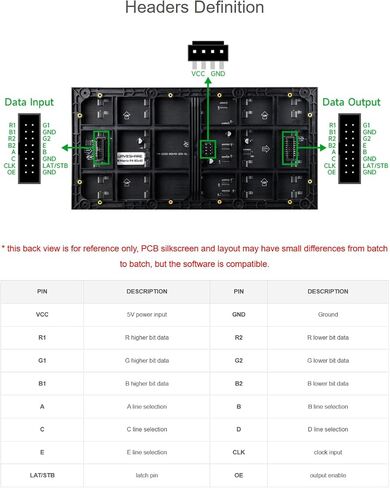

Header：HUB75
Power supply：5V / 4A (VH4 header input)
Power：≤20W

Package Content
It is recommended to used with a 5V 4A power supply
RGB-Matrix-P4-80x40 LED matrix x1
VH4 2P cable 500mm x1
16PIN 2.54mm pitch flat cable 200mm x1
2 × 8PIN 2.54mm pitch cable 300mm x1
Power supply terminal adapter x1
Screws pack x1
