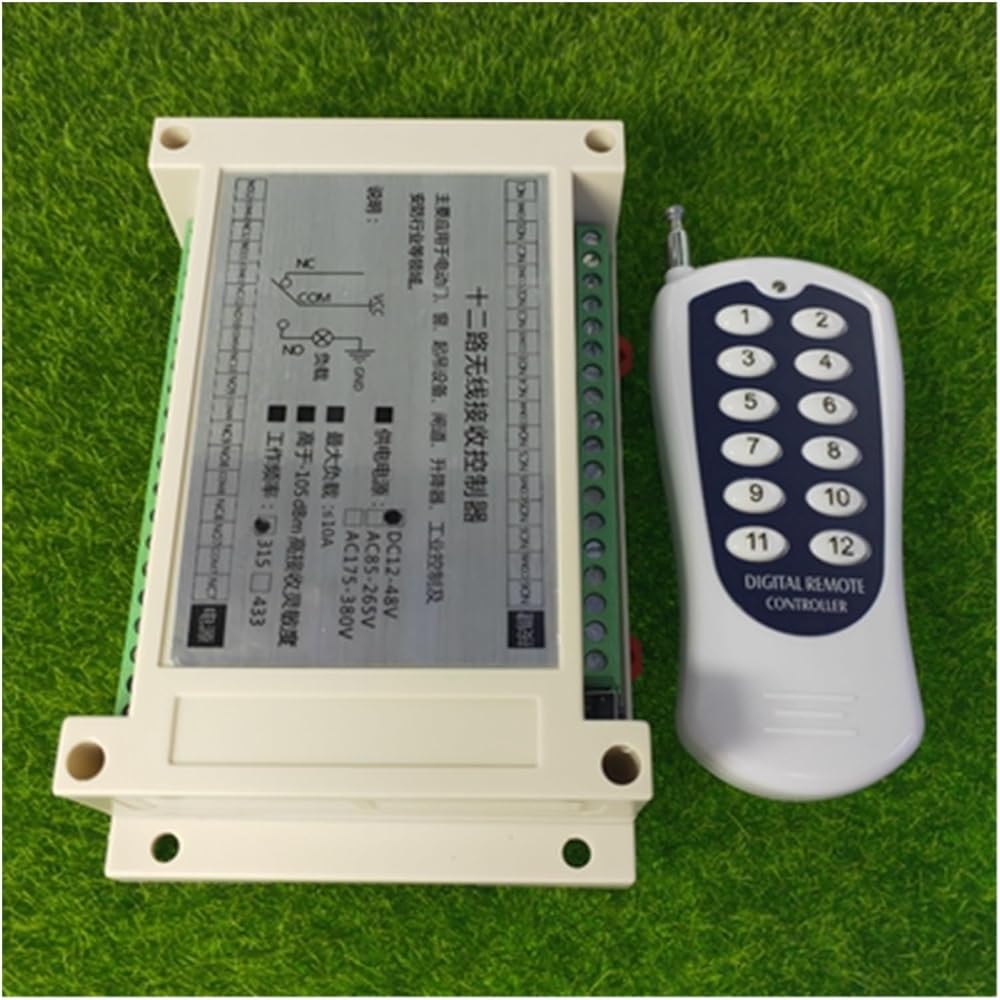

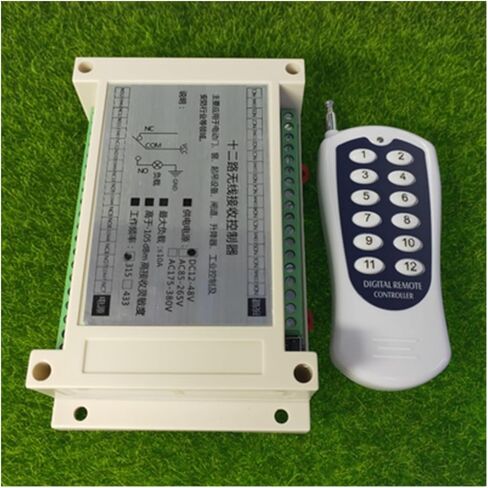

Product type: 12-channel remote control
Model: AK-12S-220
Working voltage: AC220V
Number of channels: 12
Power supply: DC12-48V, AC85-265V, AC175-380V
Frequency: 315MHz/433MHz (default 315MHz, please tell me if you need 433MHz)
Load power: Maximum 10A per channel
Receiving sensitivity: higher than -105dBm
Working mode: instantaneous/self-locking/interlocking, 3 modes
Installation method: standard DIN rail or screw installation
Application areas: electric doors, windows, lifting equipment, gateways, elevators, industrial control and security, etc.
Operating mode
1. Momentary mode: Press and hold button No. 1, and the first relay will close. Release button 1 and the relay turns off. The same goes for buttons 2-12, they are independent.
2. Self-locking mode: Press and release button 1, the first relay is turned on. Press and release again and the relay turns off. The same goes for buttons 2-12, they are independent.
3. Interlocking method: Press button 1, the first relay is ON, and relays 2-12 are disconnected. One channel is open and the other channels are closed.
study method
1. Operation steps
1) Press the learning button of the receiving module and the buzzer will sound, indicating that it has entered the learning mode.
2) Press any key on the remote control and the buzzer stops sounding, indicating successful learning.
2. Different mode settings (enter learning mode)
Press button 1: all channels instantaneous
Press button 2: All channels are interlocked
Press button 3: all channels self-lock
Button 4: Channel 1-6 instantaneous, channel 7-12 interlocking
Button 5: Channels 1-6 are instantaneous, channels 7-12 are self-locking
Button 6: Channel 1-4 instantaneous, channel 5-12 interlocking
Press button 7: Channels 1-4 are instantaneous, channels 5-12 are self-locking
Button 8: Channels 1-4 self-locking, channels 5-1
