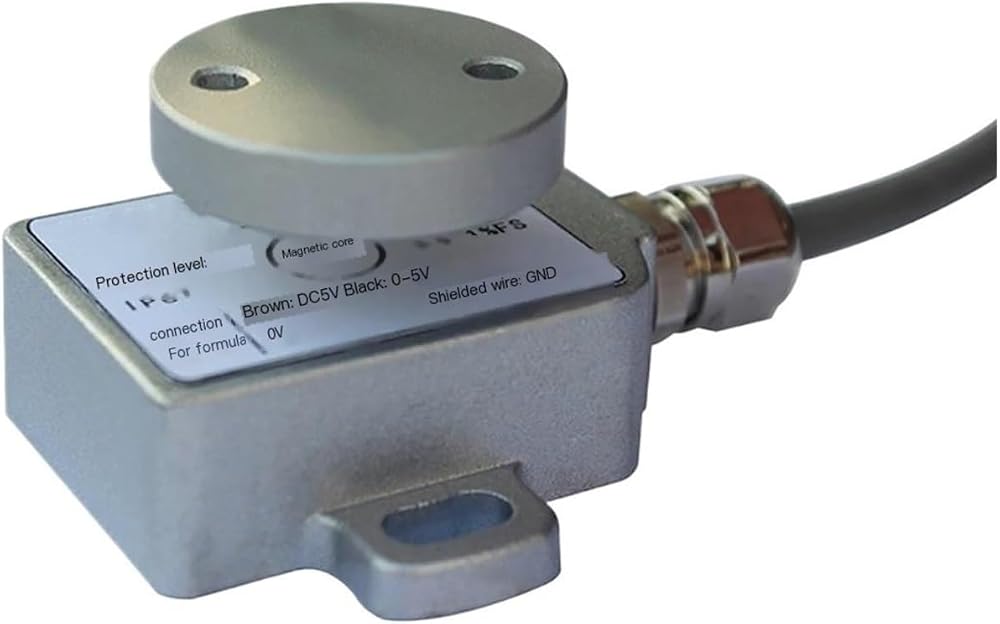

WOA-B Hall Sensor عدم الاتصال 0-355 درجة محول الطاقة الزاوي (WOA-B-V2 0-10V) in Kuwait

WOA-B-A 4-20 مللي أمبير

KWD 117
مقاسWOA-B-A 4-20 مللي أمبير
– 1 +

مميزات خاصة

  • sensor
  • Pressure Sensors
  • measuring the bearing and machine Reciprocating motion
  • compact size easy to instal for the sensor
  • suitable for industrial machinery and automation applications
  • Easy to install draw wire encoder suitable for various industries such as rail systems

وصف

sensor
Model
WOA-B/WOA-C
Measuring range
0-355°
Independent Linearity
±0.1%FS
Output Signal
(Power supply +DC 12-24V) 0-10V 4-20mA
(Power supply +DC 5V) 0-5V
Repeatability
0.01
Temperature drift
9ppm/
Working Temperature
-40-+85
Maximum Speed
10000rpm
Protection Grade
IP67
Product dimensions
Mode of connection(WOA-B/WOA-C)
Positive pole +DC 5V or 12 -24V
Black :Output 0-5V 0-10V 4-20MA
Blue:Negative pole 0V
Shielded line:GND
==========
Theory : Hall Sensor
Usage : Position Sensor
Model Number : WOA-B
Material : Metal
Type : Magnetic Sensor
Output : Analog Sensor
Measuring range : 0-355
Independent linearity : ±0.1%
Output signal : 0-5V 0-10V 4-20mA
Repeatability : 0.01 degree
Temperature coefficien : 9ppm/
Operating speed : 10 000rpm
Protection class : IP67
