Description

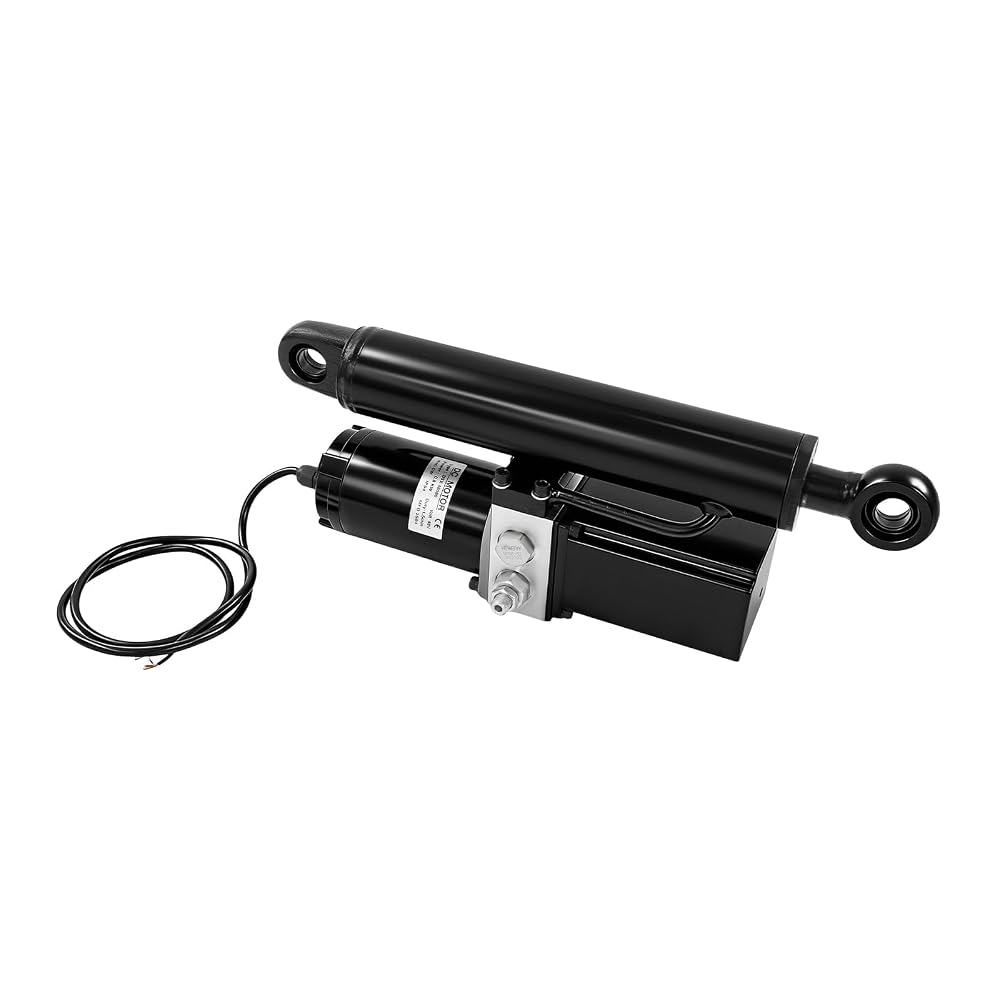

This industrial electro hydraulic actuator combines electric drive and hydraulic transmission to provide stable linear motion for heavy duty applications. It is designed for machinery that requires controlled force output and reliable reciprocating movement. With strong load capability and smooth hydraulic operation, it is widely used in industrial equipment such as lifting systems, agricultural machinery, and automation structures.

Details

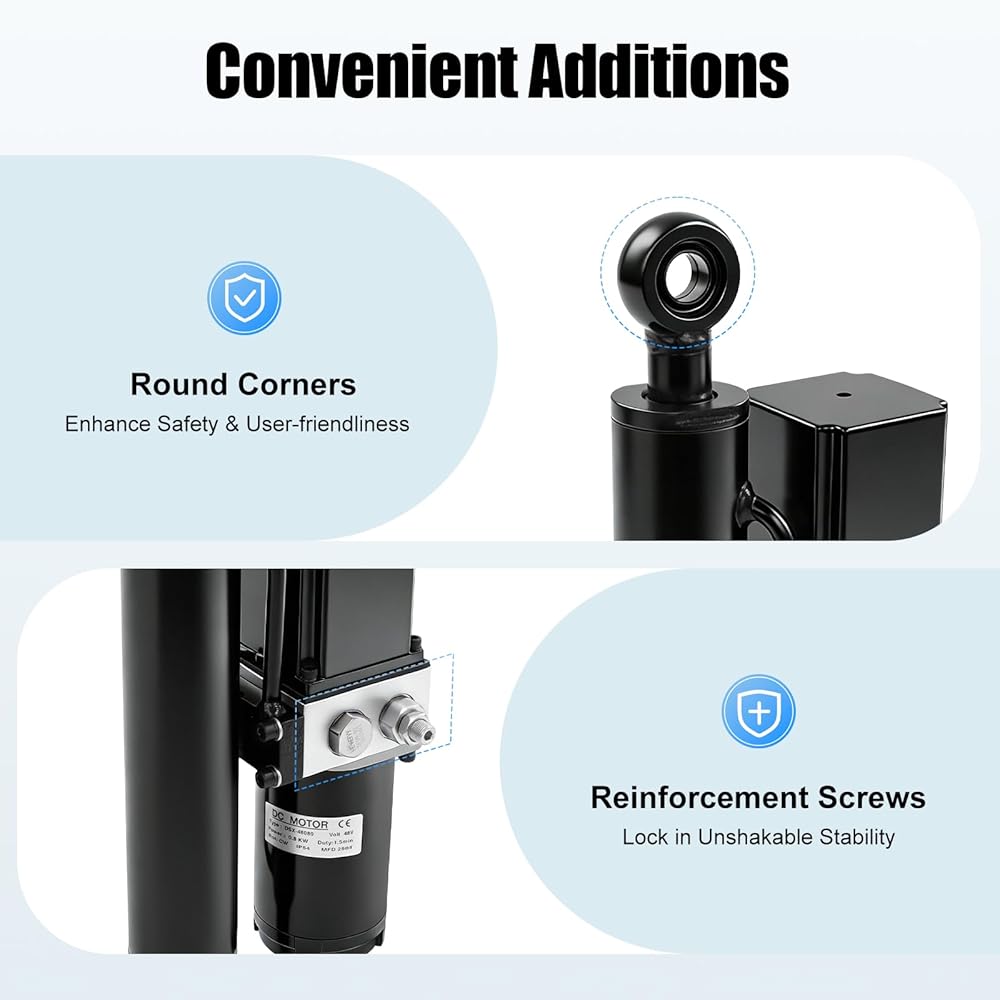

Thoughtful Reinforcement Screws: The strategically placed screws enhance structural stability and help extend the product's lifespan.

Gentle Rounded Edges: Smooth edges help protect your hands during installation and cleaning for a more comfortable experience.

Specifications

Color: Black

Material: Steel, Copper

Process: Finishing

Voltage: DC12V

Power: 800W

Speed: 2850rpm

Displacement: 0.65cc

Loading Speed: 25mm/0.98in/s

Max. Thrust in Straight Direction: 2T/4409 lbs

Support Force: 2T/4409 lbs

Max. Load Capacity: 2T/4409 lbs

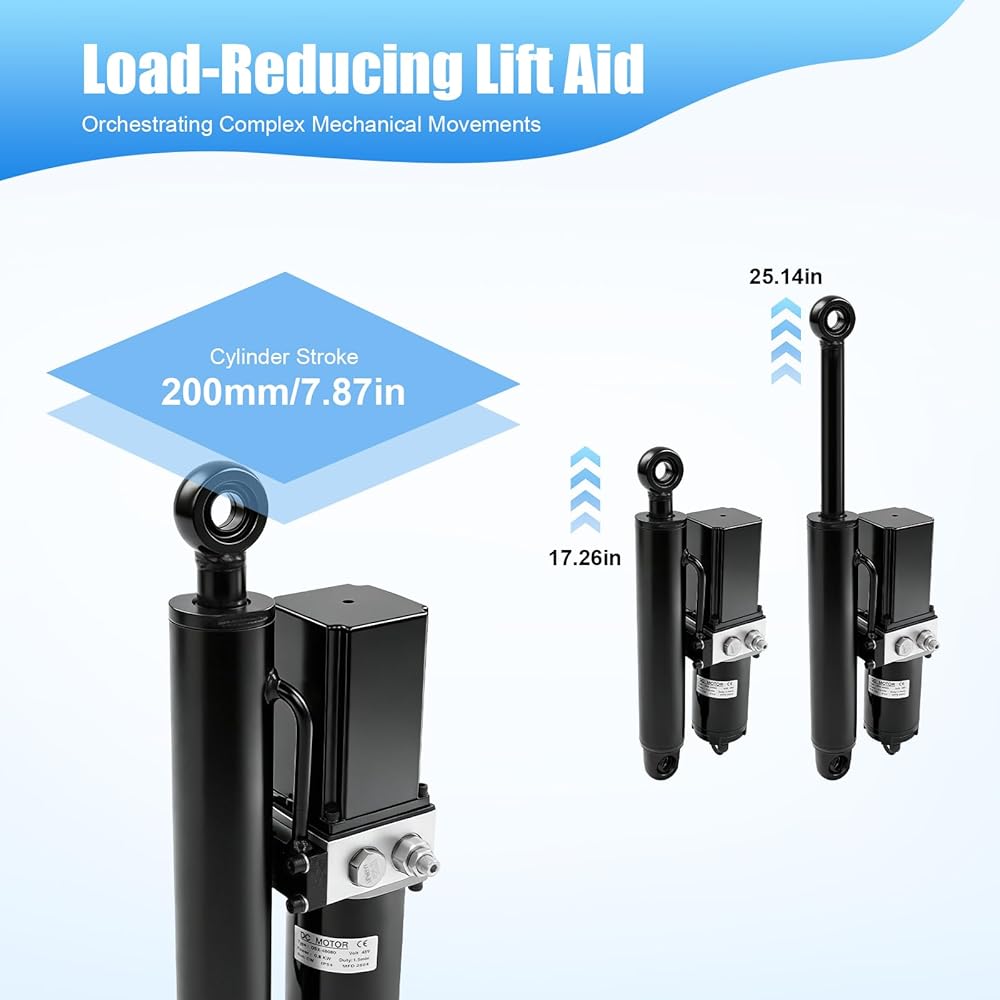

Cylinder Stroke: 200mm/7.87in

Cylinder Diameter: 50mm/1.97in

Center Distance between Two Holes: 38.5cm/15.16in

Rod Diameter: 28mm/1.1in

Bore Diameter: 16mm/0.63in

Use Frequency: 2.5Min Work, 2.5Min Intermittent

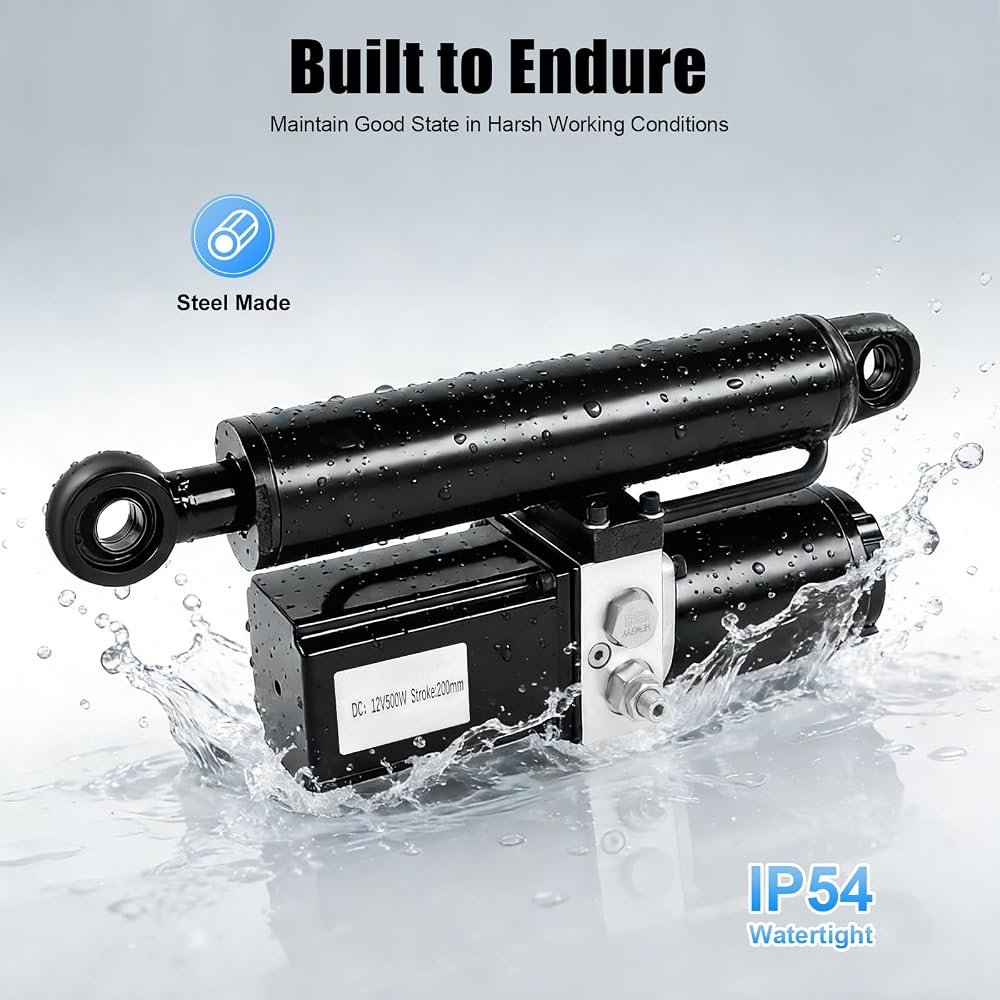

Waterproof Rating: IP54

Product Width: 16cm/6.3in

Retracted Length: 43.85cm/17.26in

Extended Length: 63.85cm/25.14in

Package Size: 60*20*13cm/23.62*7.87*5.12in

Gross Weight: 15kg/33.07lbs

Net Weight: 12kg/26.46lbs

Package Included

1* Electro-hydraulic Actuator

All Accessories for Use

Notes

Please check the specifications before purchasing.
