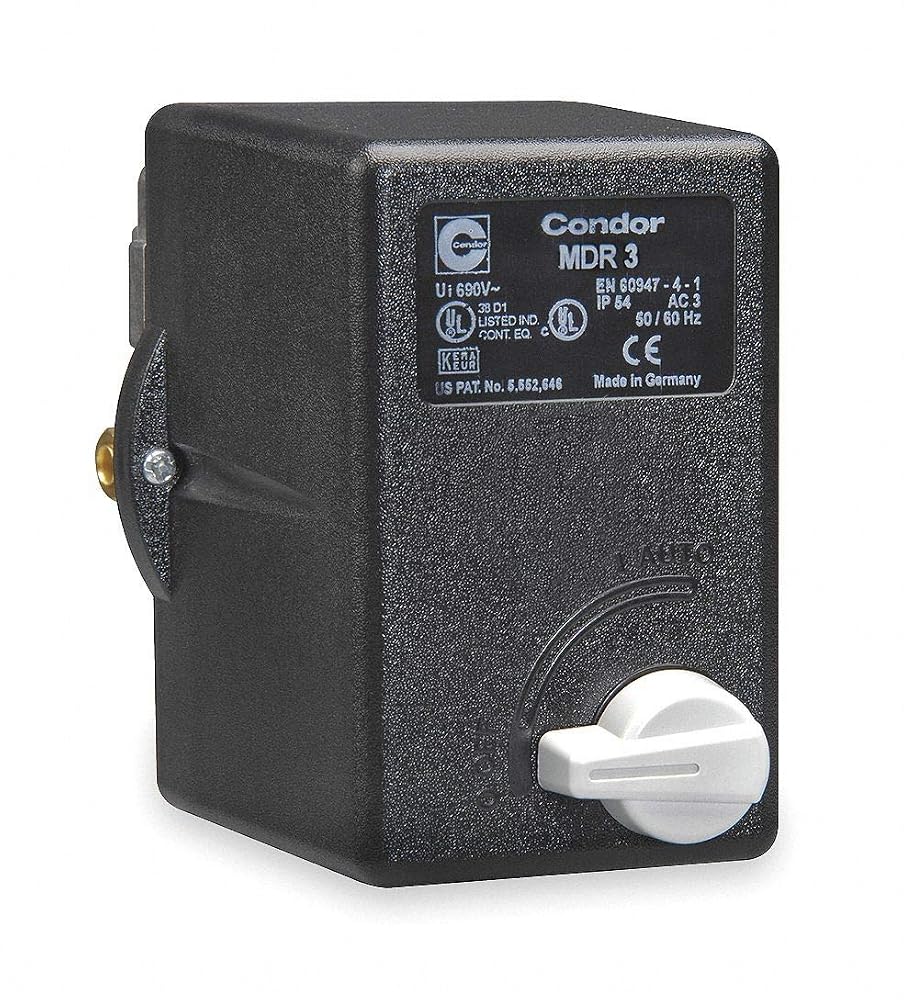

This pressure switch is designed for use with air compressors. It features an actuation-type diaphragm.

Item: Pressure Switch
Pressure Switch Application: Air Compressor
Manual Switch Action: Auto/Off
Pressure Switch Port Type: (1) Port, 3/8" FNPT
Pressure Switch Factory On/Off Setting: 140/175 psi
Pressure Switch Unloader: 1/4" Compression
Pressure Switch Differential: 30 to 110 psi
Pressure Switch Range: 60 to 232 psi
Pressure Switch Electrical Contact Form: 3PST
Pressure Switch Action: Standard
NEMA Rating: 1
Series: MDR3
HP @ 1 Phase - 120V: 2
HP @ 1 Phase - 240V: 5
HP @ 3 Phase - 240V: 7-1/2
HP @ 3 Phase - 480V: 15
Temp. Range: -22 Degrees to 257 Degrees F
Standards: UL Listed, CSA and CE Certified
Special Features: 7.5 (11) kW Switching Capacity, 35 Bar Maximum Cut-Out Pressure
AC Contact Rating: 30A @ 240V
