Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging in Kuwait

Roughness Tester, Surface Roughness Test Device, Measuring Range Ra/rq 0.05~15.0 Μm, Rz/rt 0.1~50.0 Μm, High Accuracy 0.01 Μm, for Surfaces Profile Gauging

KWD 247.500
– 1 +

Special Features

  • 【0.01μm High Precision Measurement】Portable roughness tester with high-precision sensor & DSP chip, resolution up to 0.01μm. Test range: Ra/Rq 0.05~15μm, Rz/Rt 0.1~50μm for precise surface finish inspection
  • 【4 Parameters & Wide Compatibility】Supports Ra/Rz/Rq/Rt four core parameters. Works on flat, round, cone & grooved surfaces over 80×30mm, ideal for auto, aerospace, electronics & medical manufacturing
  • 【Sturdy Anti-interference Aluminum Shell】Integrated aluminum mold casing improves anti-electromagnetic interference, durable for harsh factory on-site detection and lab testing
  • 【USB Rechargeable Li-ion Battery】Built-in lithium battery supports charge while using; universal USB port for charging & data transfer, low-power auto-off design for long field runtime

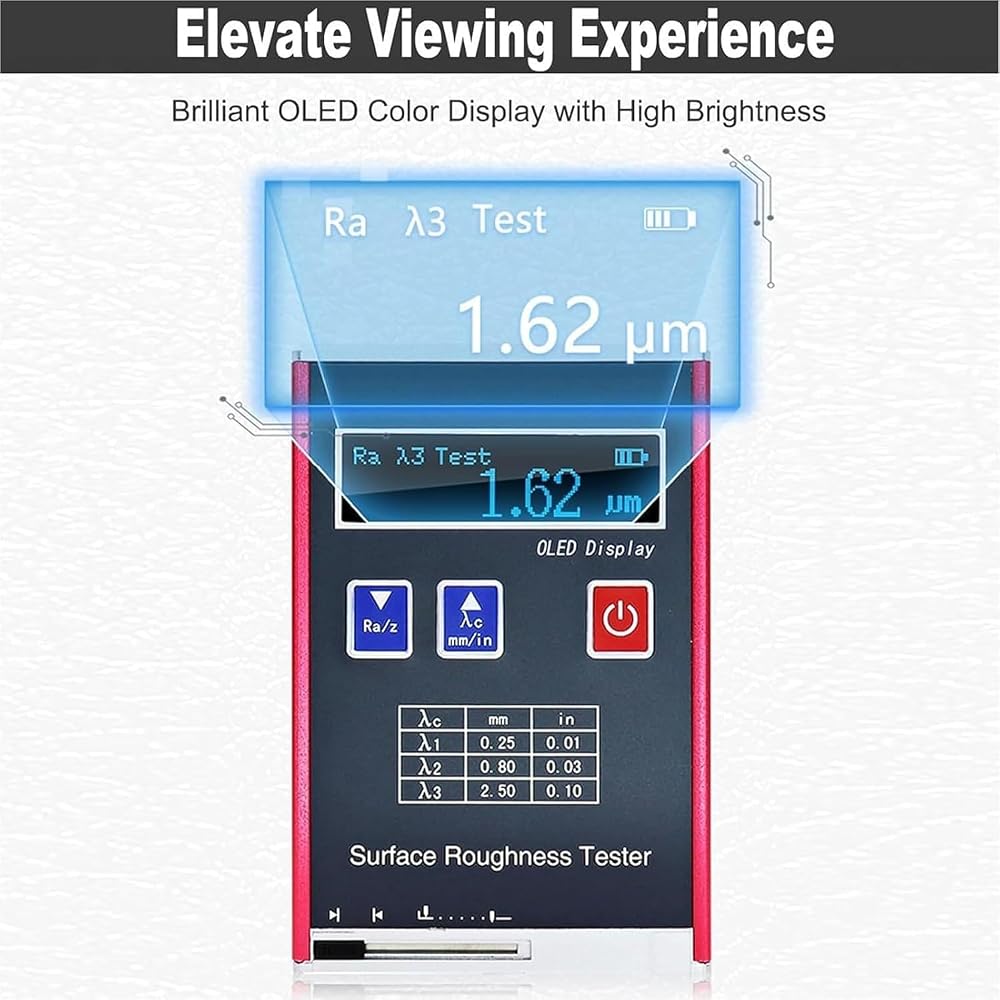

  • 【Clear OLED Screen】High-brightness full-view OLED displays data & battery in real time. Your Comprehensive Solution for Manufacturing, Engineering, Automotive, Aerospace, Electronics, Materials Research, and Medical Device Manufacturing

Description

The Surface Roughness Tester is equipped with a built-in high-capacity lithium battery, allowing for both charging and operation. It features a universal USB interface for easy data transfer and charging directly to your computer.

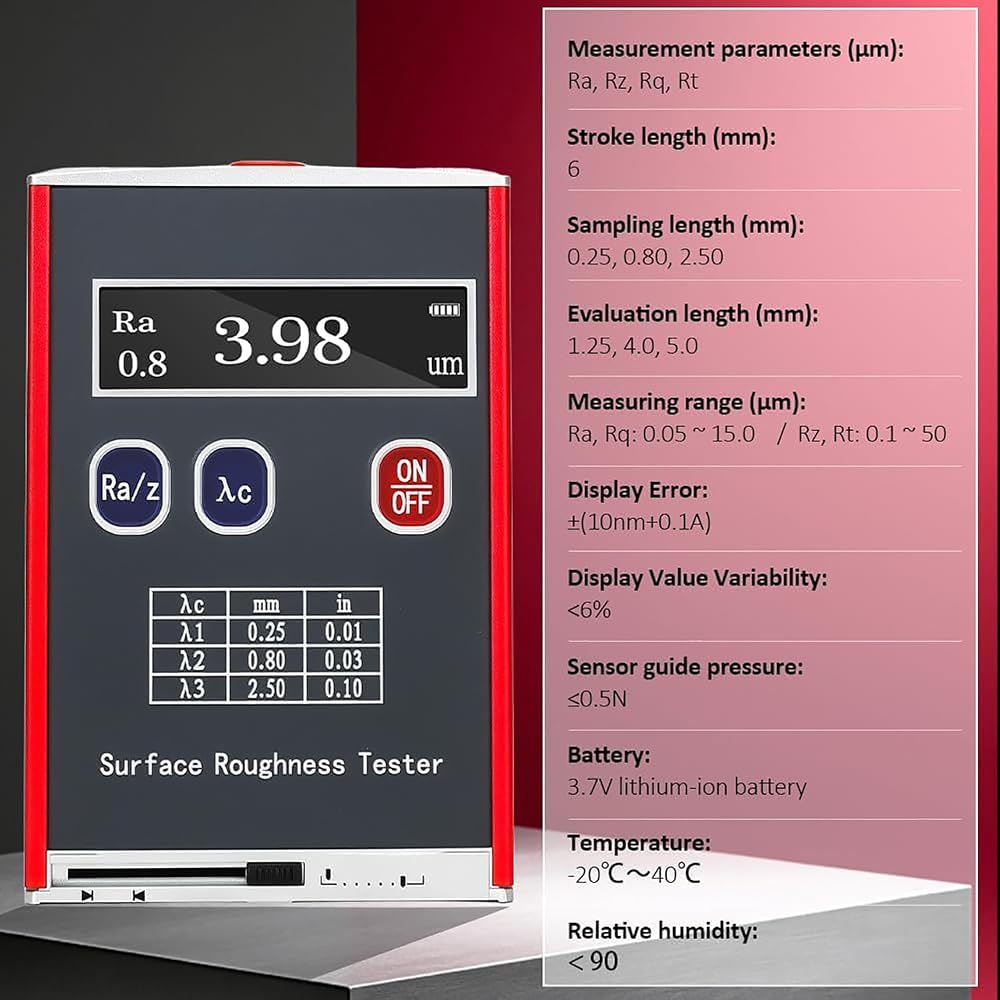

Specifications:
- Measurement Parameters: Ra, Rz, Rq, Rt
- Stroke Length: 6 mm
- Sampling Lengths: 0.25 mm, 0.80 mm, 2.50 mm
- Evaluation Lengths: 1.25 mm, 4.0 mm
- Measuring Range: Ra, Rq: 0.05~15.0; Rz, Rt: 0.1~50
- Indication Error: ±10%
- Indication Variability: - Sensor Stylus Needle Tip Arc Radius: 10 um ± 1 um
- Angle: 90°
- Sensor Stylus Static Force: 0.016 N
- Force Change Rate: 800 N/m
- Power Supply: 3.7V Lithium-ion Battery

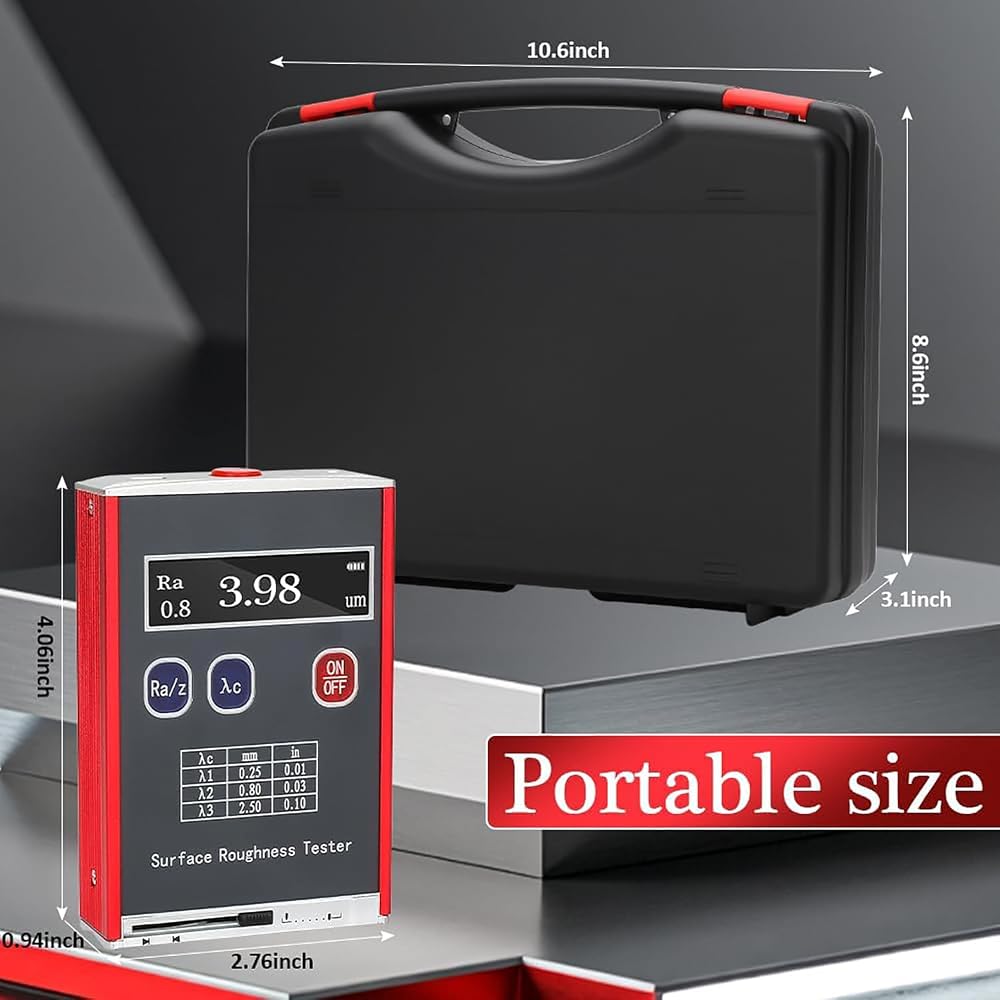

- Dimensions: 106 x 70 x 24 mm

Included in the package:
- 1x Surface Roughness Tester
