CPLD

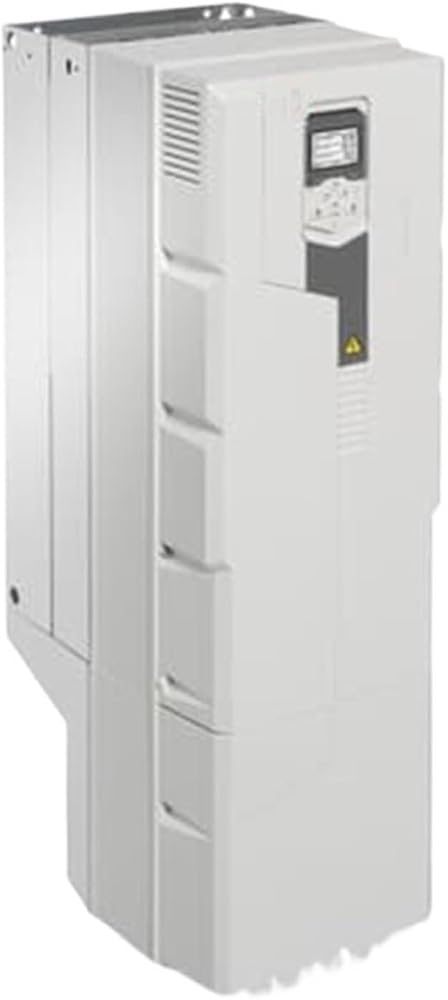

Inverter
Product Description:
Number of Phases:3
Degree of Protection:IP21
Enclosure Type :Type1
Altitude:1000 m
Operating Humidity (RHamb):95
Sound dB (A):65 dB(A)
Multiple Battery Information:Lithium Coin CR2032 220 mAh 3 V 1 pc 3 g
Frequency (f):47.5 ... 63 Hz
Frame Size:R8
Input Voltage (Uin):380 ... 480 V
Mounting Type:Wall-mounted
Communication Protocol:CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIBUS
PROFINET IO
TCP/IP
Number of Hardware Interfaces:Industrial Ethernet 0
Other 2
Parallel 2
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1
Includes:Control unit
PC connection
Analog Inputs:2
Analog Outputs:2
Number of Digital In/Outputs:6 / 3
Output Current Heavy-Duty Use (IHD):246 A
Output Current Light-Overload Use (ILD):278 A
Output Current Normal Use (In):293 A
Output Power Heavy-Duty Use (PHD):132 kW
Output Power Light-Overload Use (PLD):160 kW
Output Power Normal Use (Pn):160 kW
Apparent Power Output:203 kV.A
Efficiency Level:IE2
Standby Loss:47 W
