End Mills

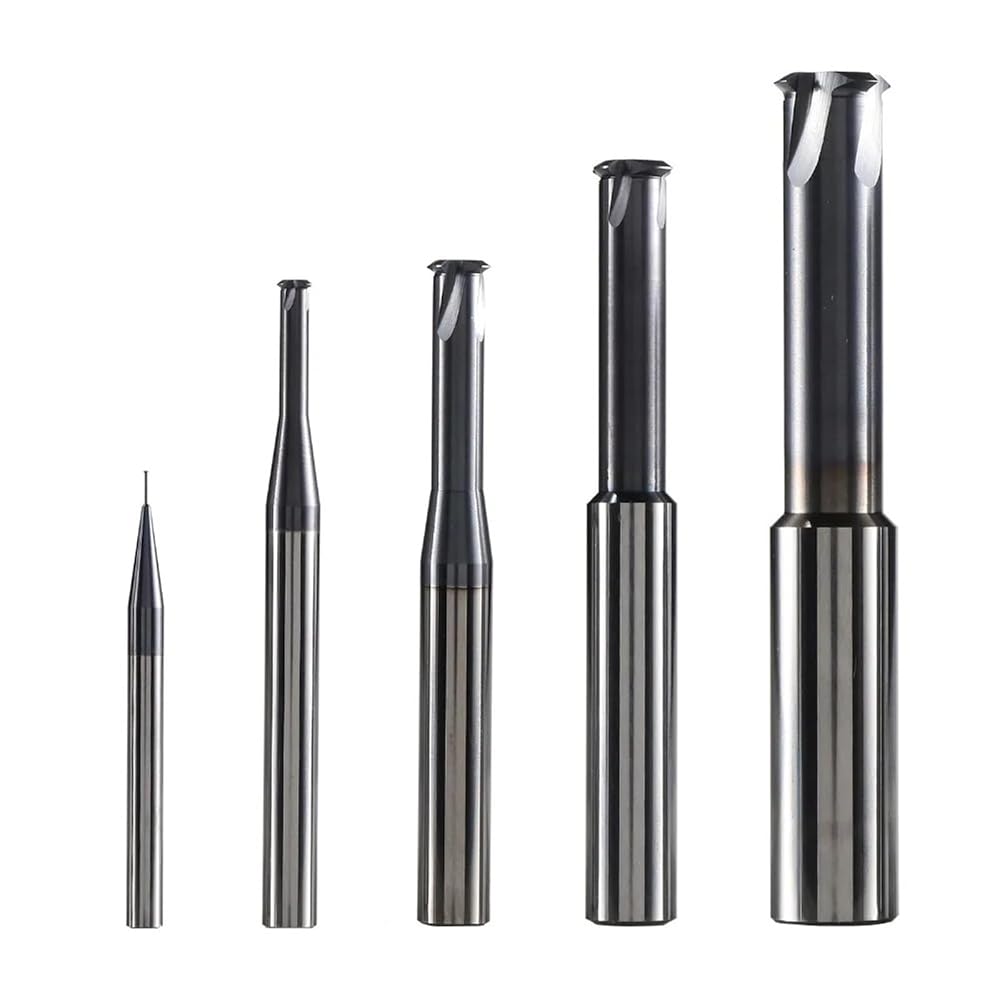

Carbide Thread End Mill Single Flute Threading End Mills Cnc Thread Milling Cutter Boring Cutter Replace Taps For Metal 1Pcs
suitable material:Al, copper,cast iron, steel,stainless steel, hard steel, mould steel,heat threated steel, Ti alloy etc.
Processing example:
tool type: TRS-P0.5-P1.25-H6
workpiece material: 4Cr13
Rotating speed: 3500r/min
Feed speed: 100
3 cuts for one thread.
Diameter : d0.7/d3.9/4.85/5.9/7.9/9.8/9.9/12/14
Coating : TIAIN
Model Number : d0.7/d3.9/4.85/5.9/7.9/9.8/9.9/12/14
Type : Thread Mills
Material : Carbide
Overall Length : 52/70/70/72/75/75/83/92
End mill category : Machining hardened material
cnc tool type : boring cutter
type : thread end mill
shank diameter : 4/6/6/8/10/10/12/14mm
Length of working distance : 16/20/25/32/35/38/45/48mm
Machining operation : threading
Applicable workpiece material : Pre-hardened steel / Hardened steel / Cast iron / Nodular cast iron
is_customized : Yes
teeth diameter : d0.7/d3.9/4.85/5.9/7.9/9.8/9.9/12/14
working thread : single and multifunction type threading mill
application : replace taps
