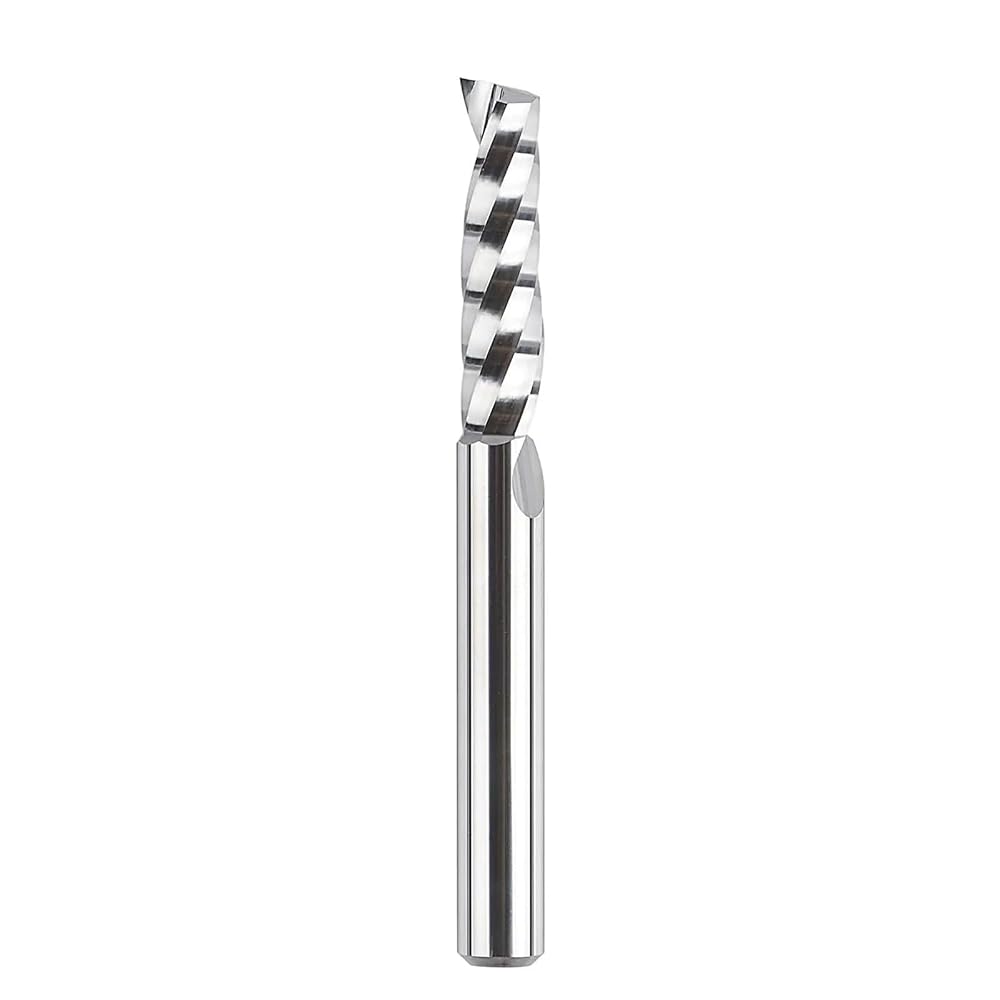

Spiral End Mill Milling Cutter 3D Engraving Carving Bit For Woodworking Acrylic ACM Al Milling 1-12mm 1Pcs
Notice:
(1) the real cutting diameter is smaller than the marked diameter 0.05mm, it is specially designed like this, not caused by error or tolerance.
(2) The tolerance is ±0.005mm.
Description:
Type: Single Flute Spiral Solid Carbide End mills;
Made of: Solid Carbide;
Shank Diameter: 3.175mm 4mm 5mm 6mm,8mm,10mm,12mm
Best Suitable Materials: Acrylic,plastices Aluminum composite panel ,ACM,alucobond, MDF, Aluminum
could also suitable on below materials:
(1) MDF, particle board, board with lagging, log, affixed to the skin panels;
(2) Acrylic, PVC, resin, plastic, chipboard, composite board, melamine board;
(3) Solid wood, native wood, plywood, plate;
Applied to:
CNC Router Machining Center, Woodworking Machine, Advertising CNC Router, etc;
Features:
(1) Excellent combination of upper and lower blades, SHARP cutting edge;
(2) High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
(3) No burrs for Up and down spiral machining;
(4) High performanc, improve the work efficiency, reduce cost;
Diameter : 3.175mm 4mm 5mm 6mm
Model Number : spiral end mill SP1F Milling Bit
Type : Flat End Mills
Material : Carbide
Overall Length : 38mm 50mm,75mm,100mm
Flute : single O Flute Milling Bit
working material : Aluminum Acrylic, Plastic, All kind of Wood
shank diameter : 3.175mm 4mm 5mm 6mm,8mm,10mm,12mm
cutting diameter : 1mm-12mm
