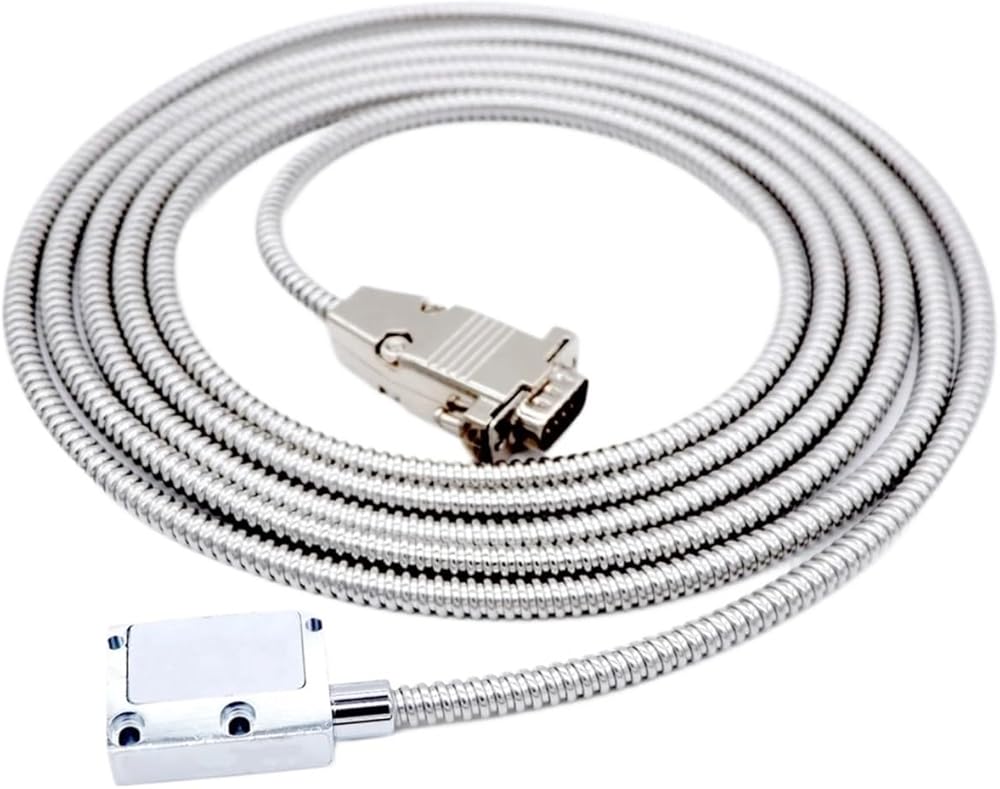

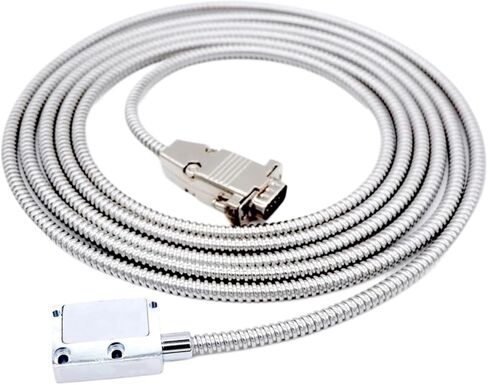

آلة Mlling قراءات رقمية شبكة مغناطيسية 5VDC 0.005 مللي متر خطي مغناطيسي/مسطرة/مستشعر/إزاحة التشفير (1 مللي متر-1000 مللي متر) in Kuwait

4001 مم -5000 مم

KWD 225
ماركة
QQAMOGNNK
وزن
349 g
مقاس4001mm-5000mm
– 1 +

مميزات خاصة

  • Sensors
  • Widely used and it has stable performance
  • Vertical five bearings sliding system smooth and accurate movement
  • High integration makes the performance be stable
  • The product has a large detection range
  • Industrial Standard Output Signal Interface

وصف

Sensors
Pole pitch5+5mm
Magnetic LengthMax32M
Available resolutions5 m
Accuracy± 30 m
Sensor - magnetic band gap0.1 - 0.5
Reference signalat constant pitch of 1 mm (C)
Repeatability± 1 increment
OutputTTL
Power supply5 Vdc ± 5%
Max. frequency300 kHz
Max. speed2m/s
Protection classIP 67
==========
Model Number : magnetic
Certification : CE
Power : +5V DC (+/-5%) / 24V(PLC)
Current consumption : 150mA (typical)
Output signal : TTL
IP protection class : IP67
Operating temperature : 0 - 50 degree
Travel(measuring) length : 0-3 meters
Accuacy : +/-30um
Cable length : 3 Meter
