Description

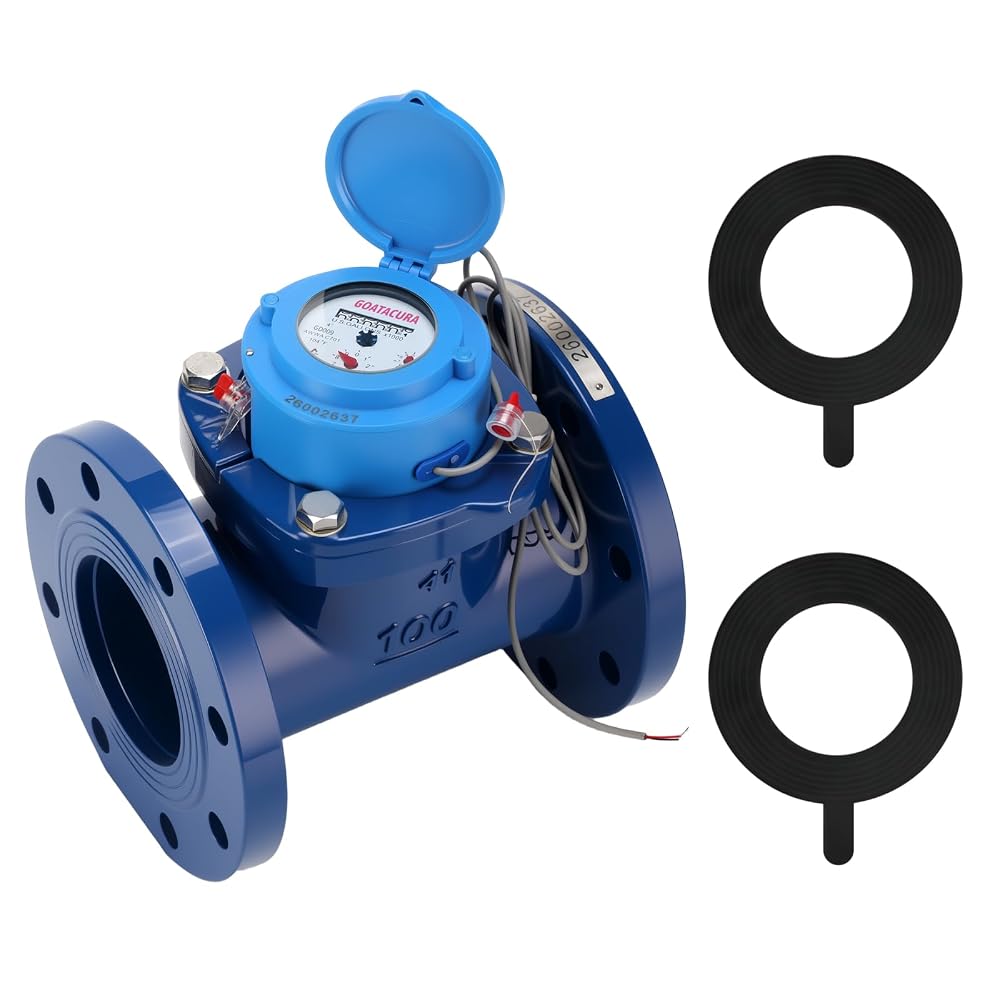

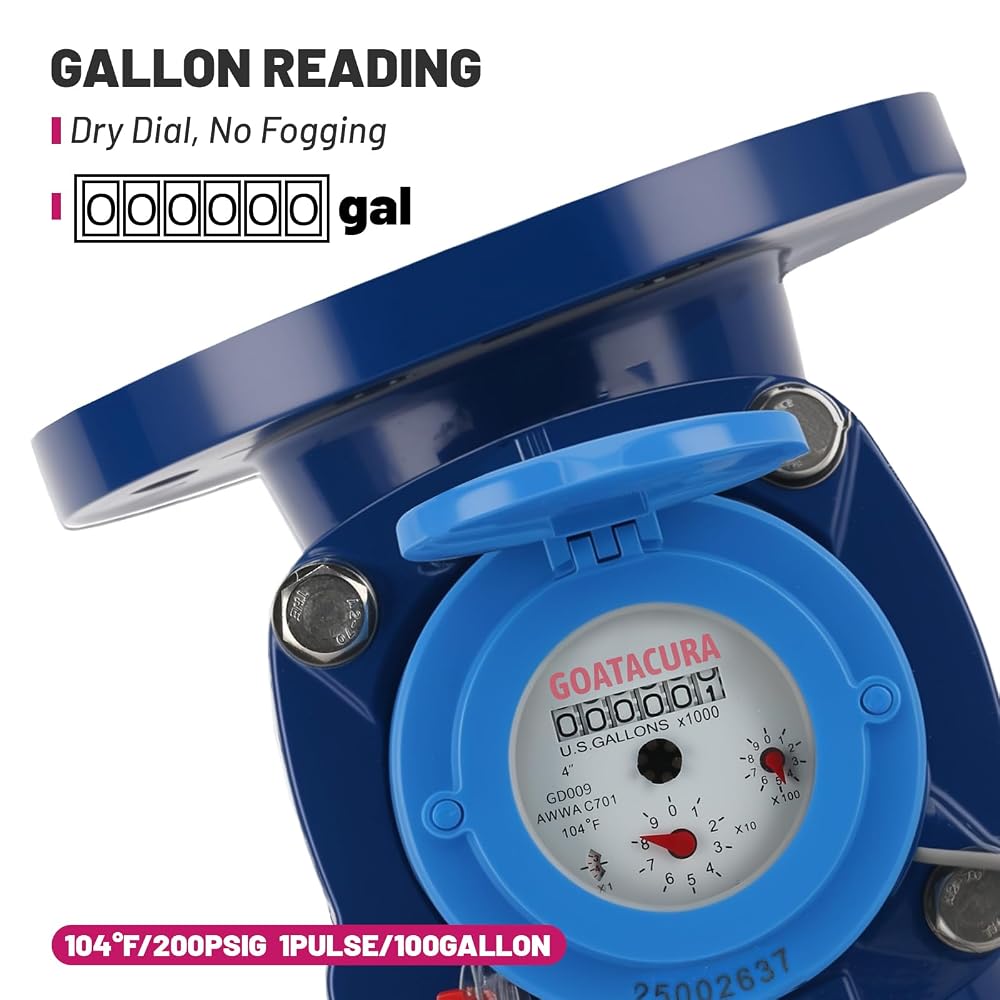

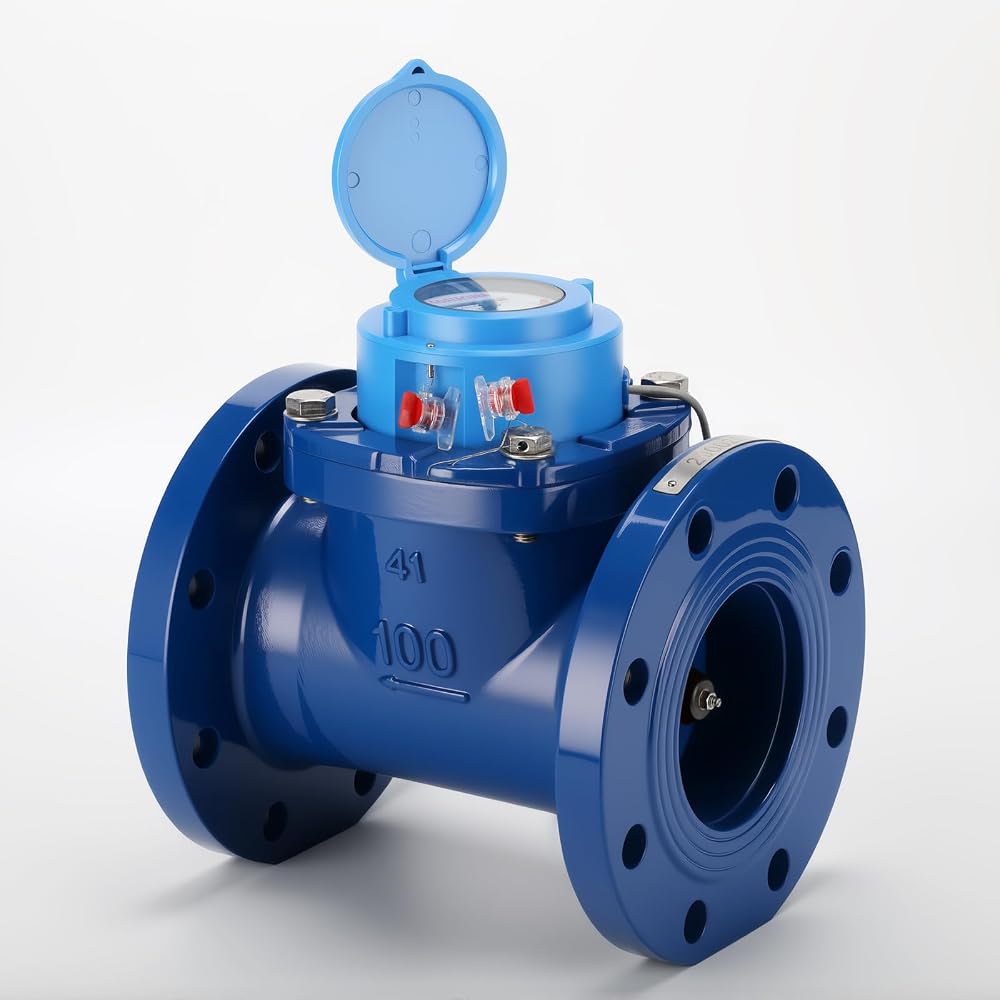

GOATACURA 4” Woltmann helix water meter is specifically engineered for industrial cold water applications where accuracy, durability, and low maintenance are critical. The helical-blade rotor design provides excellent accuracy across a wide flow range with minimal pressure loss. The magnetic drive eliminates mechanical seal leakage, while the dry dial register ensures fog-free, clear reading even after years of service.

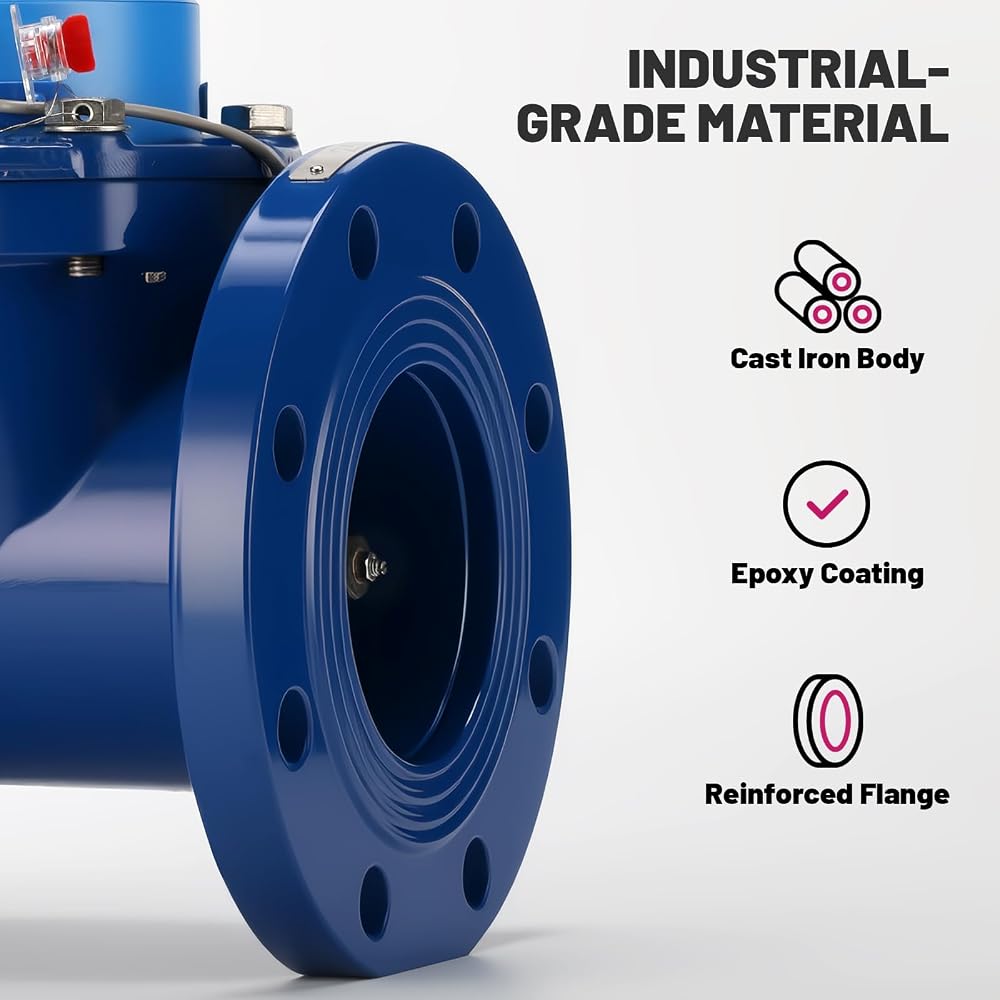

The epoxy-coated cast iron body is built to withstand harsh factory environments – impact, humidity, and mild chemicals. All wetted parts are corrosion-resistant. The meter includes a factory-calibrated pulse output (reed switch, 1 pulse/100 gal) with a 1.5m two-conductor cable, ready to connect to your existing monitoring infrastructure.

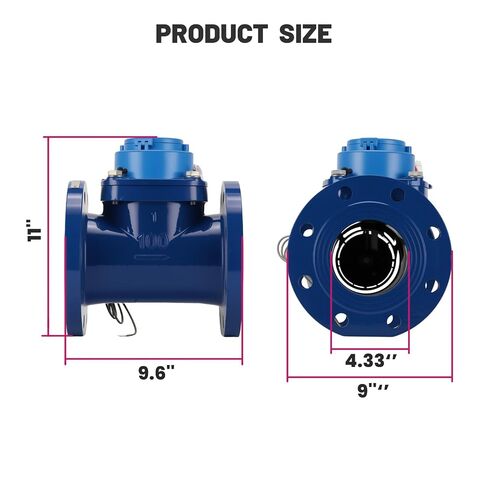

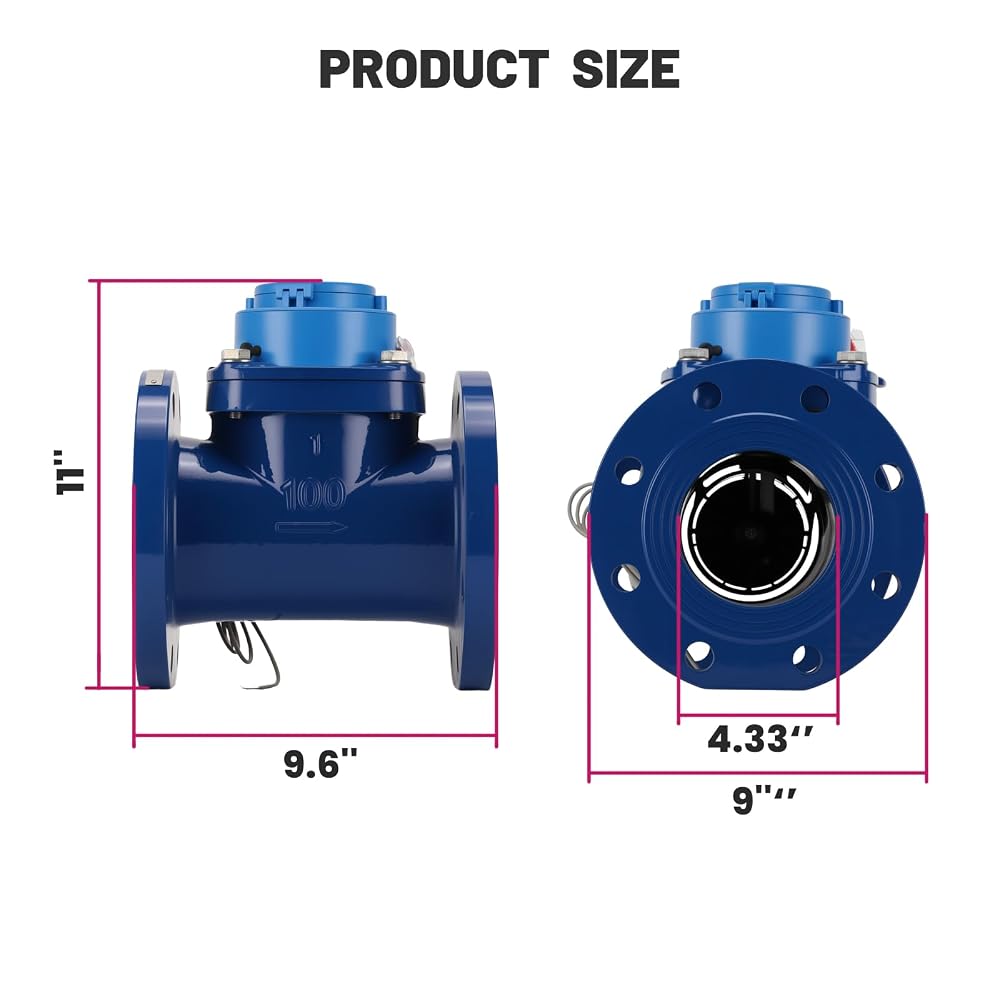

Size: 4" (DN100)
Readout: Gallon
Max Flow Rate (Qmax): 350 GPM
Nominal Flow Rate (Qn): 90 GPM
Min Flow Rate (Qmin): 15 GPM
Transition Flow Rate (Qt): 30 GPM
Accuracy (Cold Water): ±2% at Qn & Qmax, ±5% from Qmin to Qt
Max Pressure: 200 PSIG
Temp Range: -20°F to 150°F
Body Material: Epoxy-coated cast/ductile iron (blue)
Register Material: ABS
Seal Material: NBR
Pulse Output: Reed switch, 1 pulse / 100 gal
Cable: 1.5m (59") 2-conductor, red/black, 3.5mm OD
Max Switching: 24V AC/DC, 0.01A
