One-Pass Thread Forming for High Efficiency: No repeated passes—Multi-profile cutter creates complete, Each cutter is CNC ground to exact specifications for a FIXED pitch sizes and supporting both right-hand and left-hand threads.. This precision guarantees consistent thread size across every use,perfect for high-volume production or batch work.
Heat-Resistant AlTiN Nano-Coating: Engineered for extreme environments, the AlTiN coating provides a thermal barrier that allows for high-speed machining. Efficiently mill hardened steels,carbon steel, alloy stee,cast iron,aluminum, copper, chrome-nickel alloys, and tool steels up to 55 HRC without sacrificing tool life.
Ultra-Precision Micro Threading: Specifically designed for Metric / UN /BSW threads,Perfect for internal and external 60° threads where micro-precision is non-negotiable, ensuring a superior surface finish in both ferrous and non-ferrous metals.capable of milling various pitch sizes and supporting both right-hand and left-hand threads. Maximize your shop's efficiency by using one tool for multiple intricate CNC threading applications.
Industrial-Grade Compatibility: Optimized for lathes, milling machines,Swiss-style lathes, high-speed CNC centers, and carving machines.precise thread forstructural parts, bolts, nuts manufacturing leak-proof seals on water pipe joints, valve interfaces, and pipeline fittings.

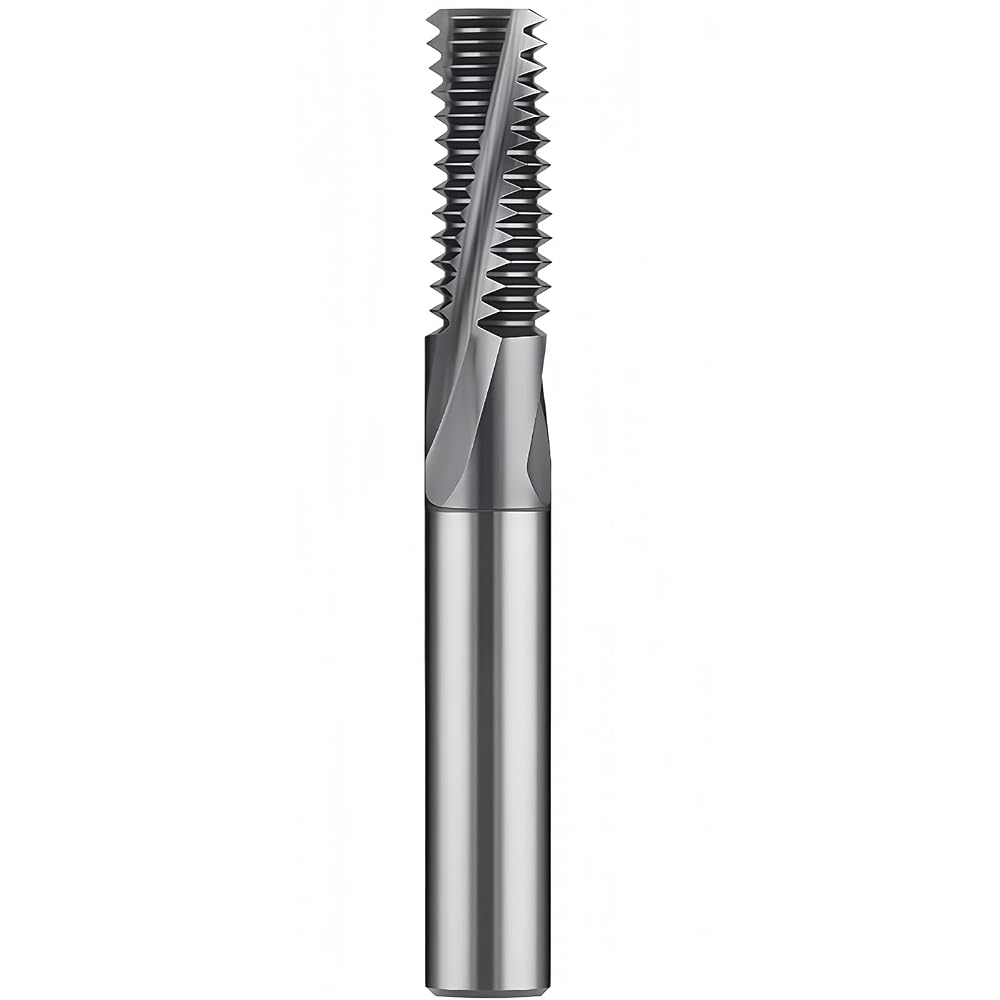

Thread Mill Size: 10-32 UNF / Cutter DIA. (D1): 0.149 inch (3.8mm) / Max Depth of Thread (L2): 0.393 inch (10mm) / Shank DIA. (D2):0.157 inch (4mm) / OAL (L1): 1.96 inch (50mm) / Flutes:4 / Package:1pc
Description
Why Machinists Choose This Thread Mill:
1 High-Accuracy Threading – Maintains tight tolerance for flawless metric threads.
2. Supporting both right-hand and left-hand threads. – Optimized for climb milling, reducing deflection and improving finish.
3. Full-Form Cutting Edge – Multi-profile cut larger threads of the same pitch
4. Internal & External Threading – One tool for both holemaking and external threading applications.
5. H6 Shank Tolerance – Ensures perfect concentricity in high-precision CNC holders.
