مميزات خاصة

【24 BIT RESOLUTION FOR READINGS】 The module converts analog sensor signals to 24 bit digital data; provides fine detail for weight, pressure, or force measurements; a useful resolution for projects that need accurate readings
【PROGRAMMABLE FROM 1 TO 128】 The built in amplifier can be set to different levels; adjust for small signals from load cells or larger signals from other sensors; a flexible feature for various input ranges
【TWO DIFFERENTIAL INPUTS FOR BRIDGE SENSORS】 The module accepts two differential input pairs; works with load cells, strain gauges, and pressure sensors; a practical for weight measurement and force sensing applications
【I2C INTERFACE FOR EASY CONNECTION】 Use two wires (SDA and SCL) to connect to microcontrollers; compatible with common I2C devices; a simple connection for,, and other boards
【SAMPLING RATE FROM 10 TO 320 SPS】 Choose a slow sample rate for low or a faster rate for quick changes; a configurable feature that fits different measurement needs; set the rate that works for your application

وصف

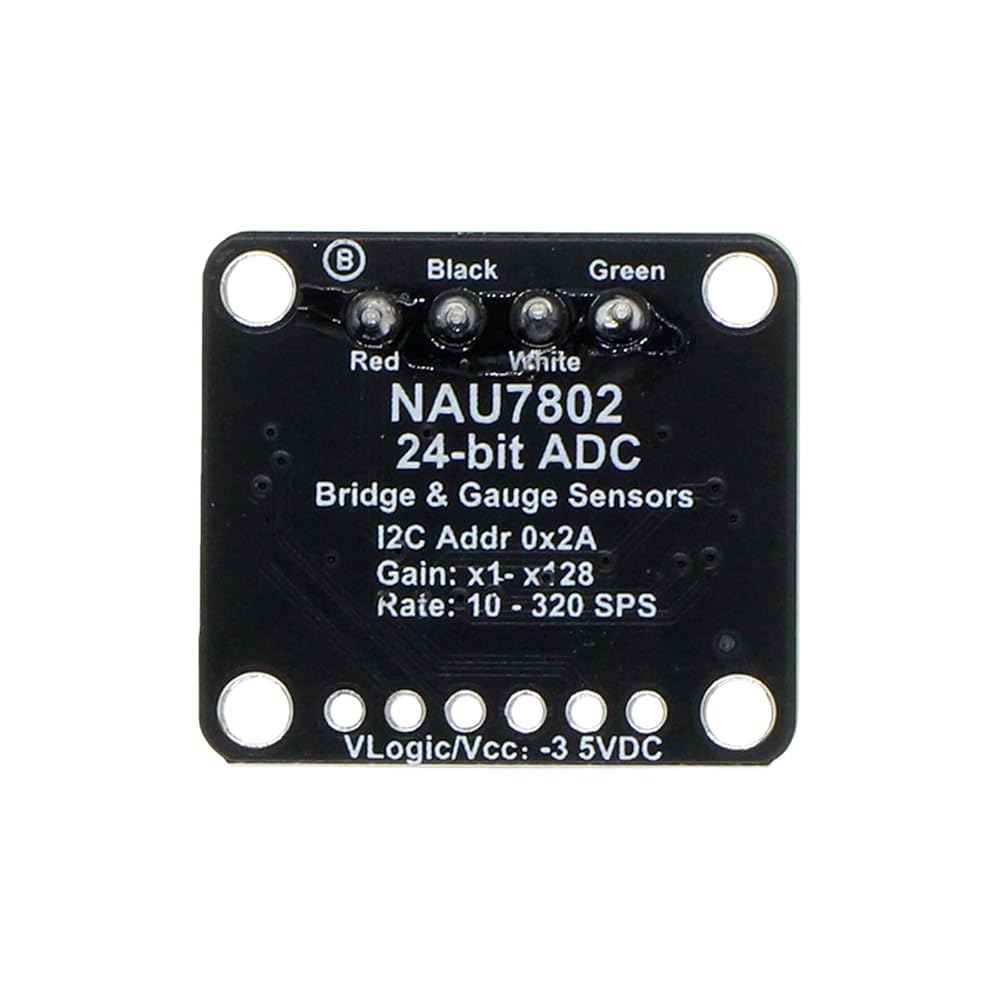

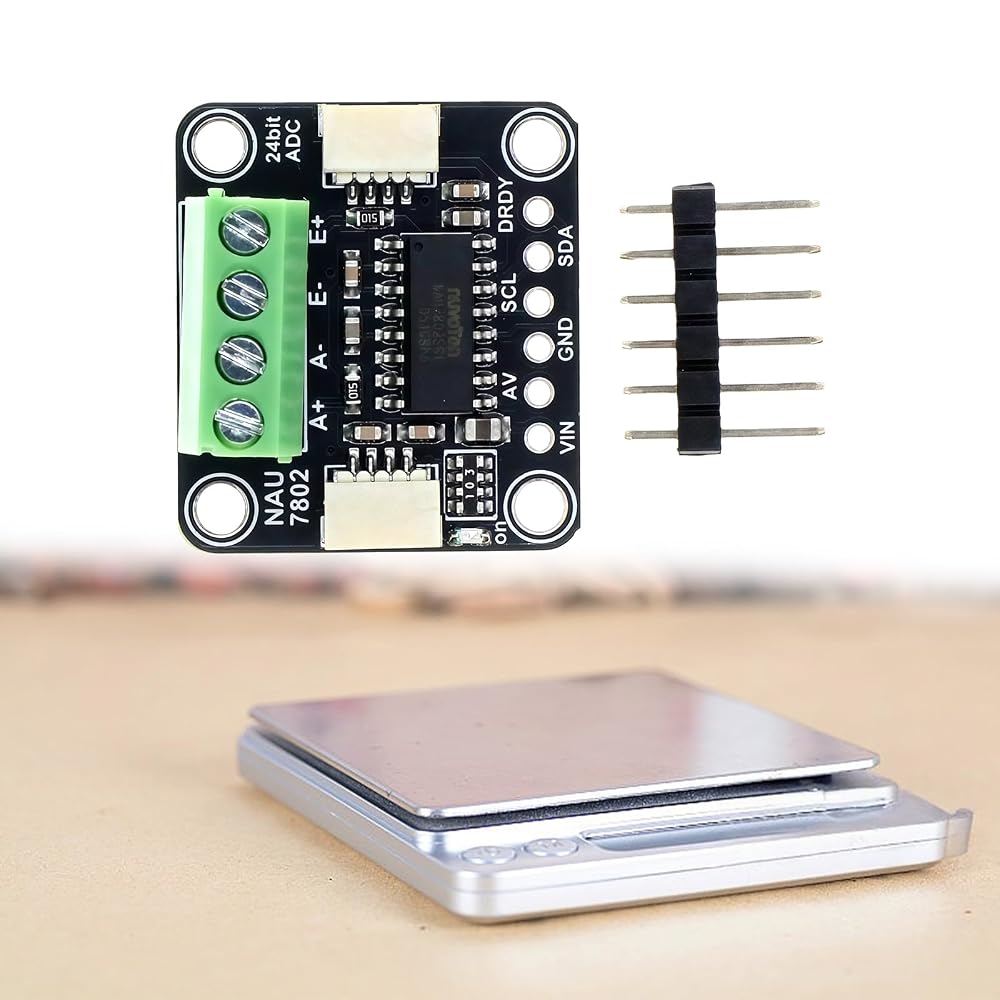

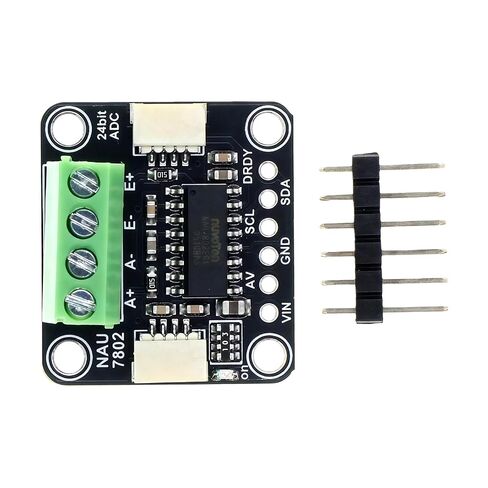

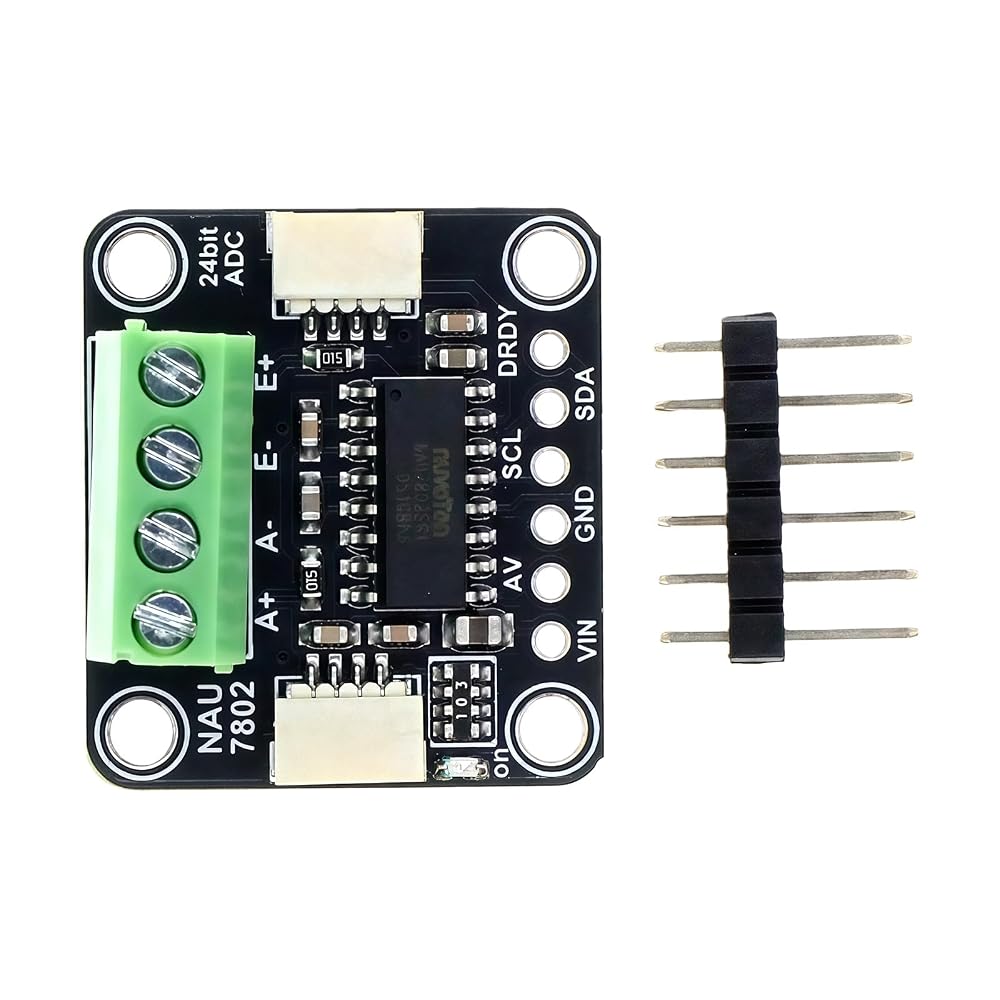

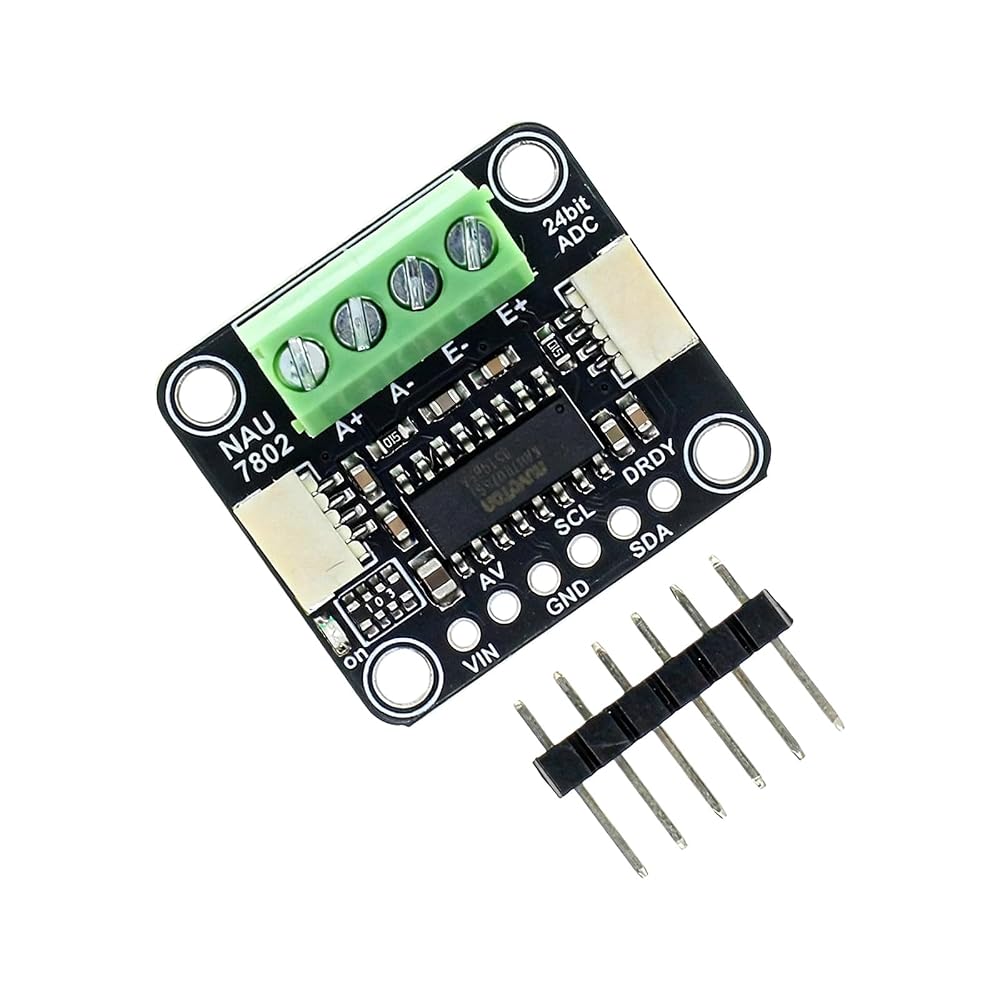

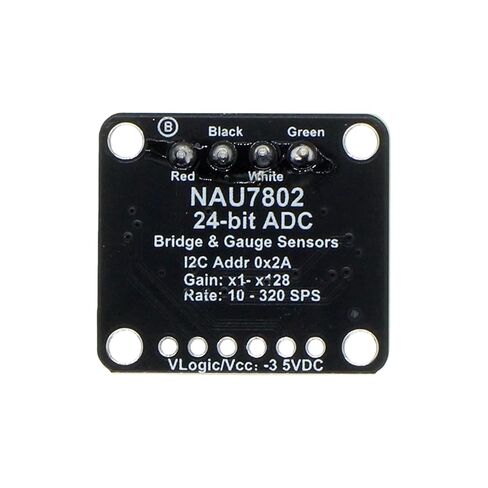

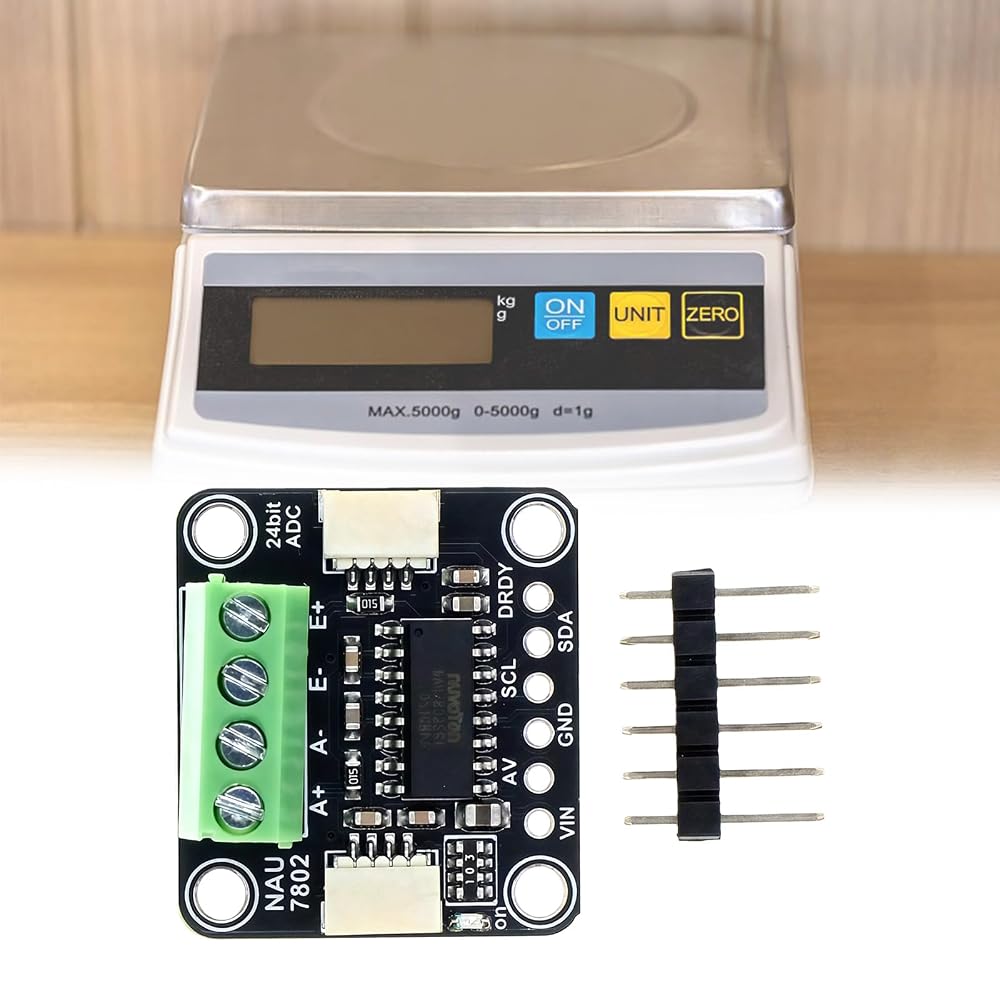

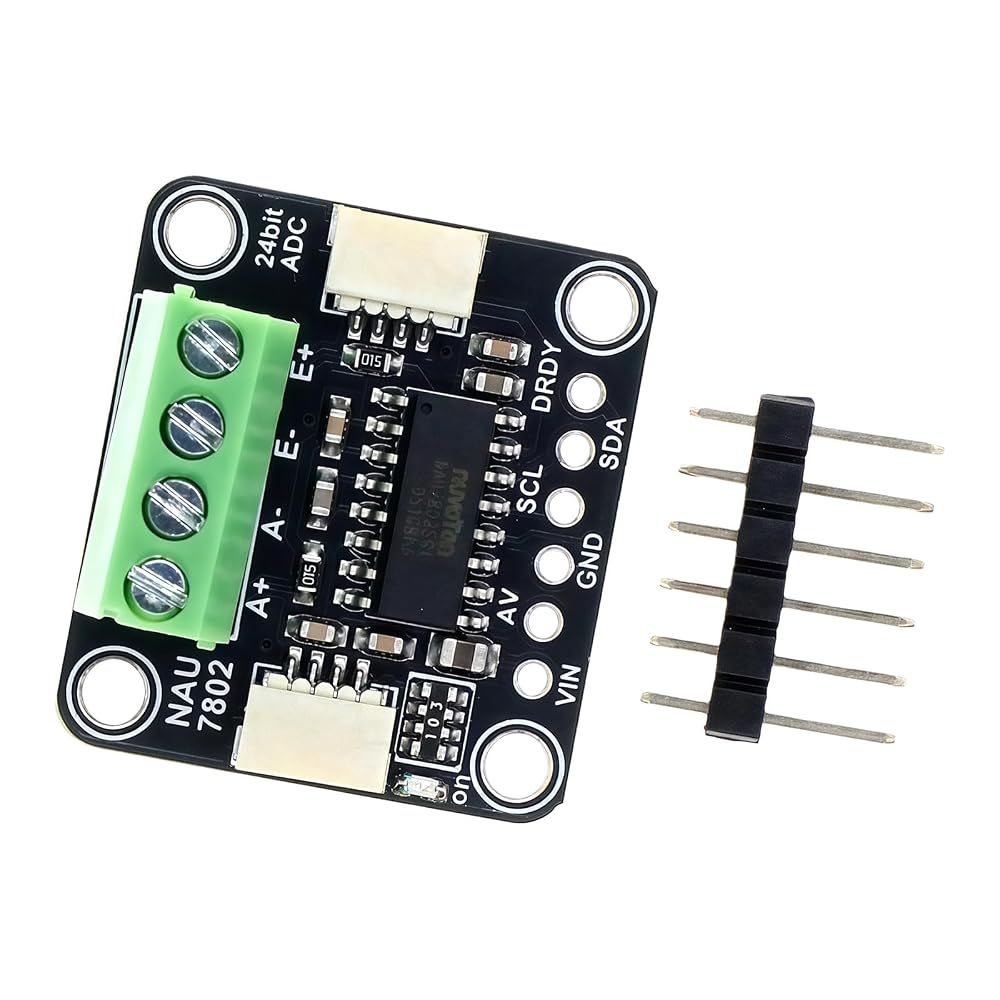

NAU7802 24 Bit Module Programmable Amplifier for Weight Sensor Measurement

Features:
This module uses the NAU7802 24 bit converter; has two differential inputs and a built in programmable amplifier
A ready to use board for weight sensors, load cells, and other bridge type sensors
and sample rate can be set through software; works with 3.3 V or 5 V systems
A practical board for data acquisition projects that need measurement
Useful for industrial, environmental sensing, and lab experiments

Specifications:
: PCB with metal pins
Resolution: 24 bits
Sampling rate: 10 to 320 (selectable)
PGA: 1 to 128 (selectable)
Inputs: 2 channel differential
Interface: I2C

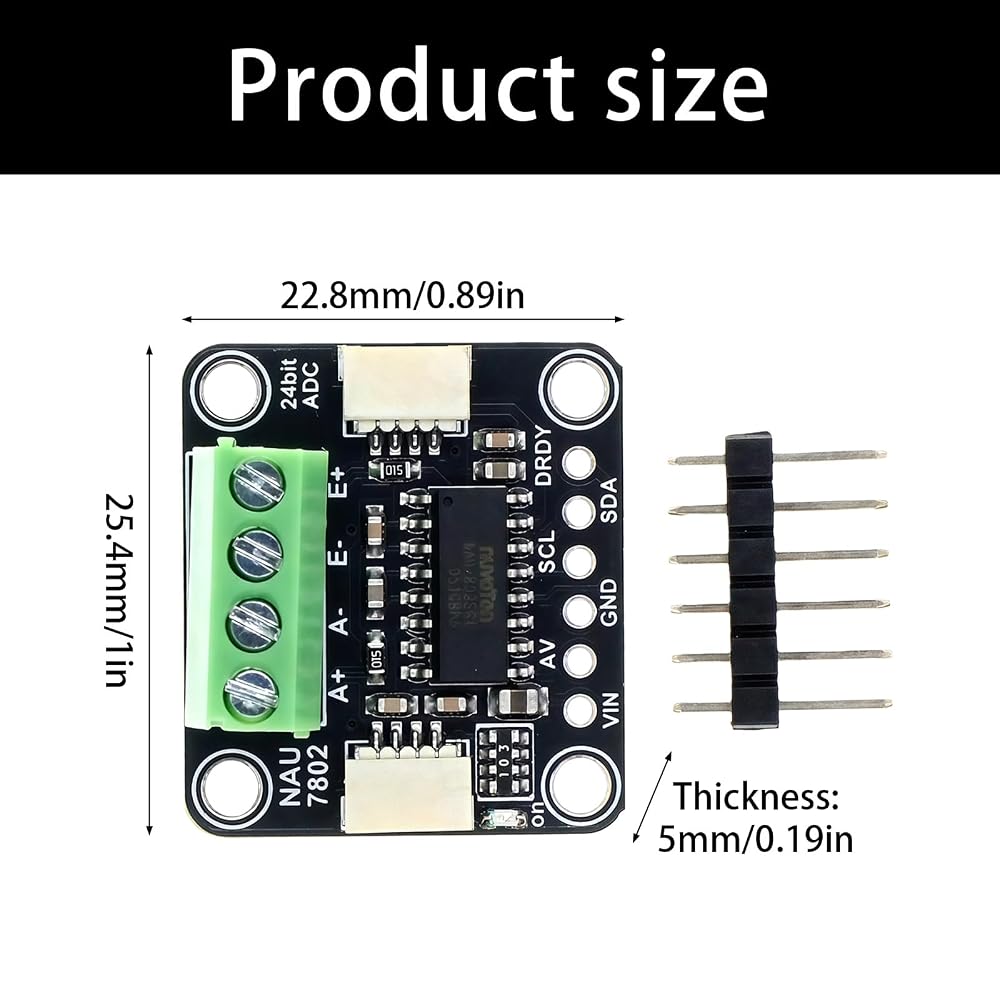

Size: approx 25.4 x 22.8 mm / 1.0 x 0.89 in

Package Includes:
1 x NAU7802 module

Note:
Please allow 1-2 cm error due to manual measurement
Due to differences between monitors, picture may not reflect actual color
