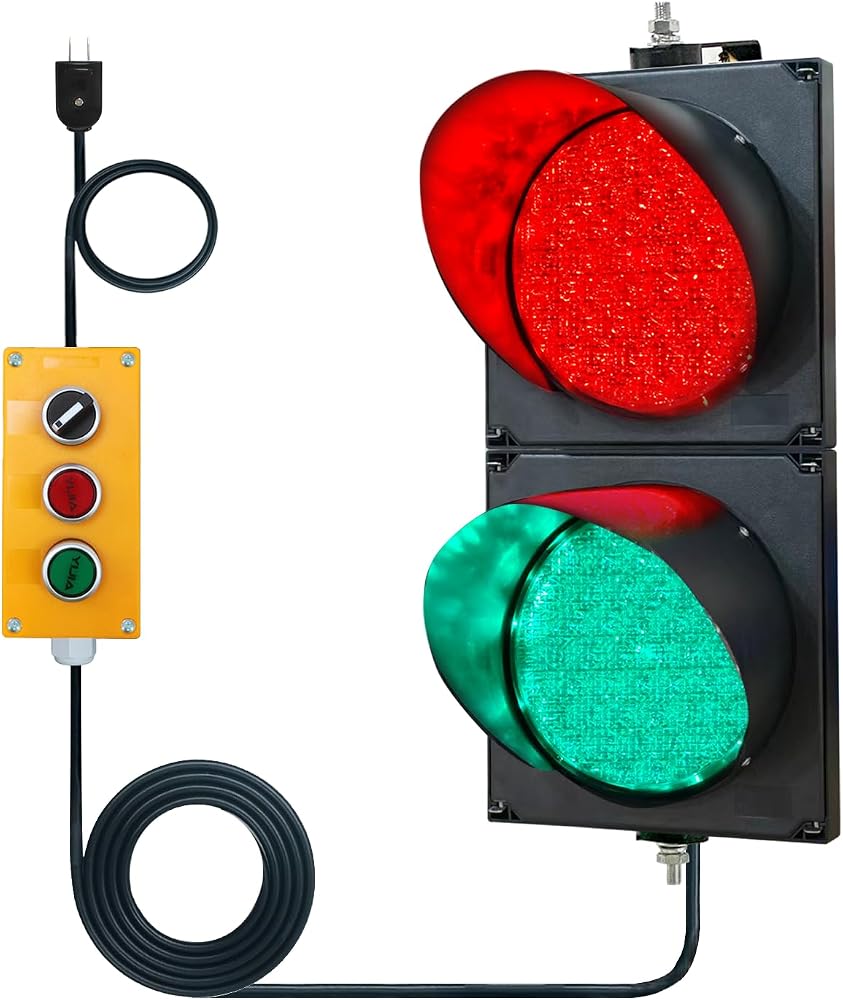

.Kit list:1 * 200mm traffic lights, 2 right angle brackets, 2 sets of nuts, 2 sun visors, 8 screws,1*mannual,plug,button controller
Working voltage: AC85-265V @ 50/60HZ
Working temperature: -40 ℉/-40 ℃~176 ℉/80 ℃
Line installation instructions: Connect the red and green wires to the live wire, and connect the black wire to the neutral wire.
Lamp assembly installation hole position parameters: 14mm diameter hole, using 12mm diameter screws.
Installation hole spacing: 1st: Hole spacing, 18.7 In/47.5cm, 2nd: Hole spacing 11.1 In/37cm
Dimensions after installation: Length: 23.2 ln/59cm, Width: 10 In/25 cm, Height: 9.9 In/33cm
Kit list:1 * 200mm traffic lights, 2 right angle brackets, 2 sets of nuts, 2 sun visors, 8 screws,1*mannual,plug,button controller or remote controller
Working voltage: AC85-265V @ 50/60HZ
Working temperature: -40 ℉/-40 ℃~176 ℉/80 ℃
Line installation instructions: Connect the red and green wires to the live wire, and connect the black wire to the neutral wire.
Lamp assembly installation hole position parameters: 14mm diameter hole, using 12mm diameter screws.
Installation hole spacing: 1st: Hole spacing, 18.7 In/47.5cm, 2nd: Hole spacing 11.1 In/37cm
Dimensions after installation: Length: 25 ln/63.5cm, Width: 11.4 In/29 cm, Height: 7.1 In/18cm
Installation method:
1. According to the instructions of the manual, install the sun visor,
adjust the right-angle bracket, and fix the installed lamp group to a suitable position.
2. Choose whether to install the included plug according to your own needs.
Once installed, plug in the power and use the buttons to control the lights.
Two year warranty commitment: If you have any usage issues or feedback, please contact us and we will work together to resolve them. The remote control is noly applicable to our product, it is not applicable for public traffic lights. The products have passed CE and FCC certification.
