Special Features

1212 climbing motor is optimized design for small-scale crawlers such as 1/24 1/18, this set up is phenomenal for 1/24 like the FMS or UDI (on the Scx24, but you do need to make some modifications and use either a motor adapter or new transmission) and up to the 1/18 TRX4M Hobby Plus CR18p and the Ascent18
This motor is going to work best with lighter rigs under 1000g and really shines with rigs around or under 500g.
Note: Some noise at mid-throttle is normal for the 1212Pro motor due to its high-speed, open-rotor design. This does not indicate a defect.

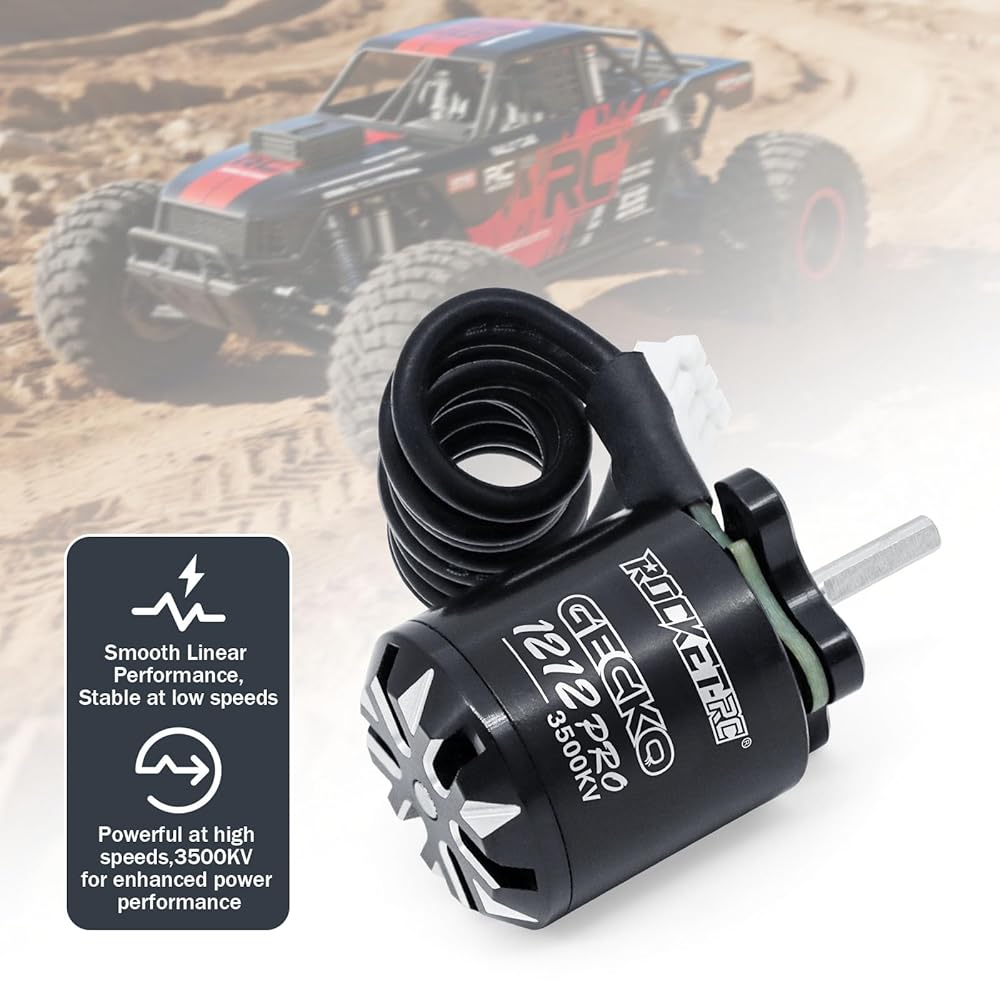

Small size,high torque and smooth operation.Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds.

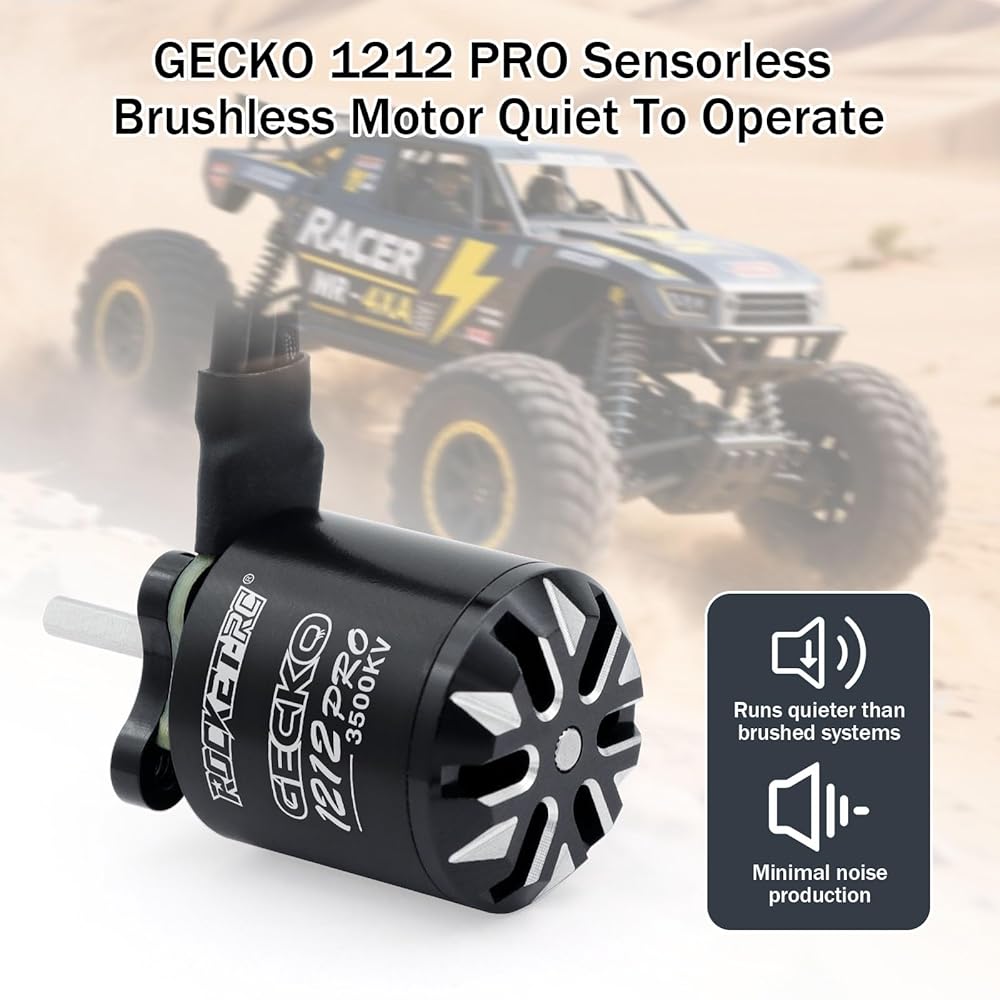

Reduces mid-range noise with slightly improved torque output.Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds.
Note: Compatible with Surpass GECKO Mini24 ESC. Not compatible with other ESCs
The 1212 is a pretty small sized motor, it is best for rigs about 800-1000g,1000g is about the top end of the weight

Description

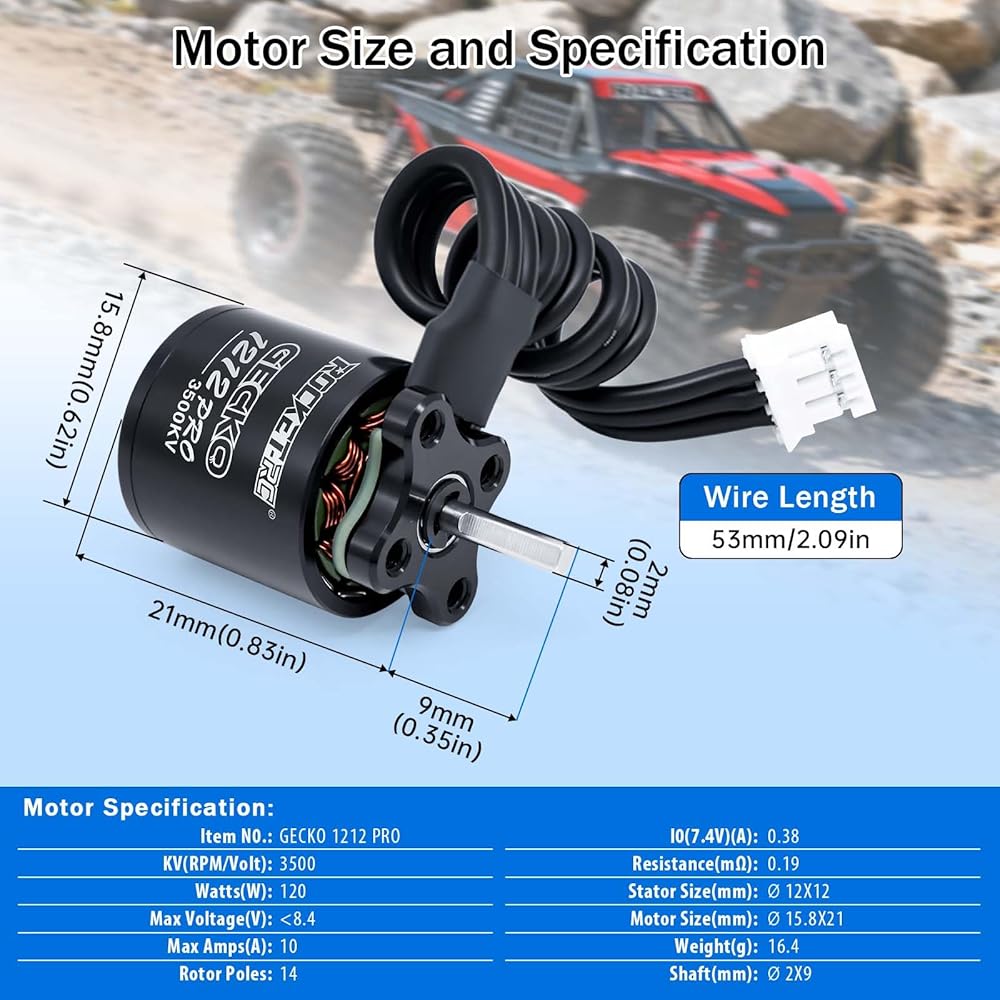

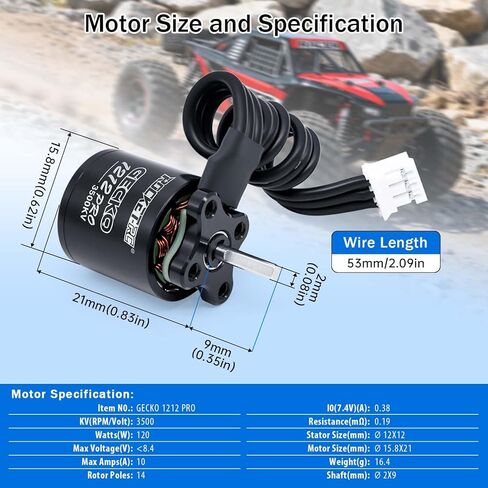

Specifications:
Item NO. GECK0 1212 PRO Motor
KV(RPM/Volt):3500kv
Watts(w):120
Max voltage(V):
Max Amps(A):10A
Rotor Poles: 14
10 (7.4V)(A):0.38A
Resistance (mΩ):0.19
Stator Size(mm): 12x12
Motor Size(mm): 15.8x21
Weight (g):16.4
Shaft Size (mm): 2x9
ESC SPECIFICATIONS:
Cont.Current:15A
Burst Current: 30A
Motor Type: Sensorless Brushless Motor
Suitable Car: 1/24 1/18 1/16 scale crawler car
Battery: 2~3 cells Lipo, 4~9 cells NiMH
BEC Output: 6.0V/7.4V/8.4V 3A
Dimension: 23.4 x 15 x11.2mm
Weight: 8.7g (including wires)
Waterproof : Yes
Package inclued:

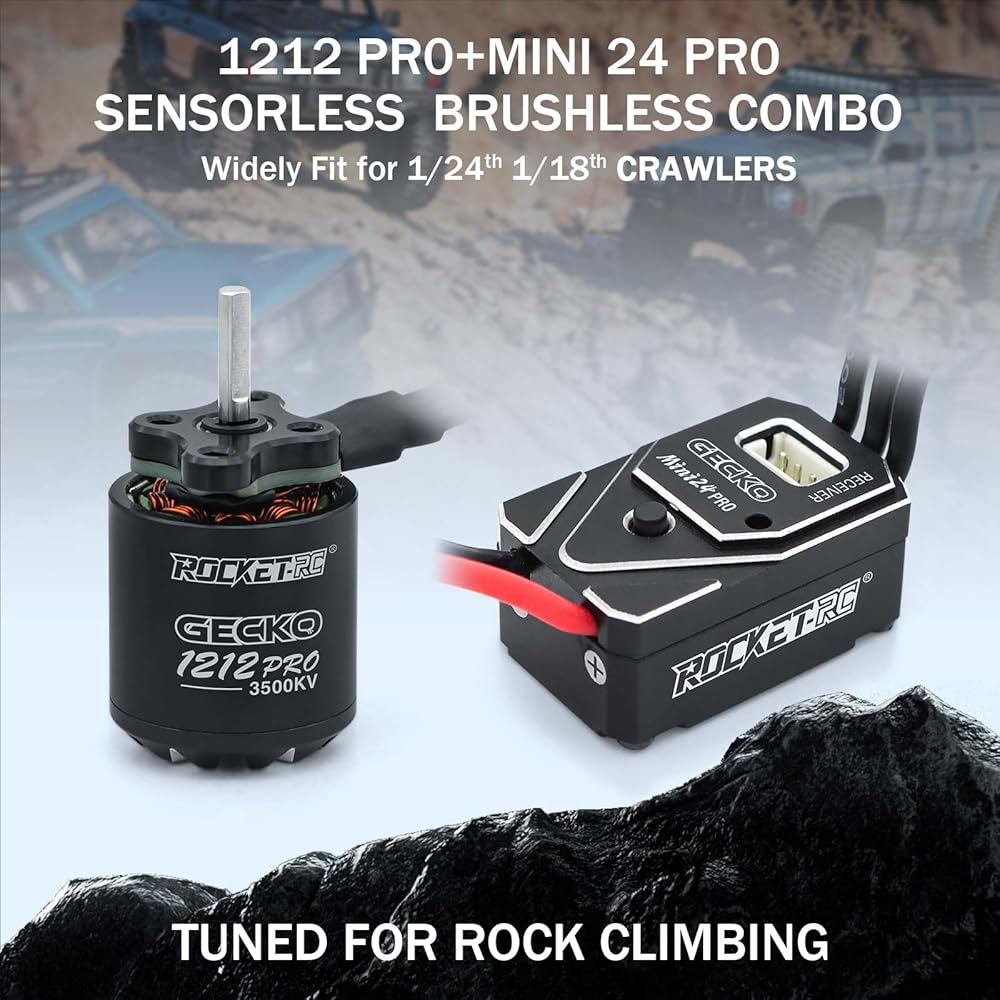

1 pack GECKO 1212 PROBRUSHLESS MOTOR
1 Pack GECKO MINI24 PROBRUSHLESS ESC
2pcs instroctions

Hello,

Search

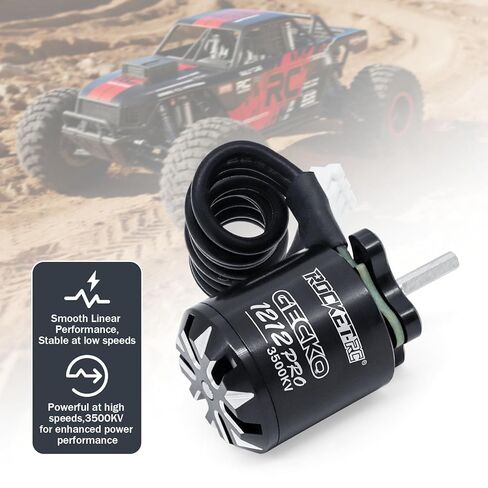

Surpass Hobby 1212Pro 3500KV Brushless Motor for 1/18 TRX4M / HPI Venture18 /scent-18 / HobbyPlus CR18 / 1/24 RC Crawlers Upgrade
