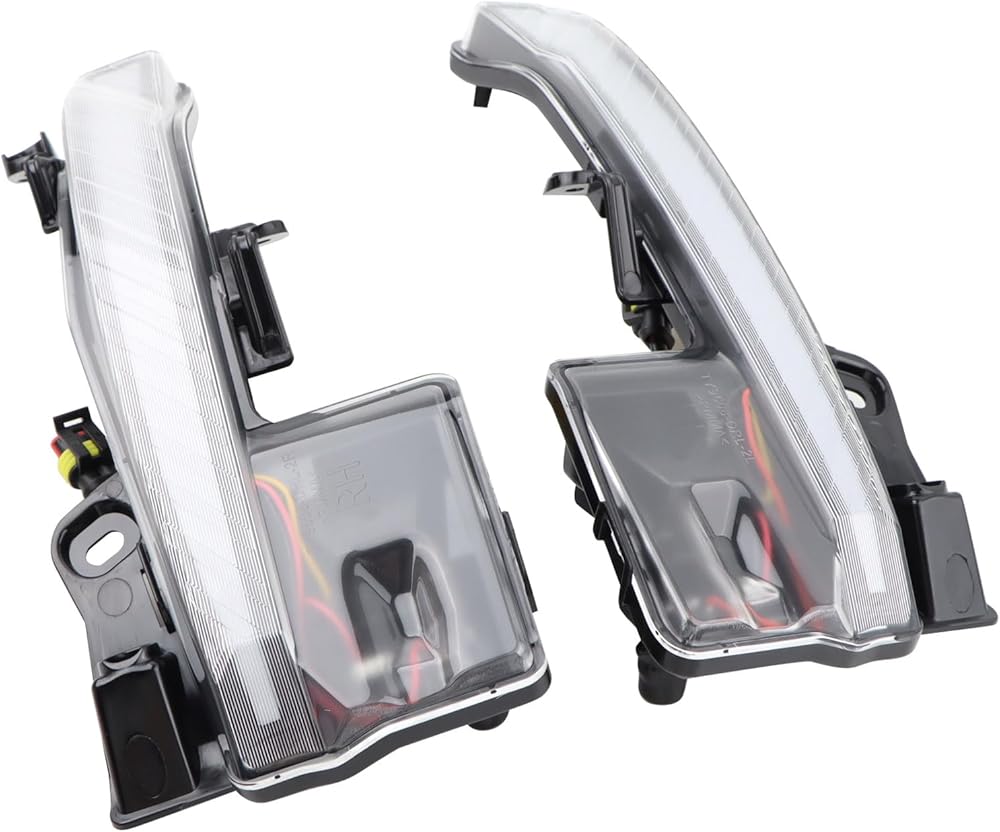

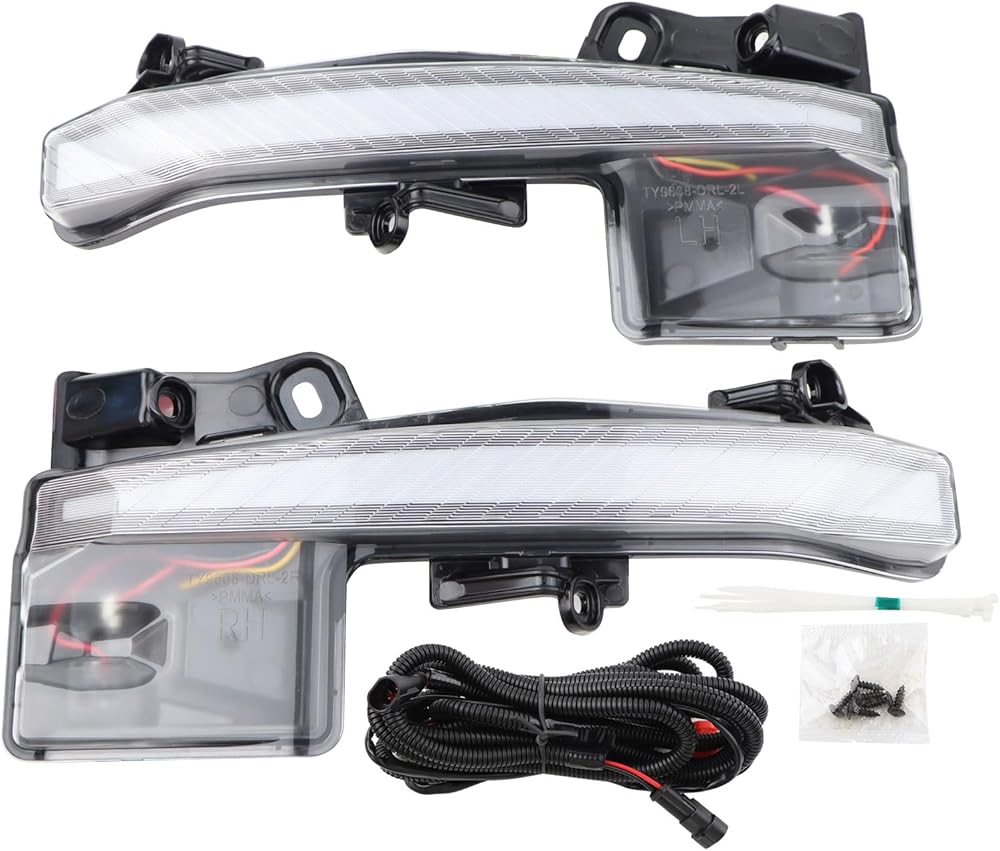

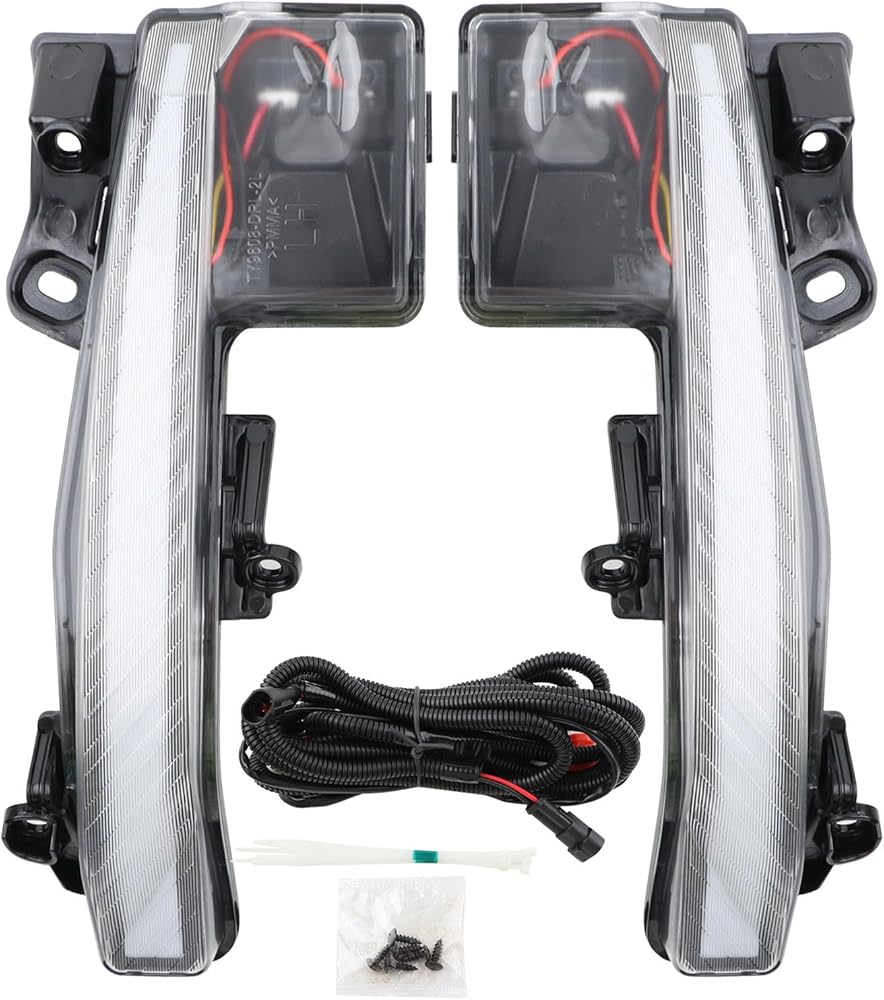

FIT 2023 2024 2025 Toyota Prius and Prius Prime, including Hybrid, PHEV, and AWD-e models. This Front Bumper Lamp Assembly is specifically engineered for the 5th generation Prius chassis geometry. Position: Front Left (Driver Side) and Front Right (Passenger Side). Please verify OE 812A0-47030 and 812B0-47030 for precise integration.

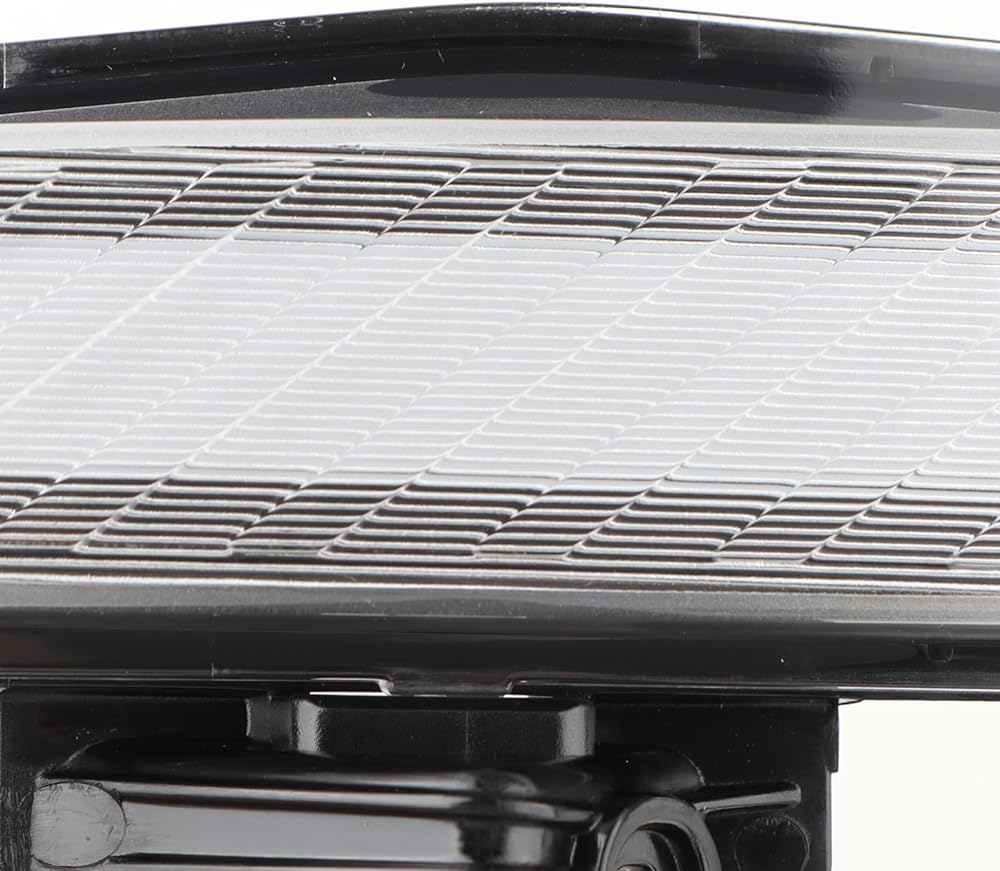

LED Daytime Running Lamp and Front Bumper Signal Light utilizing integrated high-output LED chips with a pre-installed internal heat sink. The optical-grade polycarbonate lens is treated for environmental exposure to maintain clarity and structural integrity against UV radiation. Features a dual-color output: White DRL and Sequential Amber Signal.
This Front Bumper DRL Assembly addresses excessive moisture intrusion or flickering issues found in damaged factory units. It restores factory-matching lighting geometry and illumination patterns. The internal circuitry is engineered to maintain proper voltage resistance within the vehicle electronic control system.

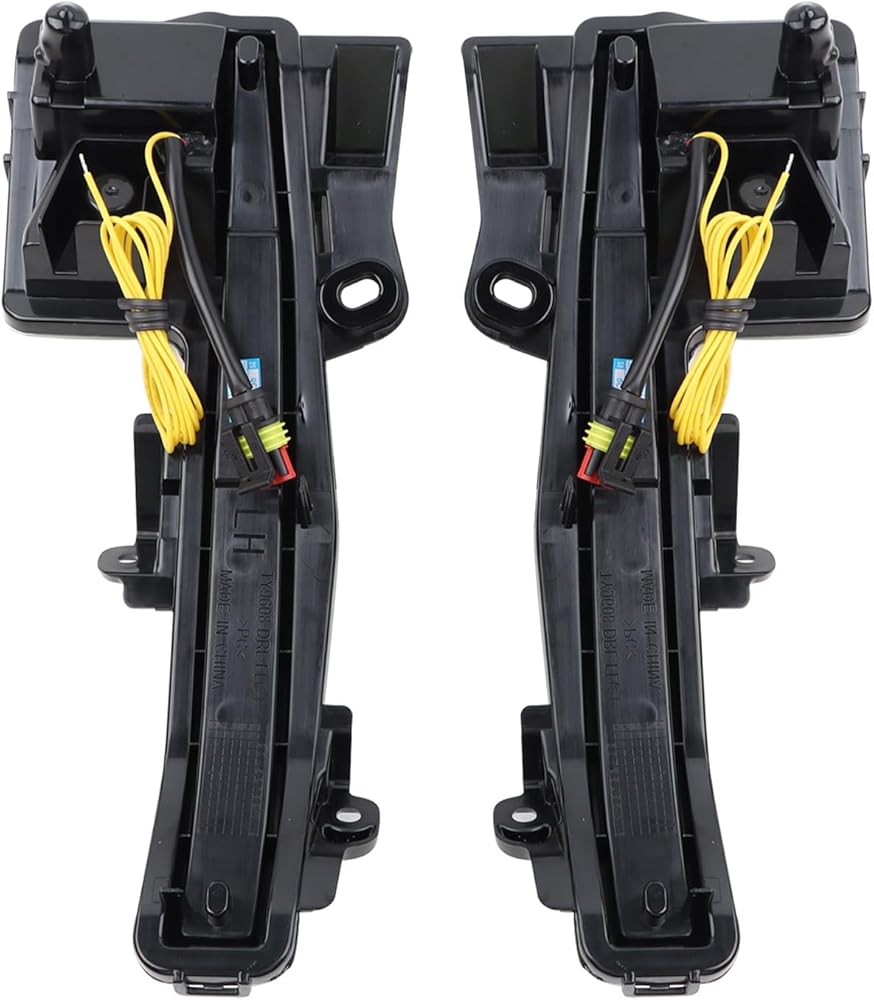

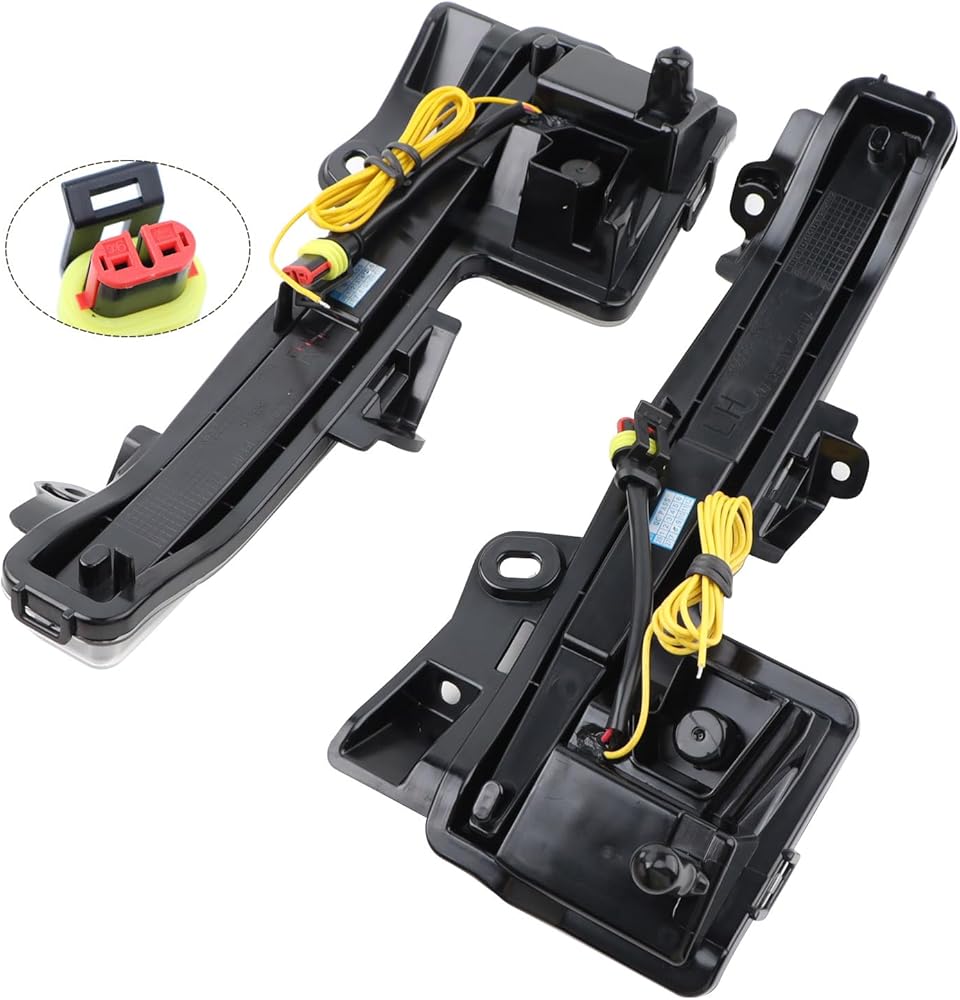

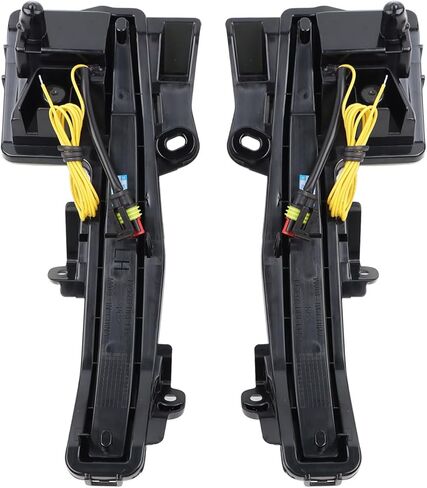

Direct-fit integration requiring the use of the included specialized wiring harness for electrical synchronization. This LED Running Lamp assembly requires a specific wiring sequence: Ground (Black), DRL Positive (Red), and Signal Positive (Yellow). Integrated mounting tabs ensure a gap-free interface with the OE bumper fascia.
Tested for thermal cycling and high-pressure water resistance to ensure sealing integrity. Installation Limit: Professional electrical integration is recommended due to the non-plug-and-play wiring requirement. Disclaimer: This is an aftermarket replacement part designed for aesthetic restoration and is a non-electrical diagnostic component.

وصف

Vehicle Compatibility Matrix:
2023-2025 FIT Toyota Prius (All Trims) LED Daytime Running Lamp
2023-2025 FIT Toyota Prius Prime (PHEV) LED Daytime Running Lamp
2023-2025 FIT Toyota Prius AWD-e LED Daytime Running Lamp
Replaces OE Parts: 812A0-47030, 812B0-47030, TO2563109, TO2562109.
Physical Specifications:
- Light Source: Integrated LED (Pre-installed, Non-removable)
- Lens Material: High-Transparency Polycarbonate
- Signal Function: Sequential Dynamic Amber Flash
- DRL Function: 6000K Cool White
Wiring Compliance & Installation Protocol:

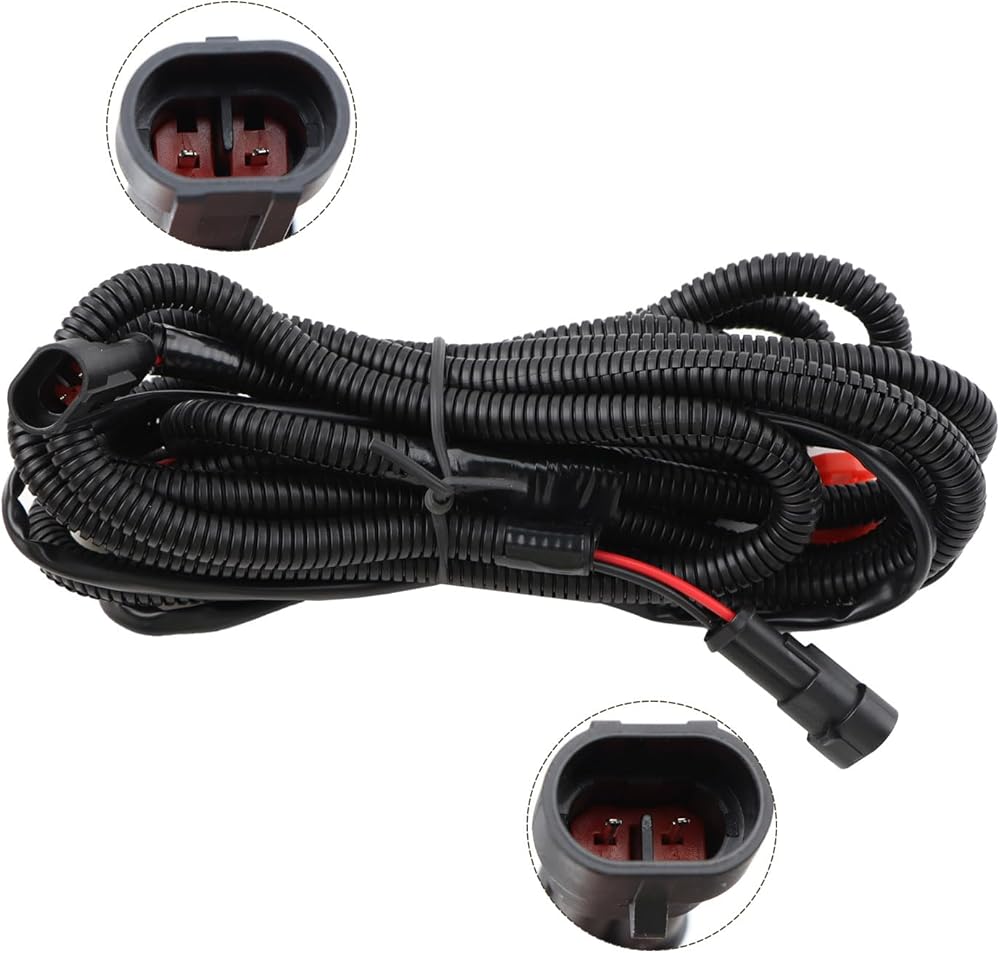

1. Wiring Requirement: This assembly uses a custom harness (Included). Terminal connection to existing circuits is required.
2. Black Wire: Ground (Connect to chassis or battery negative).
3. Red Wire: Connect to the positive terminal of the factory DRL or ACC circuit.
4. Yellow Wire: Connect to the positive terminal of the factory Turn Signal circuit.
5. Verification: Test all lighting modes (White DRL/Amber Signal) before finalizing bumper re-assembly.
Resistance Standards:
Treated for salt spray endurance and tested for high-temperature thermal resistance. This component is designed to restore factory lighting characteristics and provide aesthetic restoration.
