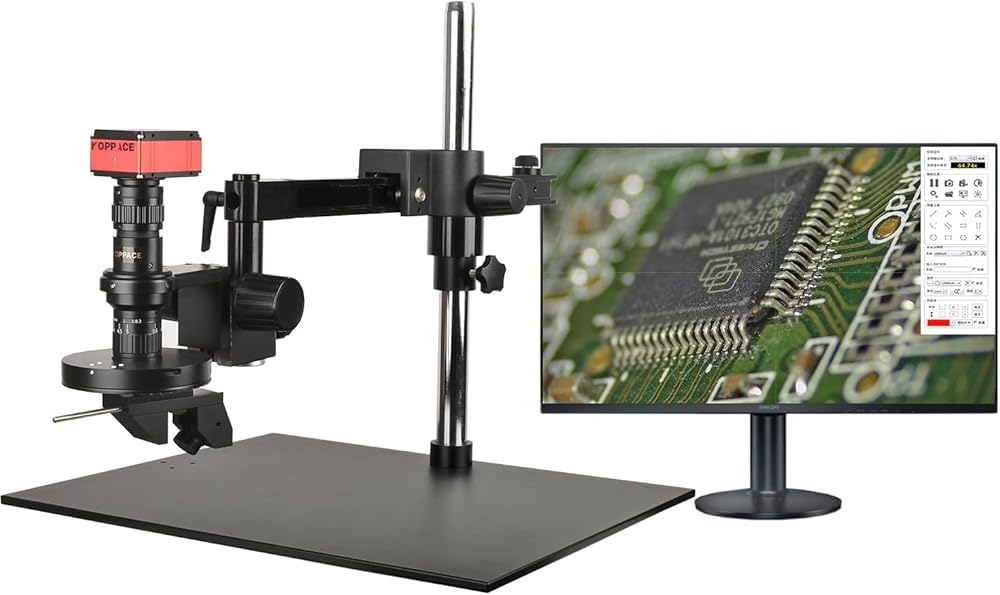

Model KP-4K-3DWAL
Magnification 23X-193X
Optical Magnification 0.3-2.5X
Eyepiece 0.5X
Objective Lens 0.6X-5X
3D Imaging Angle 45°

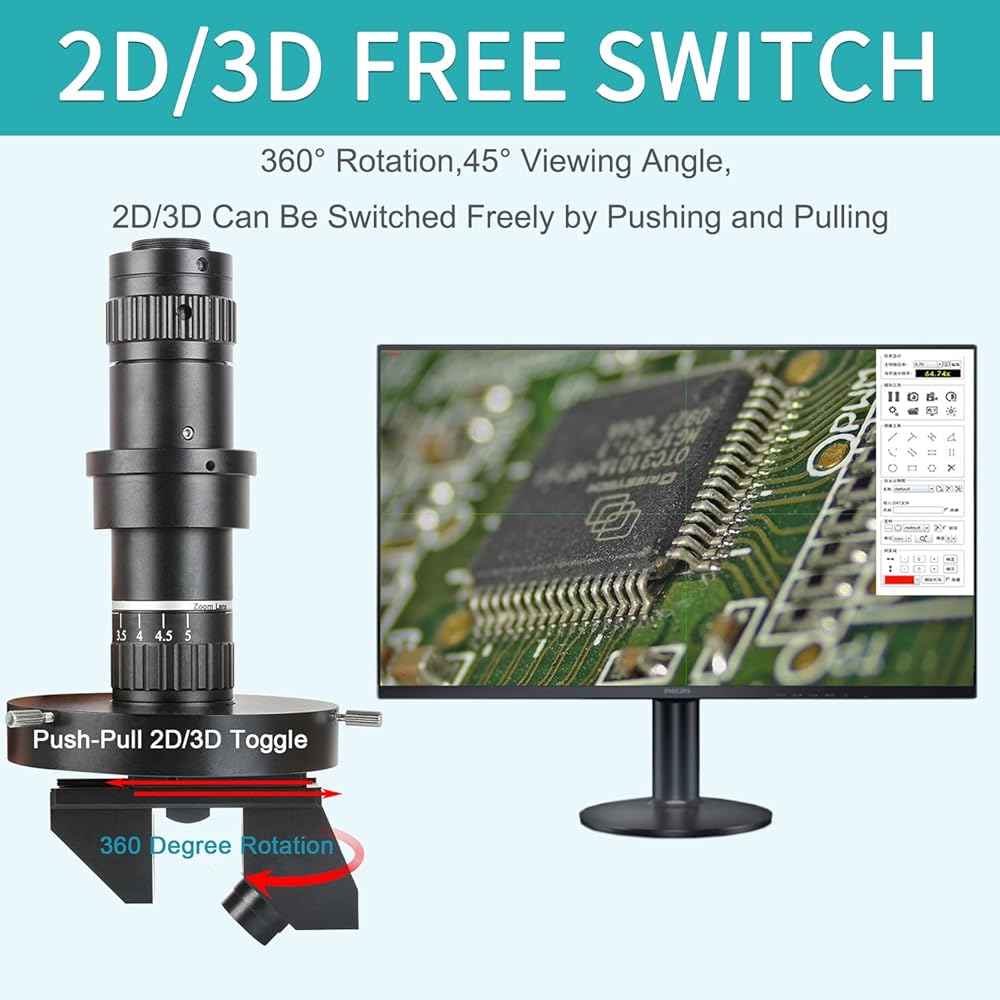

2D/3D Manual Switch The Working Distance Remains the Same,No Need to Refocus
After Adjusting the Center,the Center Remains the Same
360°Free Choice,Objective Lens Angle 45°
Working Distance 86mm
Field of View 3.54mm-29.53mm

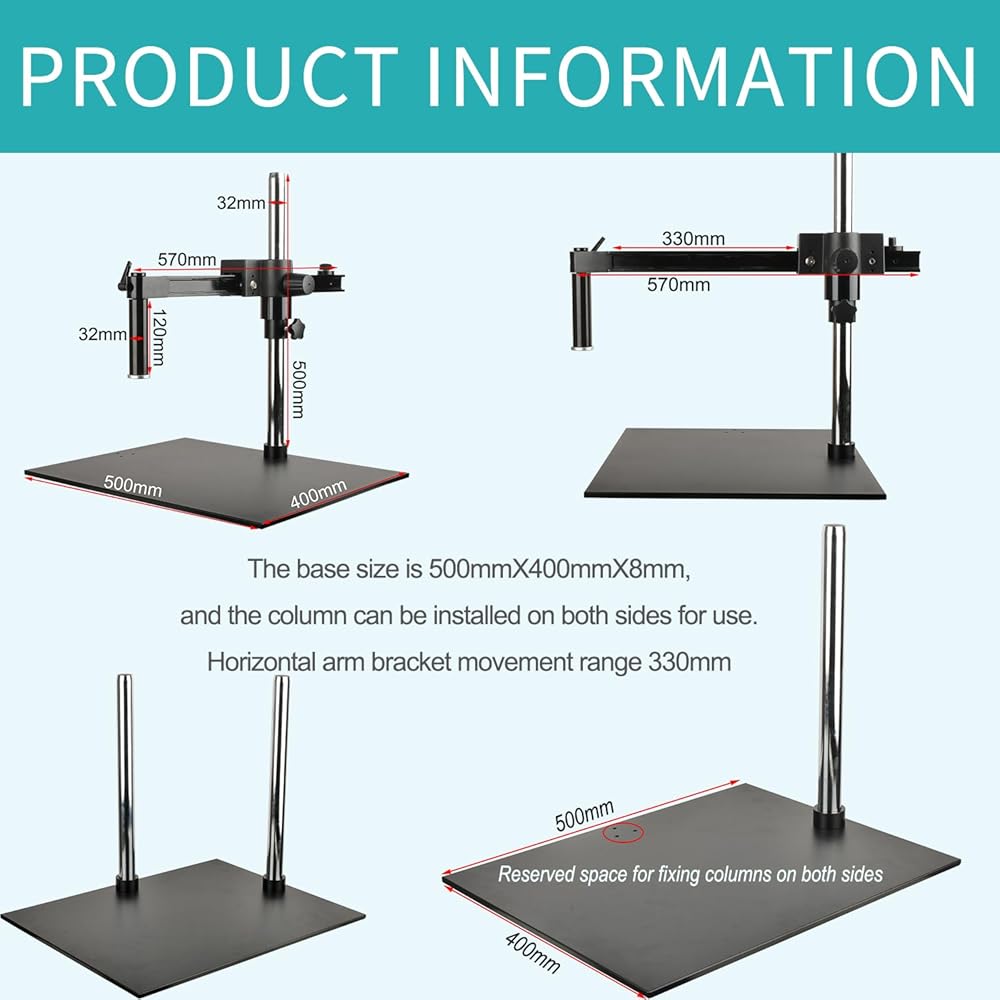

Cross arm Bracket Horizontal arm movement range: 330mm, column height 500mm,
Base size 500mmX400mmX8mm, lens aperture 50mm

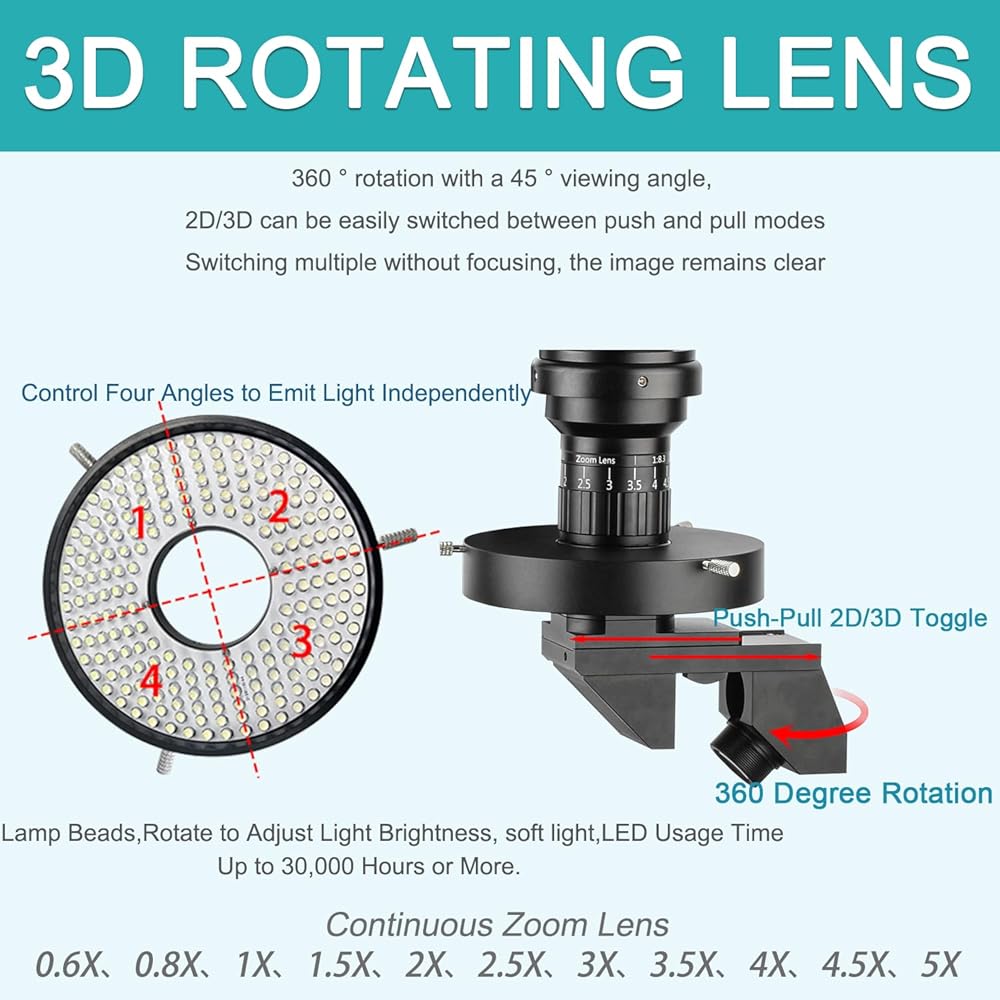

LED Light Source 208 LED lamp Beads,Four-Zone Control,Independently Adjustable Brightness,illuminance 15000 Lux,Wavelength 455-457.5nm,Output Voltage 12V 8W

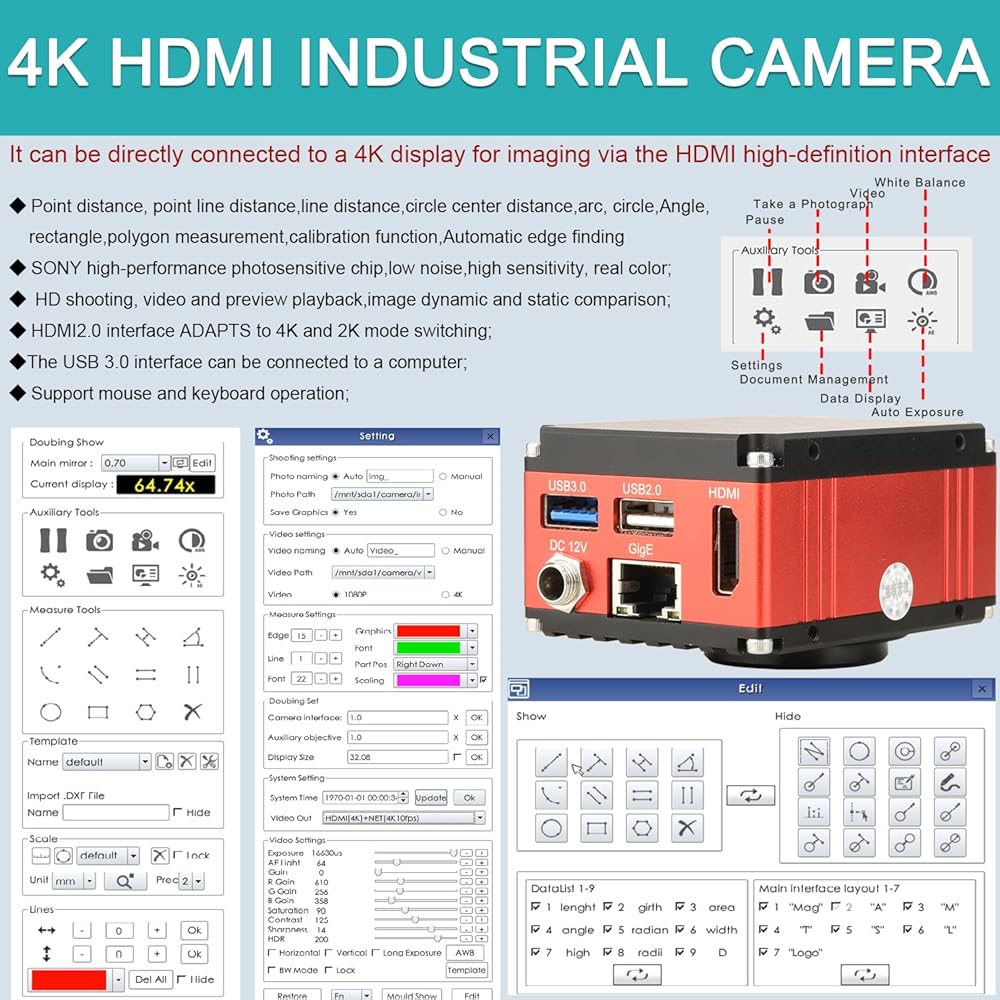

Sensor 8.3 Million Pixels 4K HD
Output Method HDMI、GigE、USB3.0
Sensor Size 1/1.8" CMOS
Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Like yuan size 2.0μmX2.0μm
Output Frame Rate 60FPS
Color Adjustment R、G、B Independently Adjustable
White Balance Auto/Manual
Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement

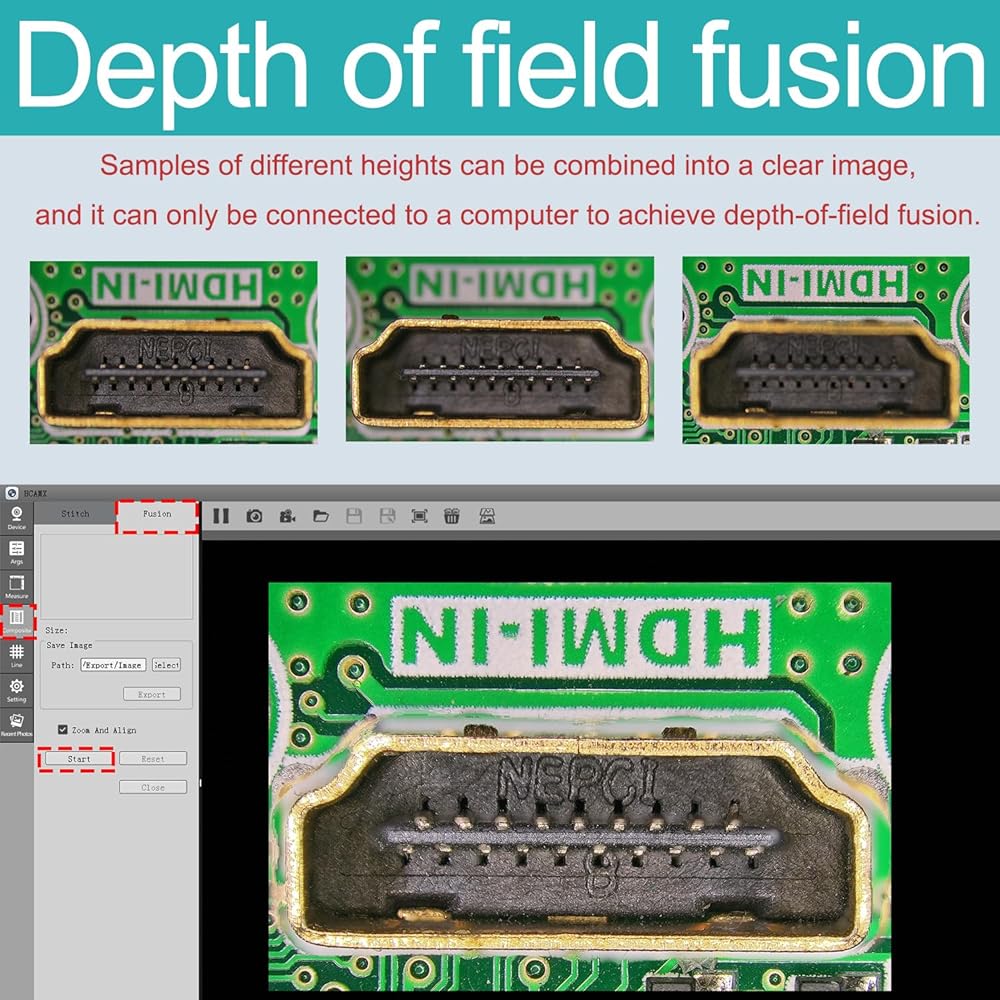

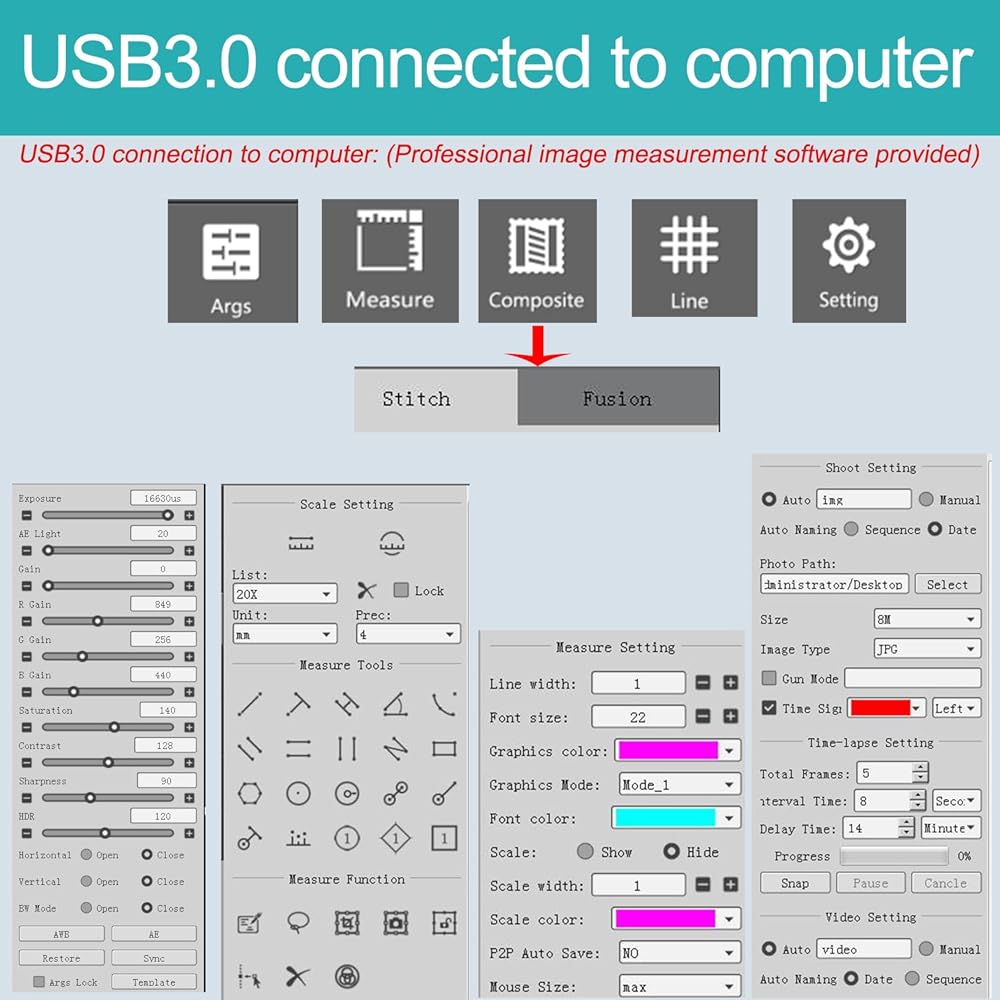

GigE/USB3.0 By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.

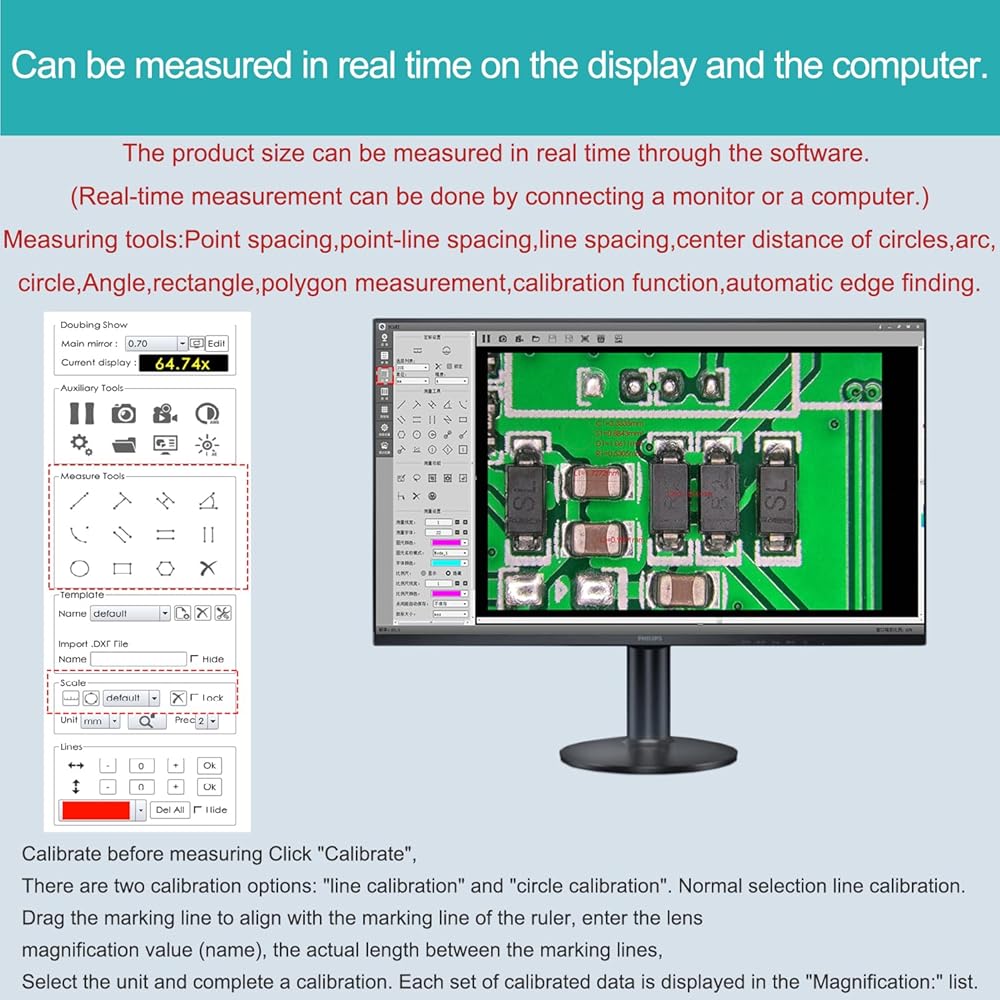

Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching
Storage Mode U Disk.Can Take Pictures.Video,and Measure
Crosshair Function 100 Groups Horizontal and vertical lines
Lens Interface C Interface
Power Supply AC100V-240V DC-12V

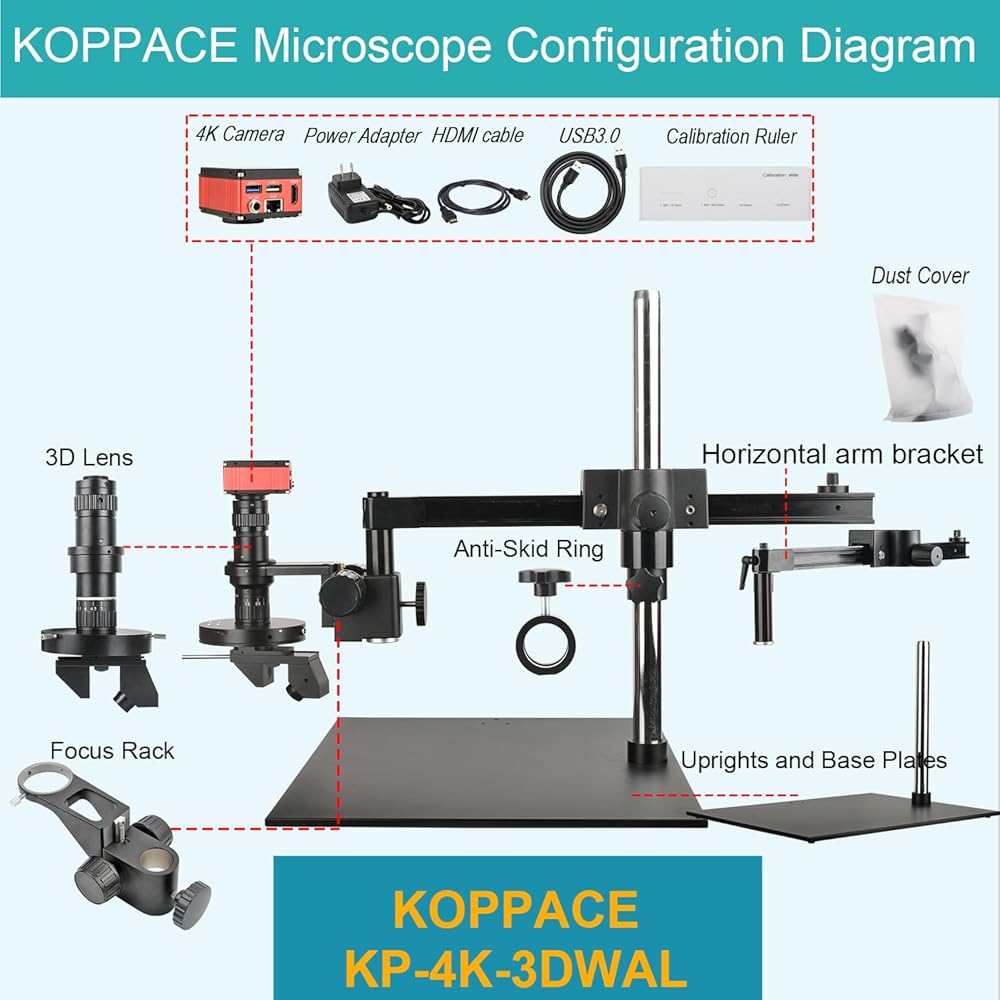

Packing List
1、3D Zoom Lens *1
2、LED Light Source *1
3、Cross arm Bracket *1
4、Focus Rack *1
5、Anti-Skid Ring *1
6、Pillar Stand and Base Plate *1
7、4K Camera *1
8、HDMI High Definition Line *1
9、The Camera Power Adapter *1
10、Calibrating Ruler *1

Note:
1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use.
2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse).
3. Photography,video recording,and measurement can be achieved on both the monitor and computer.
4. This product does not contain a monitor.
5. This Product Needs to be Measured in 2D Plane State,and Cannot be Measured in 3D State.
