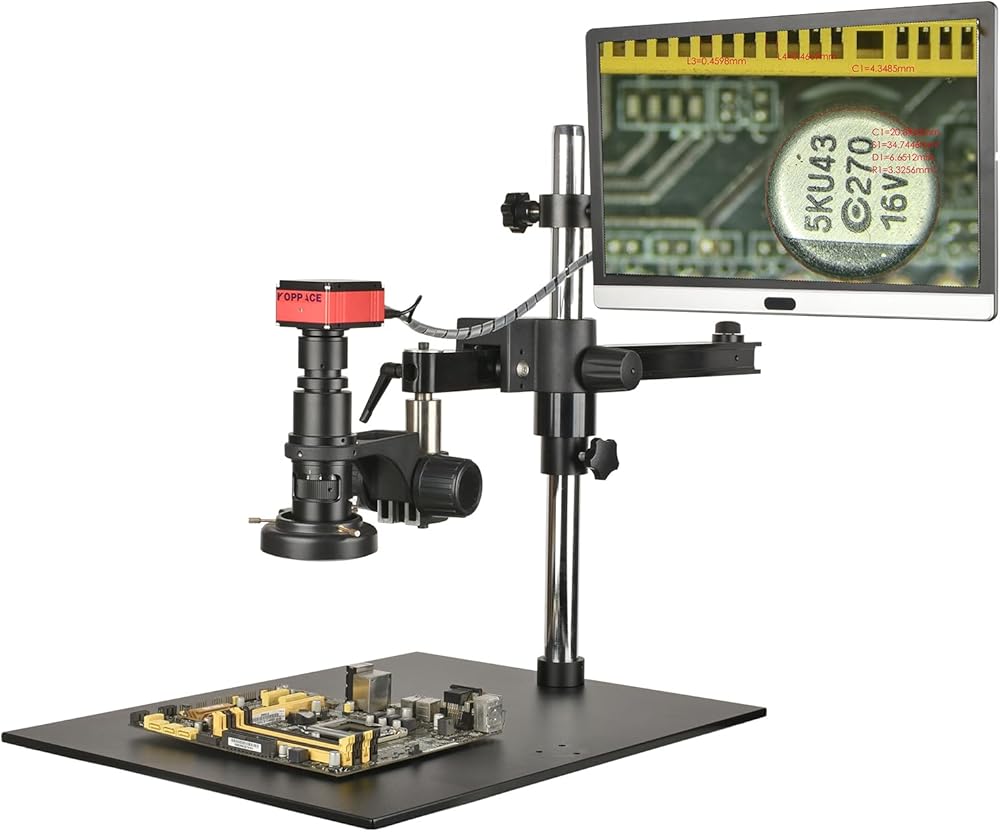

Model KP-N6000A
Monitor 15.6 Inch Monitor
Optical Magnification 0.28X-2.8X
Electronic Magnification 12X-125X
Field of View 4.43mm-31.64mm
Eyepiece 0.4X C-Mount

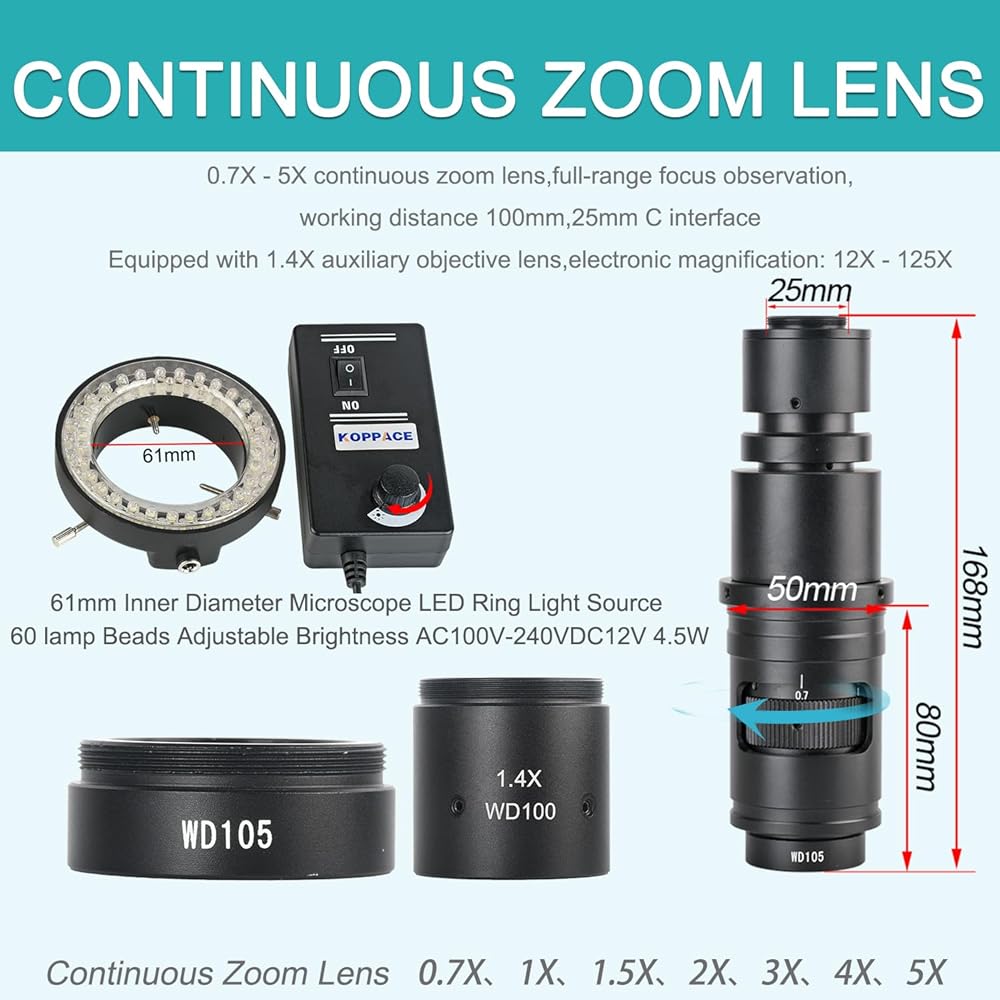

Objective Lens 0.7X-5X Continuous Amplification
Working Distance 100mm
Auxiliary Lens 1.4X/WD100

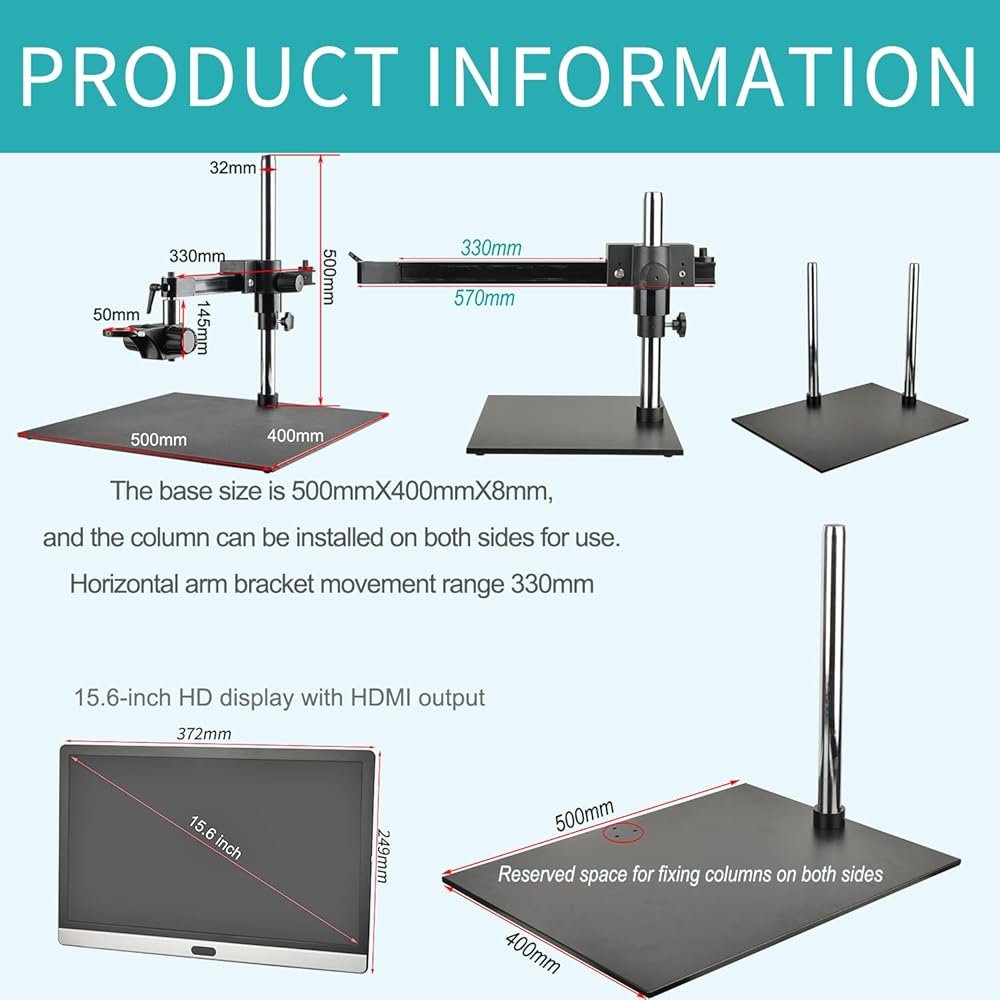

Bracket Size Horizontal arm movement range:330mm,column height 500mm,
Base size 500mmX400mmX8mm lens aperture 50mm
LED Light Source 61mm Inner Diameter Microscope LED Ring Light Source 60 lamp Beads Adjustable Brightness AC100V-240V/50/60HZ DC12V 4.5W
Pixel 8.3 Million Pixels

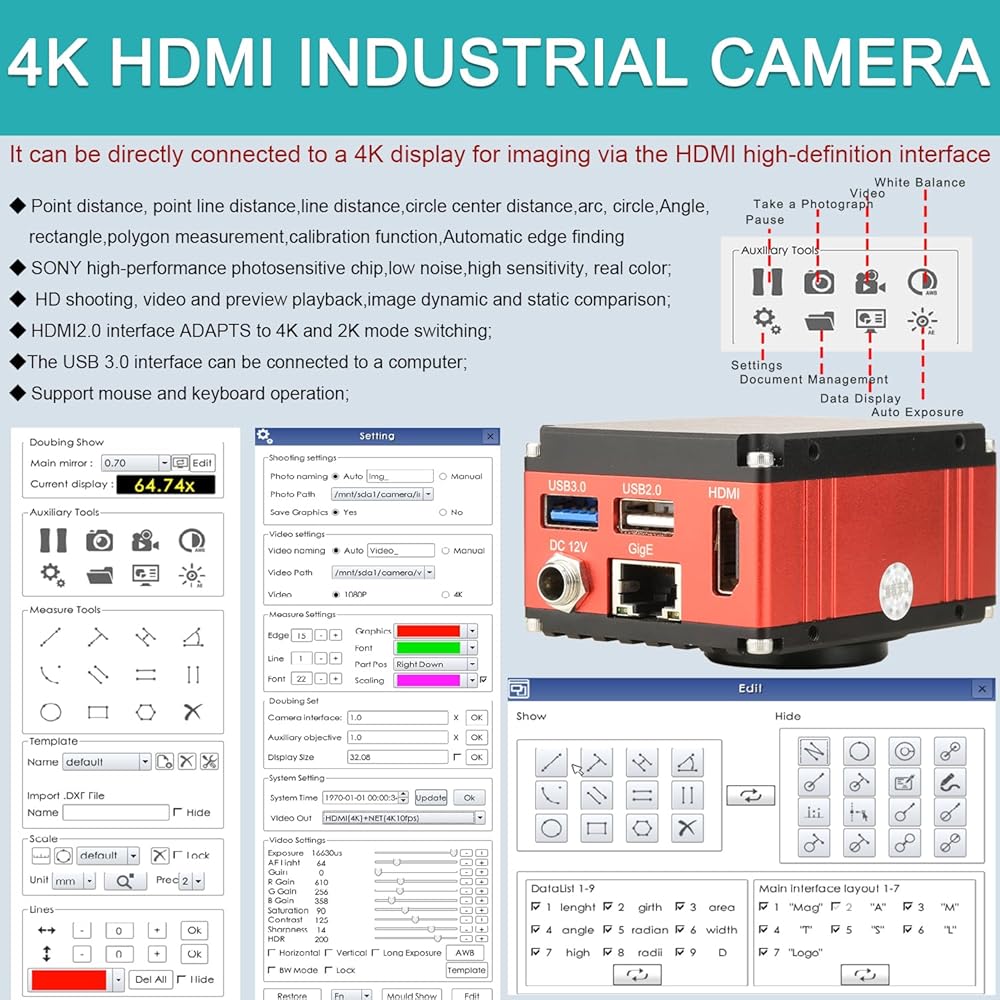

Output Method HDMI、GigE、USB3.0
Sensor 8.3M 1/1.8" CMOS
Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Pixel Size 2.0μmX2.0μm
Frame Rate 60FPS
Color Adjustment R、G、B Independently Adjustable
White Balance Auto/Manual
Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement

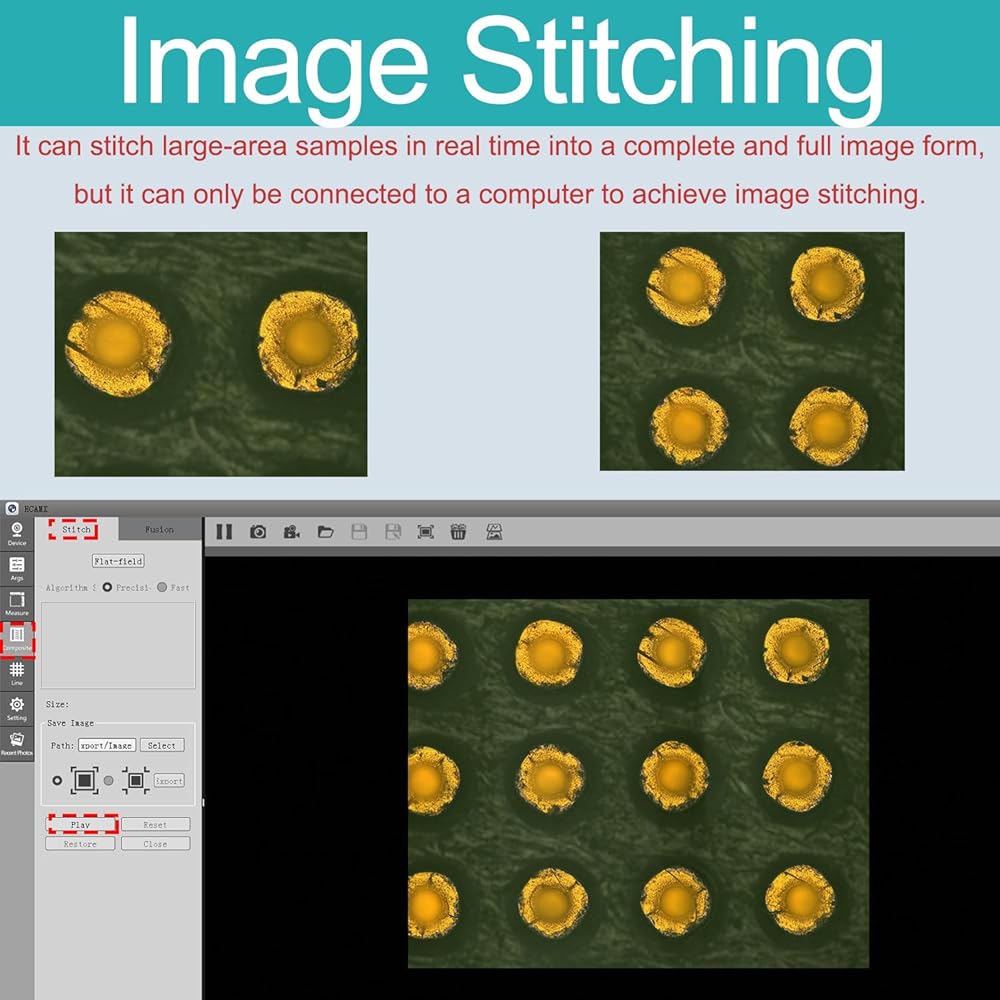

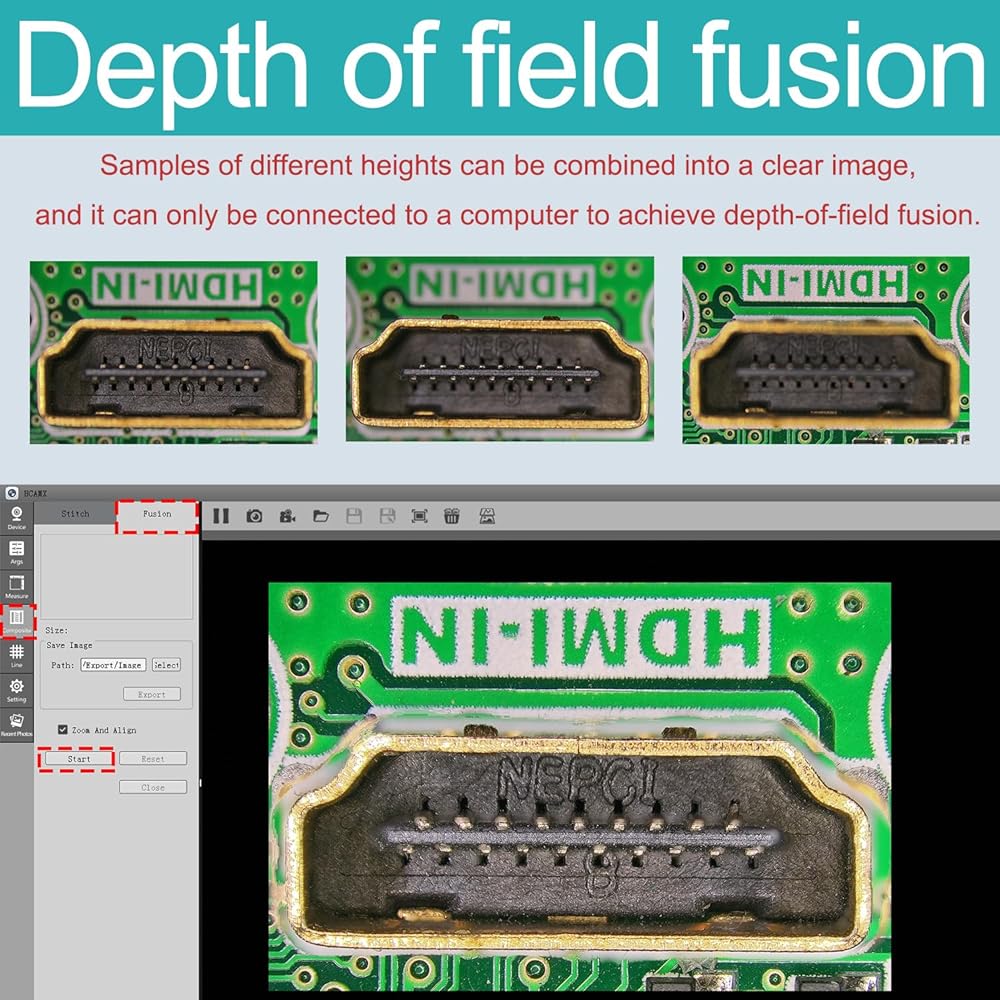

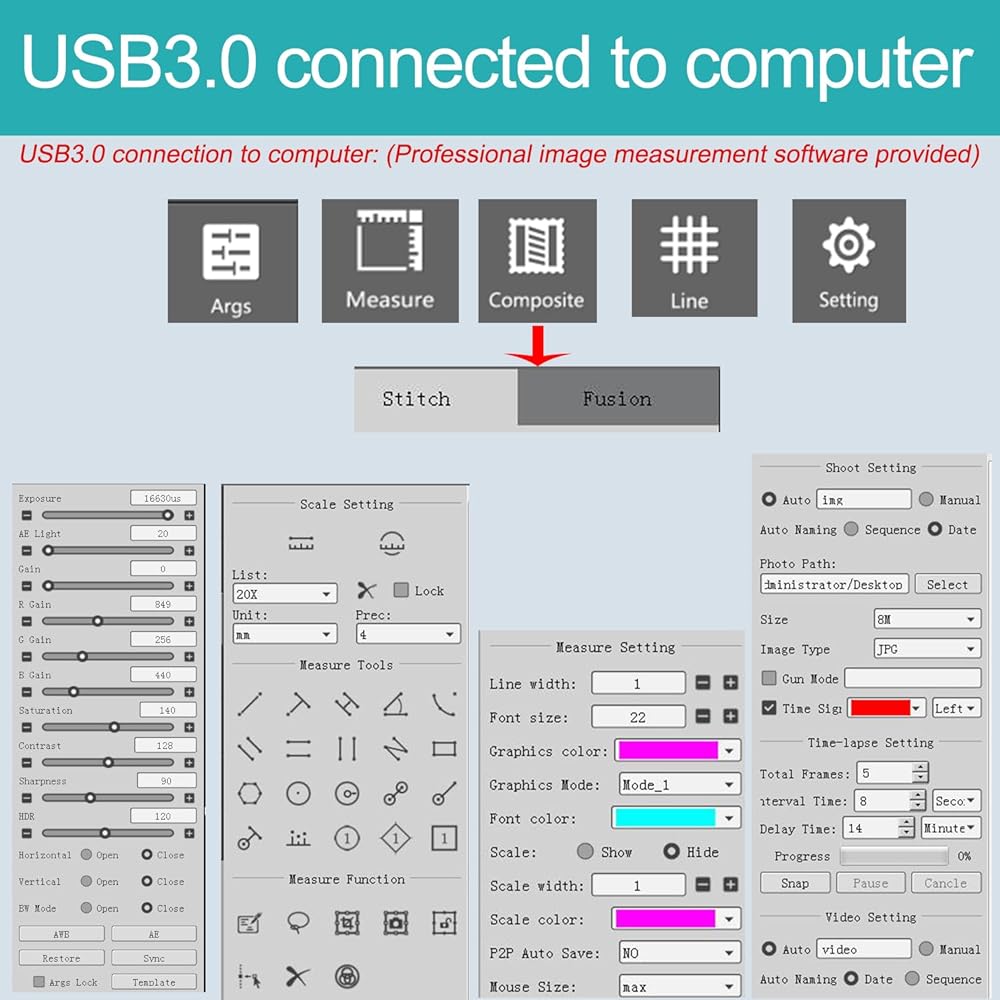

GigE/USB3.0 By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.
Cross Hair Support 100 Groups Cross Line,The Color Position is Adjustable
Power Supply AC100V-240V DC-12V

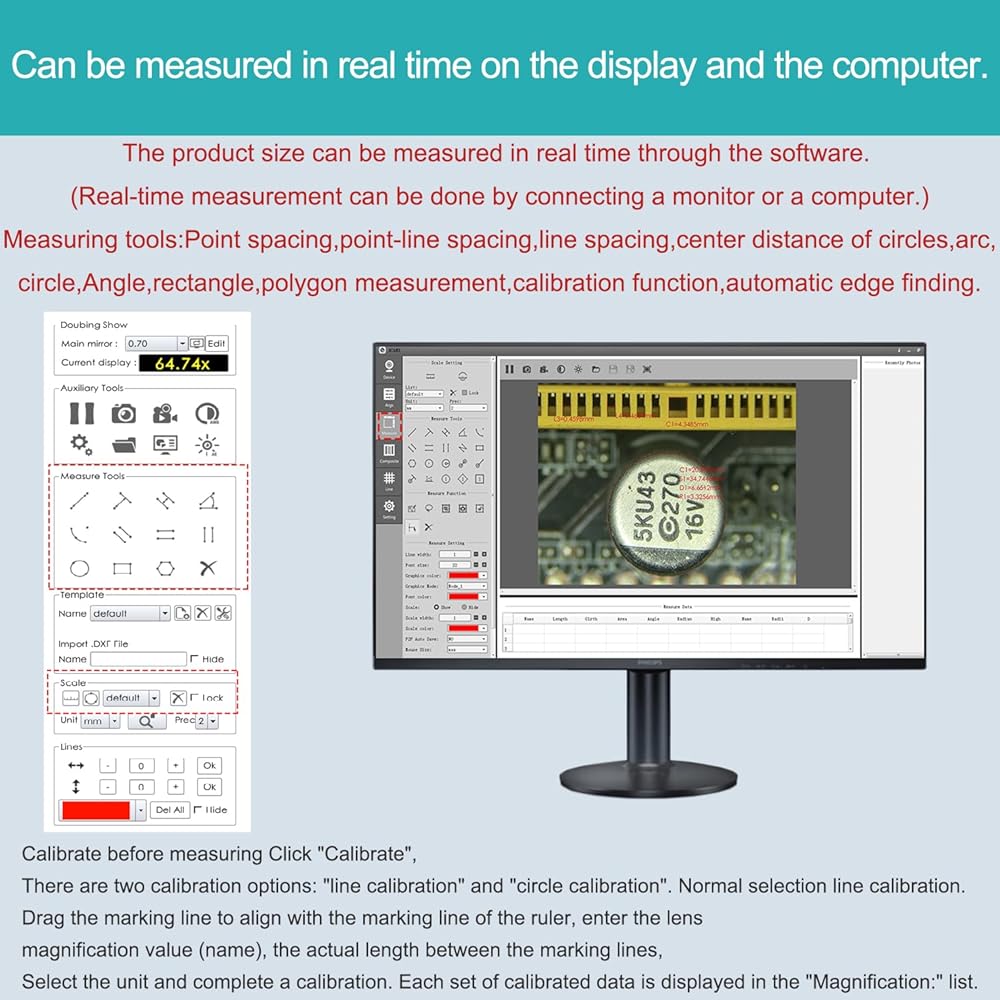

Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

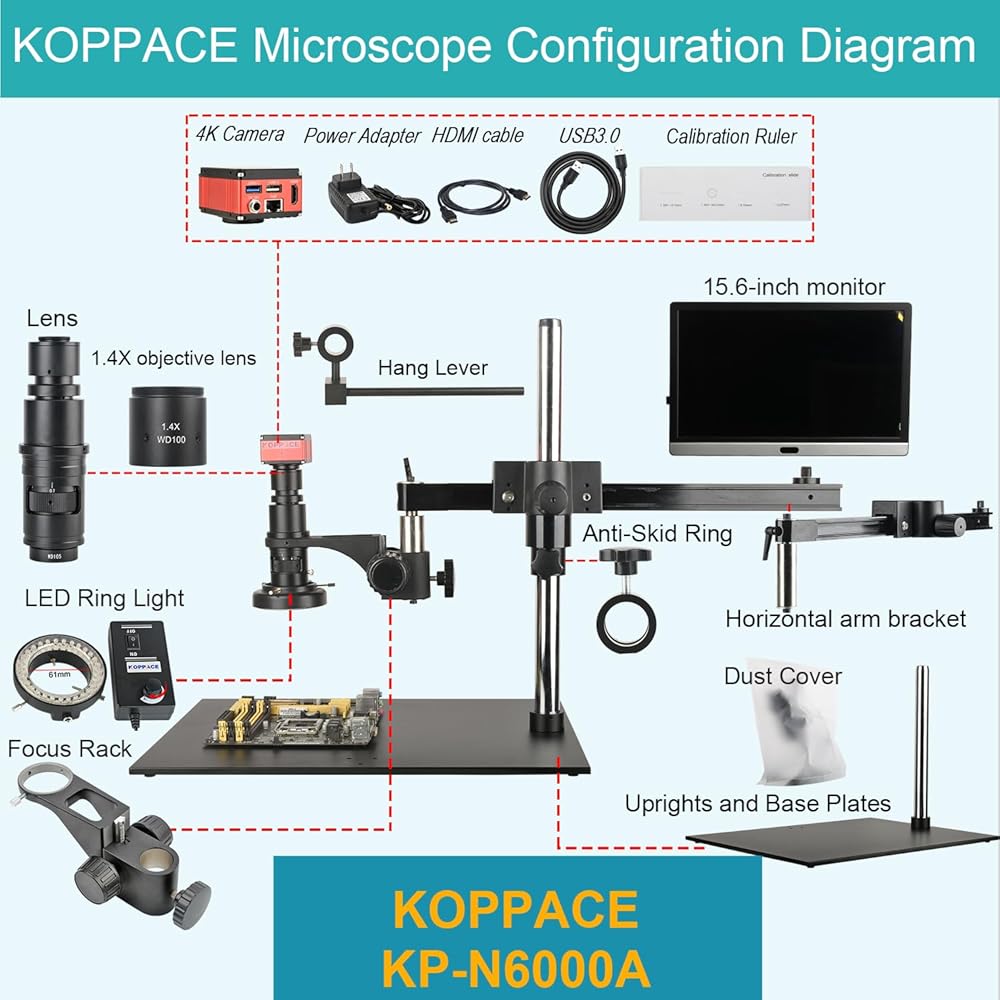

Packing List
1、Uprights and Base Plates *1
2、Focusing Bracket *1
3、Anti-Skid Ring *1
4、Continuous Zoom Lens *1
5、Cross arm Bracket *1
6、1.4X objective lens *1
7、LED Ring Light *1
8、Dust Cover *1
9、4K Camera *1
10、HDMI Line *1
11、The Camera Power Adapter *1
12、Calibrating Ruler *1
13、USB 3.0 Line *1
14、15.6 Inch Monitor *1
15、Hang Lever *1
