Chipset
Intel Z97 Express Chipset
Main Memory
Support four DDR3 1066/1333/1600/1866*/2000*/2133*/2200*/2400*/2600*/2666*/2800*/3000*(*OC) MHz DRAM, 32GB Max
- Supports Intel Extreme Memory Profile (XMP)
- Supports non-ECC, un-buffered memory
Slots
1 x PCIe 3.0 x16 slot, supports up to PCIe 3.0 x16 speed
1 x PCIe 2.0 x16 slot, supports up to PCIe 2.0 x4 speed
2 x PCIe 2.0 x1 slots
3 x PCI slots
1 x VGA port, supports the maximum resolution of 1920x1200@60Hz
1 x HDMI port, supports the maximum resolutions of 4096x2160@24Hz, 24bpp/ 2560x1600@60Hz, 24bpp/1920x1080@60Hz, 36bpp
1 x DVI-D port, supports the maximum resolution of 1920x1200 @60Hz
RAID
- SATA1~6 ports support Intel Rapid Storage Technology enterprise (RAID 0/1/5/10) by Intel Z97
- Supports Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology*
USB
4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connector)
10 x USB 2.0 ports (6 ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x Trusted Platform Module (TPM) header
- 1 x Serial port connector
- 1 x Parallel port connector

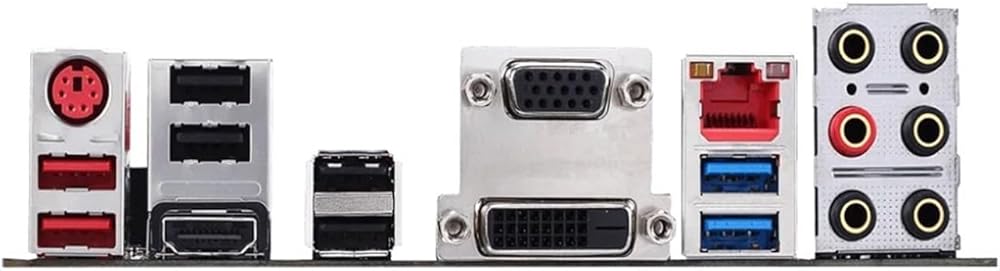

- 6 x USB 2.0 ports
- 2 x USB 3.0 ports
- 6 x OFC audio jacks
- 1 x VGA port
- 1 x DVI-D port
- 1 x HDMI port
==========
RAID Supported : No
Processor compatibility : Intel Others
Usage Scenario : Enthusiast & Overclocking,Gaming,Office
Back I/O Ports : 1x RJ45,HDMI 1.3,DVI-D
Onboard LAN : 1x RJ45
Storage Interface Type : SATA
Number of PCI : 3
PCI - E standards : PCI-E 3.0
Support Memory Type : DDR3
Maximum Ram Capacity : 32 GB
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel Z97
Application : Desktop
Socket Type : LGA1150
