Supports DDR4 4733+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Display output options: HDMI, DisplayPort
4 SATA3, 1 Super M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen3x2 & SATA3
6 USB 32 Gen1 4 rear 2 front
6 USB 20 2 rear 4 front
CPU socket :AM4
Memory:
Memory type 4 × DDR4 DIMM
Maximum memory capacity 128GB
Expansion slot
- 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*
- 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode)
Chipset:
- 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 16 Gbs modes*
- 4 x SATA3 6.0 Gb/s Connectors
Connector
- 1 x SPI TPM Header
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
==========
RAID Supported : No
Usage Scenario : others
Onboard Connectors & Header : 24-pin Main Power Connector,CPU Fan Connector(s),USB 3.1 /3.2 Gen 1 Connector,RGB Header,8-pin +12V Power Connector,OthersConnectors & Header,M.2_FAN Connector

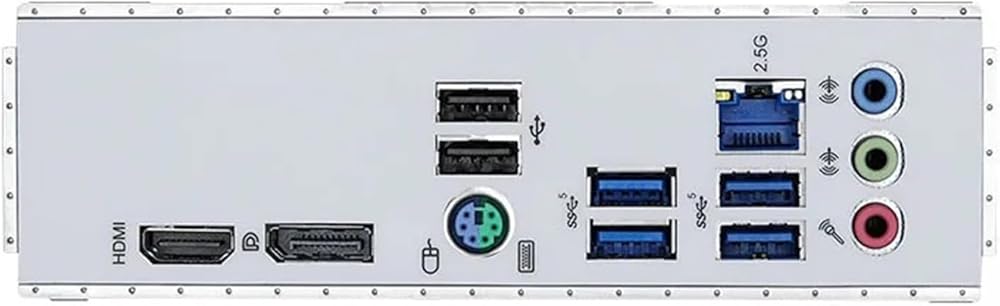

Back I/O Ports : 1x RJ45,2x USB 3.2/3.1 Gen 1,PS/2
Onboard LAN : 1x RJ45
Audio Channels : 7.1
Supports M.2 SSD : 2242,2280,2260,22110
Number of M.2 : 2
Number of SATA Ports : 4
Storage Interface Type : SATA 3,M.2 (NVMe)
Number of PCI : 2
Number of PCIe x 1 : 1
Number of PCIe x 4 : 1
Number of PCIe x 16 : 2
PCI - E standards : PCI-E 4.0
Number Of Memory Slots : 4
Support Memory Type : DDR4
Quality Certification : FCC
Memory channel : Double
Form Factor : CeB
Maximum Ram Capacity : 128 GB
Form Factor : others
Battery Included : Yes
Application : Desktop
Socket Type : AM4
