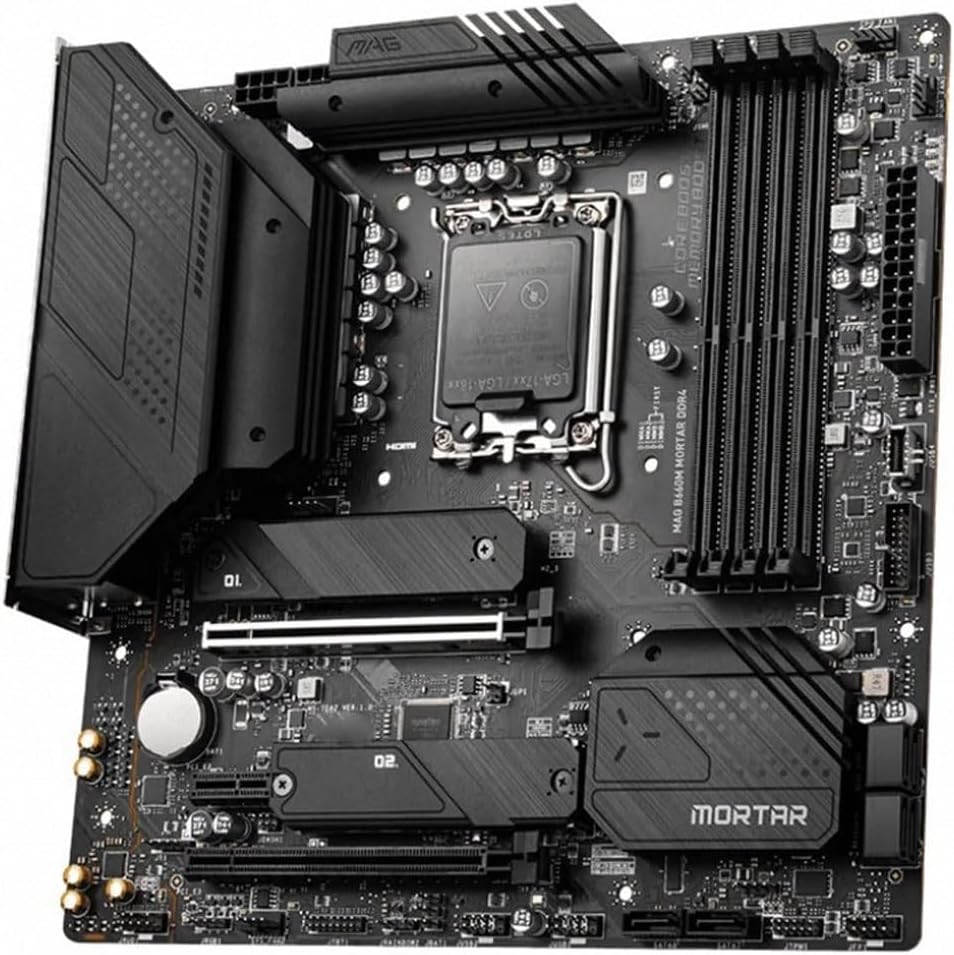

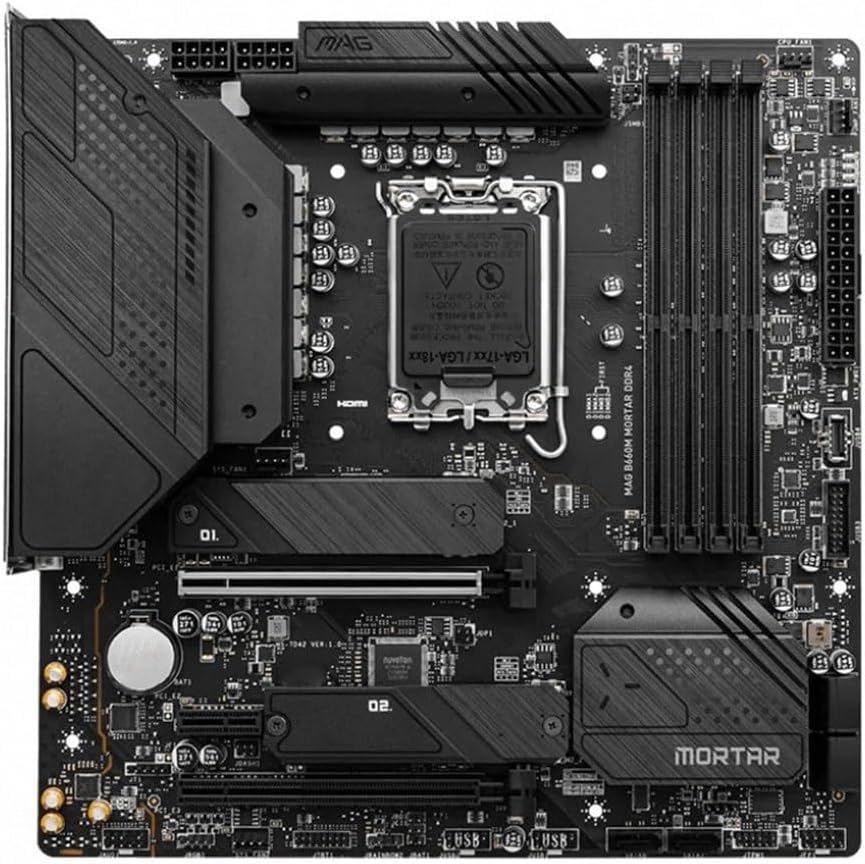

Motherboard chip
Integrated Chip Sound Card/Network Card
Main chipset Intel B660
Chipset Description Using Intel B660 Chipset
Audio chip Integrated Realtek ALC1200 7.1 channel audio chip
Network card chip Onboard Realtek 8125BG 2.5GbE network card
Processor Specifications
CPU Type Twelfth Generation Core/Pentium/Celeron
CPU socket LGA 1700
memory specification
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support dual channel DDR4 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)
/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC) MHz memory
storage expansion
PCI-E standard PCI-E 4.0
2 PCI-E X16 slots (1 supports X16 operation specification, 1 supports X4 operation specification)
PCI-E X1 slot 1
Storage interface 2×M.2 interface, 6×SATA III interface

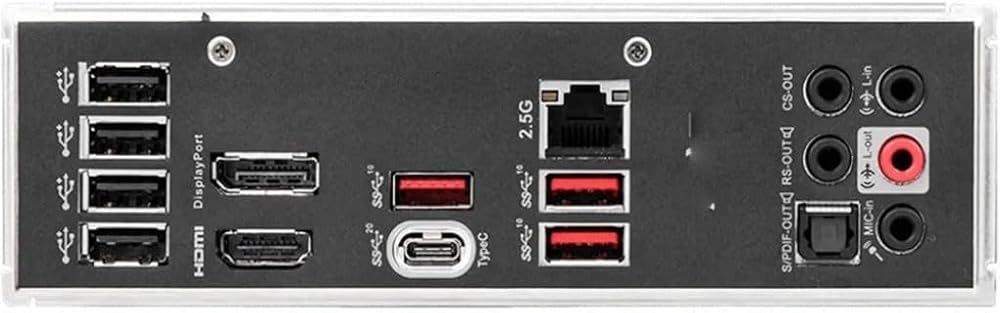

I/O interface
USB (backplane) 1×USB3.2 Gen2x2 Type-C interface
3×USB3.2 Gen2 interface
4 x USB2.0 interface
USB (built-in) 1×USB3.2 Gen2 Type-C interface
2×USB3.2 Gen1 interface
4 x USB2.0 interface
Video interface 1×HDMI interface, 1×DisplayPort interface
Power interface Two 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, 1×optical fiber interface, 5×audio interface
plate type
Motherboard form factor Micro ATX form factor
==========
RAID Supported : No
Processor compatibility : Intel Core
Usage Scenario : Gaming,Audio & Video,Household,Office,Design,others
Back I/O Ports : HDMI 1.0
Support USB Type : USB 2.0,USB 3.2 Gen1,USB 3.2 Gen2
Onboard LAN : 1x RJ45
Number of SATA Ports : 6
Storage Interface Type : SATA 3
Number of PCI : 0
Number of PCIe x 1 : 1
Number of PCIe x 4 : 0
Number of PCIe x 8 : 0
Number of PCIe x 16 : 2
PCI - E standards : PCI - E 4.0
Number Of Memory Slots : 4
Support Memory Type : DDR4
Memory channel : Double
Form Factor : CeB
Maximum Ram Capacity : 128 GB
Form Factor : Micro-ATX
Chipset Manufacturer : Intel
Battery Included : No
Chipset : Intel B660
Application : Desktop
Socket Type : LGA 1700
