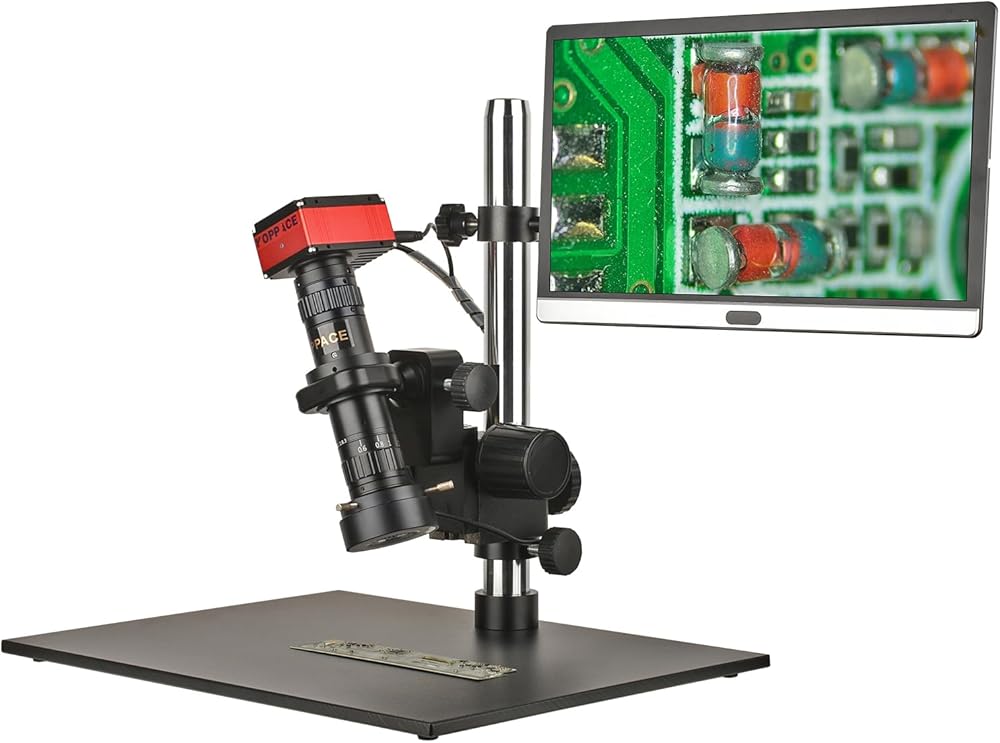

Model KP-F2000A
Monitor 15.6 Inch Monitor
Optical Magnification 0.3X-2.5X
Electronic Magnification 13X-111X
Field of View 3.54mm-29.53mm
Eyepiece 0.5X C-Mount

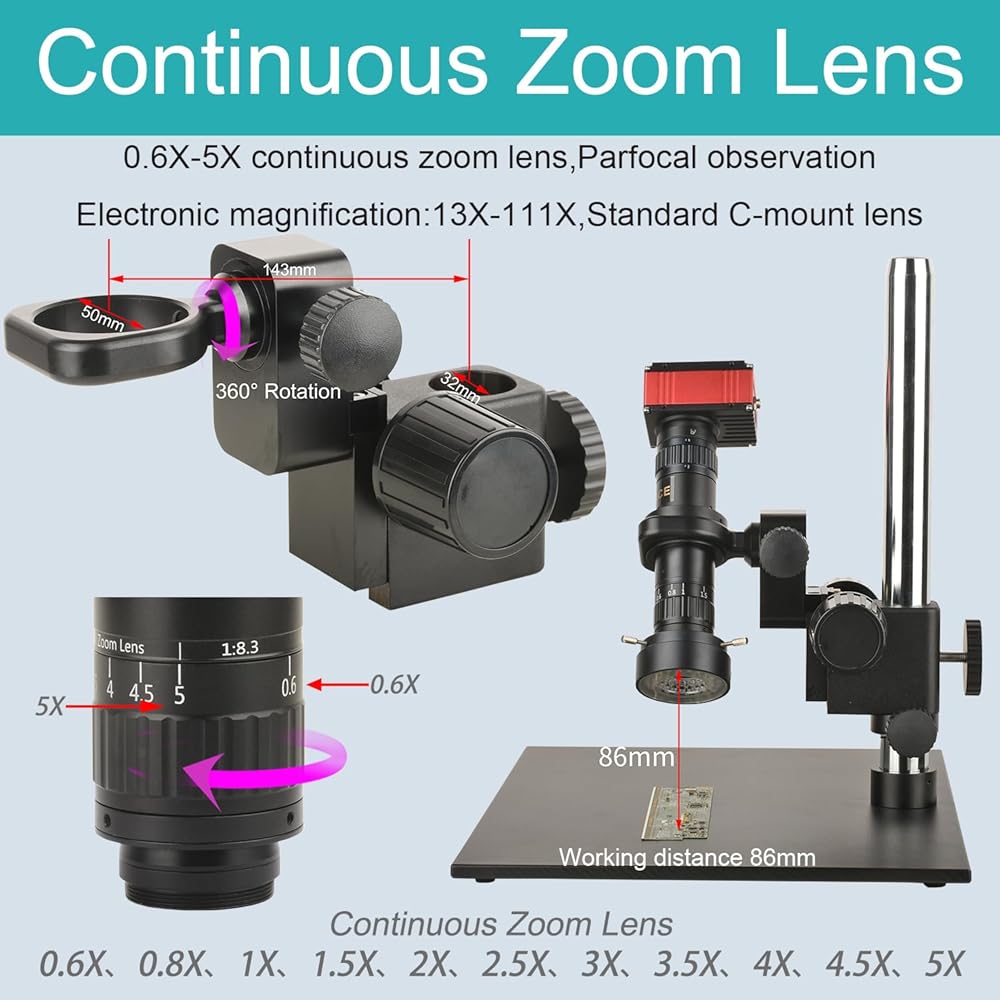

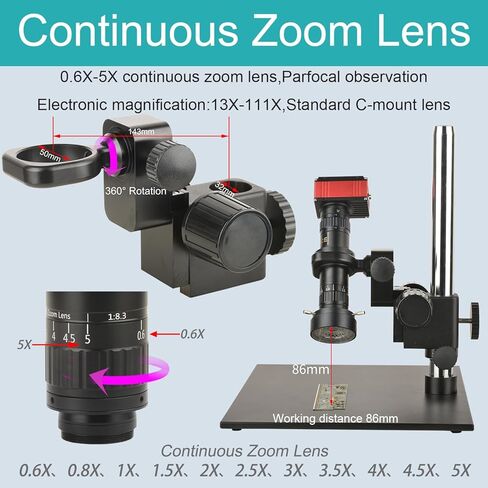

Objective Lens 0.6X-5X Continuous Amplification
Working Distance 86mm
Auxiliary objective lens 1X

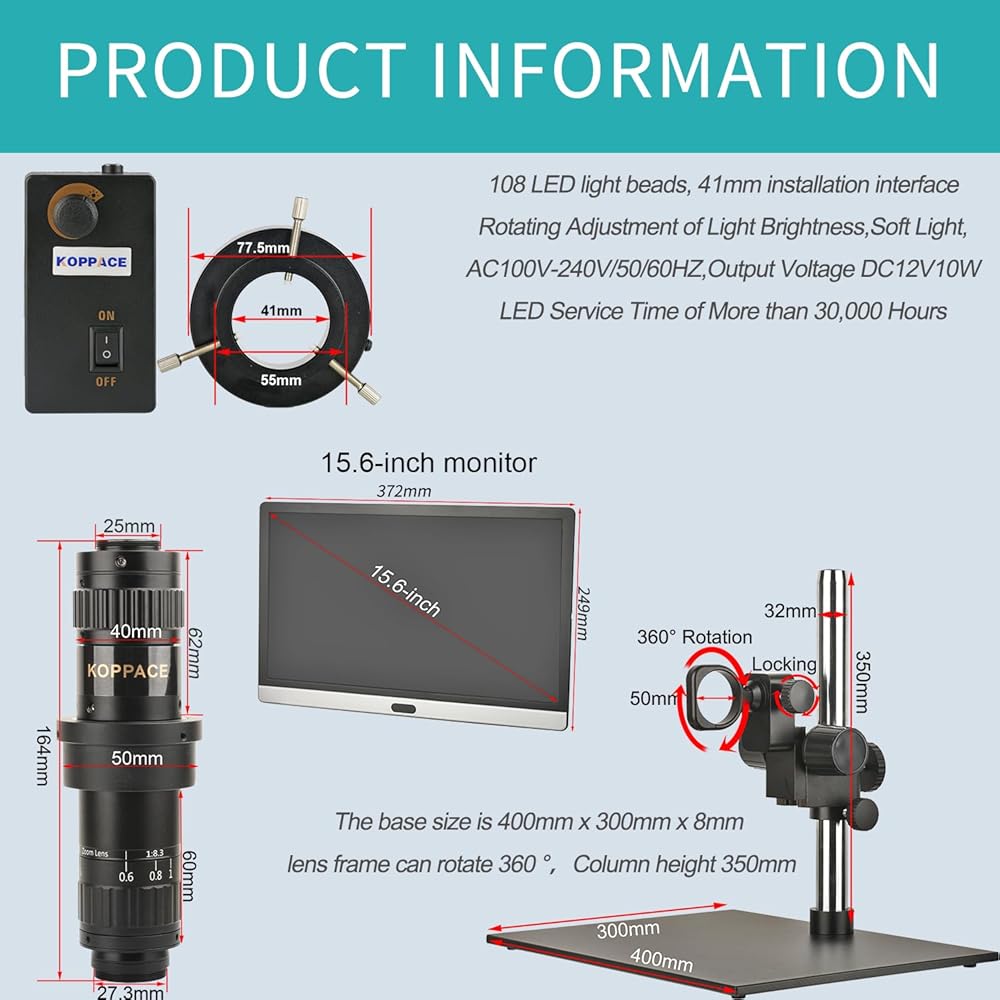

Bracket Size The base size is 400mmX300mmX8mm, the lens hole is 50mm,it can rotate 360 °, the column height is 350mm,and the diameter is 32mm
LED Light Source 108 LED light beads,41mm installation interface,AC100V-240V/50/60HZ,Output Voltage DC12V10W
Pixel 8.3 Million Pixels
Output Method HDMI、GigE、USB3.0
Sensor 8.3M 1/1.8" CMOS
Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Pixel Size 2.0μmX2.0μm
Frame Rate 60FPS
Color Adjustment R、G、B Independently Adjustable
White Balance Auto/Manual

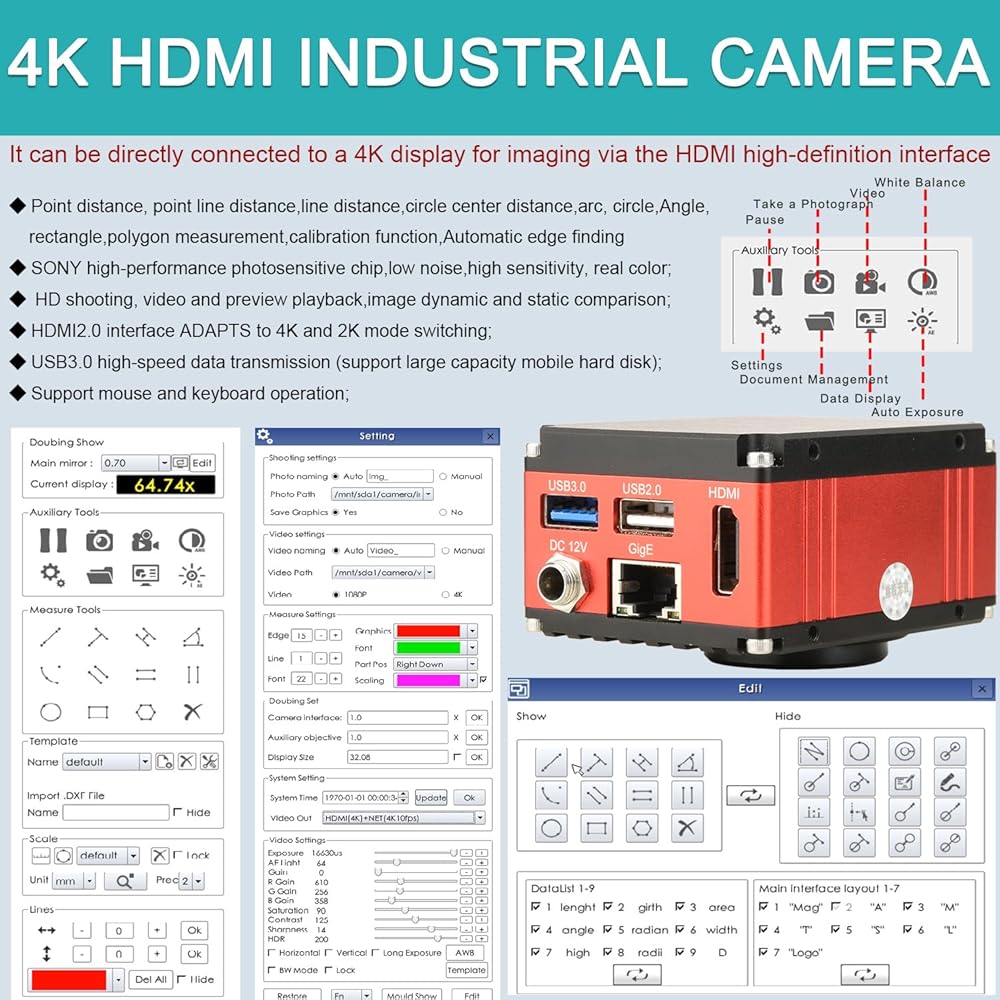

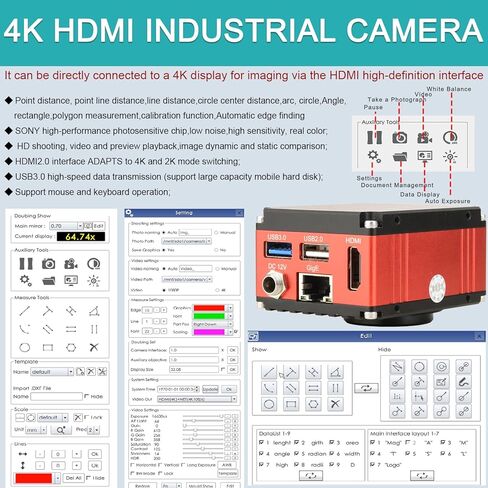

Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement

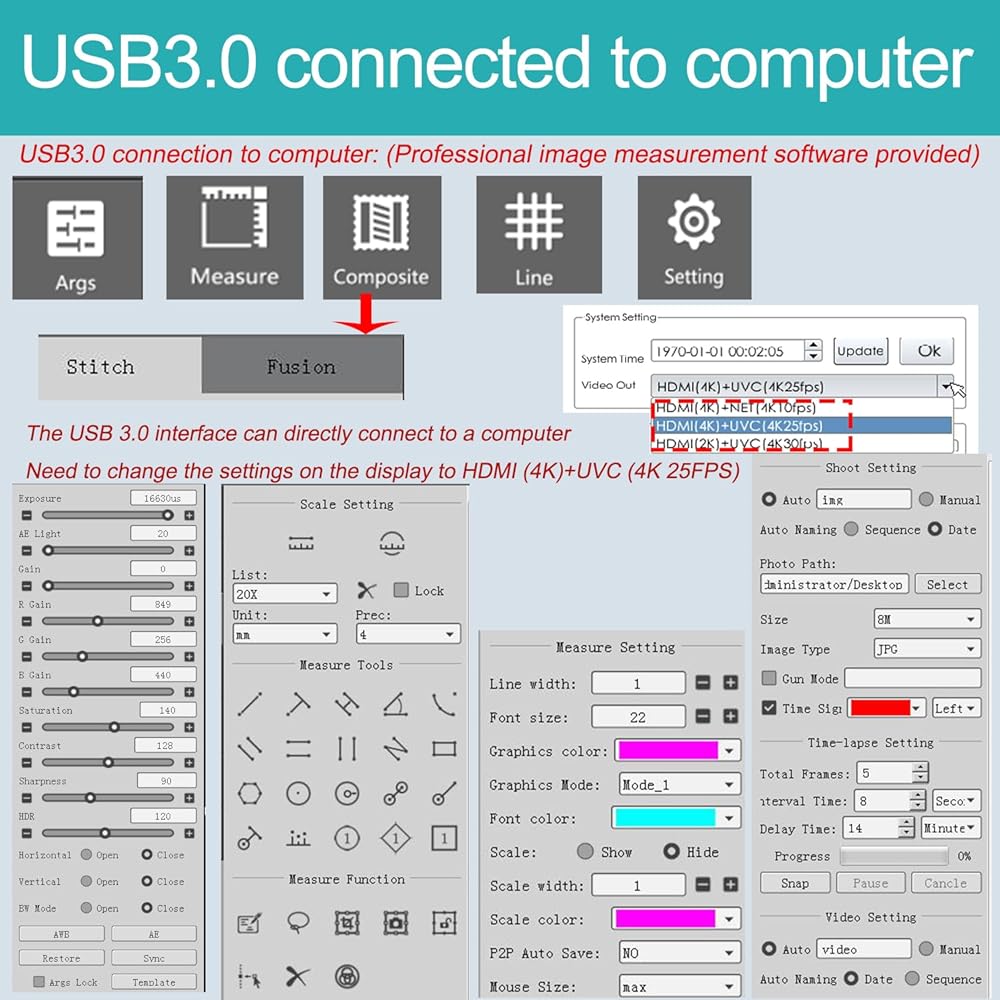

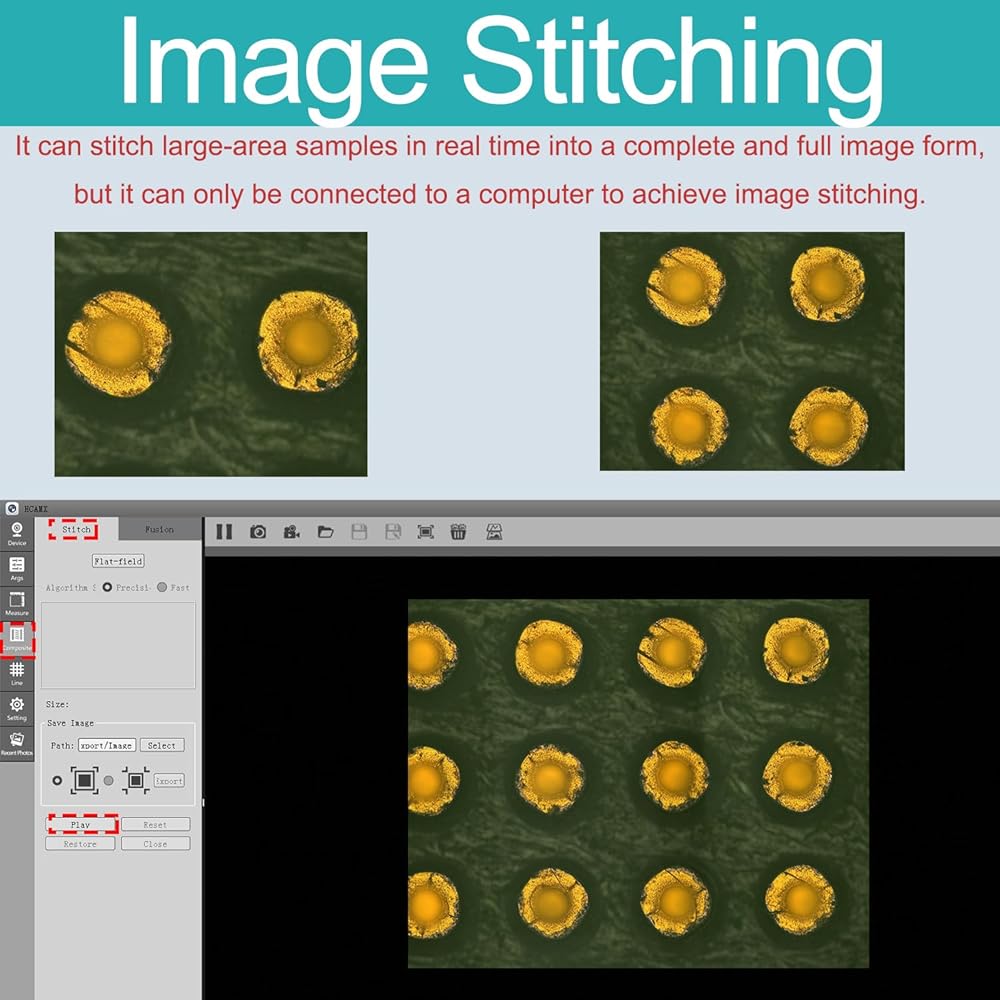

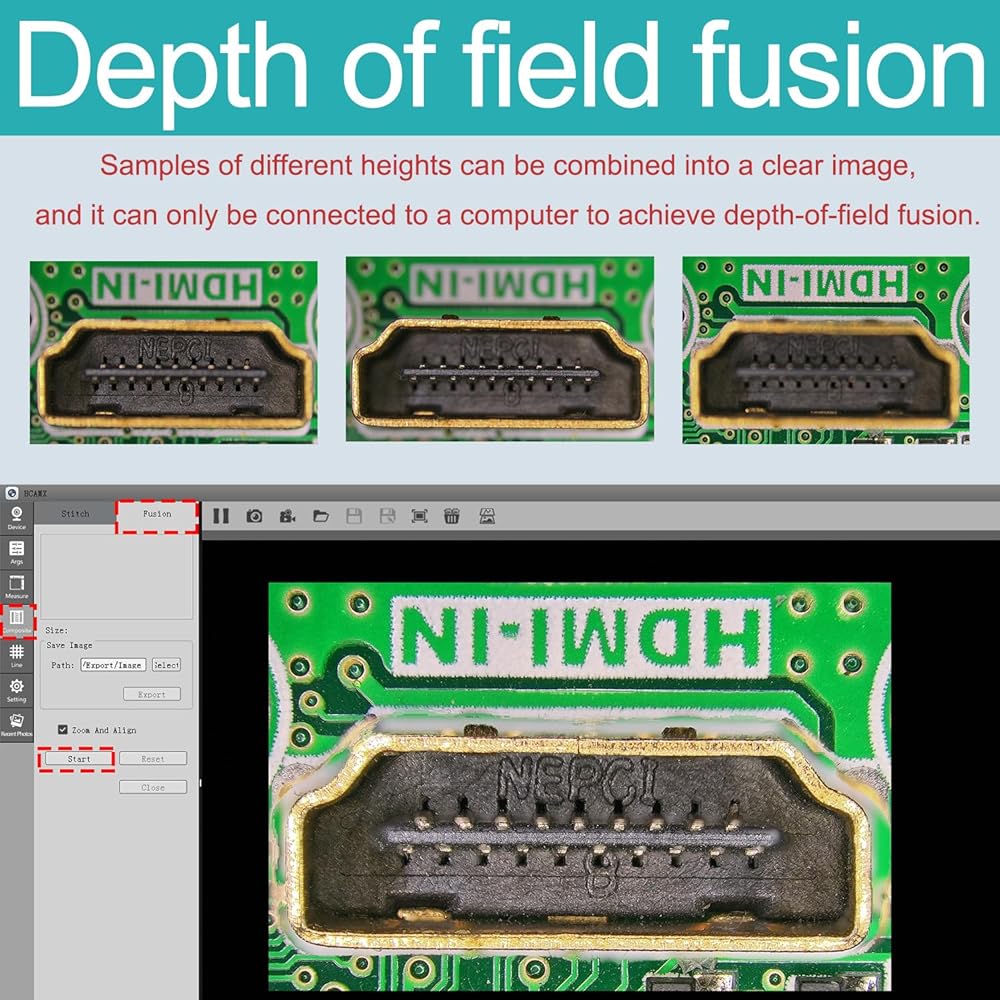

GigE/USB3.0 By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.
Cross Hair Support 100 Groups Cross Line,The Color Position is Adjustable
Power Supply AC100V-240V DC-12V

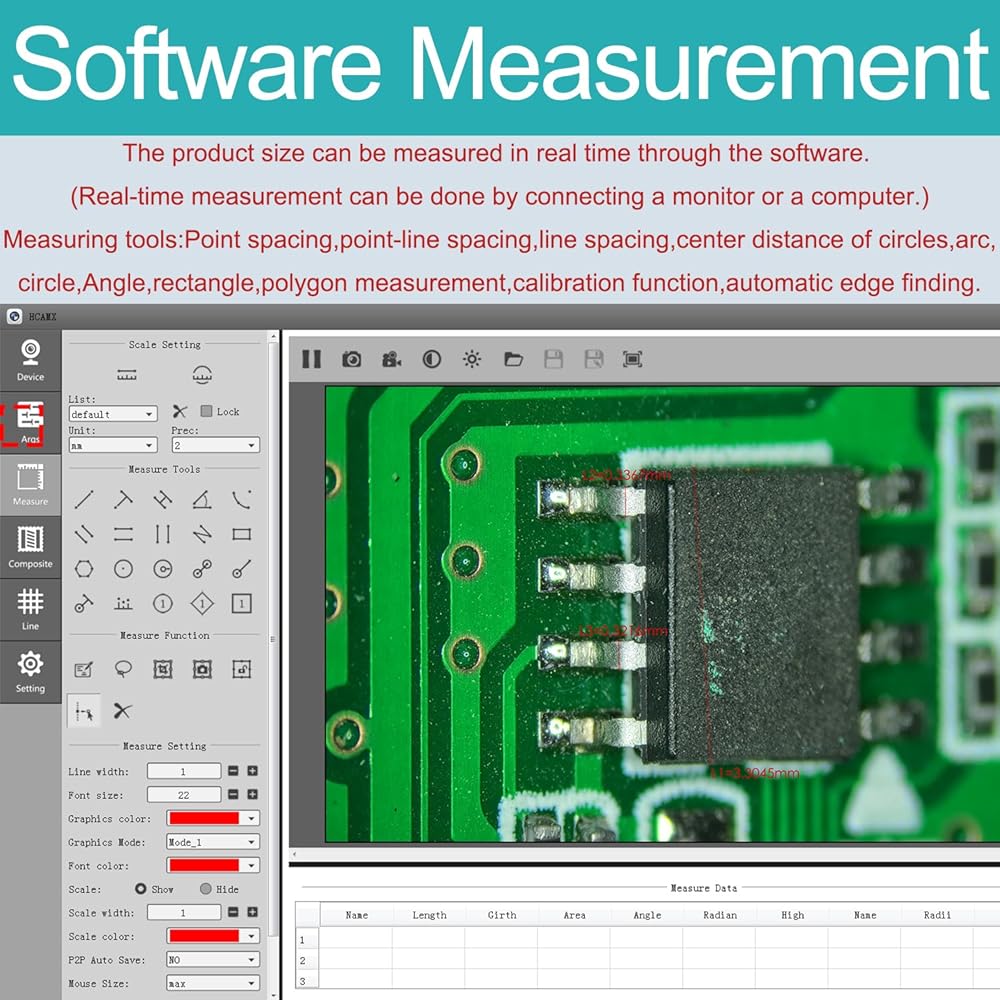

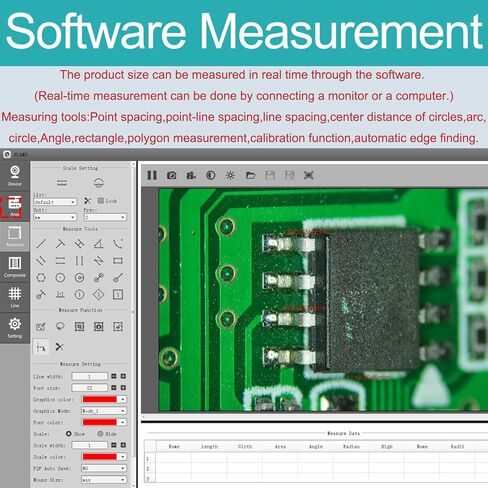

Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

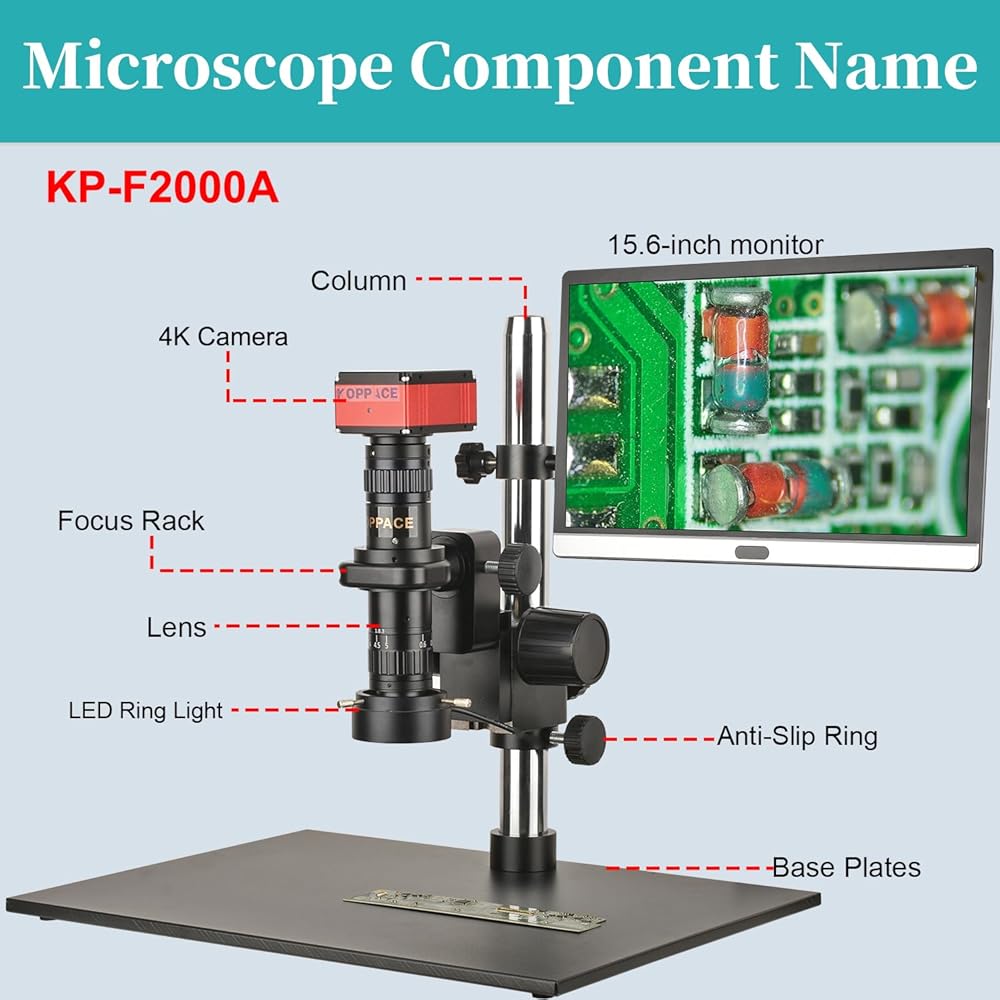

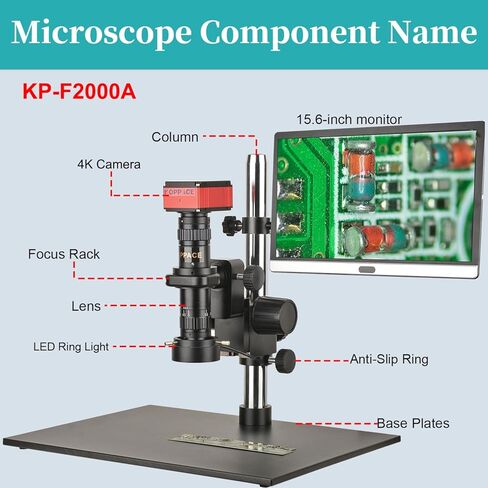

Packing List
1. Uprights and Base Plates *1
2. Rotate Focusing Bracket *1
3. Anti-Skid Ring *1
4. Continuous Zoom Lens *1
5、LED Ring Light *1
6、Dust Cover *1
7、4K Camera *1
8、HDMI Line *1
9、The Camera Power Adapter *1
10、Calibrating Ruler *1
11、USB 3.0 Line *1
12、15.6 Inch Monitor *1
13、Hang Lever *1
