Koolance QD1H-FSG4 QD1H أنثى قطع اتصال سريع مانع للتسرب، ذكر ملولب، G 1/4 BSPP in Kuwait

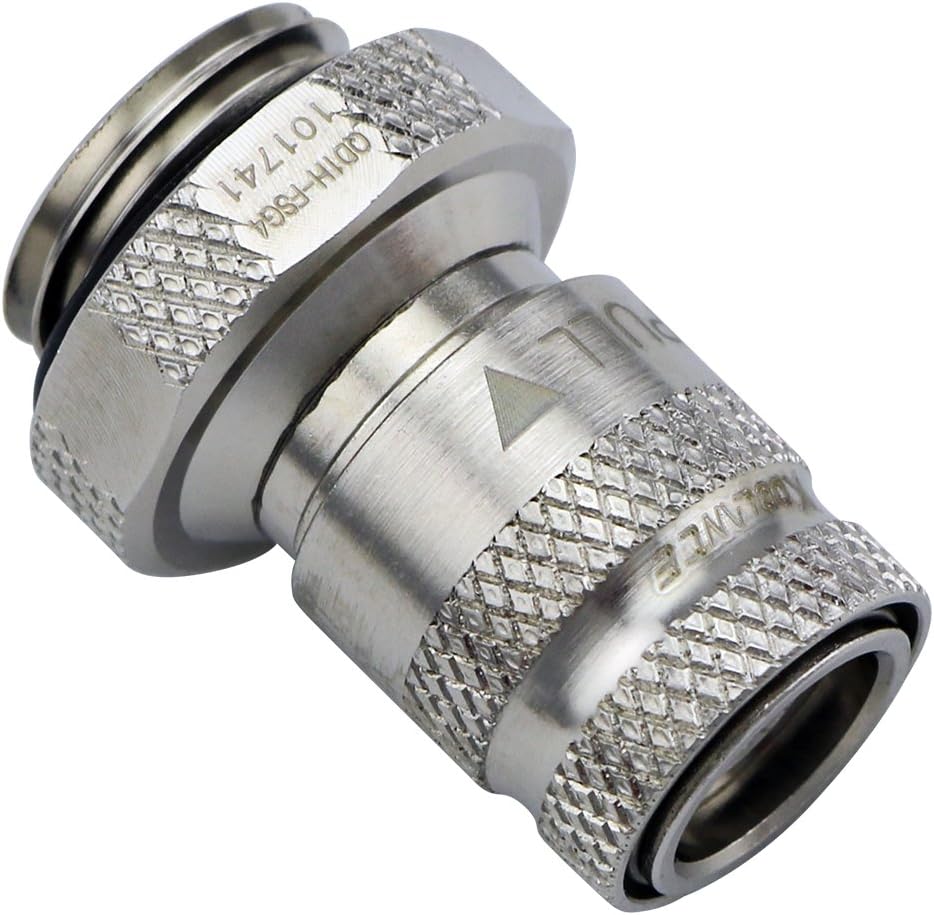

Koolance QD1H-FSG4 QD1H أنثى قطع اتصال سريع مانع للتسرب، ذكر ملولب، G 1/4 BSPP

KWD 6
ماركة
Koolance
وزن
14 g
– 1 +

مميزات خاصة

  • Koolance patented quick disconnect no-spill coupling with automatic shutoff.
  • G 1/4 BSPP (parallel) threaded female fitting for screwing directly into a component of the same threading.
  • It will only fit a Koolance QD1H male quick disconnect.
  • After pulling the ring on the female QDC side, the quick-disconnect fittings will separate.
  • Liquid on both sides will be automatically obstructed with approximately 0.1ml freed.

وصف

Koolance patented quick disconnect no-spill coupling with automatic shutoff. G 1/4 BSPP (parallel) threaded female fitting for screwing directly into a component of the same threading. It will only fit a Koolance QD1H male quick disconnect.

After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.1ml freed. Coolant volume lost upon disconnection will rise with internal pressure higher than 10kgf/cm2 (142psi).

Additional Specifications

• Materials: Nickel-Plated Brass, Stainless Steel, EPDM
• Max Temp. Operating Tolerance: 100°C (212°F)
• Max Pressure Tolerance @ 25°C: 12kgf/cm2 (170.7psi)
• Fitting Thread: G 1/4 BSPP
