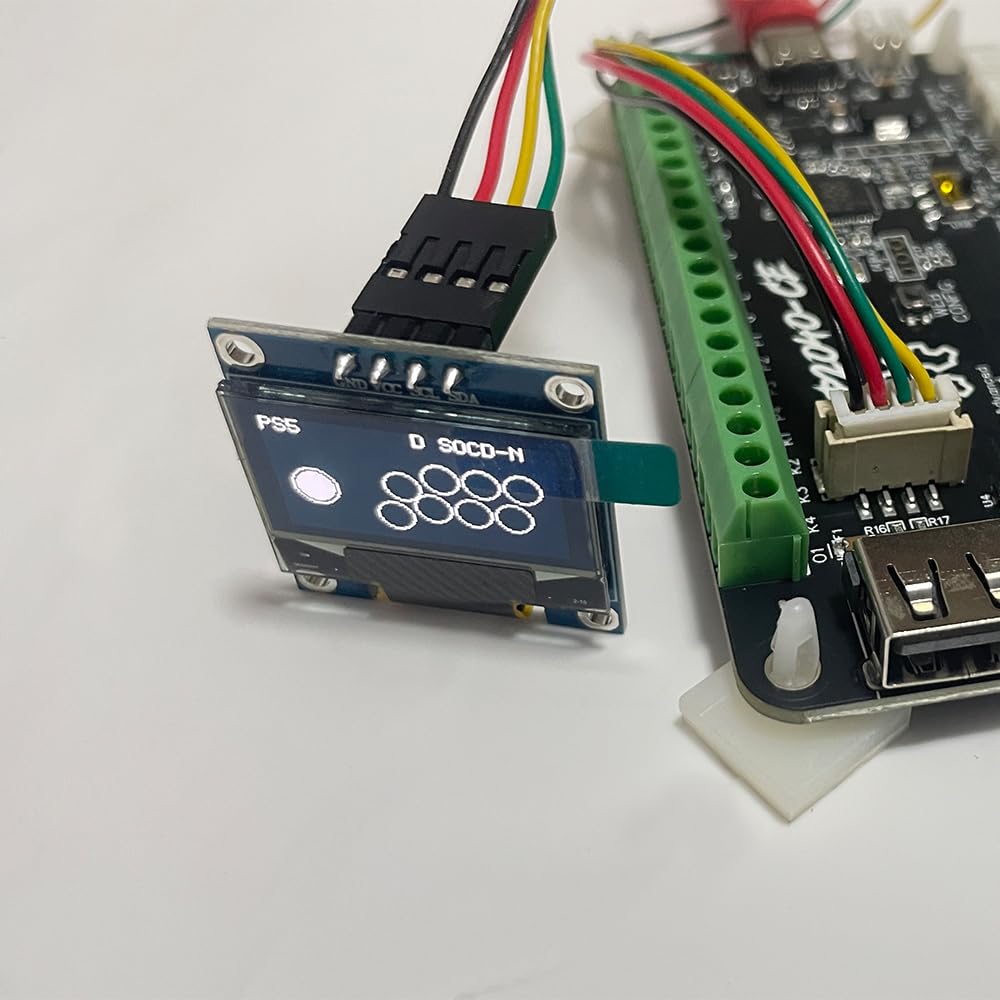

The OLED screen may be compatible with other PCB boards, our custom cable has been tested to work with the Brook Ultimate + Retro and GEN-5X boards. For other PCB's, the OLED will work, but the cable pin-out may be different.

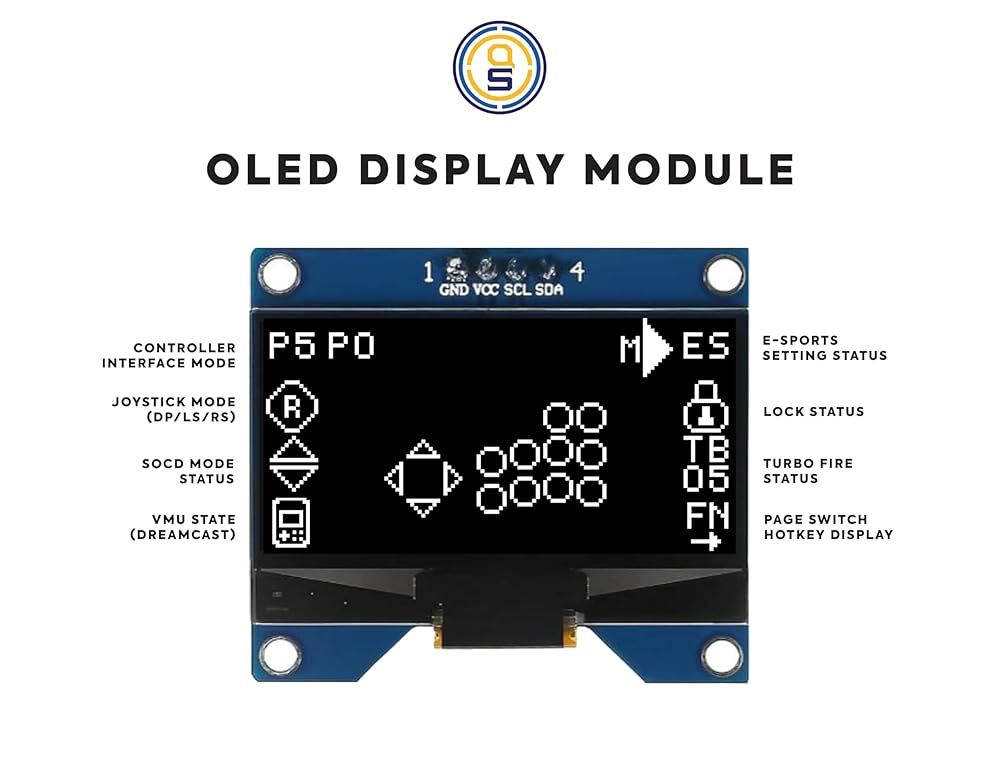

The add-on OLED Screen enables an Always-Active Input Display, great for troubleshooting and confirming controller activity. It also gives a Status HUD for multiple board functions such as:

Console Mode
Button Input Confirmation
SOCD Settings
E-Sports Mode
Turbo Activity Status
Joystick Setting (DP/LS/RS)

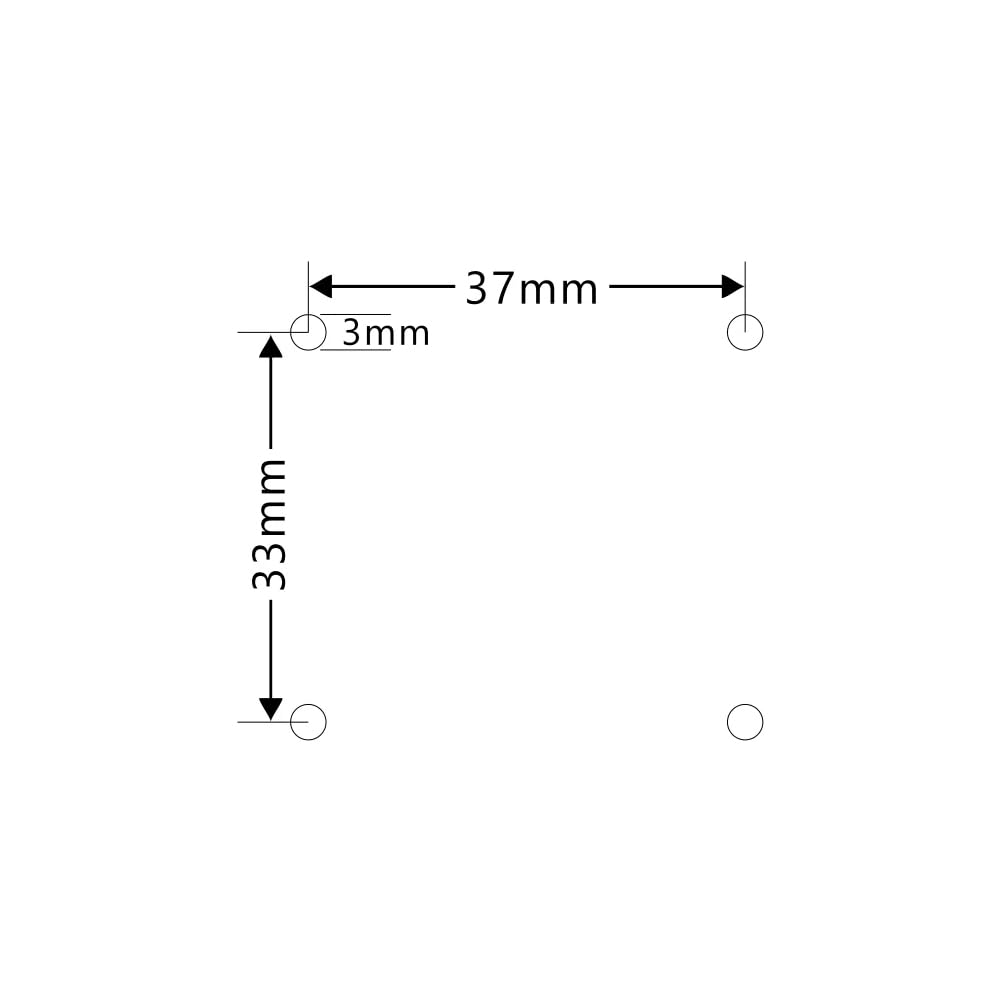

Dimensions shown in image attachment for those who are making their own custom enclosures

Color Options: Choose between three different color displays. Blue, White or Yellow

With the Brook ULTIMATE+Retro it also utilizes as VMU Display when used on Dreamcast. Easily Connect to a compatible board using the OLED Harness

Kit Contents

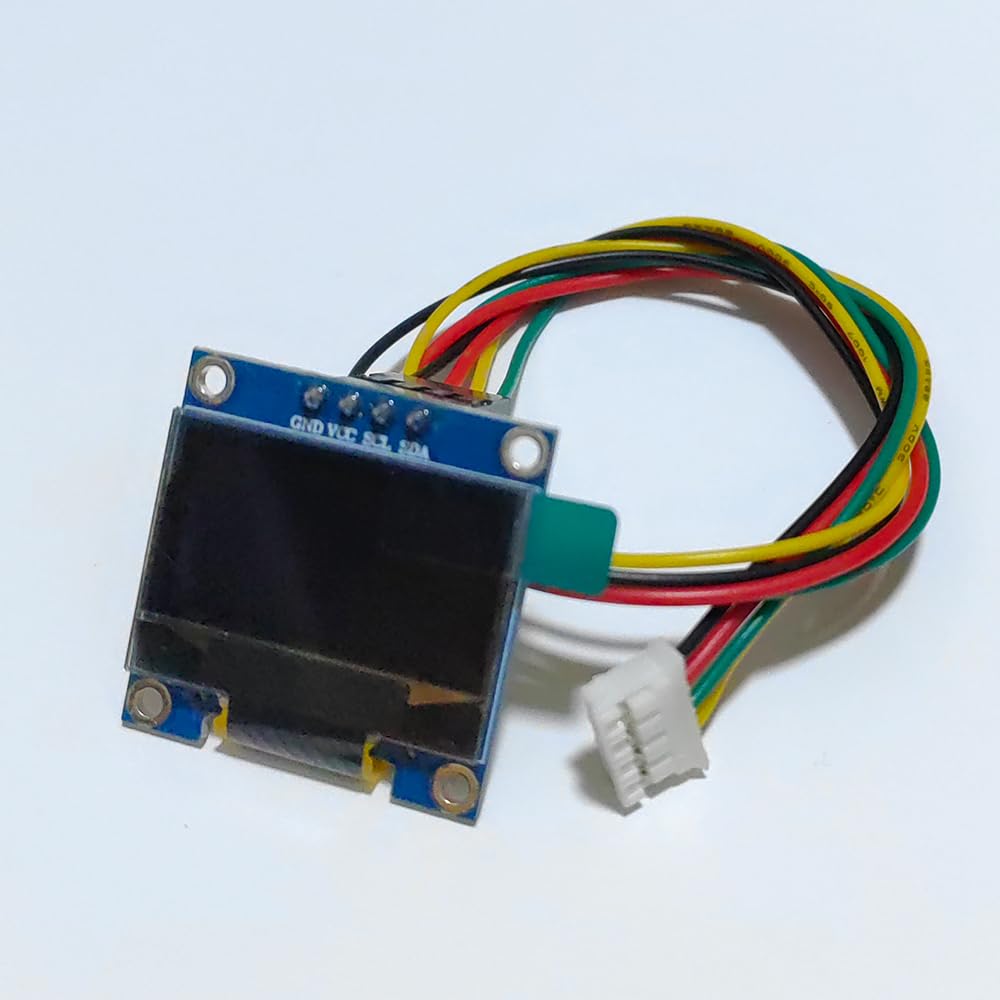

OLED Screen, Custom Cable (7 inches), Mounting Screws and nuts
Optional Extended Cable

46cm or 18 inches

OLED Screen Specifications

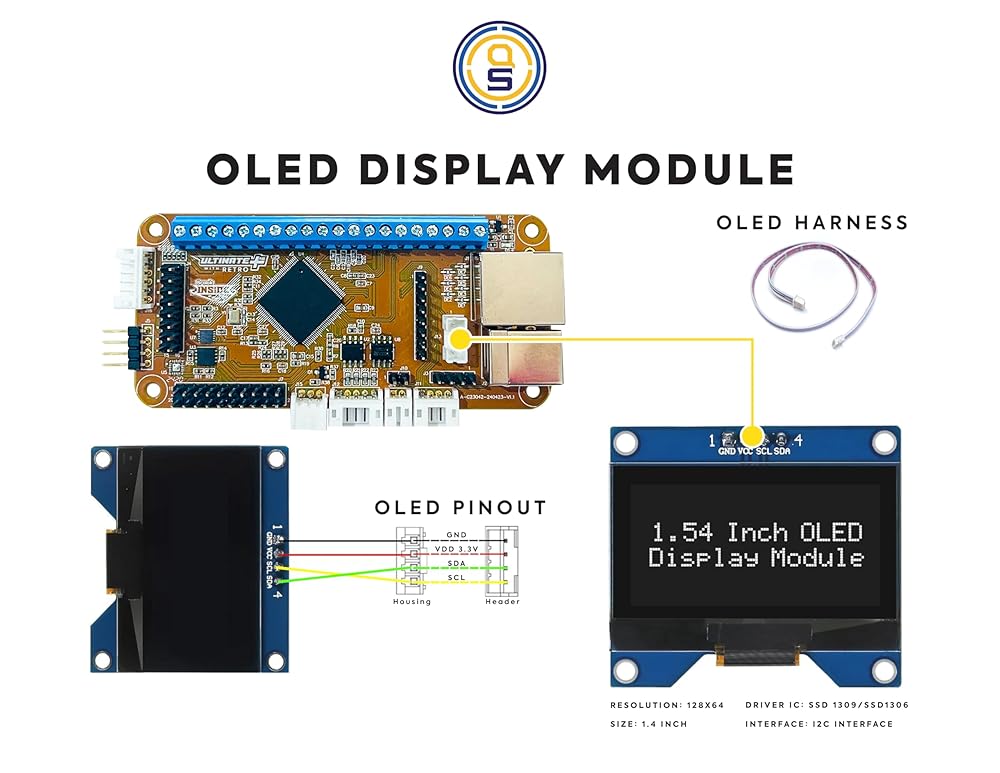

Pinout

VCC: 3.3V~5V
SCL: CLOCK LINE
SDA: DATA LINE
GND: GROUND

Resolution: 128x64
Size: 1.4 inch
Driver IC: SSD 1309, SSD1306 Compatible
Interface: I2C Interface
