Compatible With MSI

● Important Notes:

1. This product is only compatible with older motherboards such as Intel and AMD. It is not compatible with newer motherboard models featuring firmware TPM, all-in-one PCs, or laptops.

2. The minimum hardware requirements for upgrading to Windows 11 via TPM 2.0 are as follows: a 1 GHz or faster 64-bit processor (dual-core/multi-core), 4 GB of memory, 64 GB of storage space, firmware supporting UEFI Secure Boot and TPM 2.0, a DirectX 12-compatible graphics card, and a display with a resolution of 720p or higher.

3. This product has a 14pin-1 connector. Please carefully check the pin positions in the image to ensure compatibility with your motherboard before purchasing.

Compatible With MSI Models：

X570-A PRO

PRESTIGE X570 CREATION

MAG X570 TOMAHAWK WIFI

MPG X570 GAMING PRO CARBON WIFI

MPG X570 GAMING PLUS

MPG X570 GAMING EDGE WIFI

MEG X570 ACE

MEG X570 GODLIKE

MEG X570 UNIFY

● How to Select and Install a Security Module:

1. Confirm whether the host has TPM 2.0 or if TPM 2.0 is enabled.

2. Click Run, enter: tpm.msc (Win + R keys), and check if the TPM version is ready.

3. If version 2.0 is displayed but not ready, you need to configure settings in the BIOS. Please consult the motherboard manufacturer's customer service.

4. Open the host and inspect the TPM pins on the motherboard.

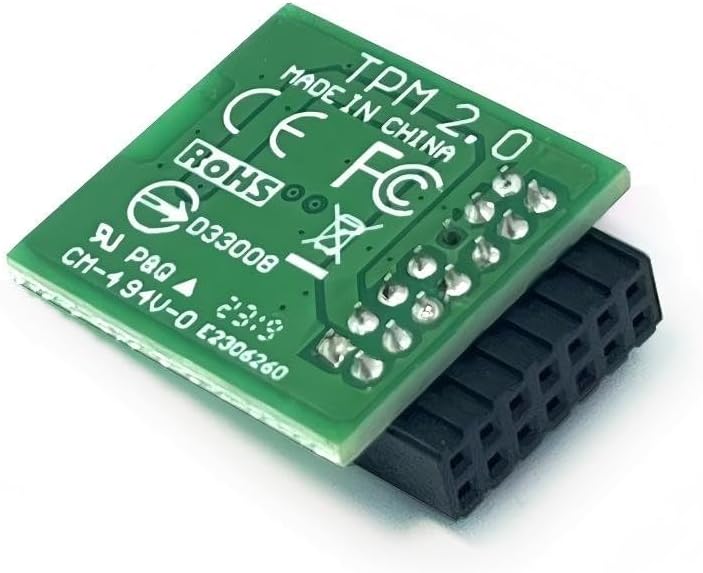

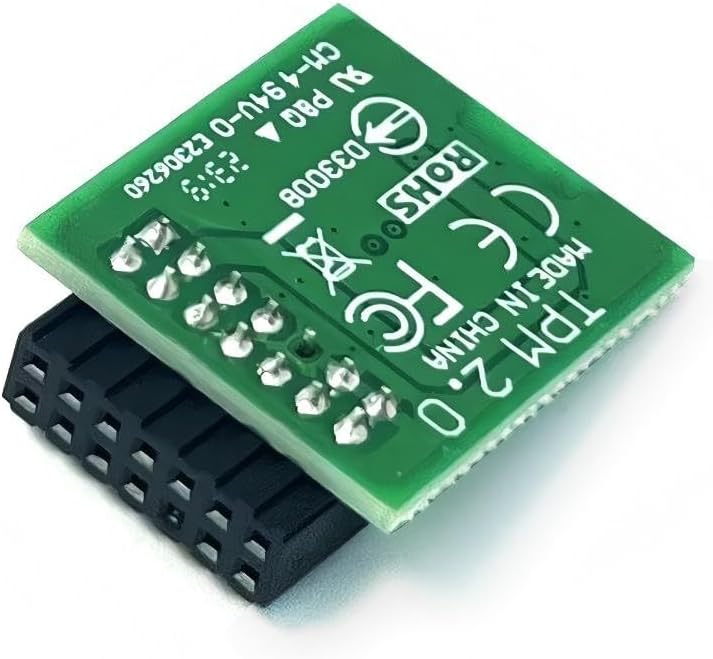

5. When installing the module, ensure the chip-side faces inward, align with the pins, and insert fully to prevent loosening. (See image for direction)

● Product Performance

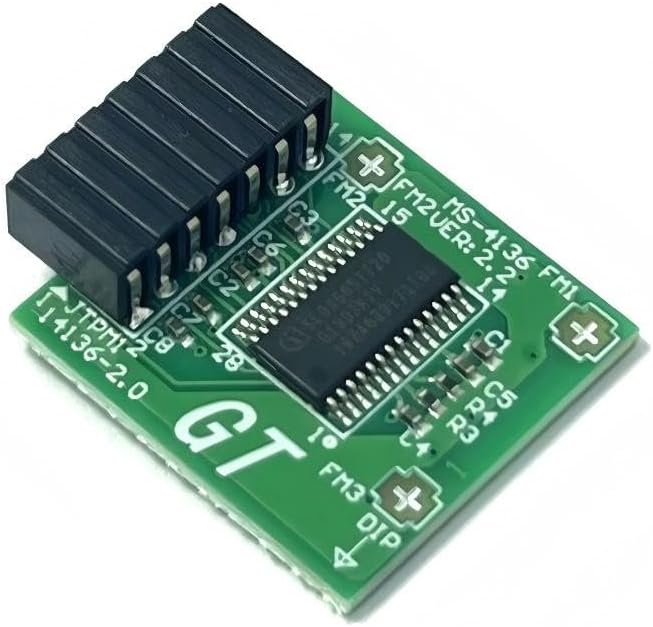

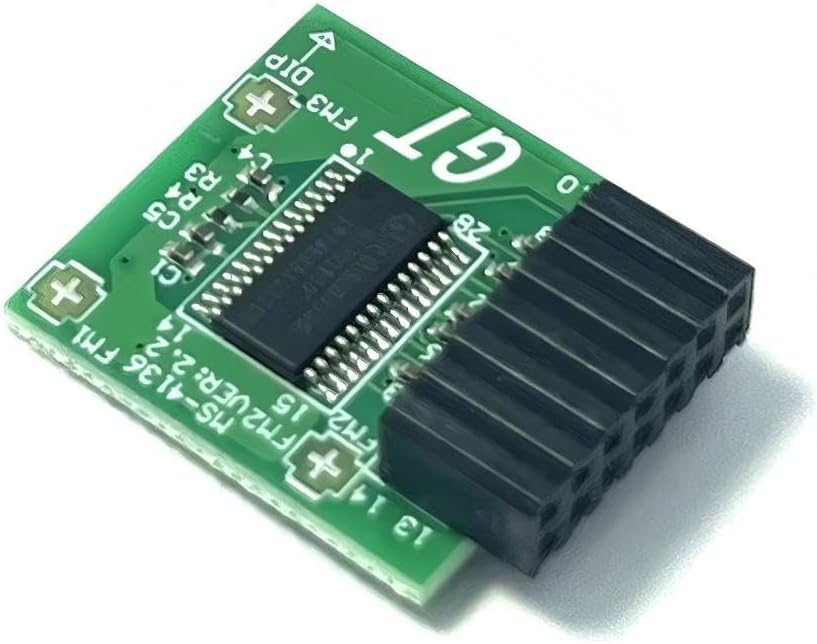

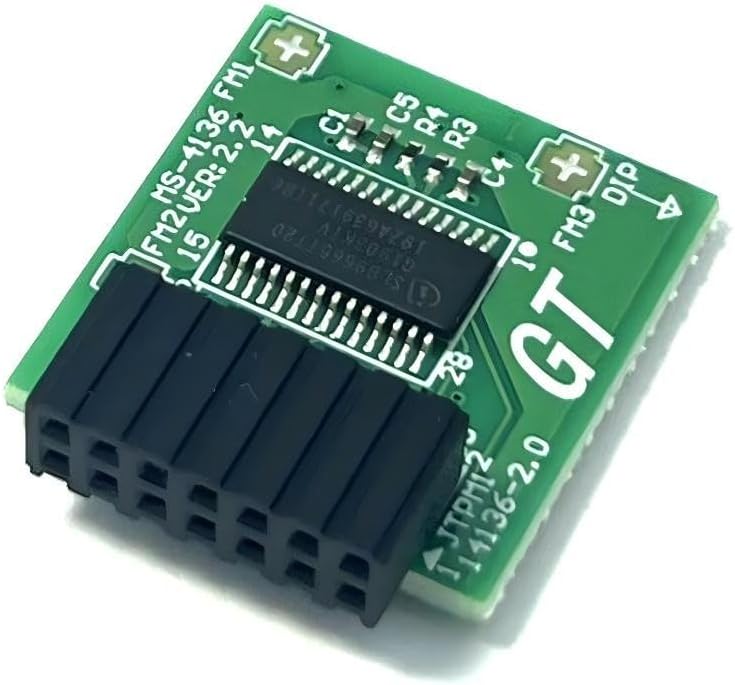

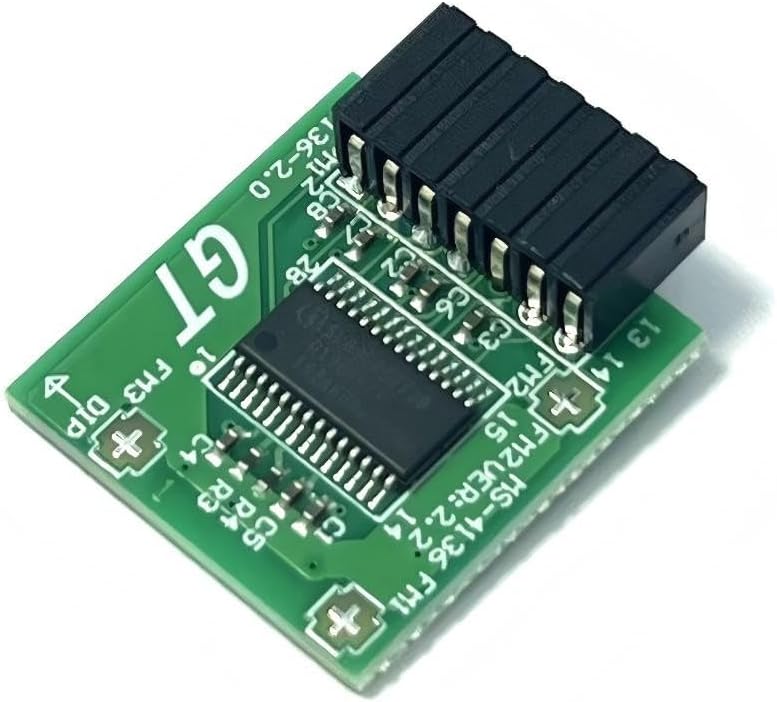

Compatible with: TPM2.0 MS-4136

Chipset: SLB9665

Interface: LPC

PIN DEFINE: 14 -pin-1

● Core Applications:

a: Seamless upgrade to Windows 11: Resolve TPM 2.0 verification issues and easily upgrade to the latest operating system.

b: Enhanced hardware-level security: Provides an independent secure encryption chip specifically designed for securely storing sensitive data (such as encryption keys, digital certificates, and login credentials), thereby enhancing overall system security.

C: Hardware encryption acceleration: Reduces CPU load by accelerating encryption operations via dedicated hardware, indirectly improving system response speed and enhancing the smooth operation of certain encryption-dependent applications (such as games and security software).

TPM Chip,tpm 2.0 module
