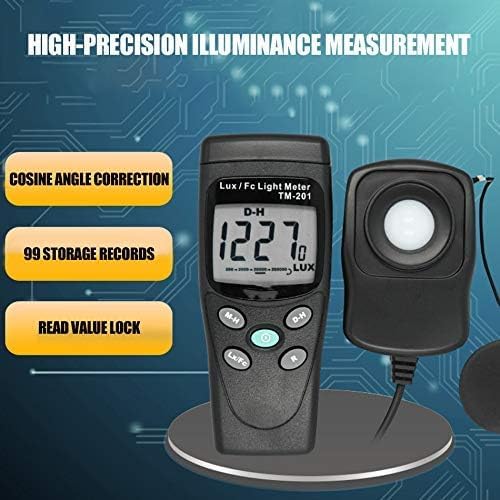

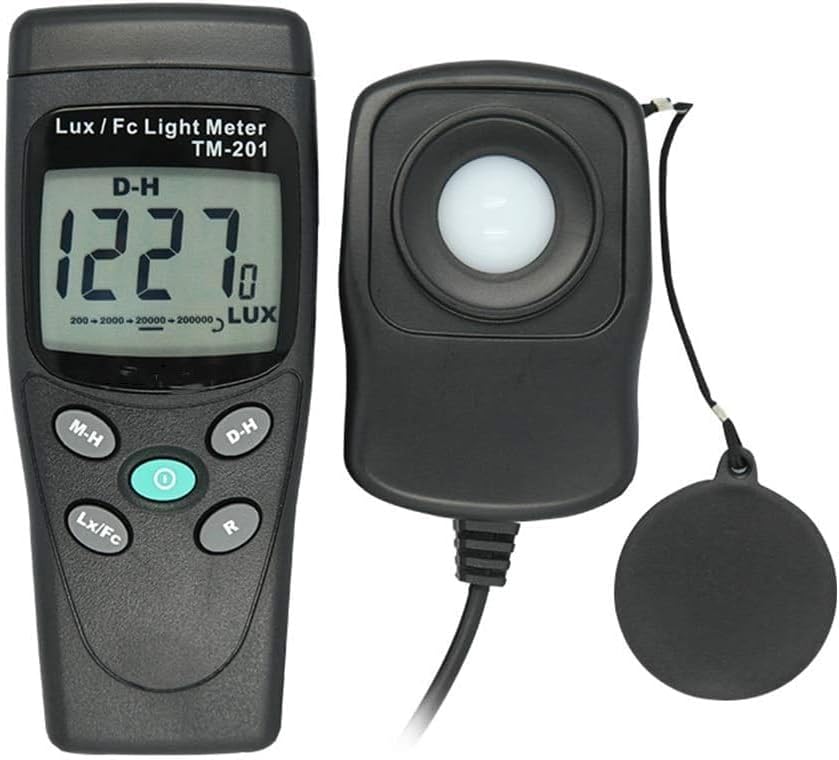

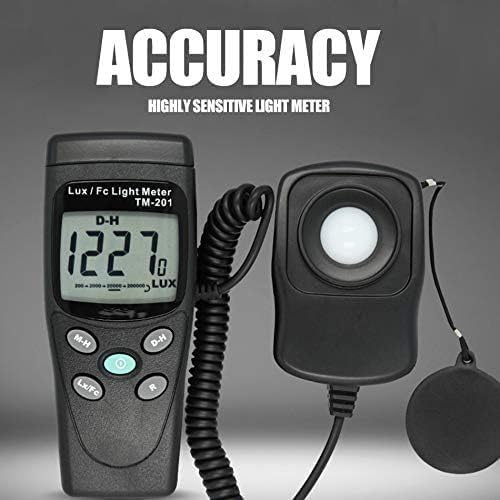

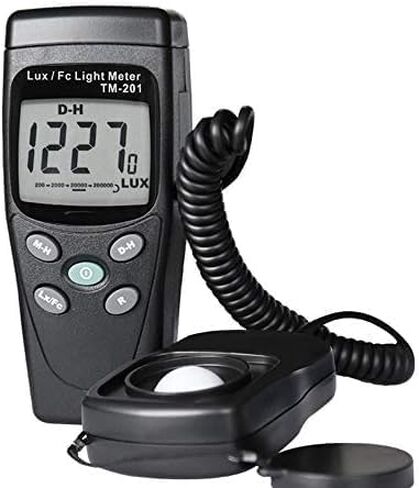

Application: - Warehouses, factories, office buildings, restaurants, schools, libraries, hospitals, building security and parking stations.- 3½ digits LCD with maximum reading 2000.
- Overload indication. - Low battery indication. - According to JISC1609:1993 and CNS 5119 general A class specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle. - Measuring lights source include all visible range.
- Length of wire for light sensor: approximately 1.5M. - Cosine angular corrected.
Description
The 3 1⁄2-digit LCD display shows a maximum reading of 1999.
Twilight diodes and color filters.
The measurement source includes all visible light.
The spectral curve is corrected to meet international standards.
Cosine angle measurement correction
Complies with JIS C 1609:1993 and CNS 5119 Class A.
Data Lock (D-H) / Maximum Lock (M-H) / Zero Adjustment.
Suitable for schools, workplaces and all visible light environments.

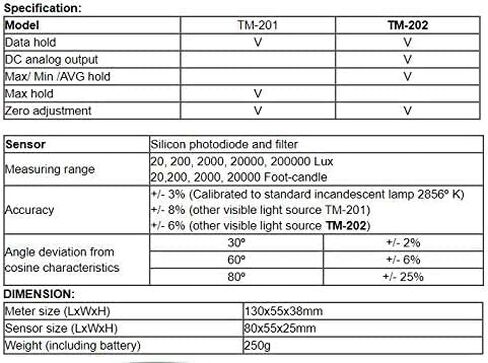

Measuring gear position: 200, 2000, 20000, 200000 Lux 20, 200, 2000, 20000 Foot candle
Meter size : 130x 55x 38 mm (length * width * height)
Measurer size: 80x55x25 mm (length * width * height)
