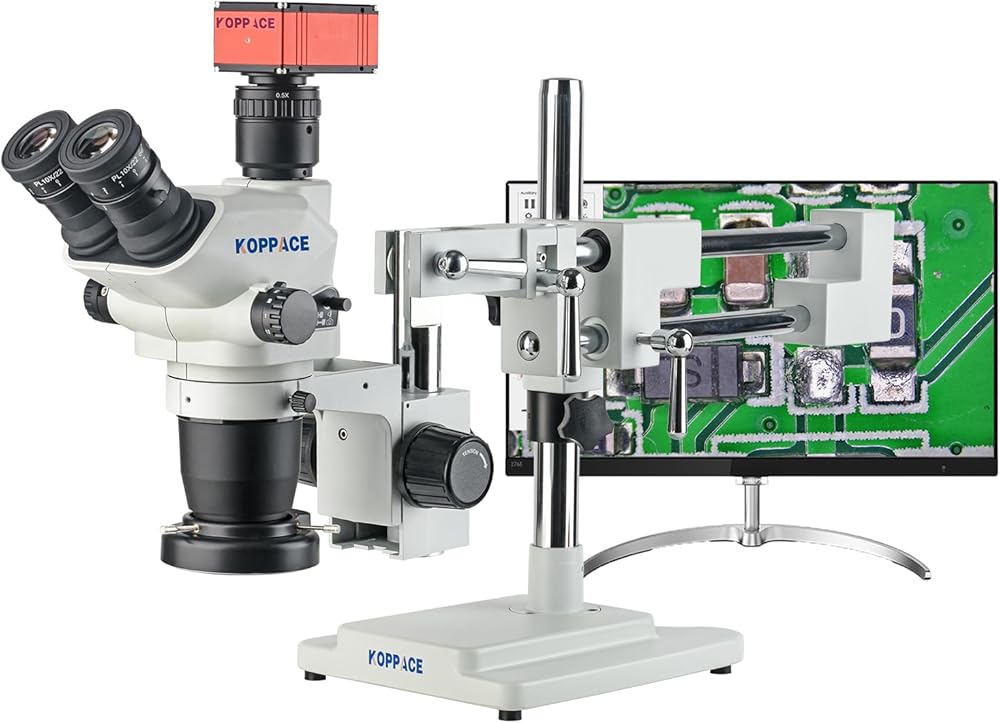

Model KP-N7400-L2A
Monitor 15.6 Inch Monitor
Optical Magnification 6.7X-45X
Electronic Magnification 15X-100X
Field of View 3.93mm-32.83mm
Eyepiece High Eye Point Large Field Plan Eyepiece PL10X/22mm,Diopter Adjustable

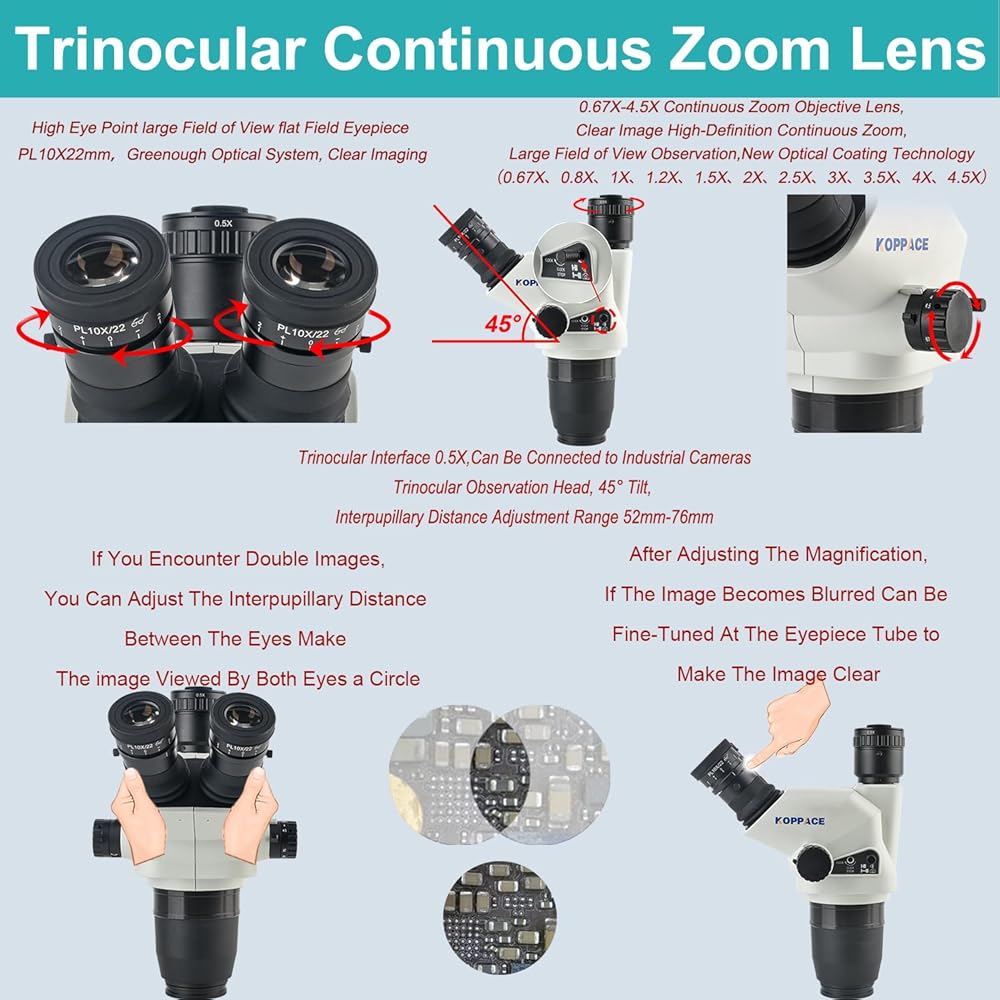

Objective Lens 0.67X-4.5X Continuous Amplification
Working Distance 100mm
Viewing Head 45 ° Tilting Trinocular Observation Head,Interpupillary Distance Adjustment:52mm-76mm,Fixed Eyepiece Tube,With Fixed Frame Fixed Magnification and Magnification Locking Function
Focusing Bracket Focusing Handwheel Tightness is Adjustable,lifting Range 50mm

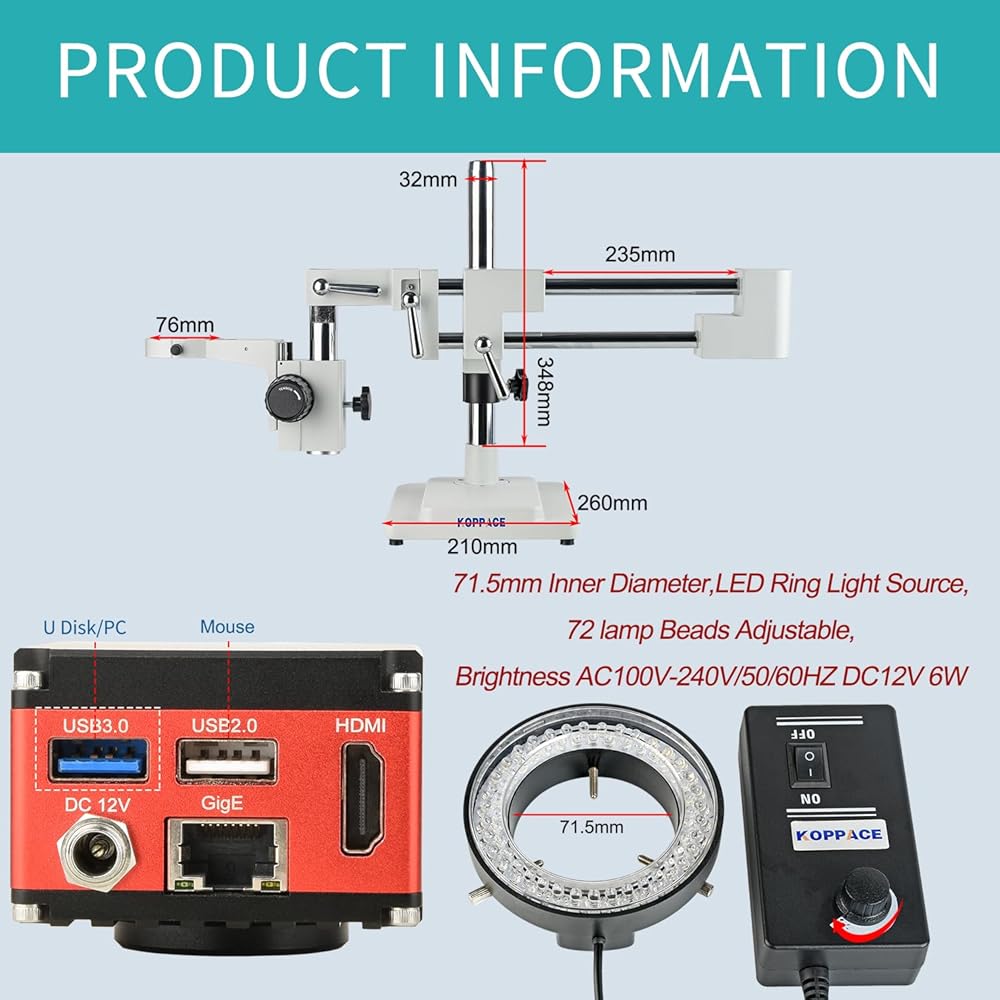

Dual Arm Bracket Lifting Range:275mm,Base 210X260X51mm,Column Diameter 32mm,
Lens Aperture 76mm,Vertical Height 348mm,Horizontal Movement 235mm
LED Light Source 72 LED Lamp Beads,the Inner Diameter is 71.5mm,the Outer Diameter is 110mm, Input Voltage AC90—240V, Maximum Output Power 6W,Voltage 12V/700MA
Trinocular Interface 0.5XCTV
Pixel 8.3 Million Pixels

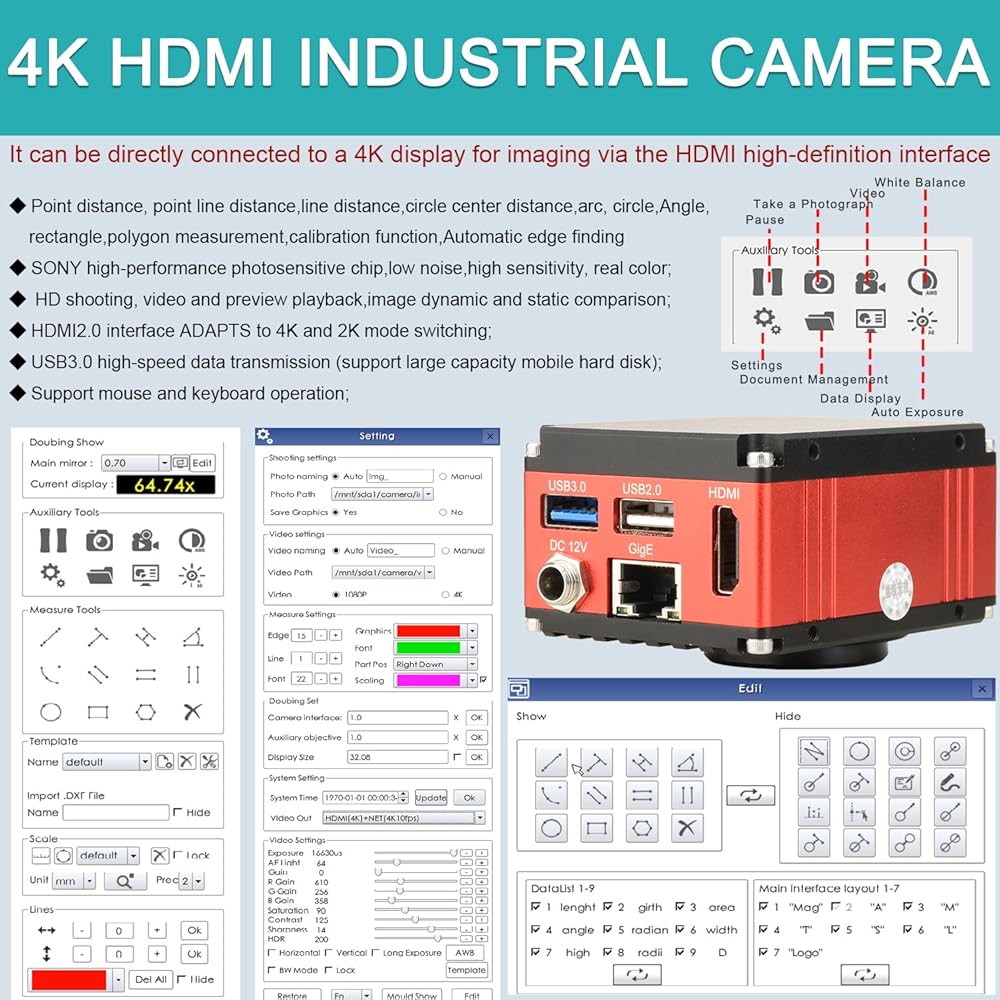

Output Method HDMI、GigE、USB3.0
Sensor 8.3M 1/1.8" CMOS
Photographic Resolution 3840X2160,(Photo can be Manually and Automatically Named file Name)
Video Resolution 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080)
Pixel Size 2.0μmX2.0μm
Frame Rate 60FPS
Color Adjustment R、G、B Independently Adjustable
White Balance Auto/Manual
Image Adjustment Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback
Storage Mode U Disk Storage,Photo Taking,Video Recording and Measurement

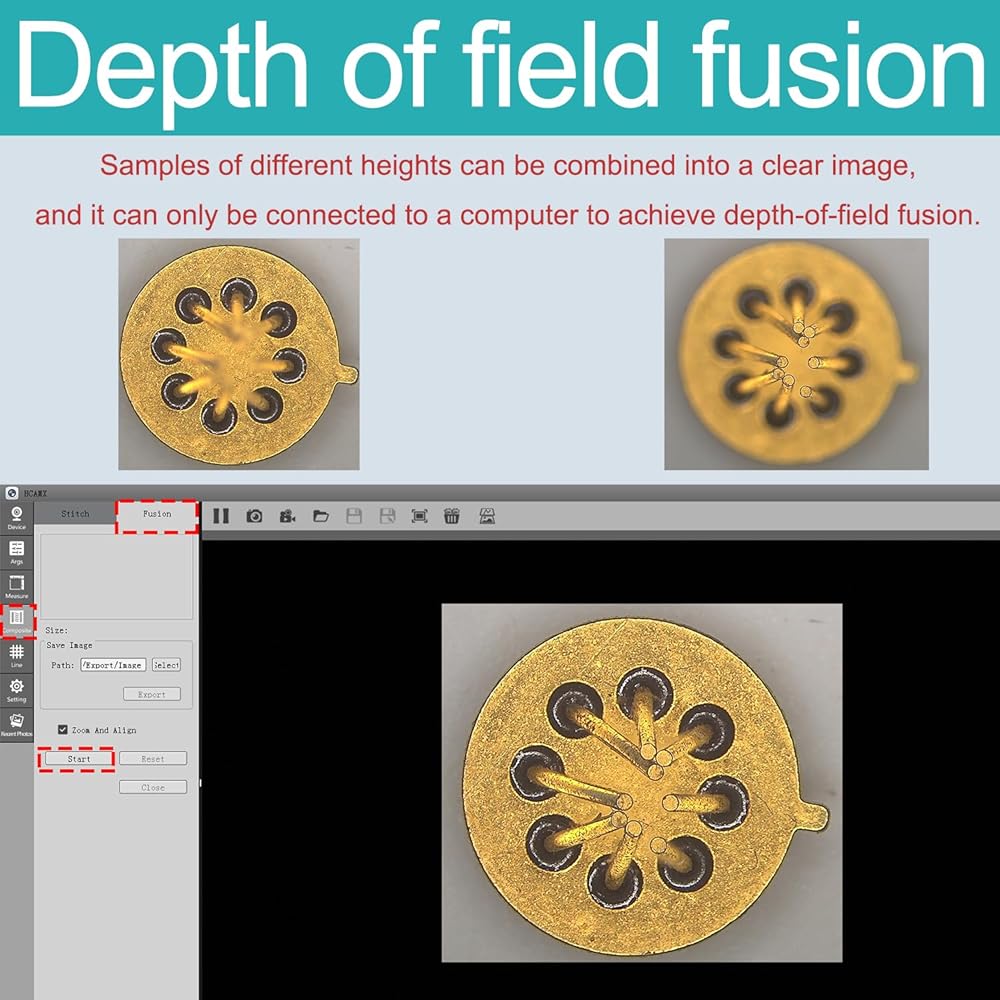

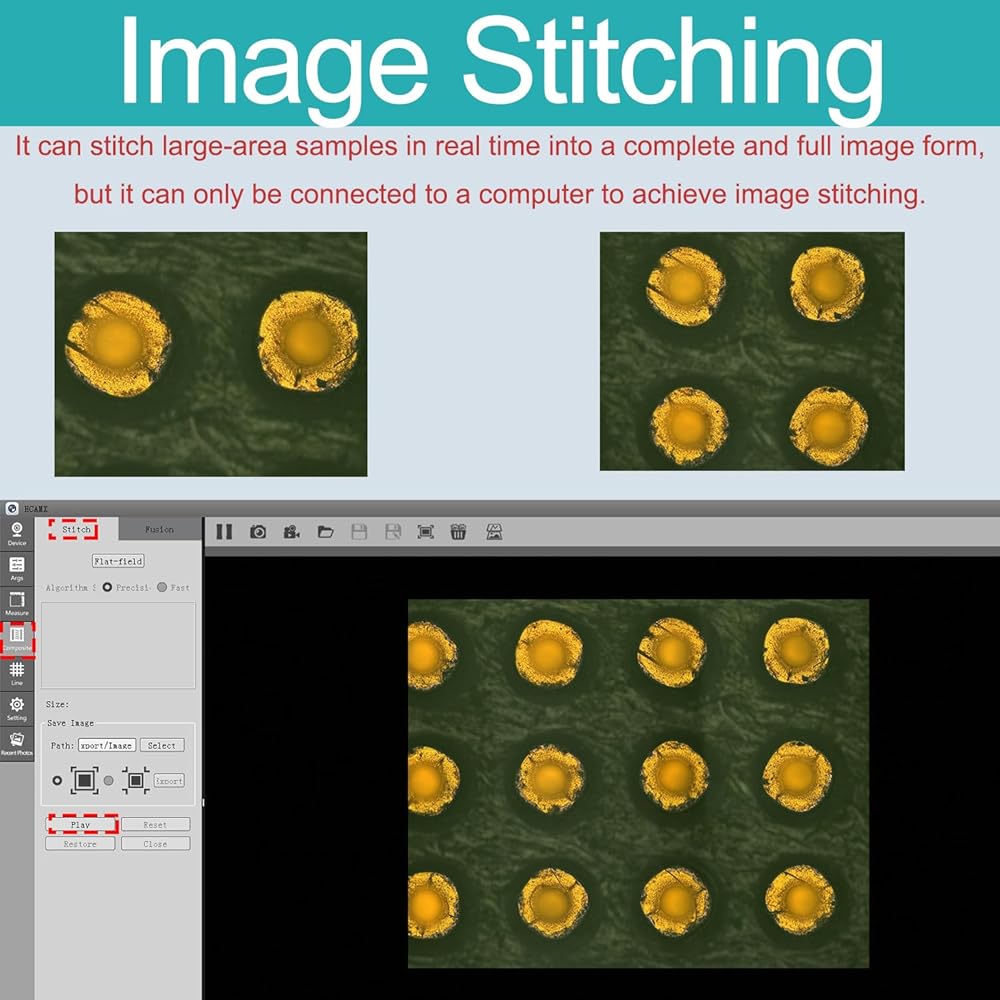

GigE/USB3.0 By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved.
Cross Hair Support 100 Groups Cross Line,The Color Position is Adjustable
Power Supply AC100V-240V DC-12V

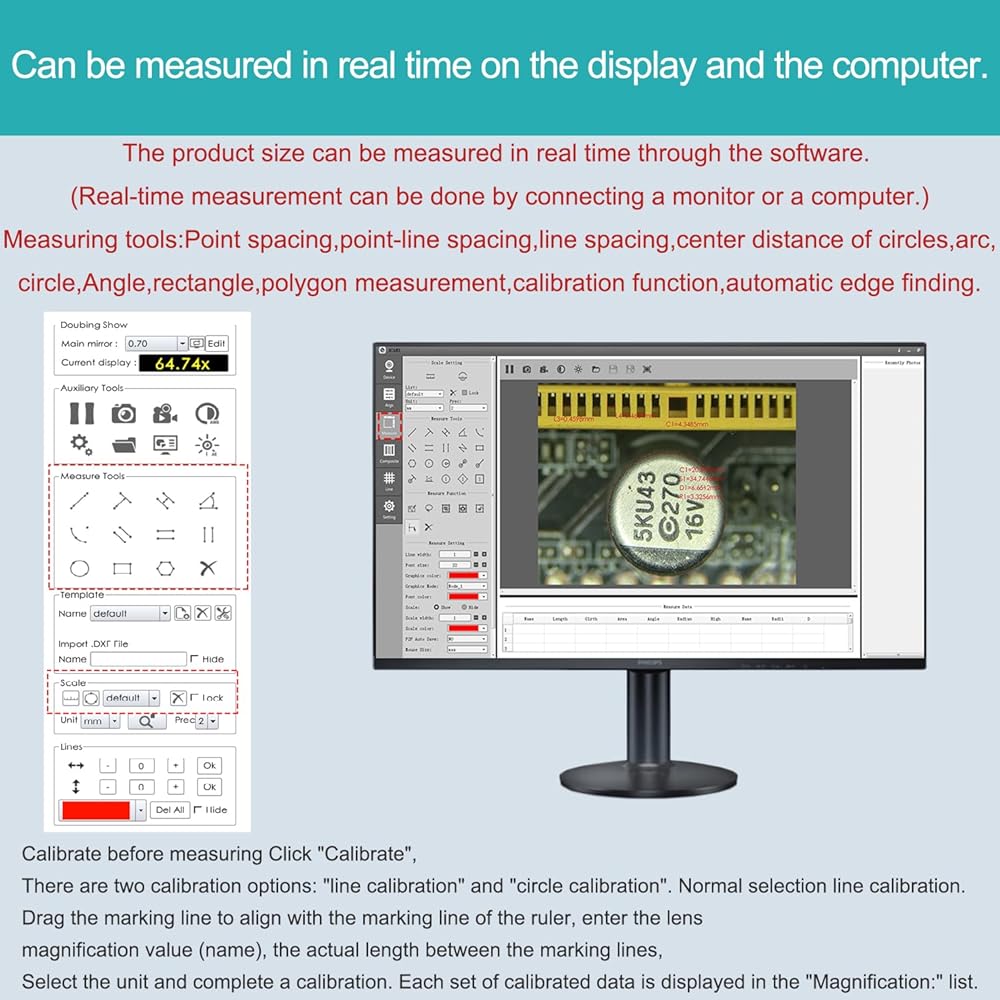

Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching

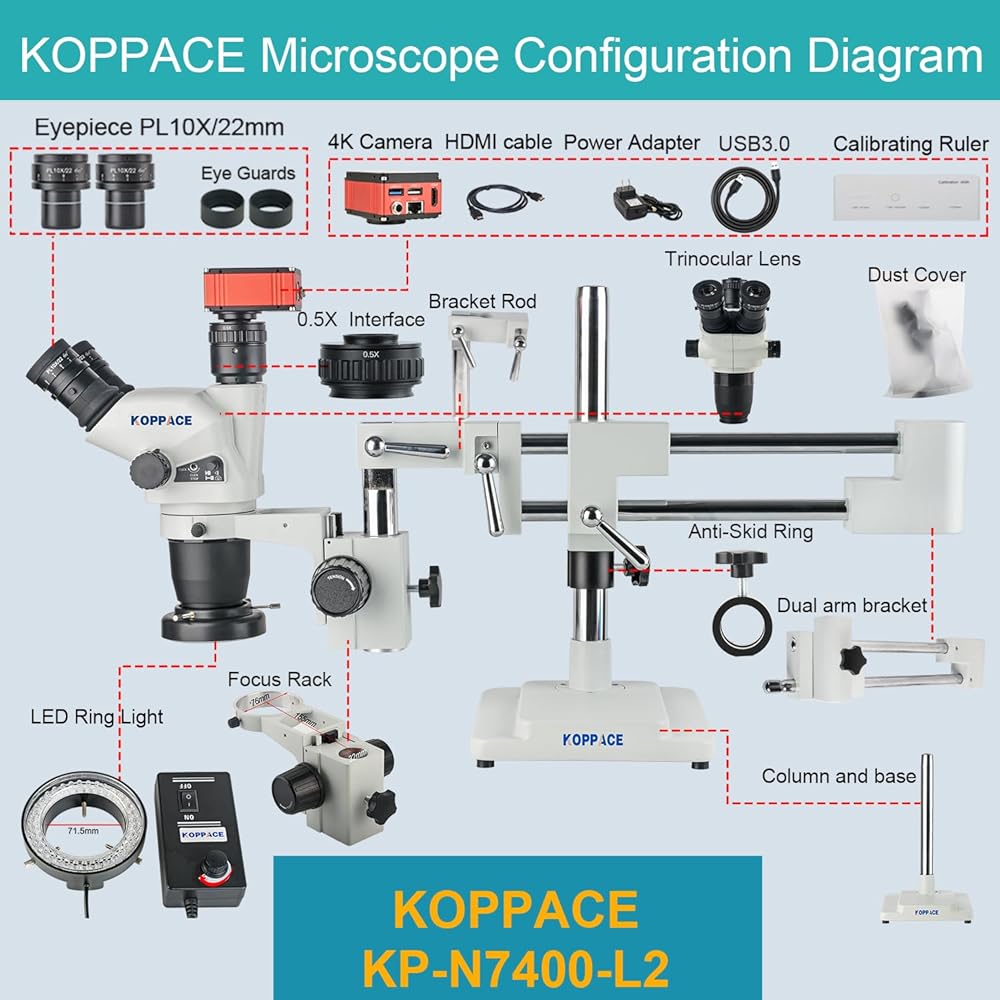

Packing List
1、Eyepiece PL10X/22 One Pair
2、Focus Rack *1
3、Eye Guards One Pair
4、0.67X-4.5X Trinocular Zoom Lens *1
5、LED Ring Light *1
6、Column and base *1
7、Dust Cover *1
8、Dual Arm Bracket *1
9、Bracket Rod *1
10、Anti-Skid Ring *1
11、Trinocular Interface 0.5X *1

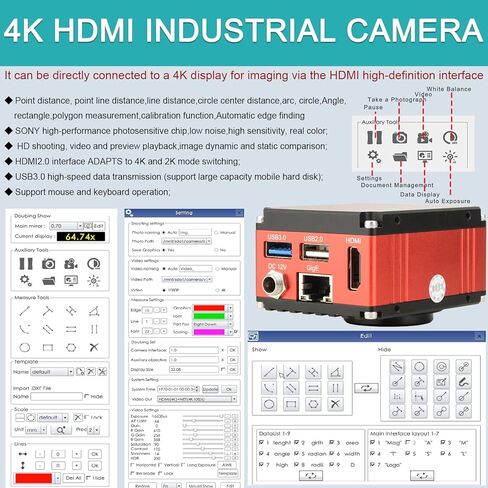

12、4K Camera *1
13、HDMI Line *1
14、The Camera Power Adapter *1
15、Calibrating Ruler *1
16、USB 3.0 Line *1
17、15.6 Inch Monitor *1
18、Hang Lever *1
