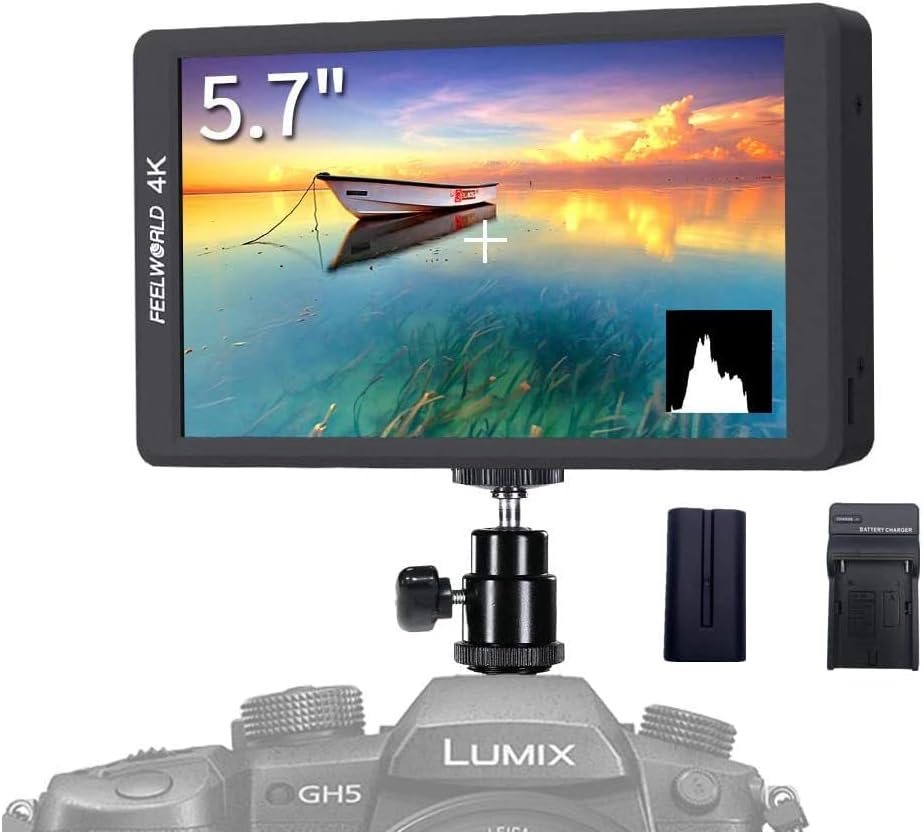

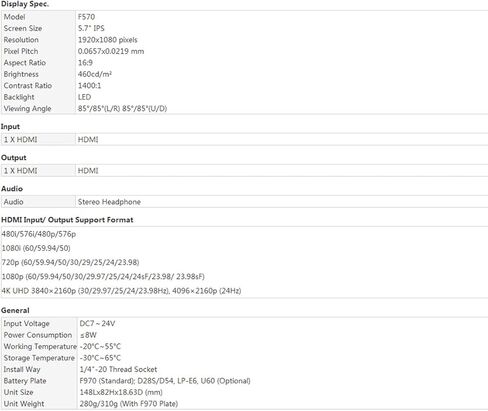

The F570 5.7" IPS 4K HDMI On-Camera Monitor from FeelWorld features a display resolution of 1920 x 1080.

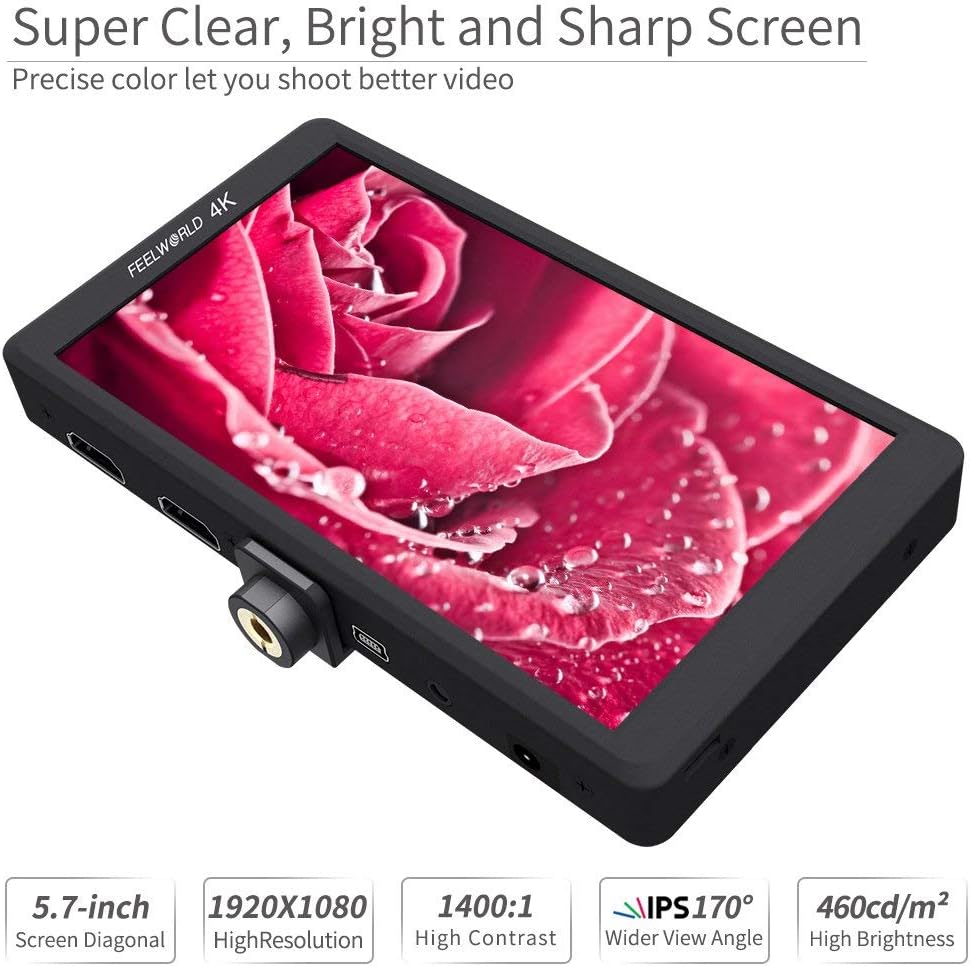

The IPS screen allows for off-axis viewing of 85° up/down/left/right, and it features a brightness of 460 cd/m2with a contrast ratio of 1400:1.

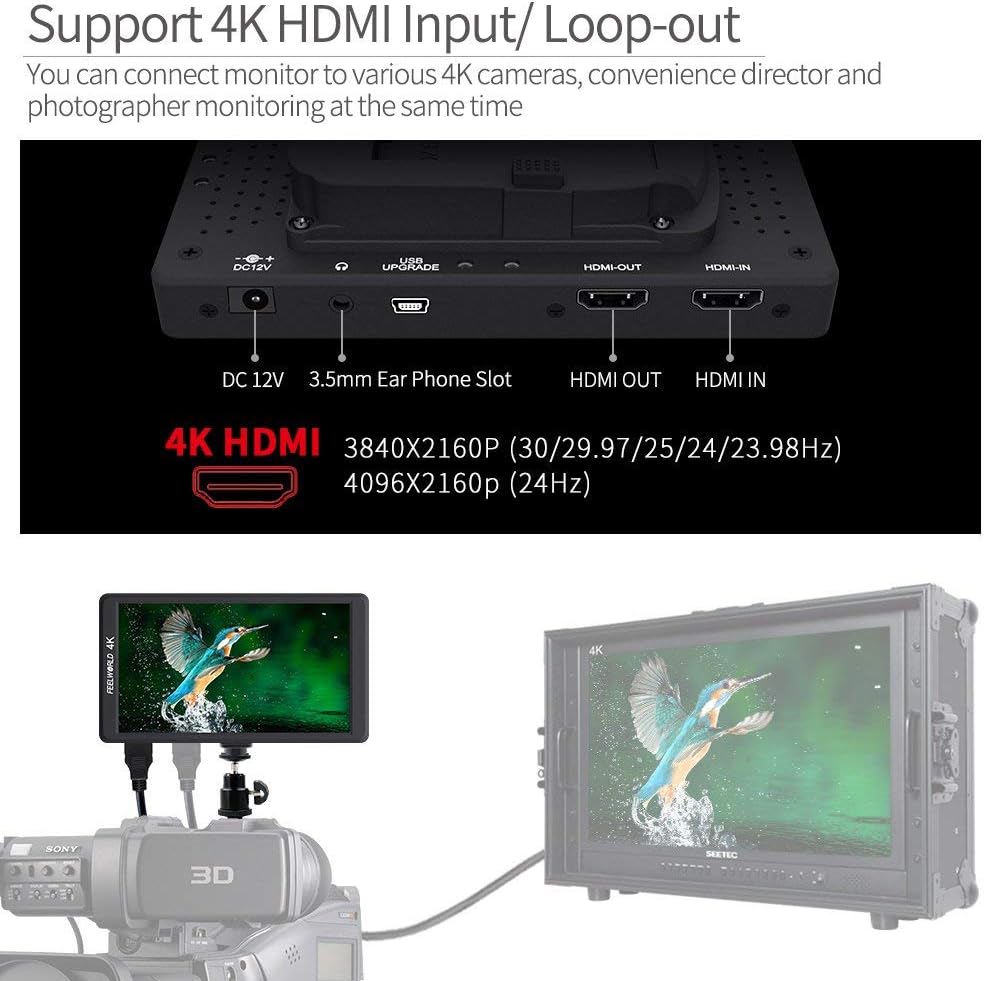

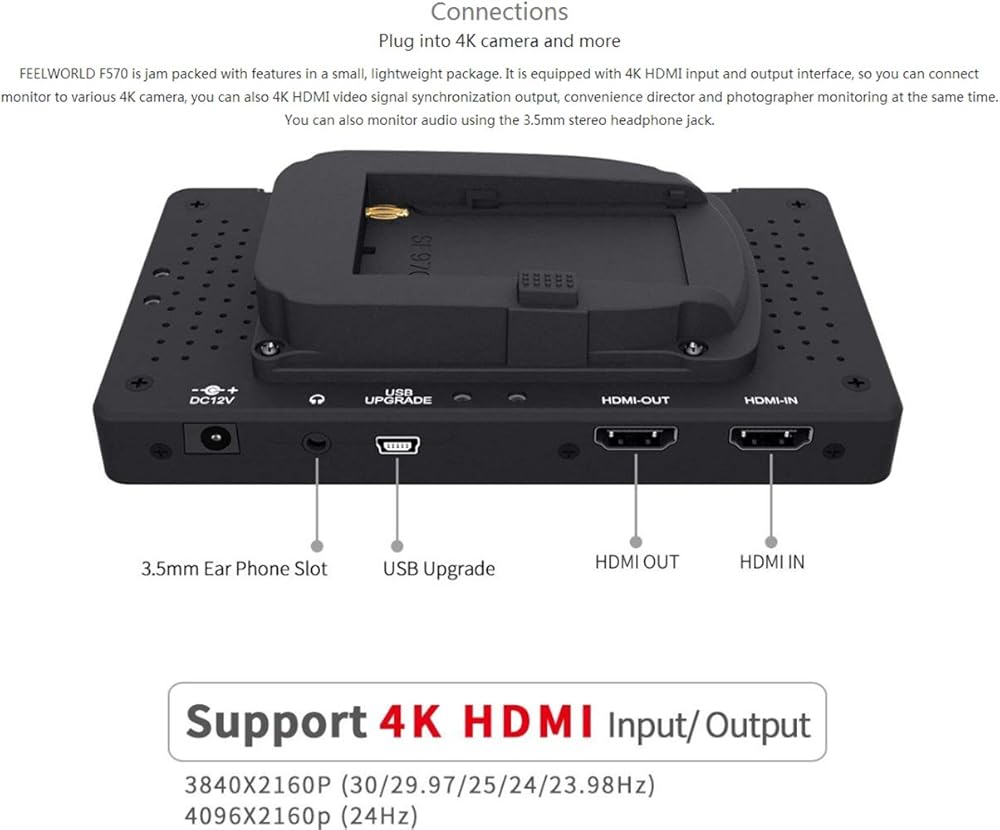

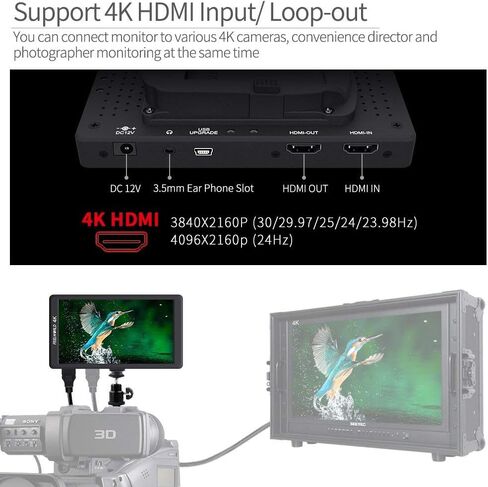

The monitor incorporates an HDMI input with a loop-through HDMI out.
The F570 features many useful functions into its small size including peaking, zoom, anamorphic de-squeeze, frame lines, markers, and image flip.

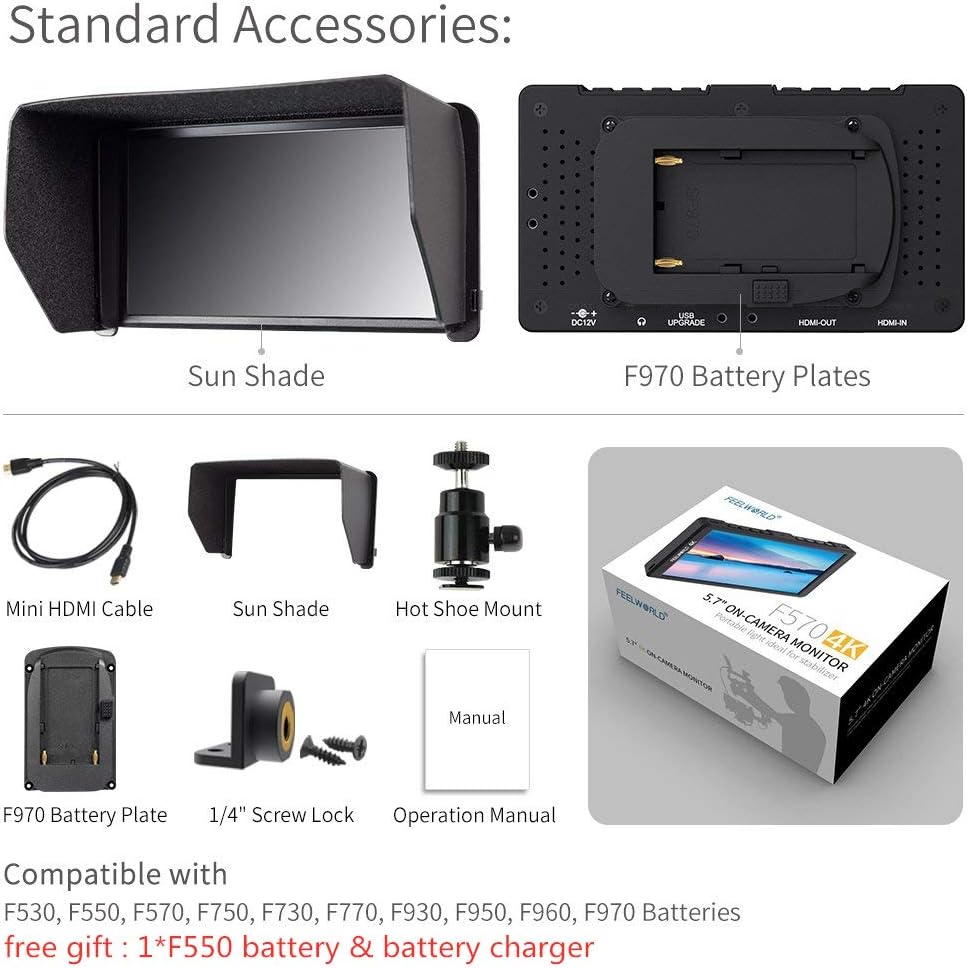

The monitor includes a Mini HDMI cable, sunshade, shoe mount, and an F970 L-Series battery plate.
Full HD 1920 x 1080 display resolution
170° wide-viewing angle IPS panel
Histogram
Peaking focus assist (red, green, blue)
False colors
Zebra exposure (1-100 IRE adjustable)
Nine-grid (4K input not supported)
Camera mode
4x, 9x, 16x zoom (4K input not supported)
Anamorphic mode (1.3x, 2.0x, 2.0x mag)
Pixel-to-pixel (4K input not supported)
Center marker
Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Marker color (red, green, blue, white, black)
Check field (red, green, blue, mono)
Image flip (H, V, H/V)
Image freeze
Zoom-all (4K input not supported)
U/D and L/R zoom (4K input not supported)
Color temperature adjustment
Advanced Features
* Brightness Histogram
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
