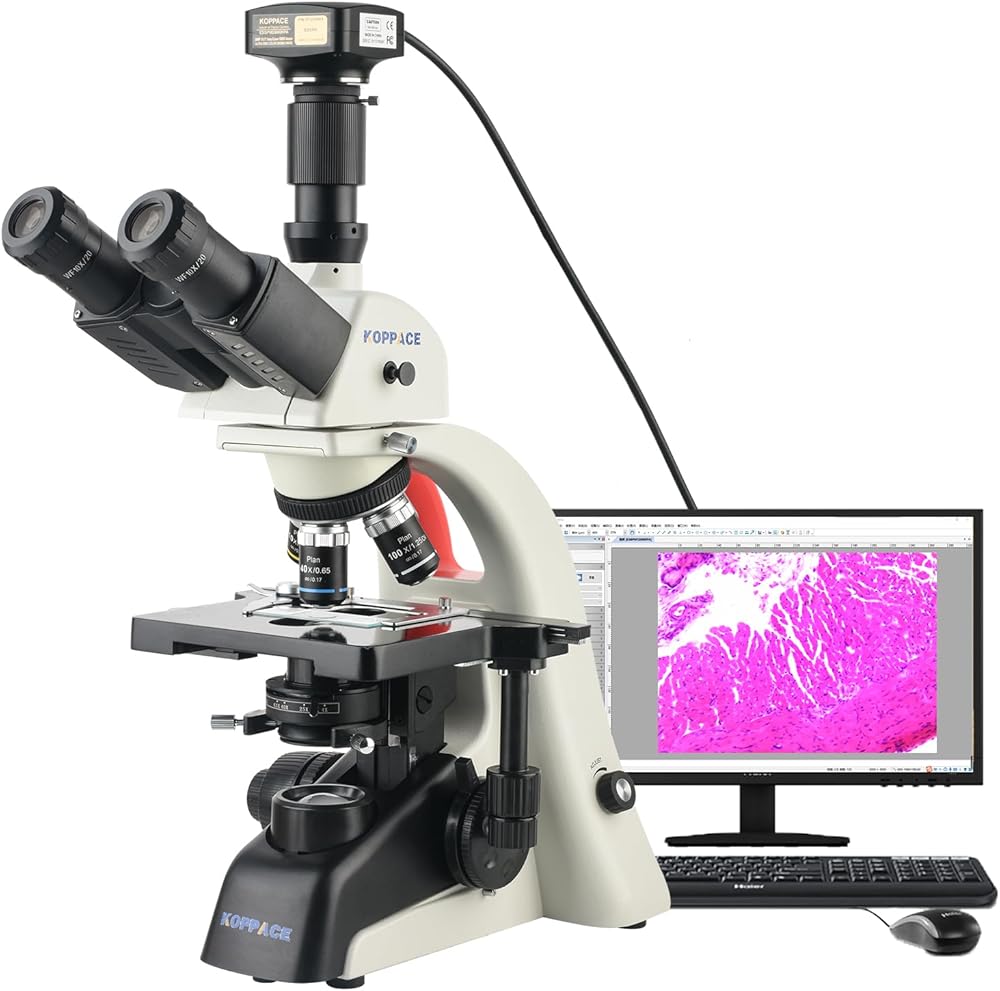

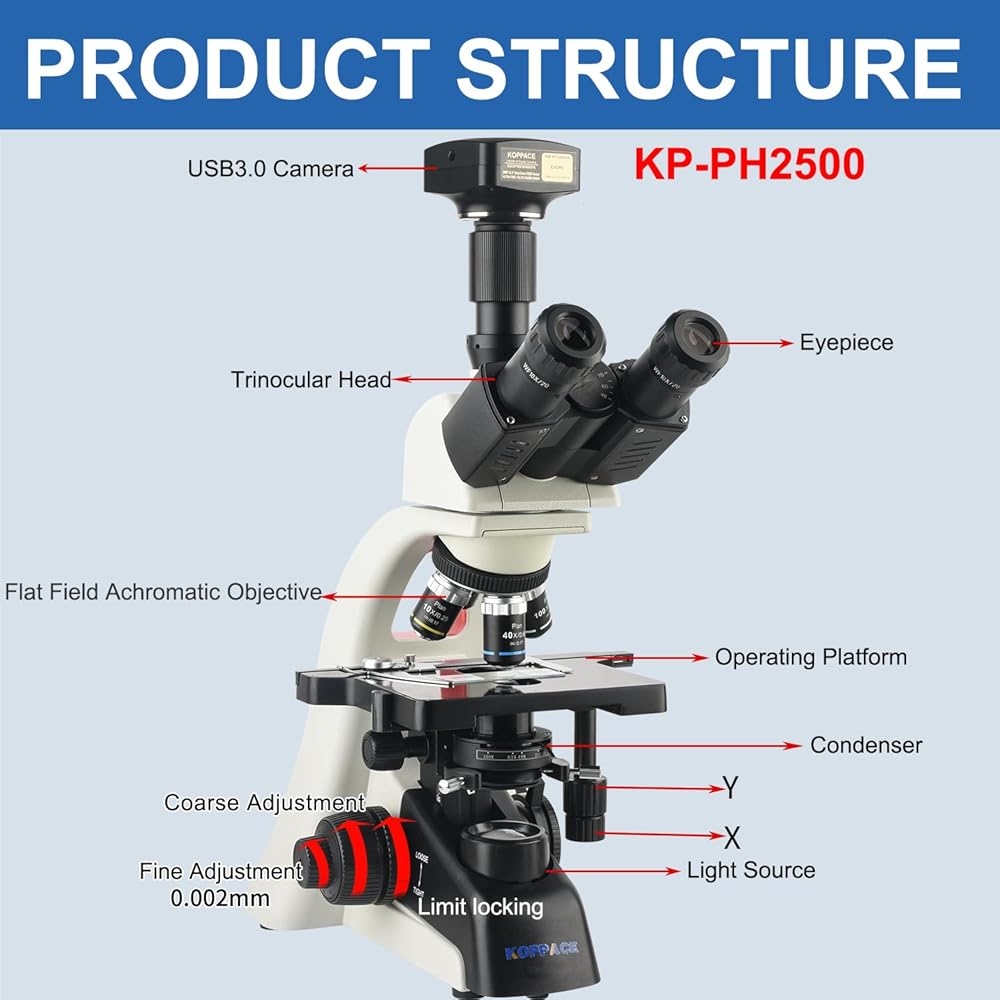

Model KP-PH2500
Optical Magnification 40X-1600X
Electronic Amplification 283X-7090X

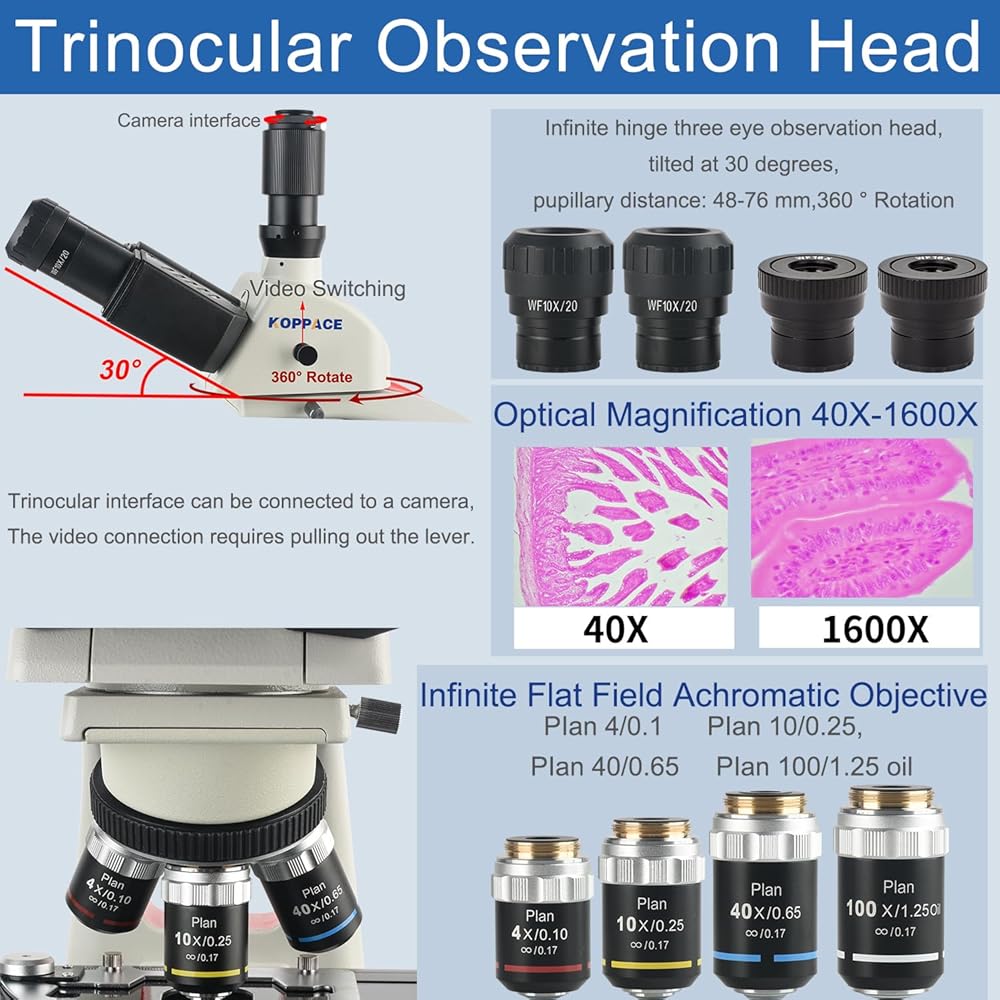

Observation Tube Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate
Interpupillary Distance Adjustment Range 48mm-76mm
Eyepiece Wide-angle Eyepiece WF10X/20mm,WF16
Objective Lens Infinite Flat Field Achromatic Objective
PIan 4/0.1 PIan 10/0.25 PIan 40/0.65 PIan 100/1.25 oil
Converter Four Holes Conversion

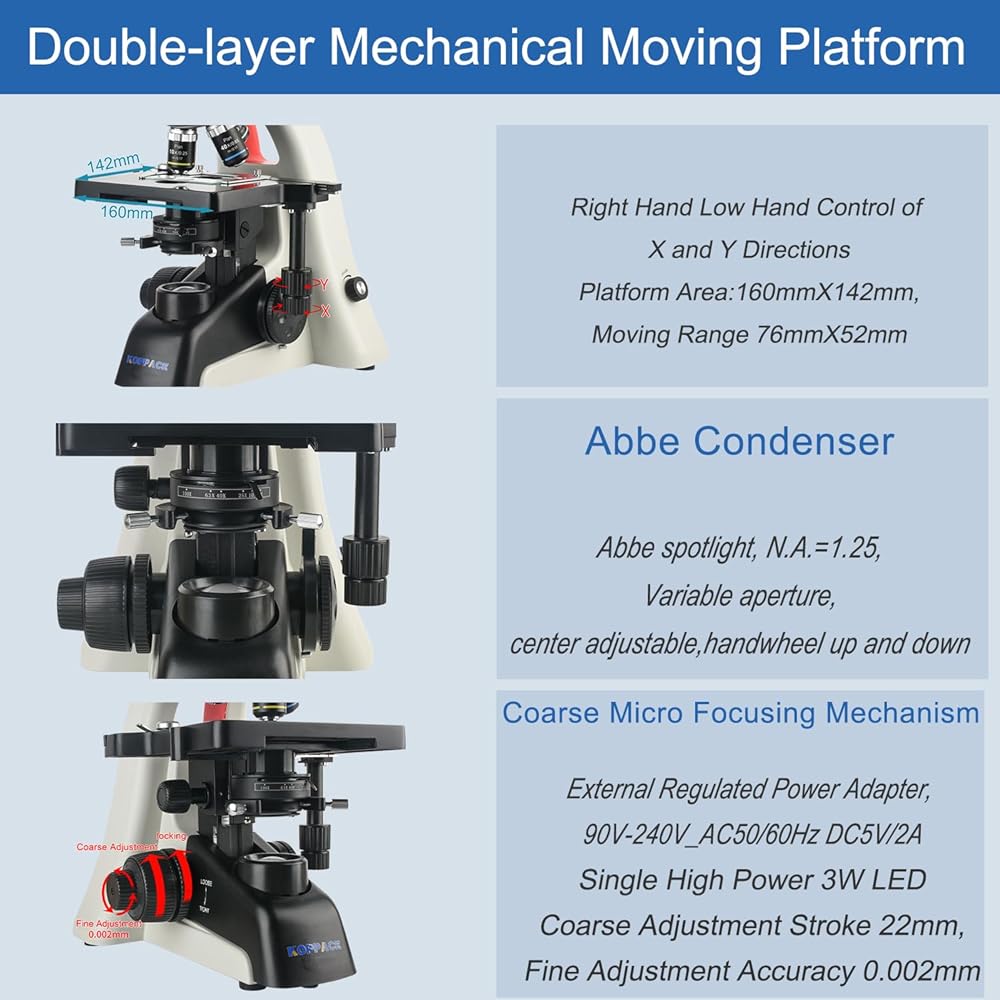

Operating Platform Right Hand Low Hand Control of X and Y Directions Platform Area:160mmX142mm,Moving Range 76mmX52mm
Coarse Micro Focusing Mechanism Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 22mm,Fine Adjustment Accuracy 0.002mm
Condenser Abbe Condenser,N.A. = 1.25,Adjustable Center,With Variable Light bar and Filter Bracket
Light Source Reflector Lamp Room,Single High Power 3W LED
Power External Regulated Power Adapter, 100V-250V_AC50/60Hz DC5V/2A
Trinocular Interface 1X
Pixel 25 Million Pixels
Output Method USB3.0
Sensor 25M IMX511(C)
Sensor Size 1/2.3" (5.519x5.519)
Resolution Frame Rate 12@4928x4928，46@2464x2464，100@1648x1648
Pixel Size 1.12μmx1.12μm
Exposure Time 0.013ms~15s
Exposure Auto/Manual
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc);
Shooting Mode Images and Videos
Operating System Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux
File Save Can Set File Name,Save Pictures With Time Format,Save Path Selection
Image Adjustment Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale
Measuring Function Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function.

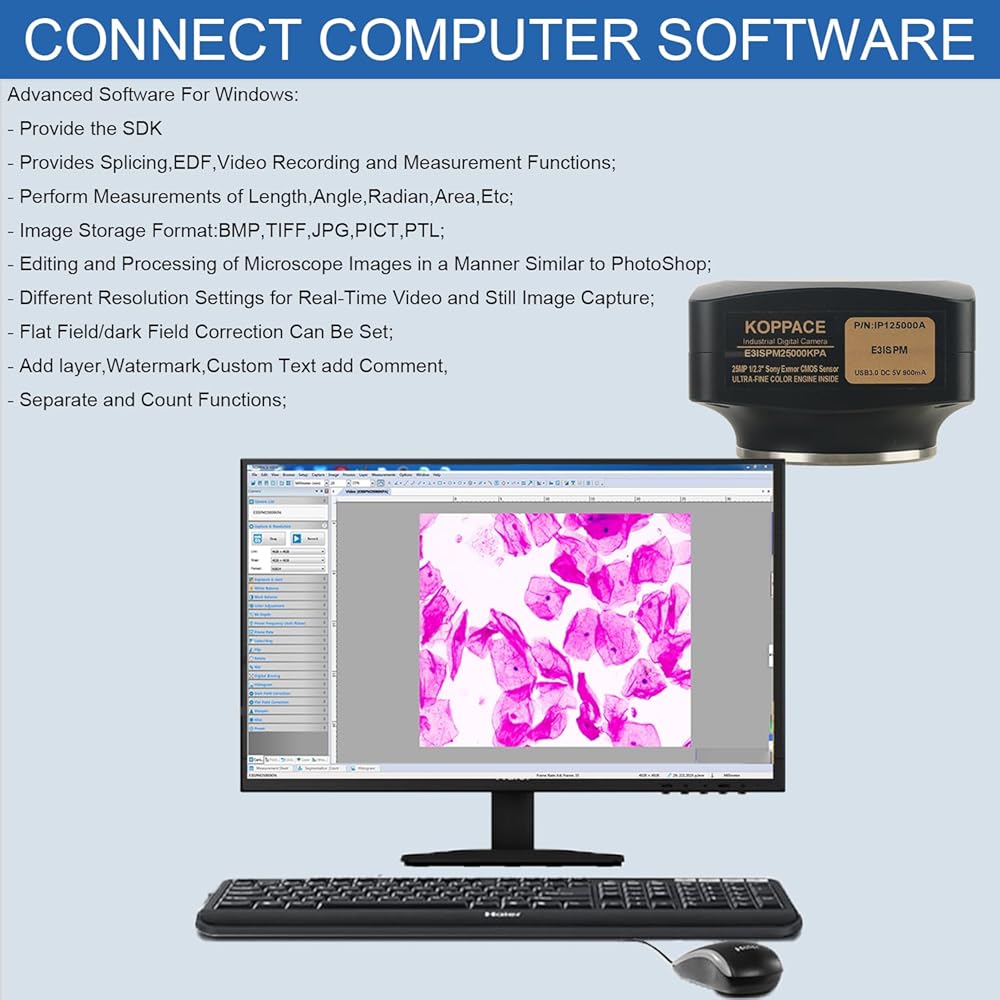

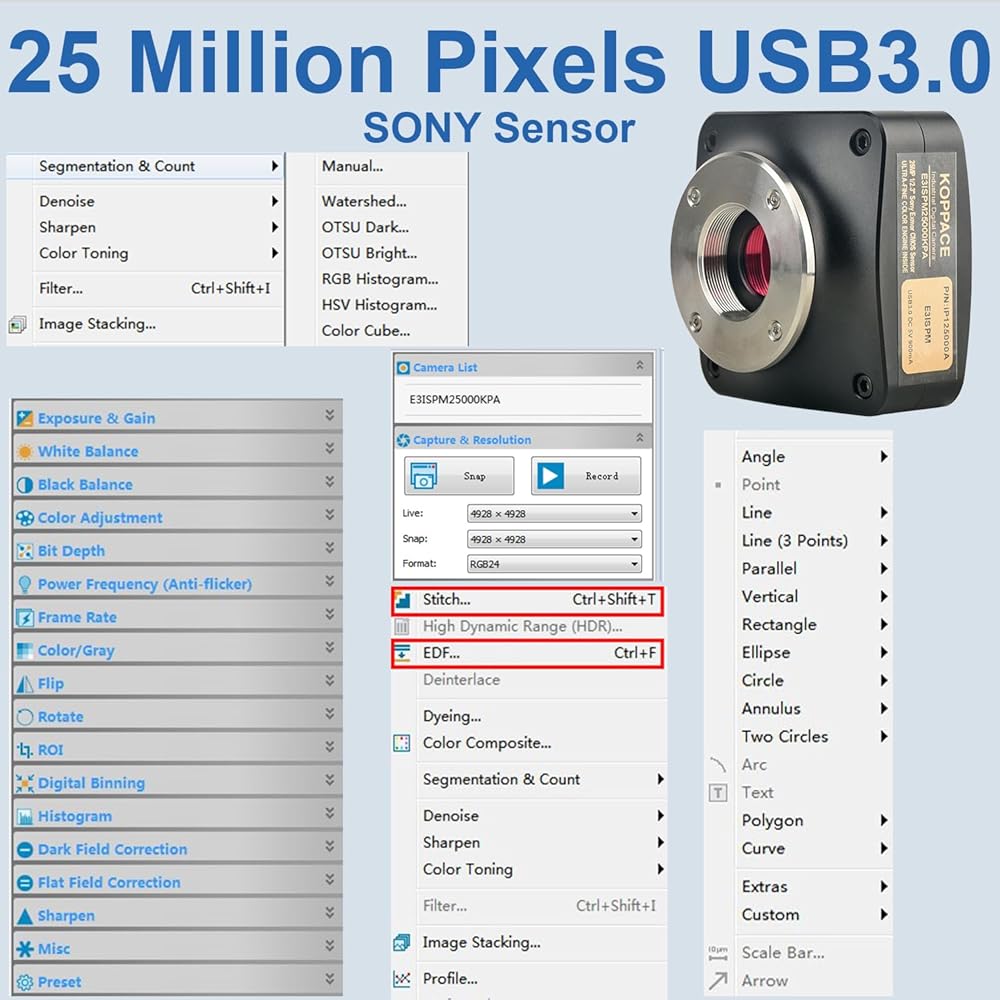

Camera Function Advanced software for Windows:
- SDK Available

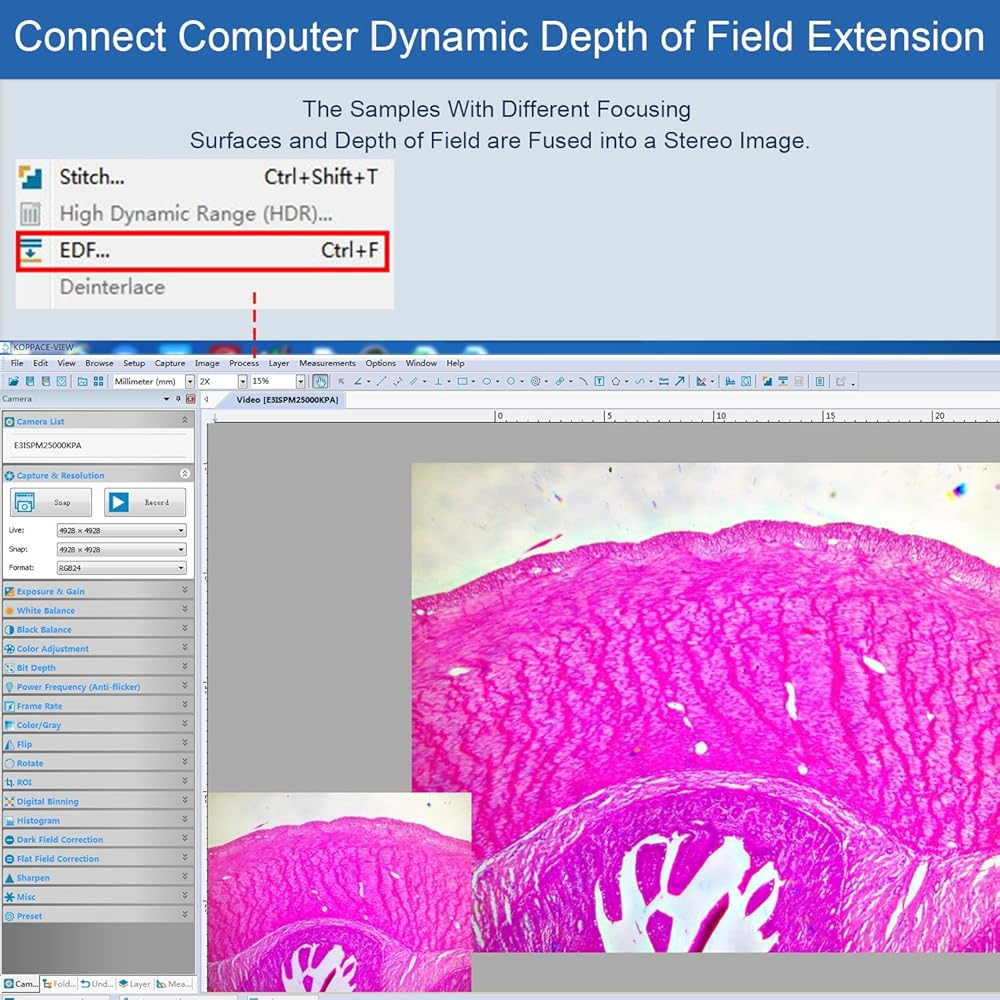

- Provides Stitching,EDF,Video Recording and Measurement Functions
- Measurement of Length,Angle,Radian,area,etc.
- Save Still Images in BMP,TIFF,JPG,PICT,PTL or other Formats
- Edit and Process microscope images in a manner similar to PhotoShop

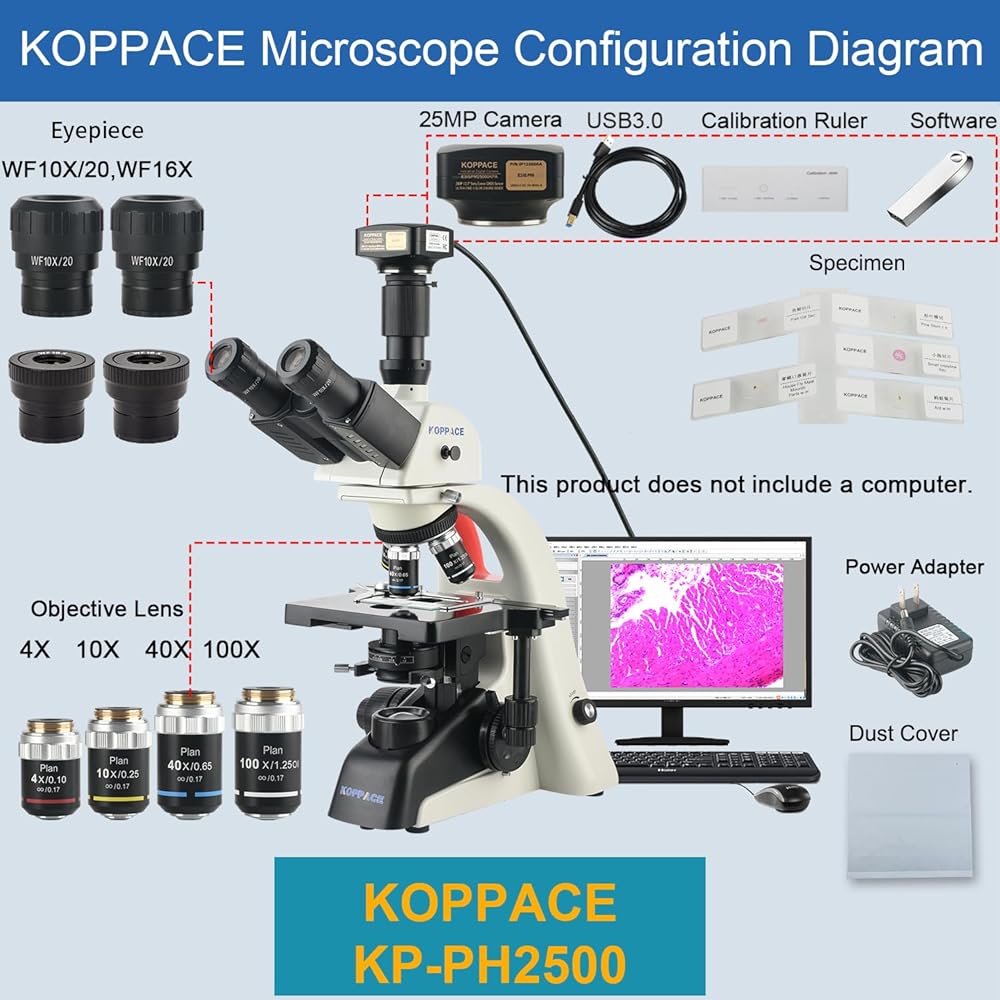

Packing List:
1、Eyepiece WF10X/20mm *2
2、Eyepiece WF16X *2
3、Objective Lens 4X *1
4、Objective Lens 10X *1
5、Objective Lens 40X *1
6、Objective Lens 100X *1
7、Trinocular Microscope Body *1
8、Power Adapter *1
9、5 Pieces Specimen *1
10、Dust Cover *1
11、25MP Camera *1
12、1.8m USB Cable *1
13、CD Software *1
14、Calibrating Ruler *1
