مميزات خاصة

Main Parameters: Voltage: AC220-240V, Phase number: 1, Power: 1800W, Bevel Width: 0.04"-0.4"(1mm-10mm), Radius: 0.08"-0.15"(2mm-4mm), Bevel Angle: 30°(37.5° and 45° blades available at an extra cost.), Milling Spindle Speed: 2400-7500 r/min

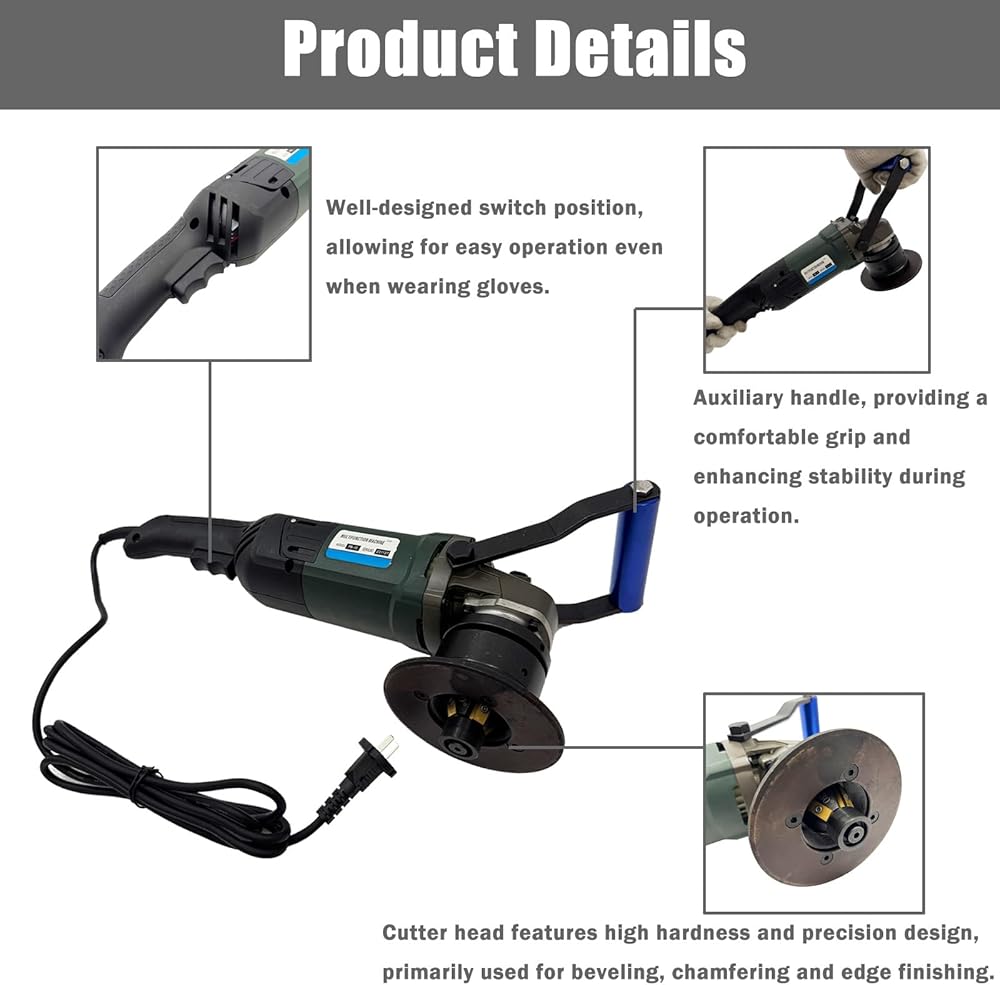

High Efficiency Cutter Head: The cutter head of the beveling machine are made of high-hardness material, with the features of precision design, versatility and high cutting efficiency, mainly used for beveling, chamfering and edge finishing, can process multiple types of bevels including K, V, X and Y shapes
Auxiliary Handle Design: The portable beveling chamfering machine is equipped with an auxiliary handle, comfortable to grip, which can enhance stability during operation
Easy to Operate: The switch position is ergonomically designed, which allows for easy operation and can reduce the operator fatigue after a lond-time operation
Wide Applicaton: The plate beveling machine is suitable for plate preparation before welding (for preparing K, V, X, and Y welding seams), which can not only process plates and deburr, but also perform pipe inner beveling

وصف

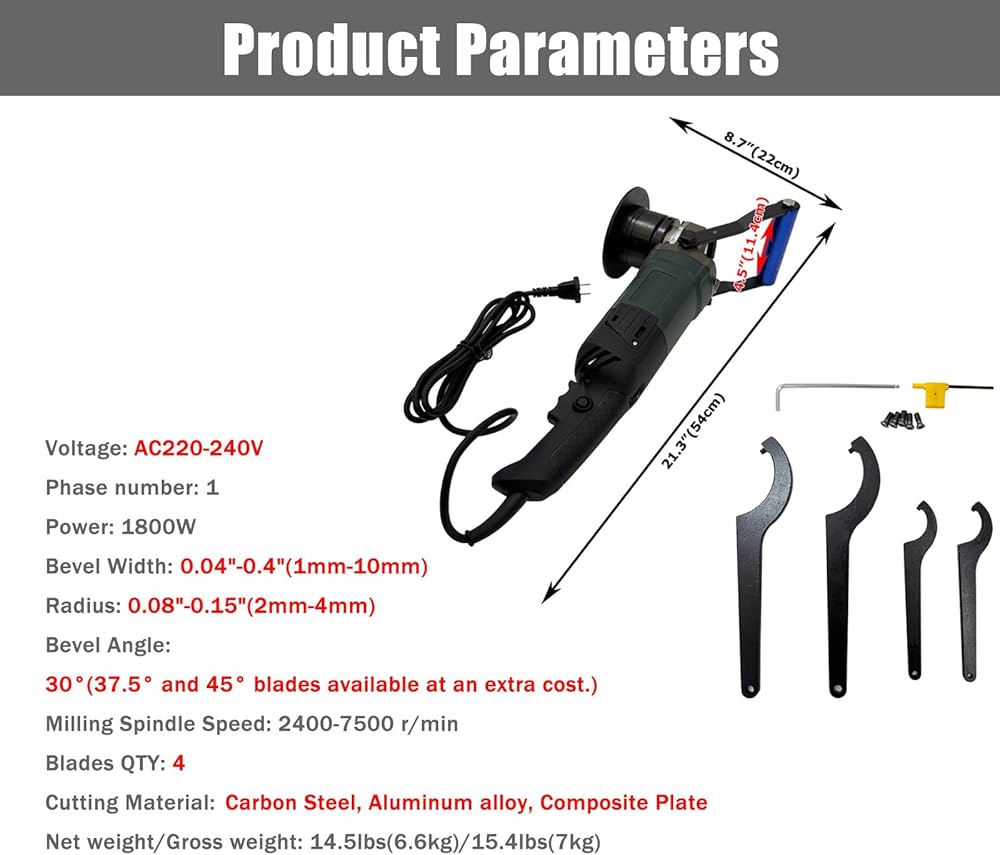

Product Parameters
Voltage: AC220-240V
Phase number: 1
Power: 1800W
Bevel Width: 0.04"-0.4"(1mm-10mm)
Radius: 0.08"-0.15"(2mm-4mm)
Bevel Angle: 30°(37.5° and 45° blades available at an extra cost.)
Milling Spindle Speed: 2400-7500 r/min
Blades QTY: 4
Cutting Material: Carbon Steel, Aluminum alloy, Composite Plate
Package size: 23.2"*7.1"*12.2" (59cm*18cm*31cm)
Net weight/Gross weight: 14.5lbs(6.6kg)/15.4lbs(7kg)

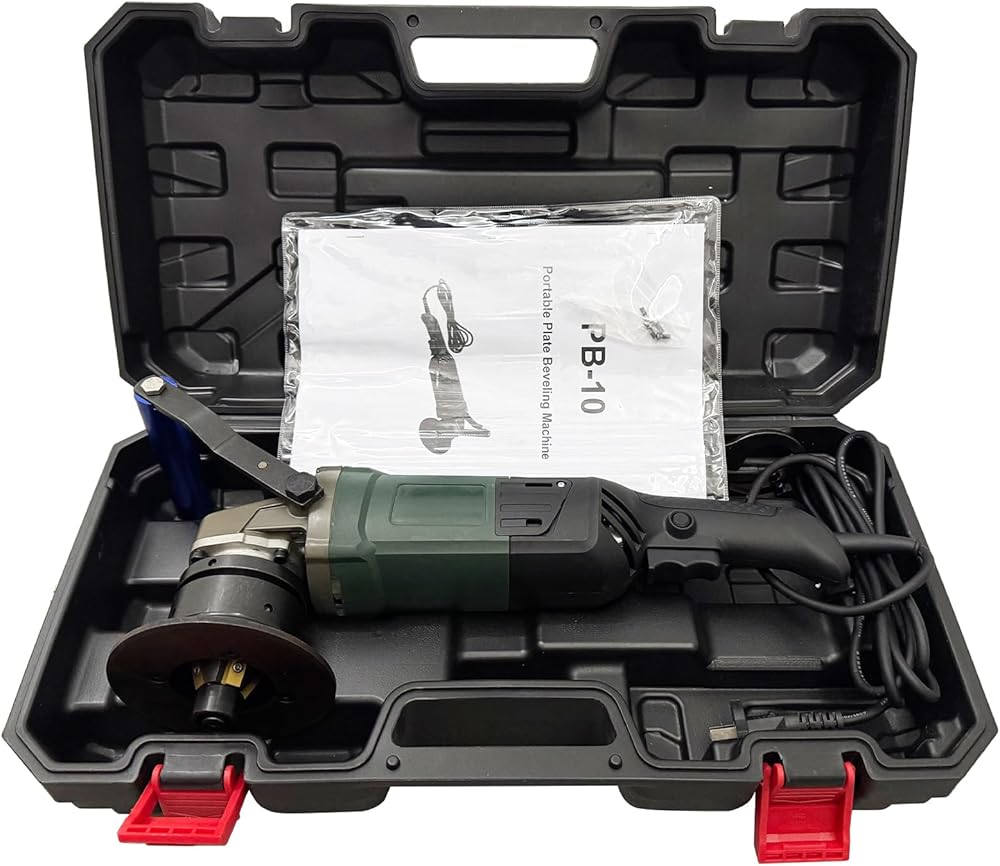

Item Included:
Plate Beveling Machine *1
Carrying Case *1
C-spanner *4
Hex Wrench*1
T-handle Screwdriver *1
Screw *5
