Easy Installation:The KA500 encoder comes with a mounting bracket and screw bag, ensuring a straightforward setup for your lathe project.
Versatile Travel Length:Select from a range of travel lengths (70mm to 420mm) to match your specific measurement needs in various lathe setups.
High Resolution:Achieve precise measurements with the KA500 linear scale's 0.001mm/1um resolution, ideal for intricate work in small lathe applications.
Robust Connectivity:The KA500 linear scale offers reliable TTL output signal and a 9-pin socket for stable connection to your measurement system.
Compact Design:The 18mmx20mm cross section size and slim profile of the KA500 linear encoder make it a perfect fit for tight spaces.

وصف

1PCS KA500 1um 70 120 170 220 270 320 370 420mm DRO Linear Scale 18x20mm Thin Small Lathe Encoder Grating Ruler Sensor

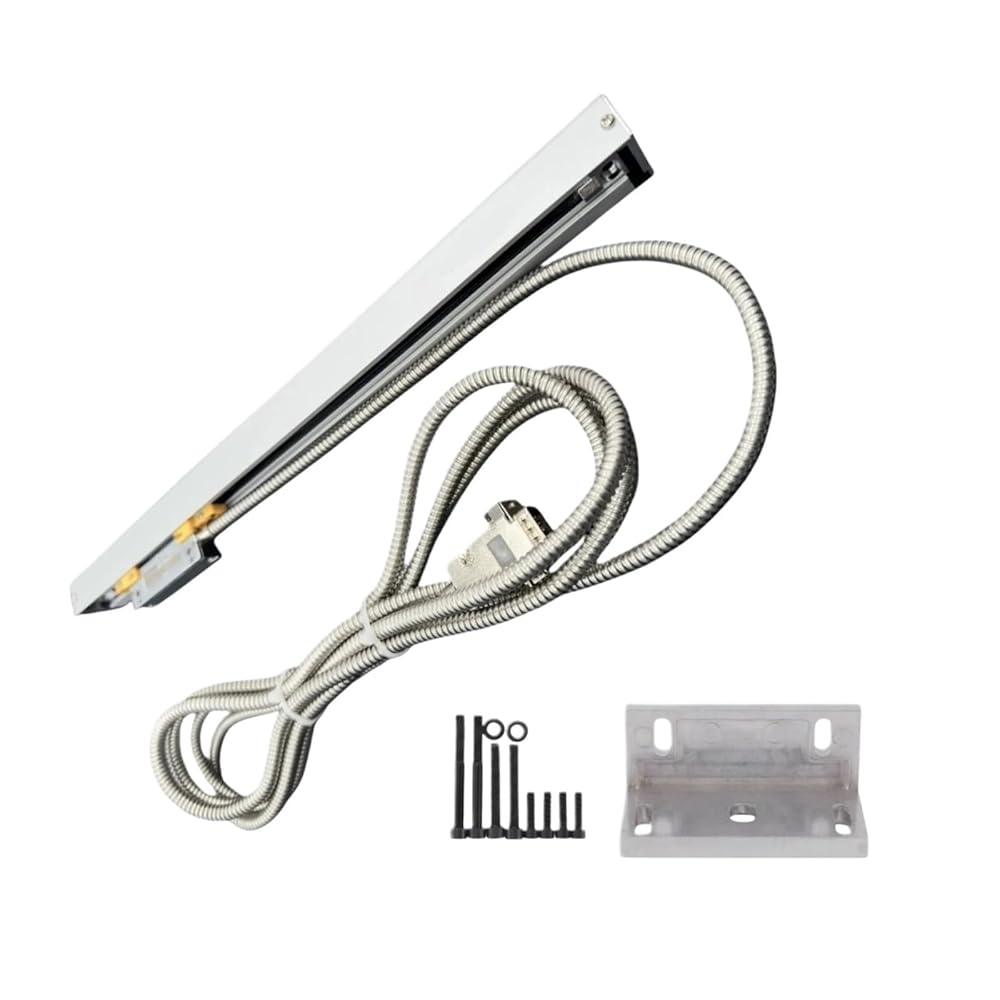

Whatinpackage
1piecescale,scalecover,mountingbracket,screwbag
Linear scale parameter
Model: KA500
Available measurement: 70mm to 420mm
Total length: measurement +112mm
Dimensions Cross section dimensions: 18mmx20mm
Input voltage: 5VDC
Power supply: +5V±5%,80mA
Moving speed:60m/min
Output signal: TTL
Connector: 9 pin socket
Resolution: 1um/0.001mm
Cable length: 3 meters

Product name : linear scale
Travel length : 70 120 170 220 270 320 370 420mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.001mm/1um
Cable length : 3 meters
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cross section size : 18mmx20mm
Application : Mill, Lathe, Grinder, CNC Etc.
