Special Features

High Resolution:Boasts a remarkable 0.005mm (5um) resolution, ensuring precise measurements for your DRO setup.
Versatile Measurement Range:Available in lengths from 70mm to 420mm, suitable for various DRO applications.
Durable Construction:Constructed with a robust 25mmx34.5mm cross-section, built to withstand industrial use.
Wide Compatibility:Includes a 9-pin socket for easy TTL output connection, compatible with various DRO systems.
Easy Installation:Comes with a mounting bracket and screw bag for quick and secure setup on your DRO Lathe or Milling Machine.

Description

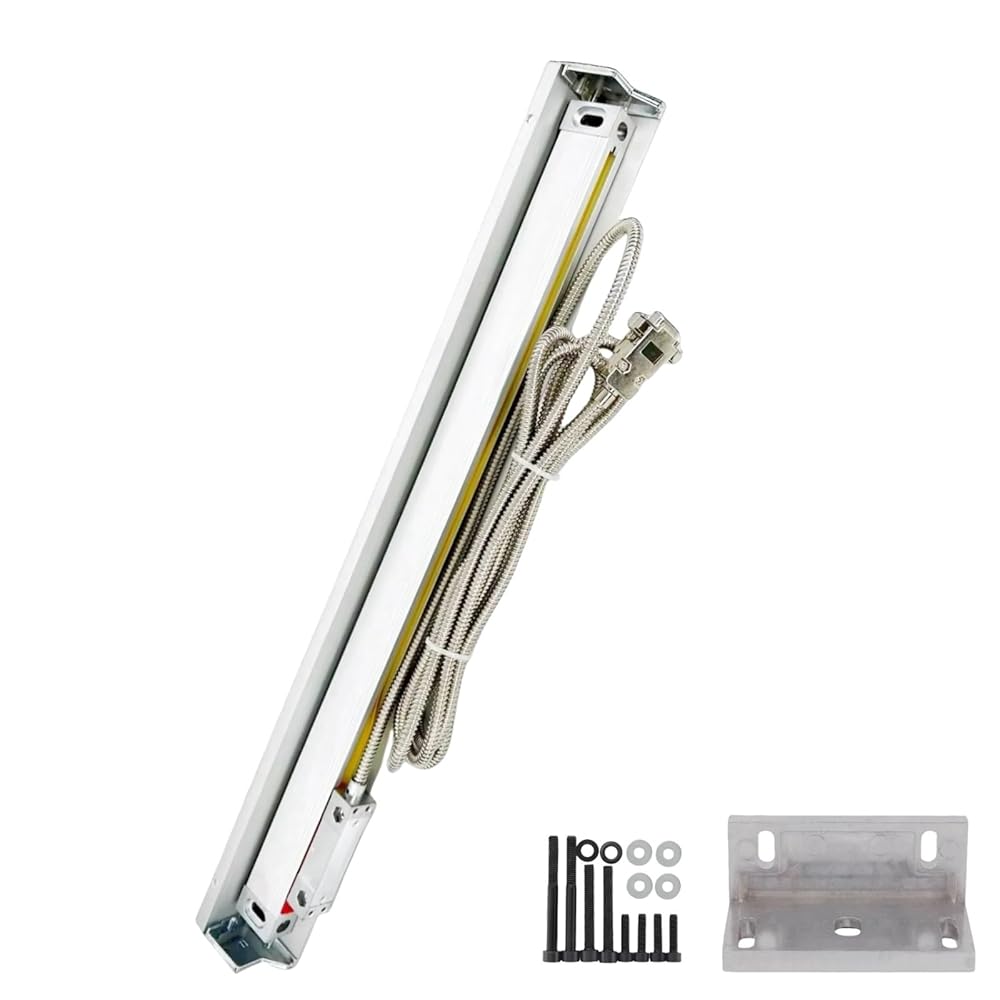

1PCS KA-300 0.005mm Optical Grating Ruler Sensor Linear Scale For DRO Lathe Milling Machine TTL 70mm~ 420mm
Whatinpackage
1piecescale,scalecover,mountingbracket,screwbag
Linear scale parameter
Model: KA300
Available measurement: 70mm to 420mm
Total length: measurement +106mm
Dimensions Cross section dimensions: 25mmx34.5mm
Input voltage: 5VDC
Power supply: +5V±5%,80mA
Moving speed:60m/min
Output signal: TTL
Connector: 9 pin socket
Resolution: 5um/0.005mm
Cable length: 3 meters
Application : Mill, Lathe, Grinder, CNC Etc.
