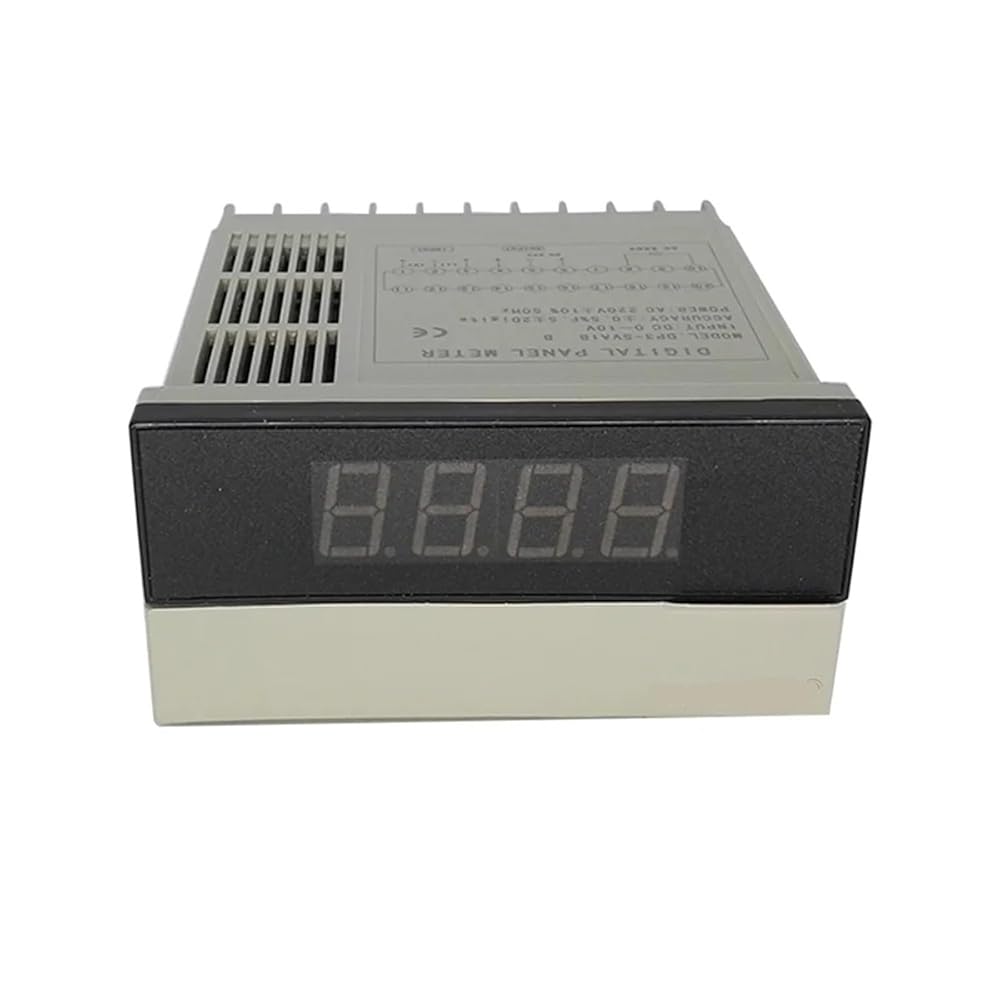

DP3-SVA DP3-DA Linear Sensor Indicator AC220V 4 Digit Display screen Meter 4-20mA output DP3-SVA1A DP3-SVA1B DK8A-SVA
Features;
Be applicable for sensors with linear output features or other equipments,such asmeasuring pressure, weight, temperature and humidity and so on.
With Decimal point, Ratio, Measuring Range and Zero point setting function.
With transformed analog 4-20mA output.
Auxiliary power supply: +12V or +24V
Model
Ordering Code
2. Decimal point setting (Figure 2)
While moving jumper cap on different PIN head, you can get position of DP that you want.
Notes: setting range is 0-10V display 0-1999, Customers can adjust range according to their detail requirement.
Display Adjusting
While setting span and zero, please open front lid. As following figure shows.
1.SPAN ADJUSTMENT
Input a typical value, display value can be increased, when forward adjust, display value can be decreased while reverse adjust.
2.ZERO ADJUSTMENT
Zero Adjustment Function: forward adjust is forward biased, reverse adjust is reverse biased.
Notes: After adjustment of span value and scale setting, you need to check whether zero need to be resetteel. Zero adjustment must be in zero
input or input shortcircuit or an adjustment signal. Fox example, inputting 4-20mA,if you want to display zero, you must input 4mA in terminal
then adjust to zero. In order to diminish error, please adjust span and zero repeatedly.
Terminal Connection
Size
Cautions
1. Used in ambient temperature of 0 to 50, humidity less than 85%R.H.
2. Input wire should not be too long, had better be shielded.
3. and installation should be far away from disturbant source.
4. Avoid using by violent vibrations or shock.
5. Avoid dust or corrosive chemical.
6.Store meter in shade place with temperature of -10 to 70, and humidity less
than 60%. Don't contact with solvents or oils
Products Show

Model Number : DP3-SVA1A DP3-SVA1B
DIY Supplies : Plumbing
Output Voltage : Power output Analog output
Input mode : 4-20mA, 0-20mA 0-10v, 0-1v,1-5v, 0-5v, 0-200mV
Max.Display : Decial Ponit free setting 1999
Display : Red LED high: 14.2mm
Power consumption : less than 3.5VA
Operating temperature : 0-50 degree
Power supply : Default 220V
Outside dimension : H: 48mm W 96mm L100mm
Auxiliary Power : DC12V,DC24V
