0.005mm KA-300 Optical Grating Ruler Sensor Linear Scale for DRO Lathe Milling Machine TTL 70mm- 470mm (Ka300470mm5u 1) in Kuwait

0.005mm KA-300 Optical Grating Ruler Sensor Linear Scale for DRO Lathe Milling Machine TTL 70mm- 470mm (Ka300120mm5u 1)

KWD 71
Brand
NUHSLF
Category
Sensors
ColorKa300120mm5u
Size1
– 1 +

Special Features

  • Multiple measurement length options: KA-300 offers optional measurement lengths from 70mm to 470mm, which can be flexibly adapted to different devices and application scenarios
  • High precision and resolution: With high precision of ±3μm and resolution of 1μm/5μm (0.001mm/0.005mm), accurate measurement results are ensured
  • Fast response capability: The maximum measurement speed can reach 60m/min, which is suitable for efficient production lines and improves work efficiency
  • Good protection performance: IP55 protection level can effectively resist dust and moisture, ensuring stable operation in various industrial environments
  • Complete accessory packaging: Comes with mounting bracket, scale cover and screw bag, providing a one-stop solution to simplify the installation process

Description

Product name: KA-300 Linear scale
Available Measrus Length: 70 120 170 220 270 320 370 420 470mm
Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um/ 5um(0.001mm/0.005mm)
Output signal: TTL / EIA-422-A
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins

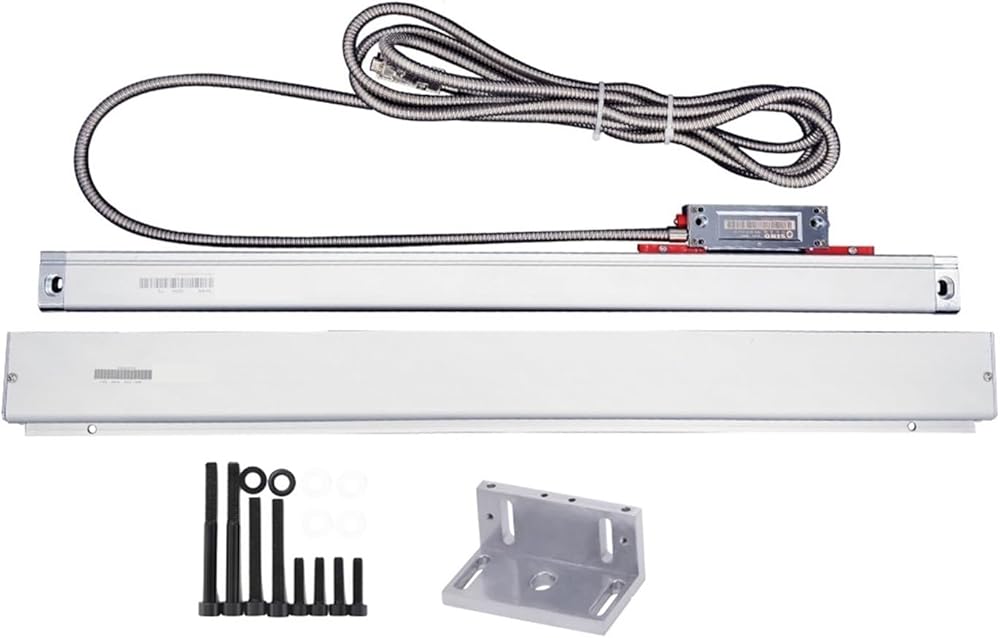

Package includes:
1 piece KA-300 scale
1 piece mounting bracket
1 piece scale cover
1 bag screws
