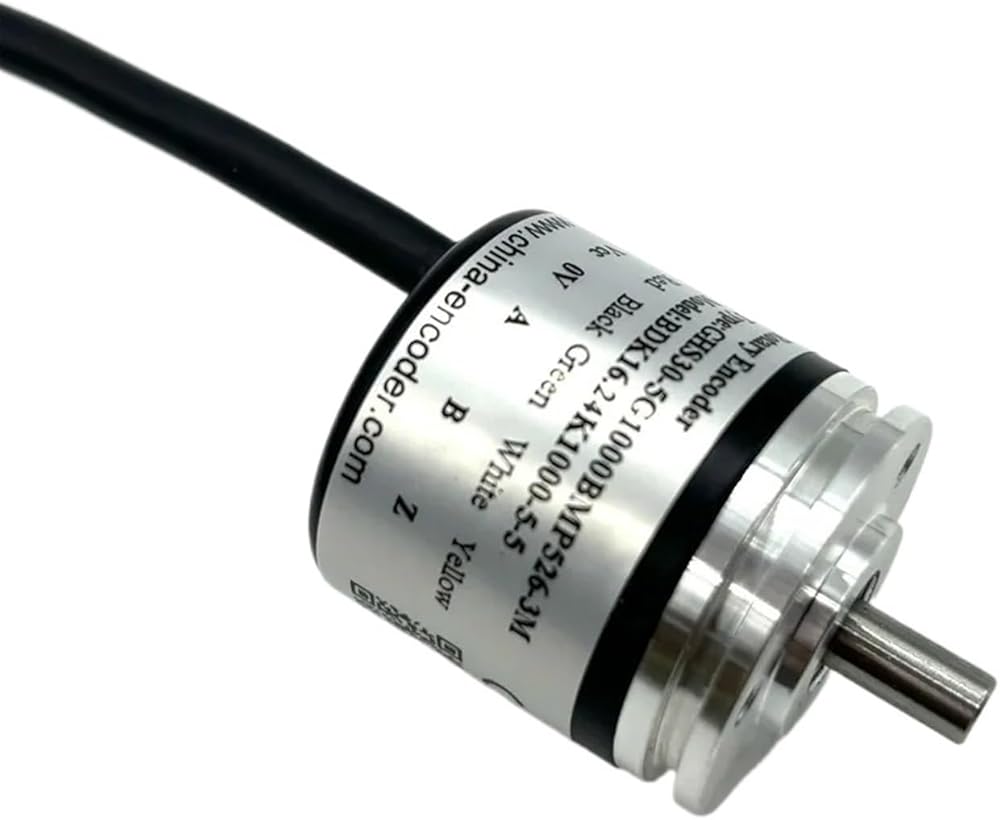

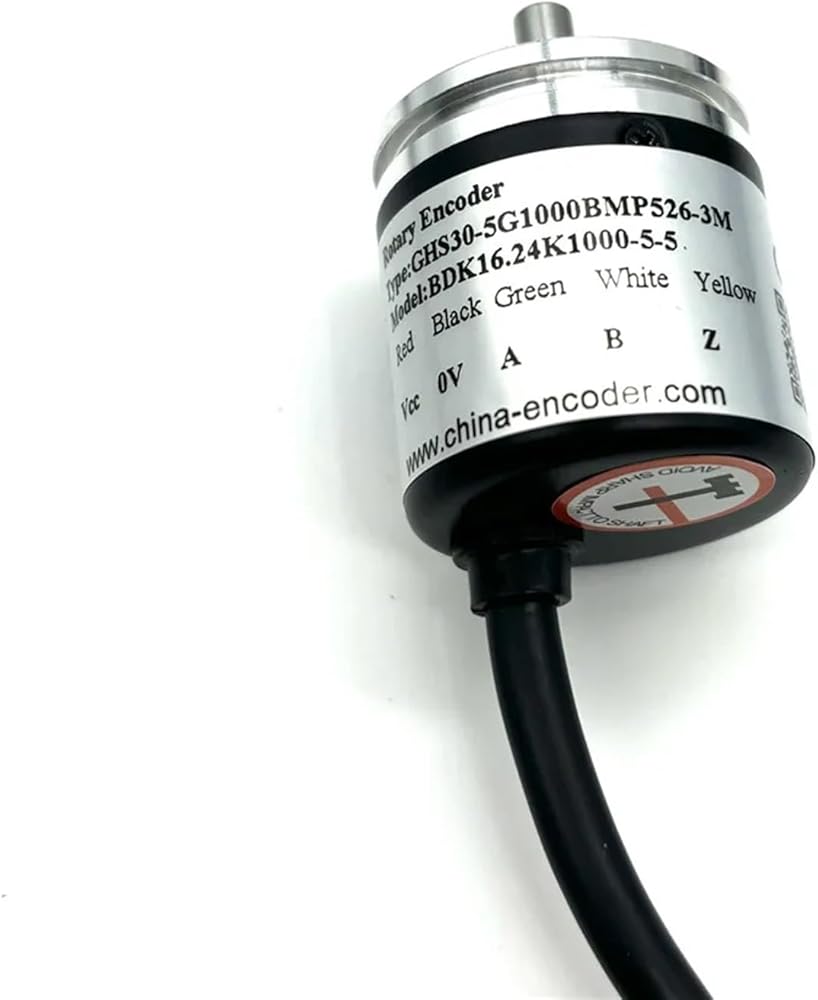

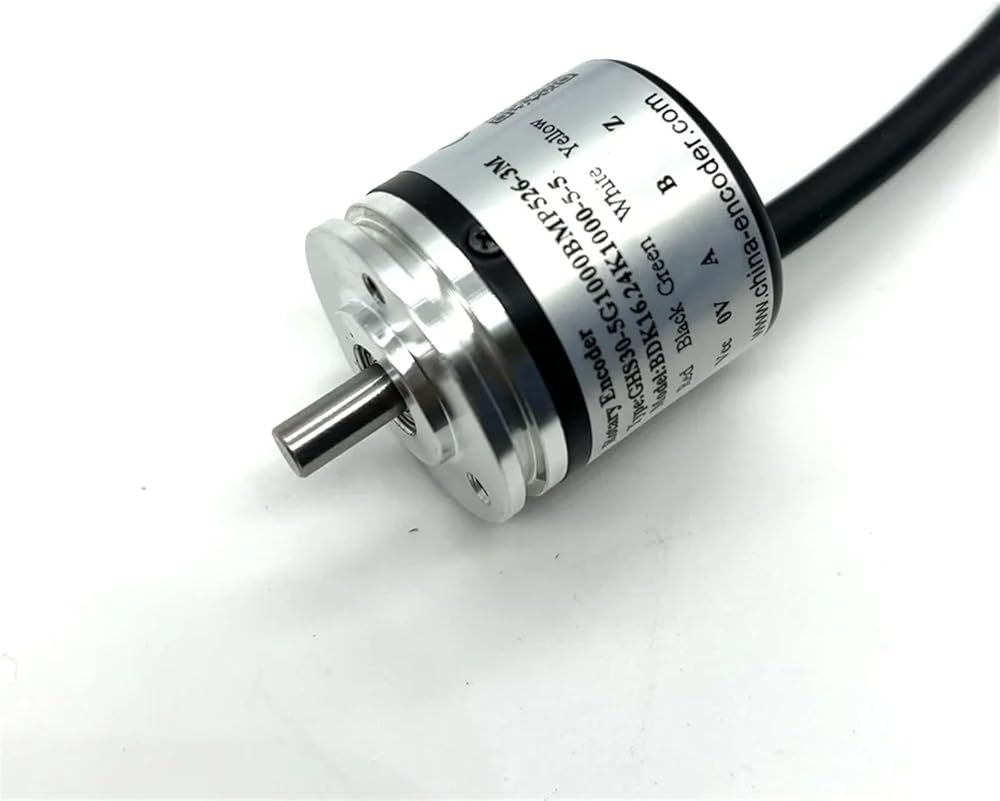

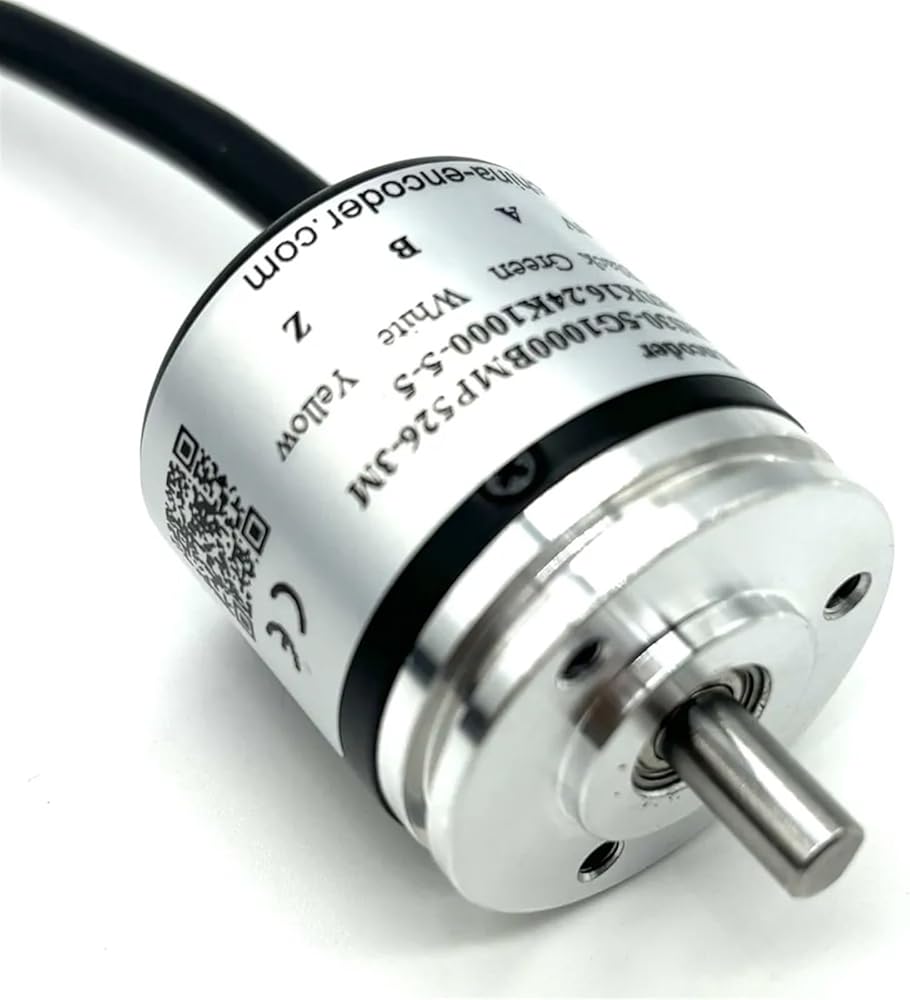

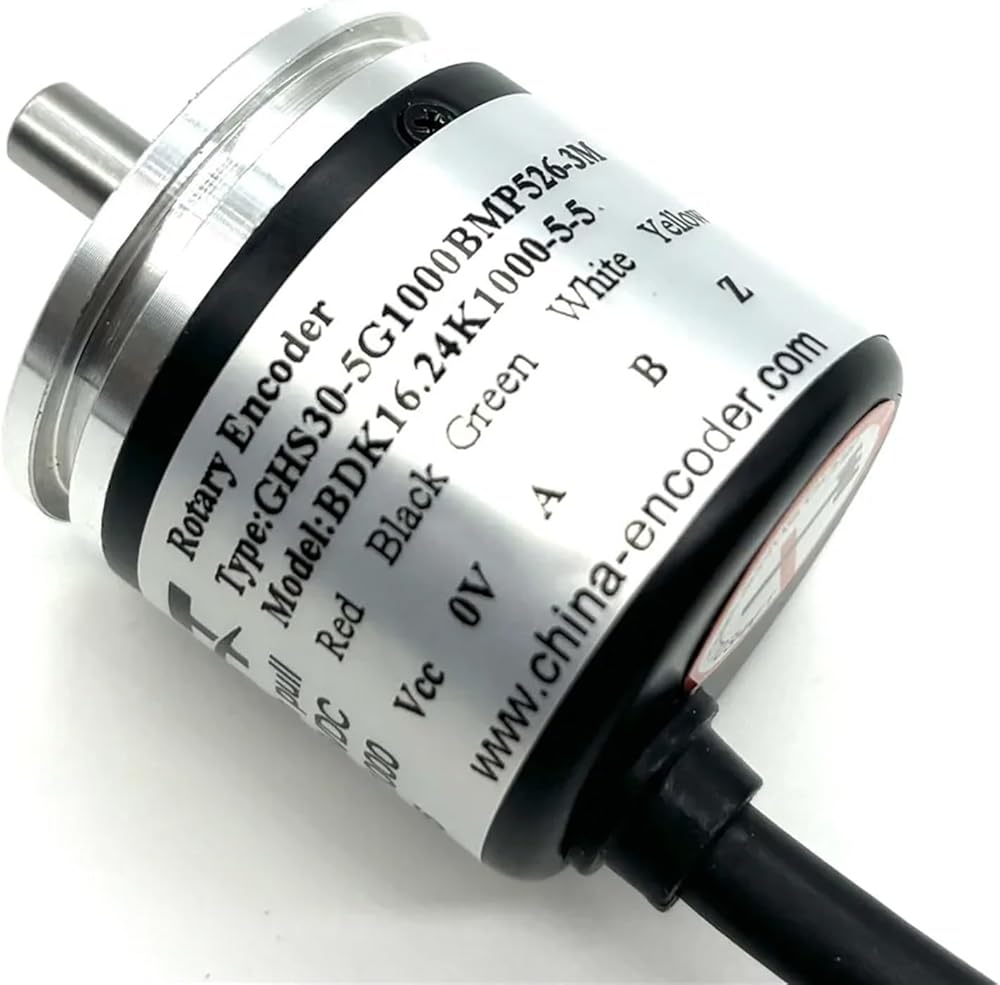

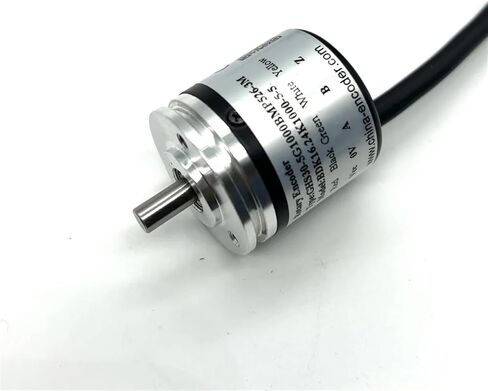

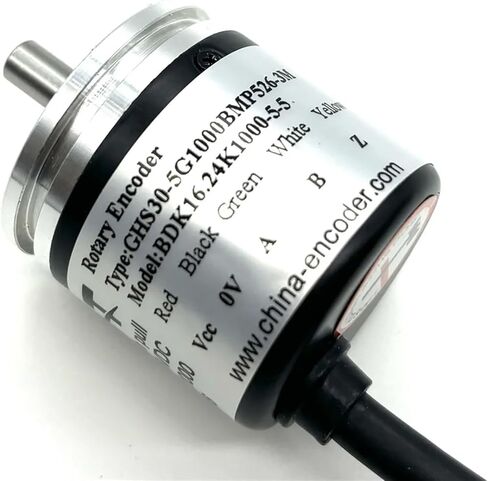

GHS30-5E 5mm Solid Shaft Encoder Push-pull 100 200 360 500 1000PPR Replace for Baumer BDK Series BDK16.24K1000-5-5
Features:
1. outer diameter: 30mm
2. shaft diameter: 5mm
3. resolution: 10~1024 PPR optional
4. phase: A B Z
5. output circuit: push pull
6. cable length can be
7. supply voltage: 5-26Vdc
* ASIC devices internal, good reliability, long life, anti-jamming performance.
* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* end use waterproof metal interface protection
* Bearing load heavy, anti-oil and water.
Model defined:
Electrical Characteristics:
Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~30V
5~30V
5±0.25 5~30V
5±0.25 5~30V
Current consumption
80mA
80mA
80mA
150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
300kHz
300kHz
300kHz
300kHz
Mechanical properties:
Max speed r/min
Starting
Axis maximum load
Impact
Anti-vibration
6000
Radial 20 N Axial 10 N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-6kgm2;
-30~85ºC
-40~95ºC
IP54
180g

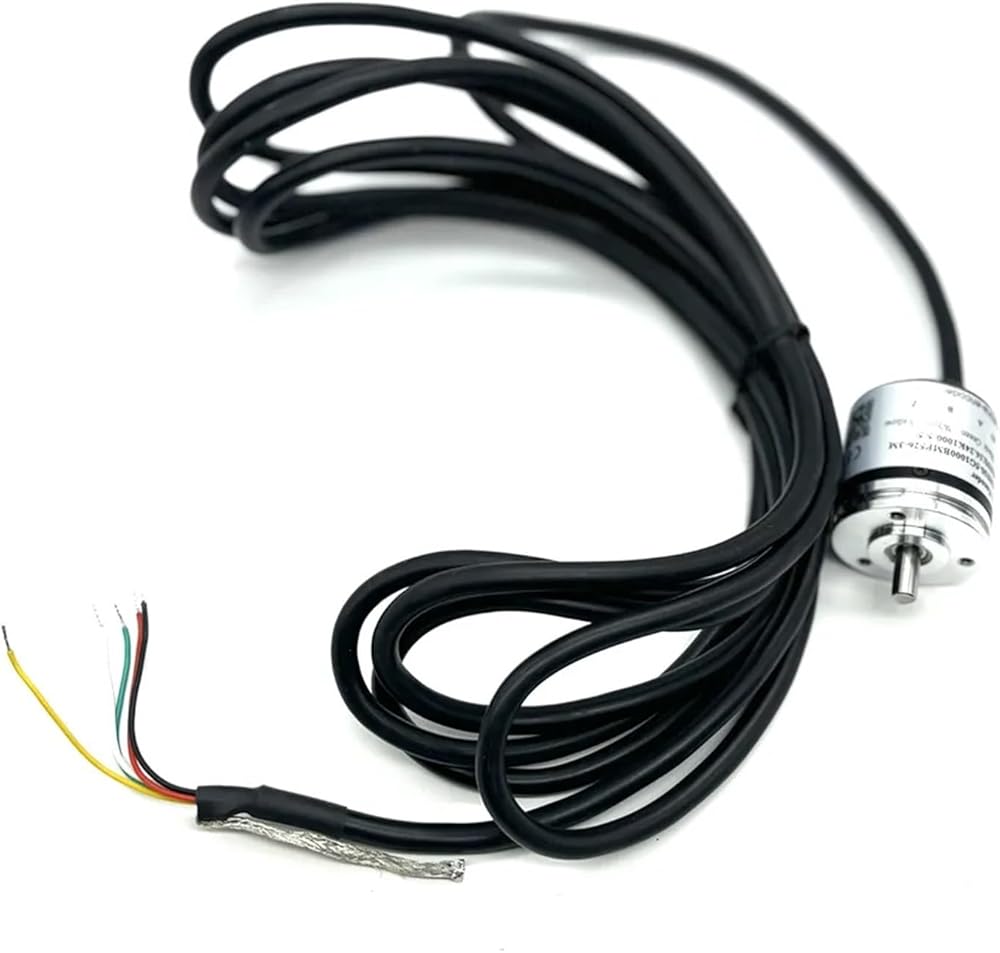

Connections:
Signal
A B Z A-
B-
Z-
Vcc
GND
Color
Green
White
Yellow
Brown
Grey
Orange
Red
Black
