Specification

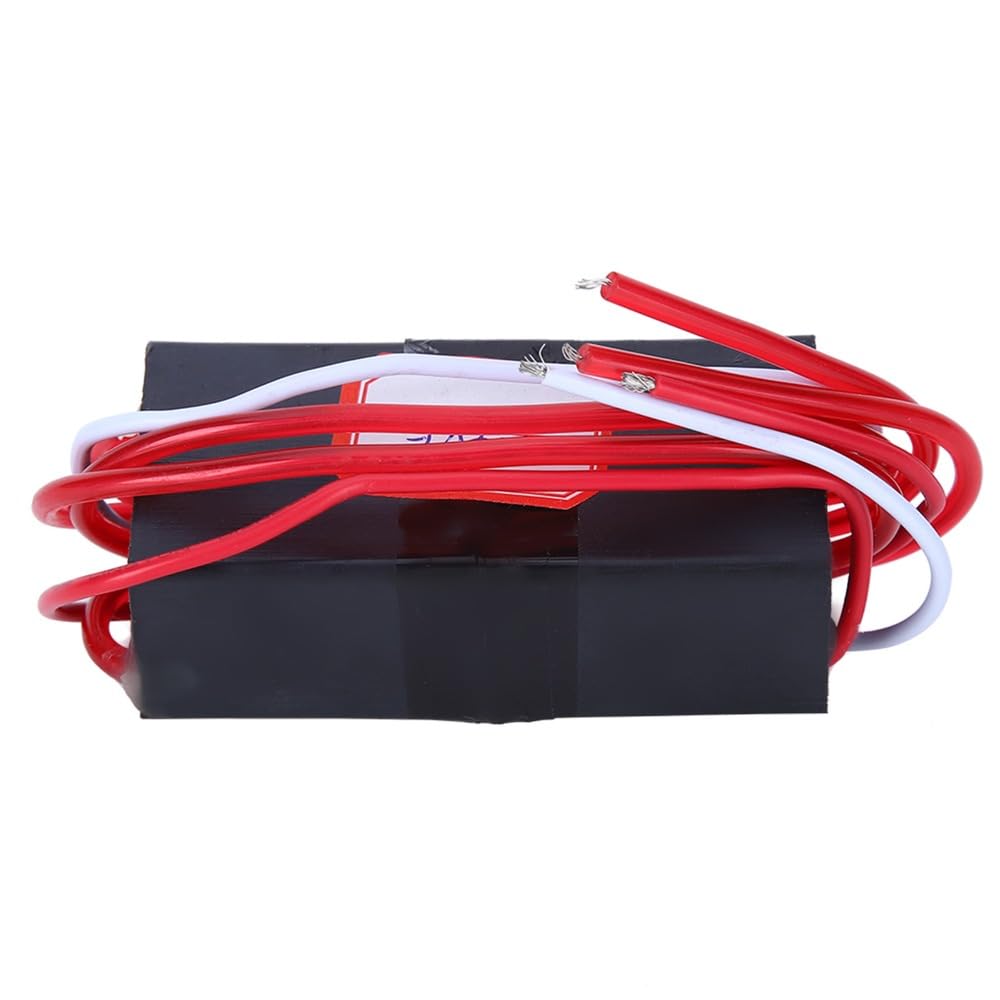

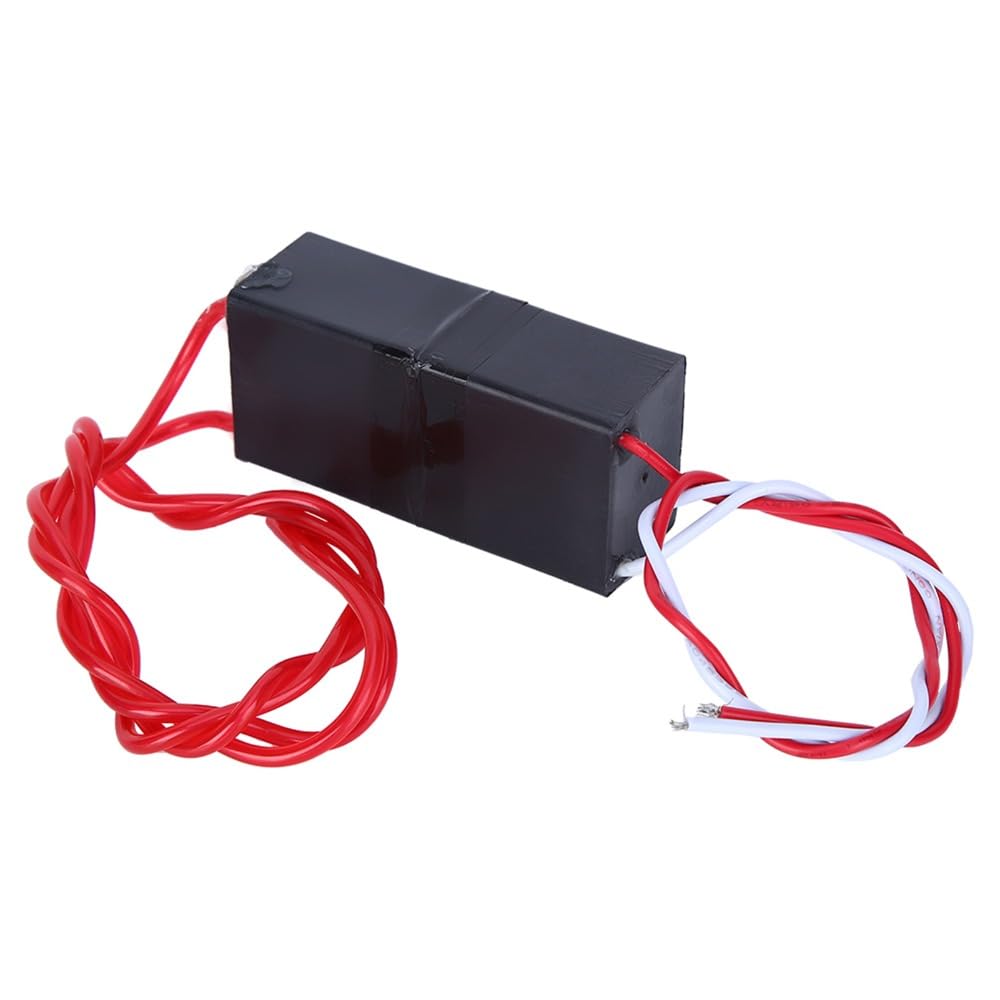

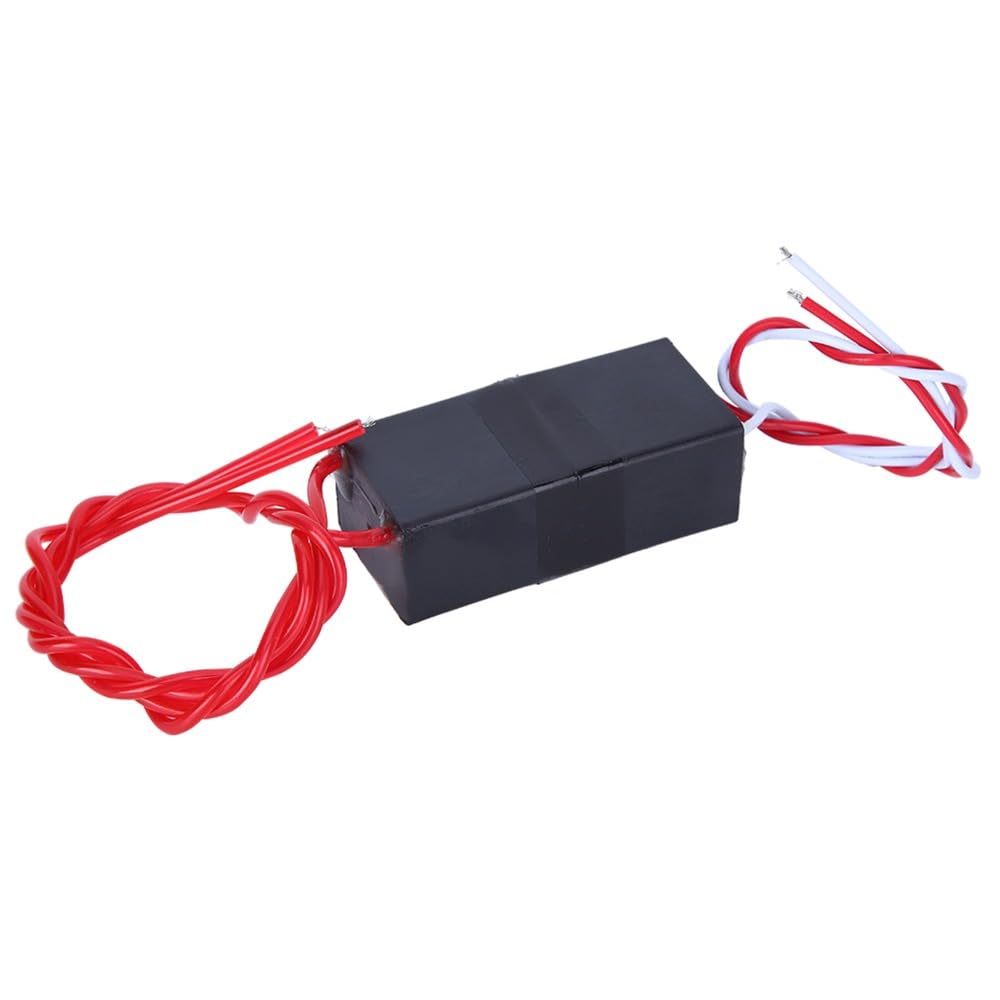

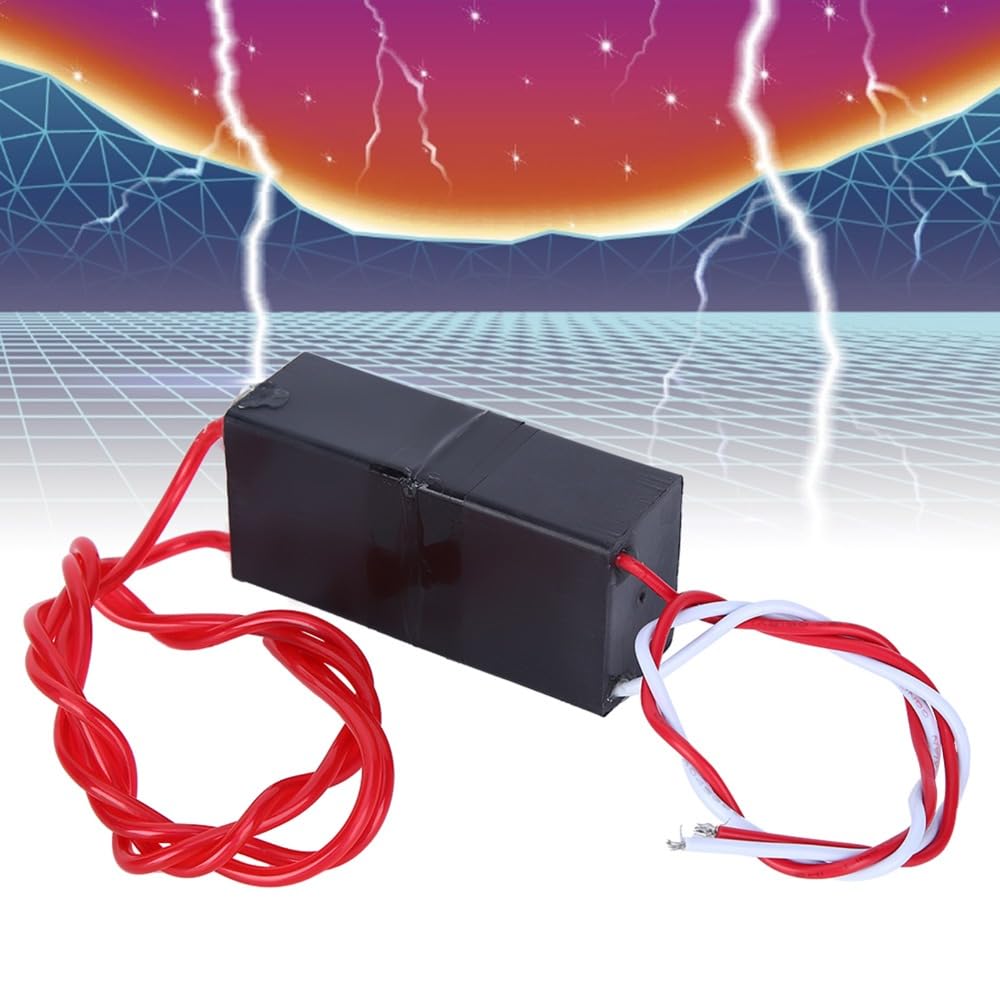

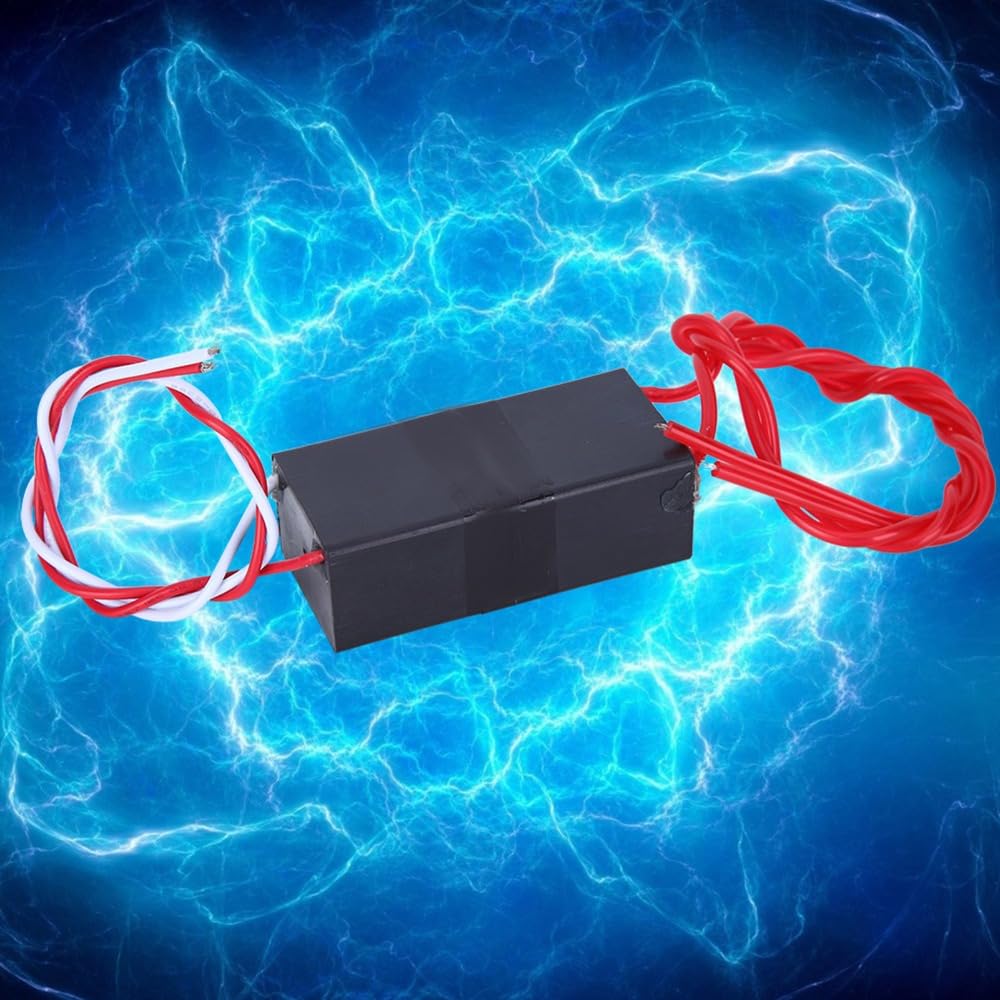

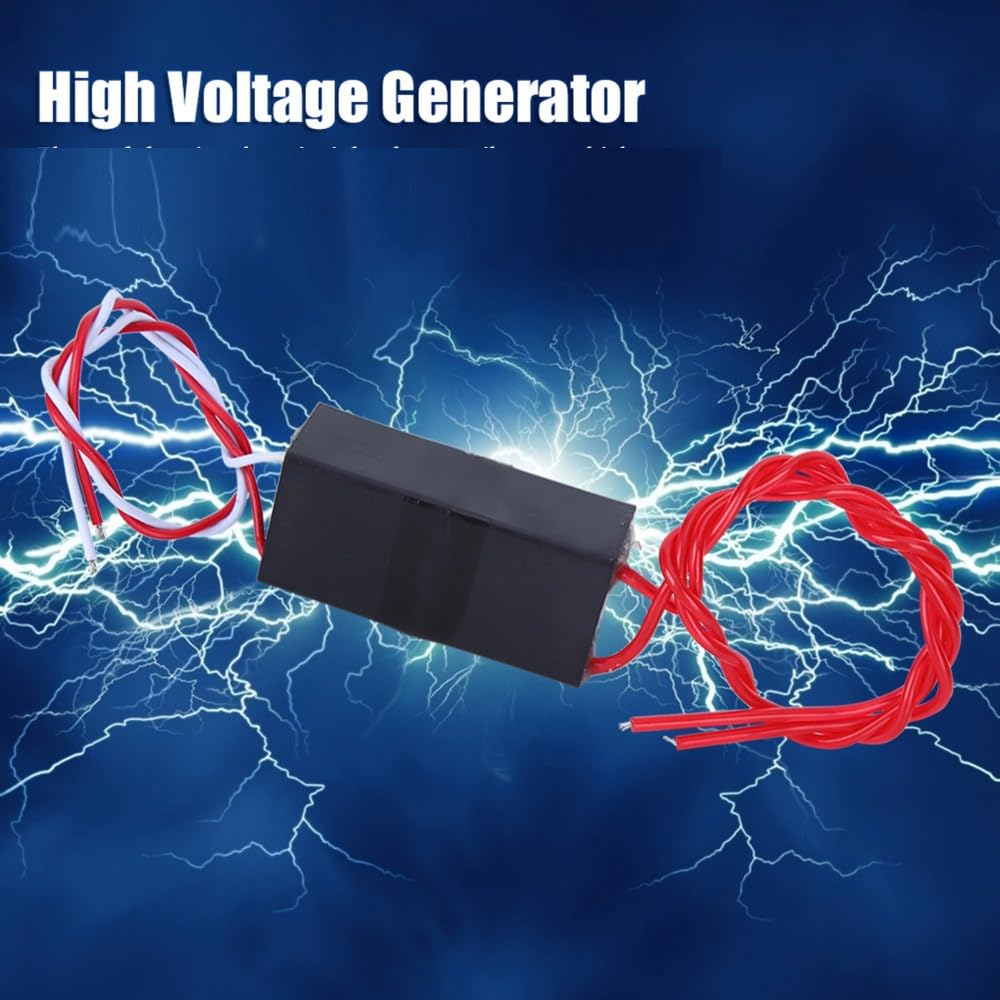

Item Type: High Voltage Module
Material: Plastic
Model: HX-7.4VF
Input Voltage: 3.6V-7.4V
Input Current: 0.5A-1A
Input Line Length: 26cm/ 10.2in
High Voltage Type: Pulse DC Type
Output Voltage: About 60KV (Please pay attention to safety when using)
Output Current: 0.5A-1A
Output Line Length: 37cm / 14.6in
High Voltage Pole Discharge Distance: 2-3cm / 0.79-1.18in
Product Size:

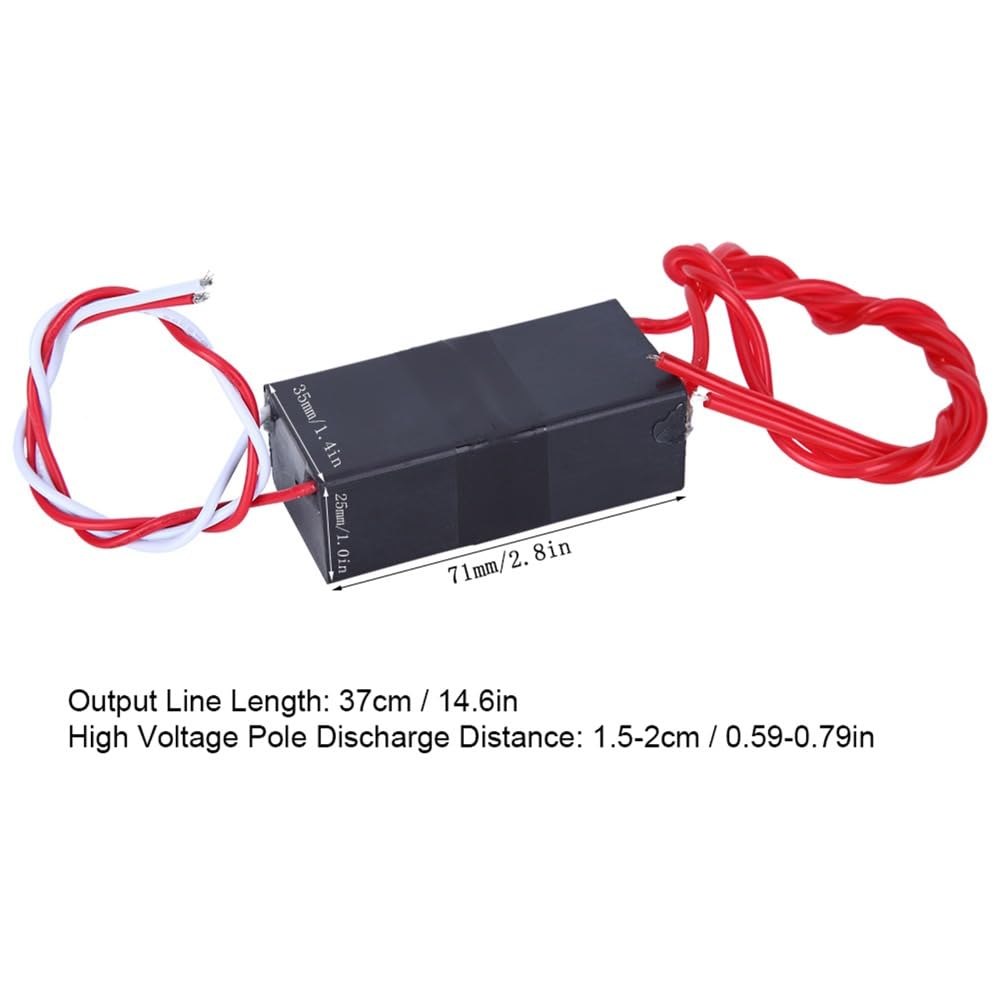

Length: Approx. 71mm / 2.8in
Diameter: Approx. 35mm / 1.4in
Thickness: Approx. 25mm/ 1.0in
Color: Black
Package List
1 x High Voltage Module
Note
1. The high-voltage module should avoid being energized when the high-voltage is no-load. Before powering on, the appropriate distance of the high-voltage line end must be adjusted. The arcing distance of the high-voltage line is proportional to the battery voltage and capacity used.
2. Experiment from short to long when testing arc distance. It is strictly forbidden to exceed the maximum arc distance when energized. The module can be easily damaged because the high voltage energy cannot be released.
3. The power of the module is large, and the internal is not suitable for heat dissipation, so it is not allowed to work for a long time.
4. The method to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is drawn. If it is around 6V, it can output the maximum power.
5. The two sections of small capacity lithium batteries are connected in series at 7.2V. The measurement voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use lithium batteries above 2000MA, and it is best to match batteries above 4000MA if possible
