مميزات خاصة

Heavy-duty extruded stove enameled aluminum section - resistant to extreme environmental conditions can be used up to 150°C, Rated frequency 34850? 45500vpm, Vibration Power 980 - 2800N.
Super sound-off Noise range 60-75 decibel (dB), very quiet. High-speed and eccentric machining torque to generate strong power vibration force, safe.
Copper eccentric gear installed counterweigh impact air intake charge into the gear thrust gear rotates, the eccentric rotation of the centrifugal weight with vibration, the gear is driven by a bearing, low noise and no need to be lubricated.

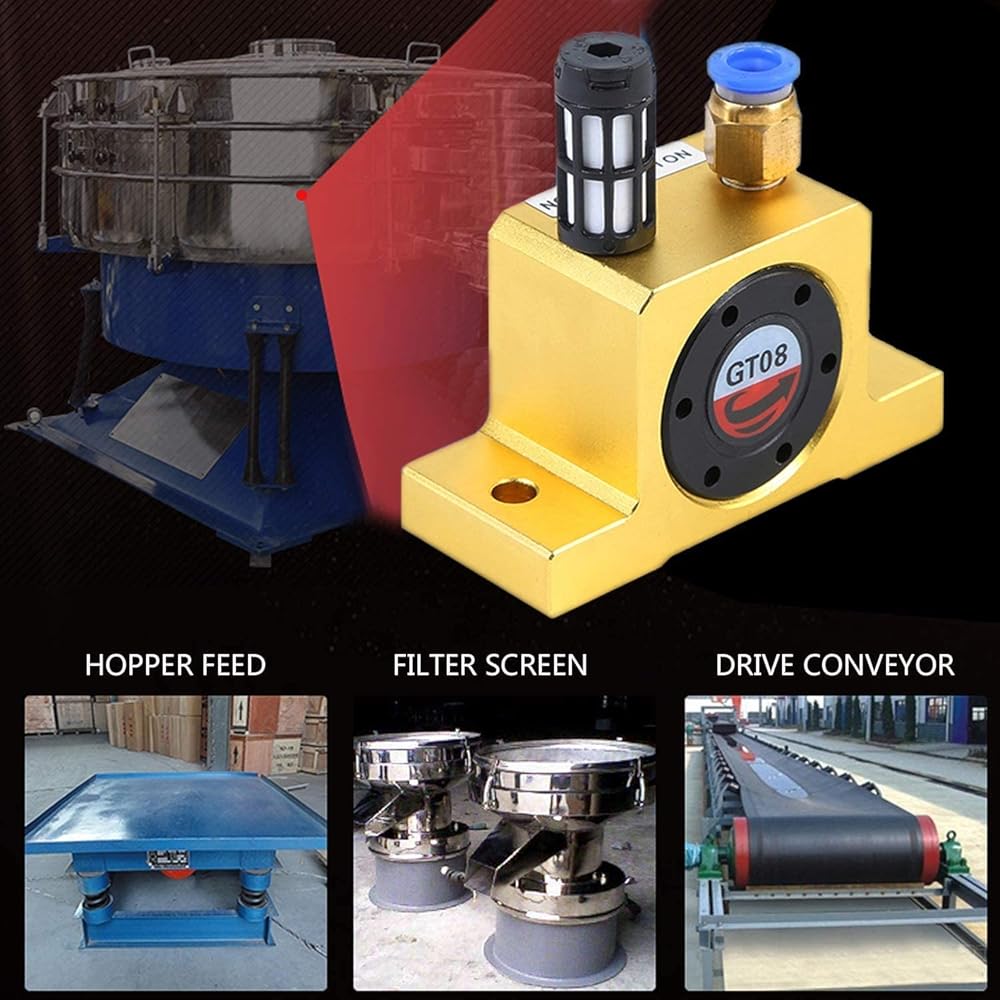

It can be used for feed material conveyor, vibrating screening, vibrating hopper, to help filling packaging, foundry sand mold vibration.
It can start instantly and stop instantly. The vibration force, vibration number and vibration intensity can be adjusted according to the pressure, can achieve high vibration number, high vibration power and other excellent functions.

وصف

Feature:
--A high speed range and eccentric working moments are combined in these Vibrators to produce a powerful vibration.The body is made from an extruded stove enamelled aluminium section and the hard coatedend plates enables the vibrator to be used in the food and pharmaceutical industries.The GT-turbine vibrators comply to current international noise regulations under factory test contitions.

Design:
--The vibration is produced by the centrifugalforce of the postive and negative unbalance moments in the rotor,the rotor is supported on two heavey duty,prelubricated ,matched shielded ball bearings,A special long life grease ensures a long working life. The inner and outer raceways of the bearings are designed so that the bearings can be easily replace using only a pin-wrench.The end plates are fitted with right-andleft-hand threads and self-locking.

Specification:

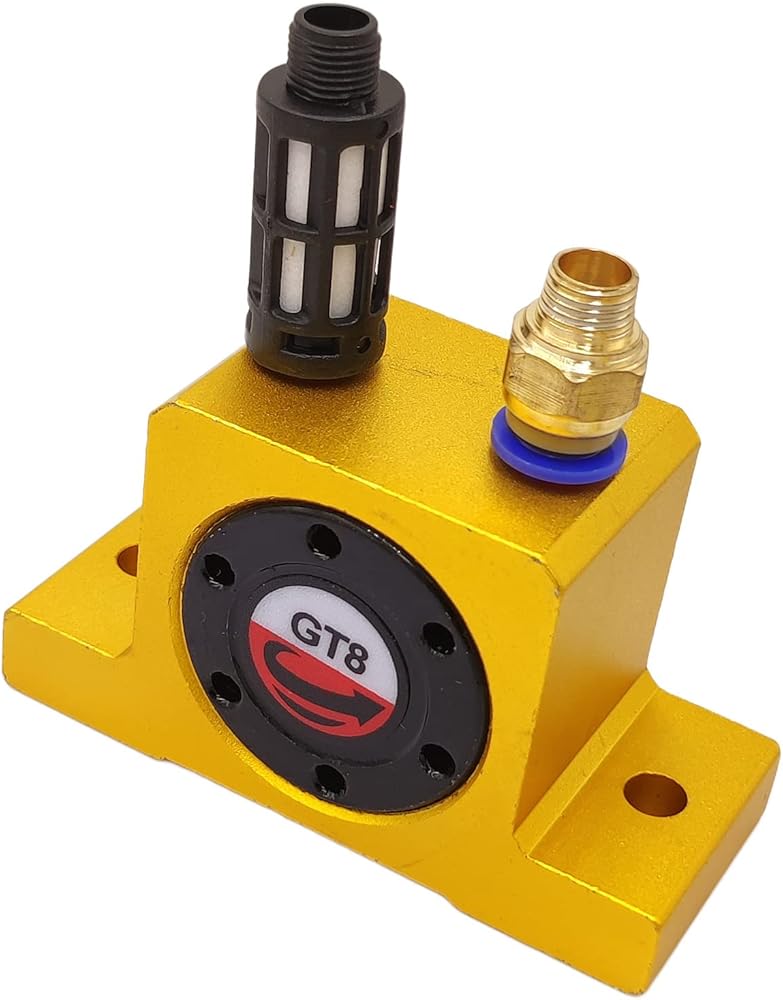

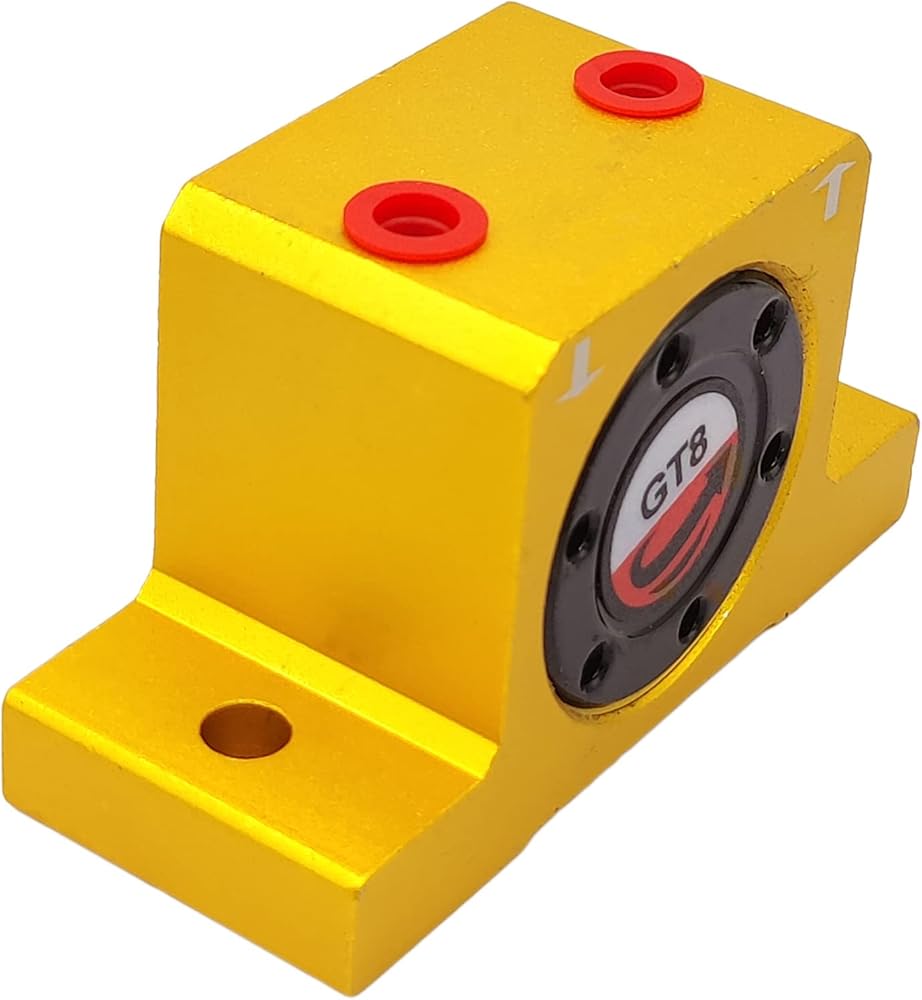

1.Turbine type pneumatic vibrator
2.No lubrication only clean air is required
3.Low noise 60~75dBA
4.Compact size

Industry Applications For Vibration Solutions:
Coal Mining and Processing
Coal-Fired Power Plants
Steel
Mining
Cement
Aggregate
Biomass
Recycling and Waste Management
Fertilizer
Smelters and Foundries
Ports and Terminals
Pulp and Paper
Rail and Truck Shipping
Metals
Grain Hauling and Food Processing

Packaging included:

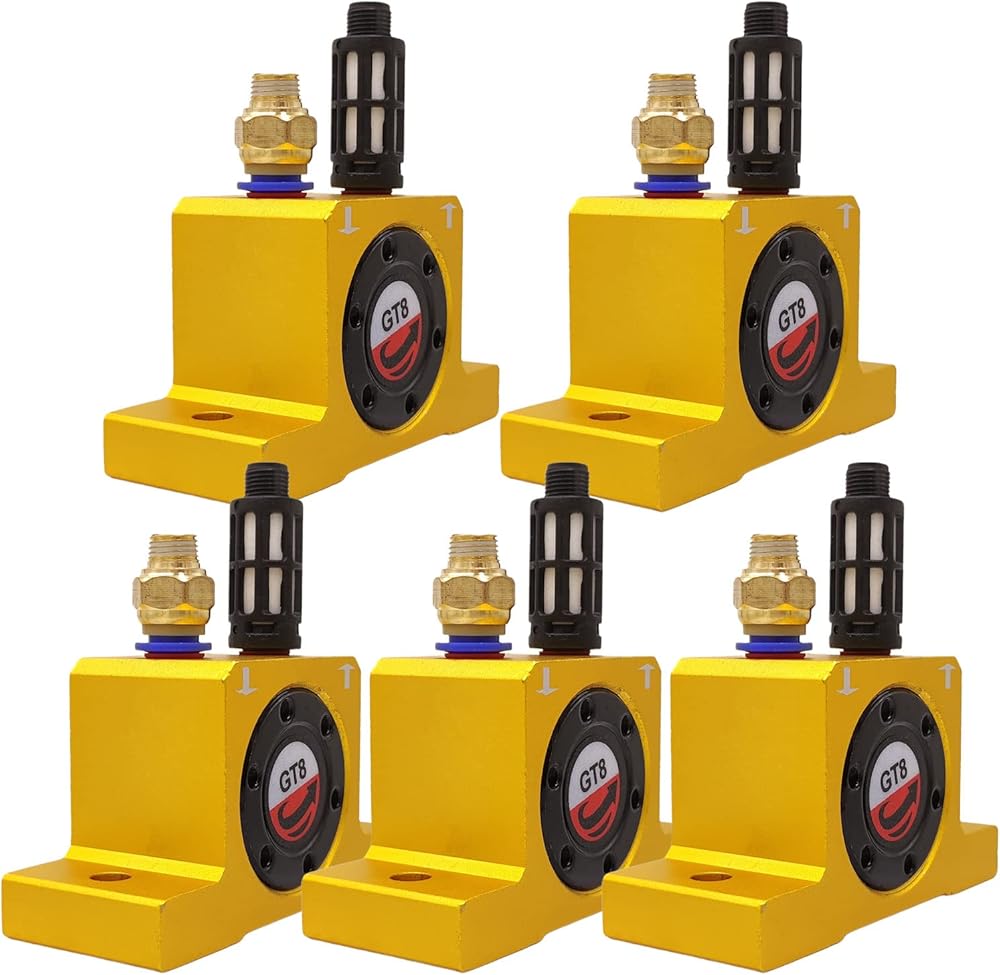

5 x Pneumatic Industrial Turbine Vibrator
