Steam Trap, 353F, Brass, 0 to 125 psi in Kuwait

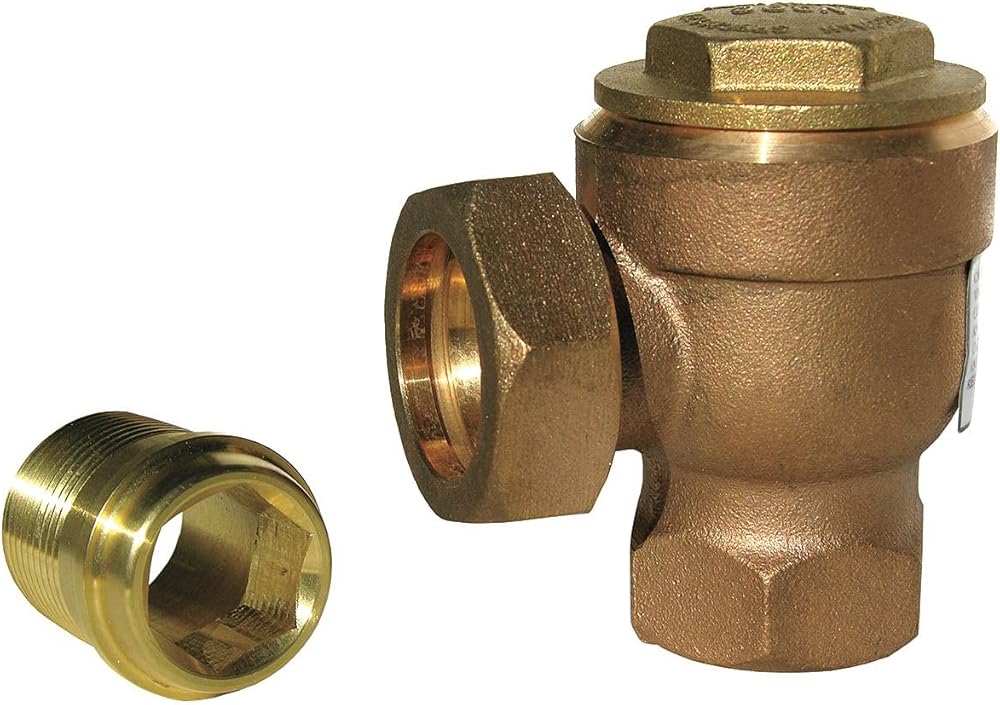

Steam Trap, 353F, Brass, 0 to 125 psi

KWD 167.500
– 1 +

Special Features

  • Price For: Each Max. Temp.: 353 Degrees F Pressure Air Vent: Self-Adjusting Item: Steam Trap Body Material: Brass Application: Drains Heat Exchangers and Other Equipment After Condensate has Subcooled to Maximize the Heat Transfer from the Steam Condensate Capacity Lbs/Hr: 4200 Max. Operating PSI: 125 psi Downstream PSI Range: 0 to 125 psi Pipe Configuration: Angle
  • Pressure Air Vent: Self-Adjusting NPT Outlet: 1" (F)NPT Connections: 1" NPT Port: 1" End to End Length: 3-7/32" NPT Inlet: 1" Country of Origin (subject to change): United States

Description

'Steam Trap, Max. Operating PSI 125 psi, Max. Temp. 353 Degrees F, Body Material Brass, Downstream PSI Range 0 to 125 psi, (F)NPT Connections 1 In., NPT Inlet 1 In., NPT Outlet 1 In., NPT Port 1 In., Pipe Configuration Angle, Pressure Air Vent Self-Adjusting, Application Drains Heat Exchangers and Other Equipment After Condensate has Subcooled to Maximize the Heat Transfer from the Steam, Condensate Capacity Lbs/Hr 4200, End to End Length 3-7/32 In.'
