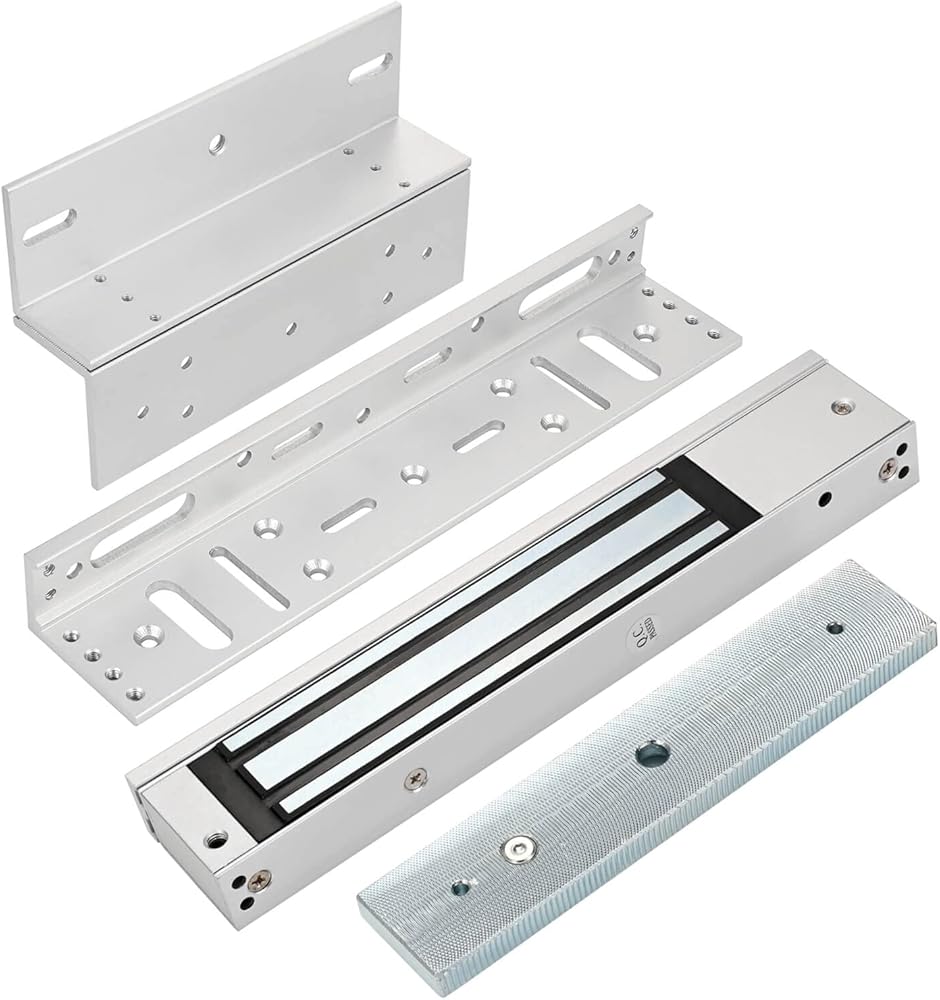

Electric Magnetic Lock 500KG 1200LBS Holding Force Electromagnet Lock 12V Fail Safe NC Mode Single Door for Access Control System in Kuwait

600Lbs with Z and L Bracket

KWD 33
Brand
YUHANUS
Weight
4.3 kg
Color600Lbs with Z and L Bracket
– 1 +

Special Features

  • Materials: Stainless steel, Anti-residual magnesium designed. This magnetic door lock provides a strong sense of security with its outstanding holding force 500KG (1200LBS) and significant features.
  • Size: The lock size is 10.43'' x 2.95'' x 1.54'' (265x75x39mm); Armature plate: 7.28'' x 2.36'' x 0.51'' (185x60x13mm). Holding Force: 500kg (1200lbs).
  • Mode: NC Mode, Locked whilst power supply is operating, unlocked when power off; Fail-Safe Mode. Voltage: DC12V.
  • Security protection: This electric magnetic lock has safety function. It is built in voltage spike suppressor.
  • Wide Applications: This magnetic door lock is suitable for Wooden Door, Glass Door, Metal Door, Fire Proof Door, Cabinet, etc.

Description

This electric magnetic lock consists of an electromagnet and an armature plate used for access control door locks.

By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut.

The door will be closed when power is on; when power off, the door will open.

It is suitable for wooden door, glass door, metal door, fire-proof door, Cabinet, etc.

Specification:

Electromagnetic plate Material: Aluminum Alloy + Metal Plate
Armature Plate Material: Zinc
Cover Finish: Anodized aluminum
Color: Silver
Holding Force: 500kg/1200lbs
Input Voltage: DC 12V
Operating Temp: -10 ~ +55C (14-131F)
Operation Current: 480mA
Size: 10.43L x 2.95W x 1.54H (in)/ 265L x 75W x 39H (mm)
Armature plate: 7.28L x 2.36W x 0.51H (in)/ 185L x 60W x 13H (mm)
Package Weight: Approx. 9.5lb (4.27KG)

Package list:
1 * Electromagnetic Lock
1 * Armature Plate
1 * Screws Pack
1 * User Manual (English)

If you need Z and L Bracket for this magnetic lock, you can buy this ASIN B0BKQHYMTM https://www.amazon.com/dp/B0BKQHYMTM?ref=myi_title_dp
