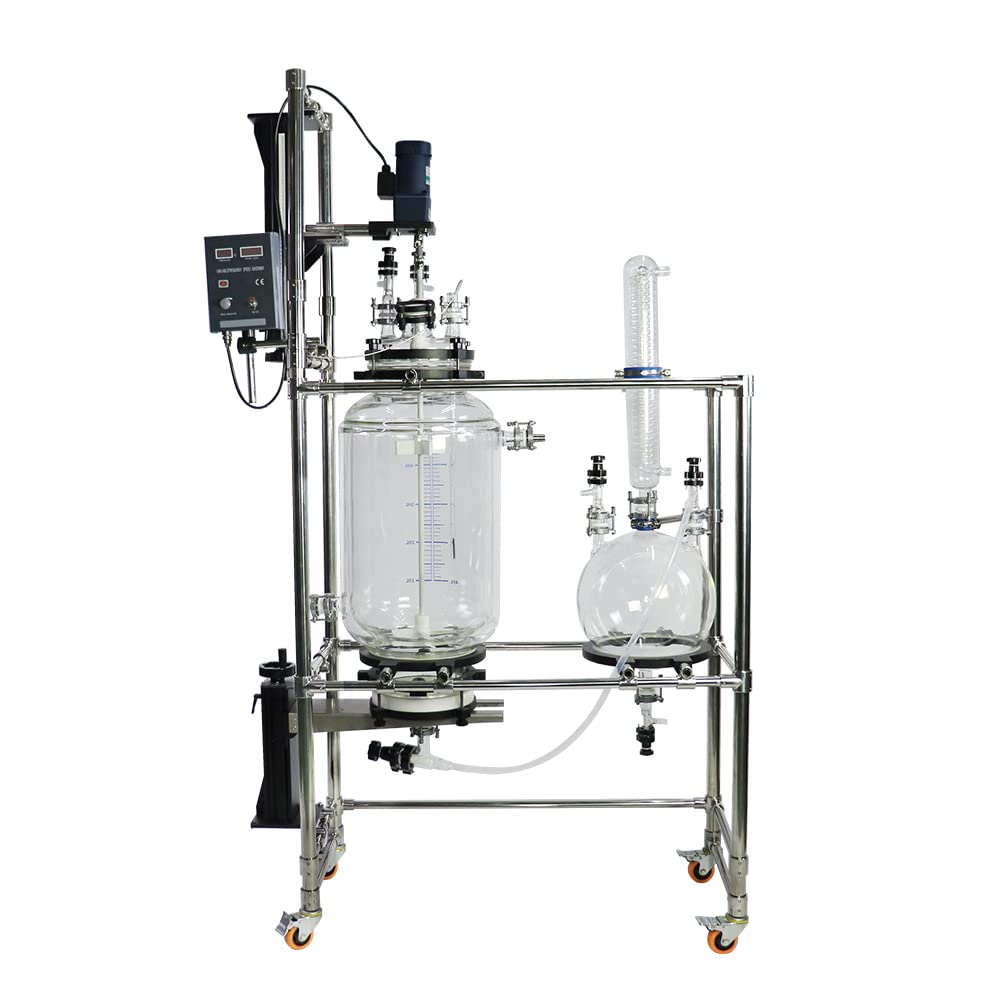

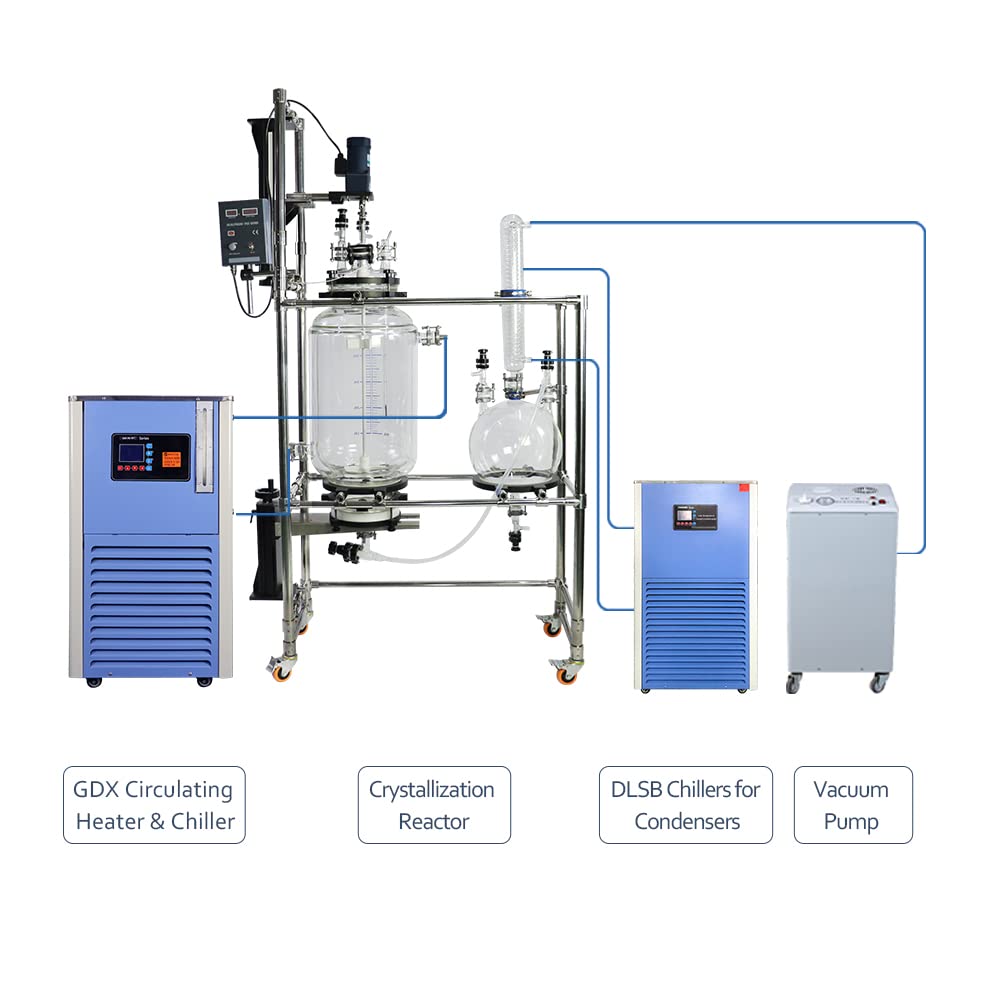

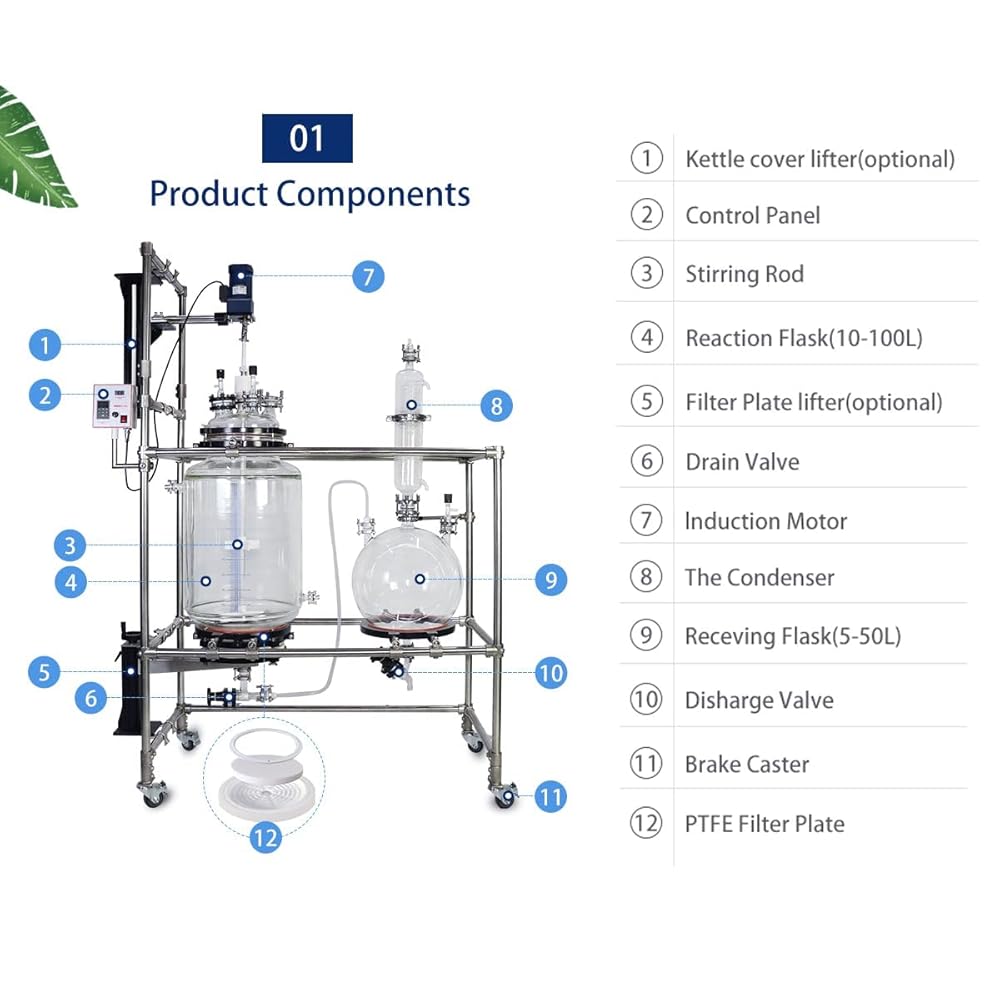

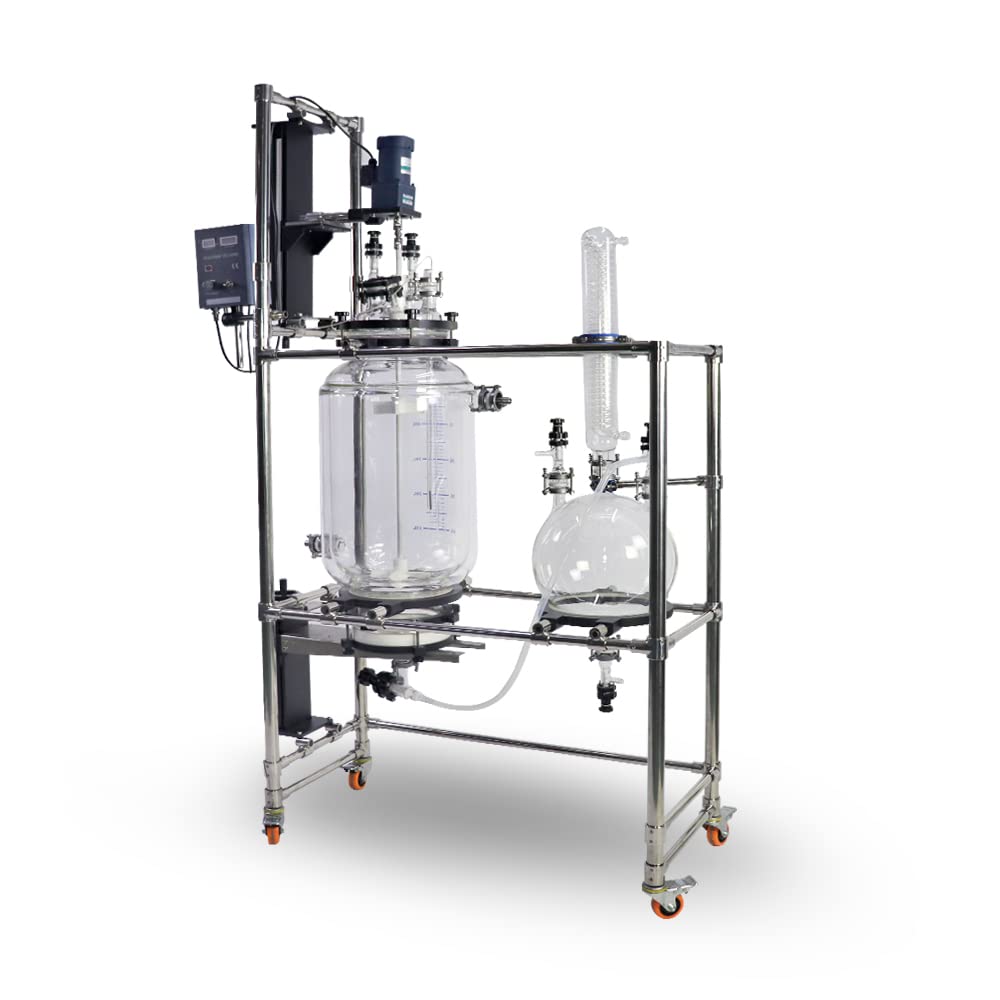

The crystallization process is a commonly used glass reactor for biochemical refinement, which combines the functions of the reactor and the filter. The crystallization reactor can make crystallization concentration, distillation, reflux. This Jacketed glass reactor can be used for vacuum stirring reaction, high temperature and low-temperature reaction, constant speed operation mixing reaction, distillation, reflux, concentration reaction, negative pressure operation, and so on.
Parameter:
Model: GF-50/20L
Voltage:220V/60HZ
Material capacity:50L
Jacket capacity:≈15L
Receiving flask:20L
Motor power:120W
Rotate speed:0-300r/min
Flange diameter:450mm
Bore diameter of sand core:0.1-200μm(Optional)
Reactor body and cover: Flanged joint, the vacuum degree of the machine is -0.098MPA
Cautions
①It is not suitable to make high-speed operation with no load
②Recommended operation temperature range is from -80℃ to 250℃
③Bearing pressure inside the reactor is from -0.1MPA to 0MPA
④It is suggested to gradually increase temperature and decrease the temperature, and the temperature difference of sudden drop is 100℃
