مميزات خاصة

[Conveyor Belt] Using chain plank conveyor belt, smooth operation, can ensure the effect of thermal shrinkage; The transmission speed can be adjusted, Strong adaptability. The conveyor belt adopts continuously variable speed, and the transmission speed can be adjusted. Conveyor speed: 0-32.8ft/min (0-10m/min). Max load of conveyor belt: 17.6LBS(8kg).

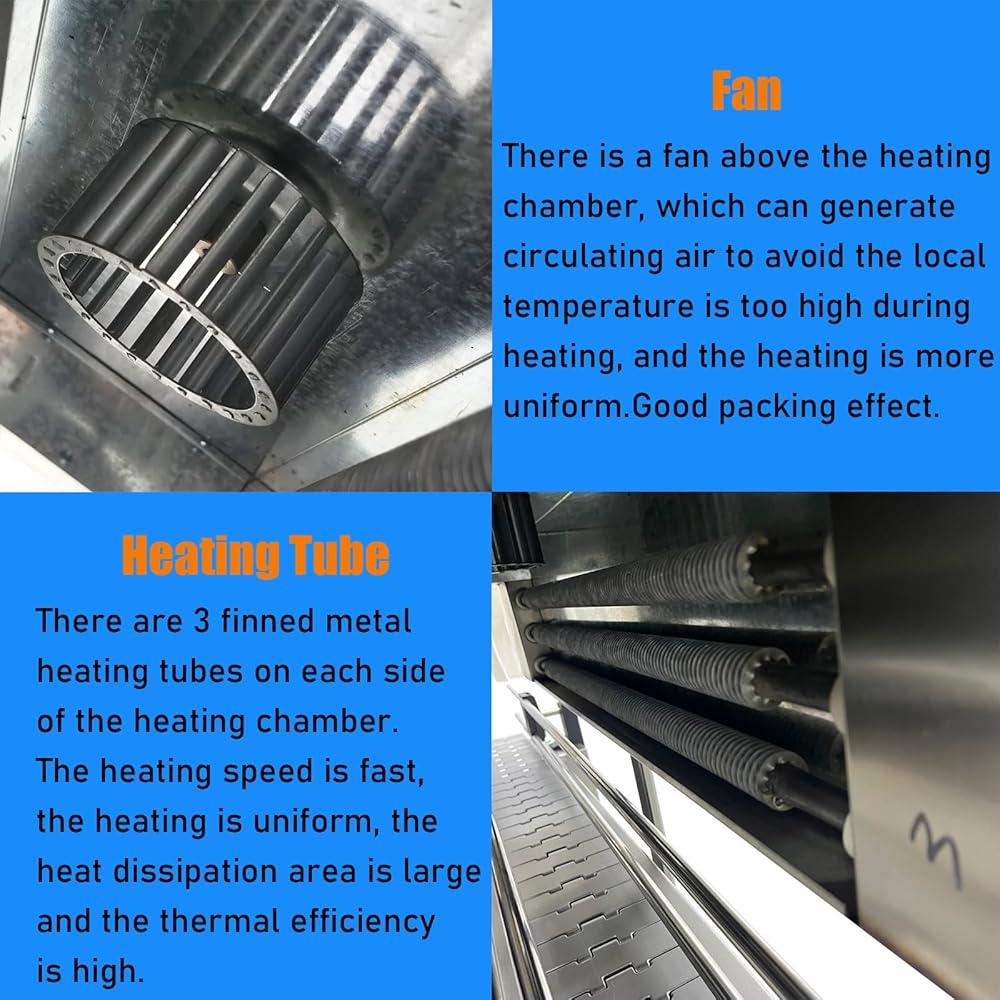

[Heating Tube and Fan] There are 3 finned metal heating tubes on each side of the heating chamber. The heating speed is fast, the heating is uniform, the heat dissipation area is large and the thermal efficiency is high. A fan above the heating chamber creates circulating air, preventing local overheating for uniform heating and optimal packing results.

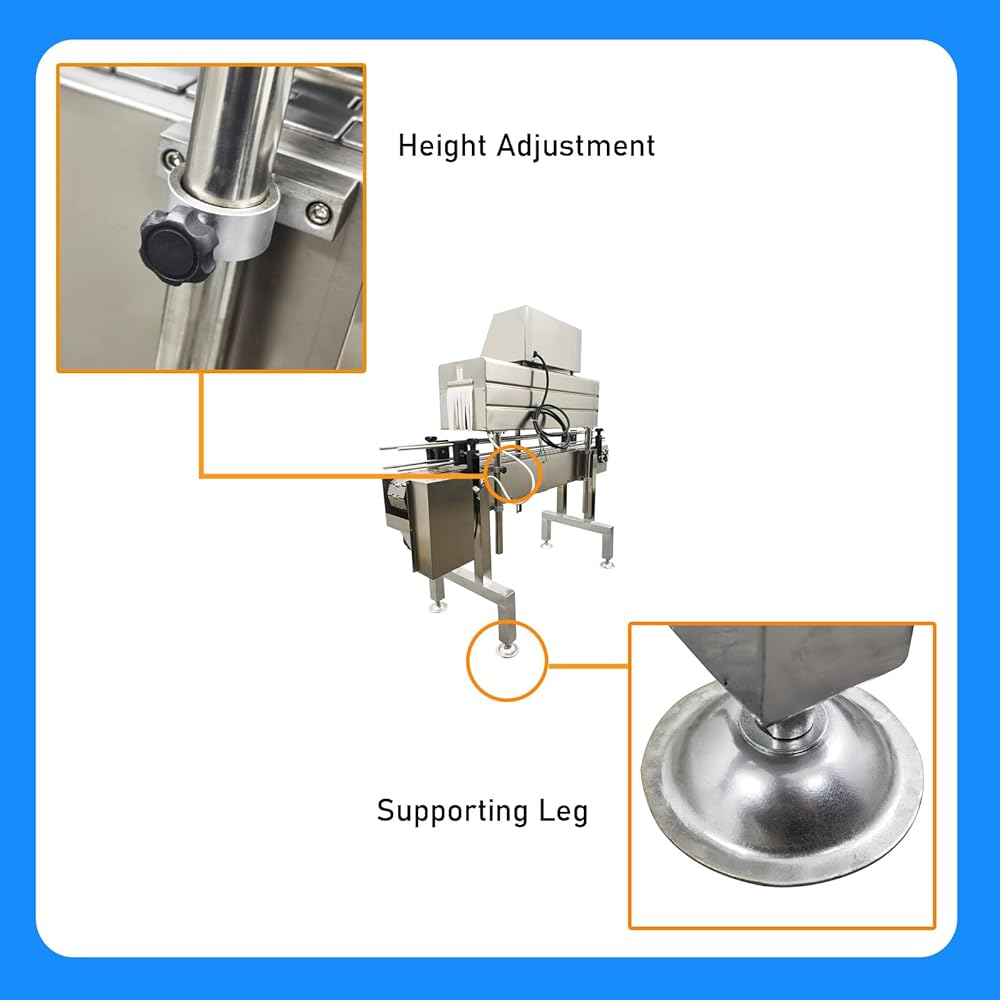

[Humanization Design] Three front-and-rear height-adjusting knobs adapt the heating chamber to bottles of different heights; double-layer adjustable-spacing guardrails on both sides of the conveyor belt prevent bottle tipping and fit varied diameters; four circular support legs ensure stable operation and easy mobility.

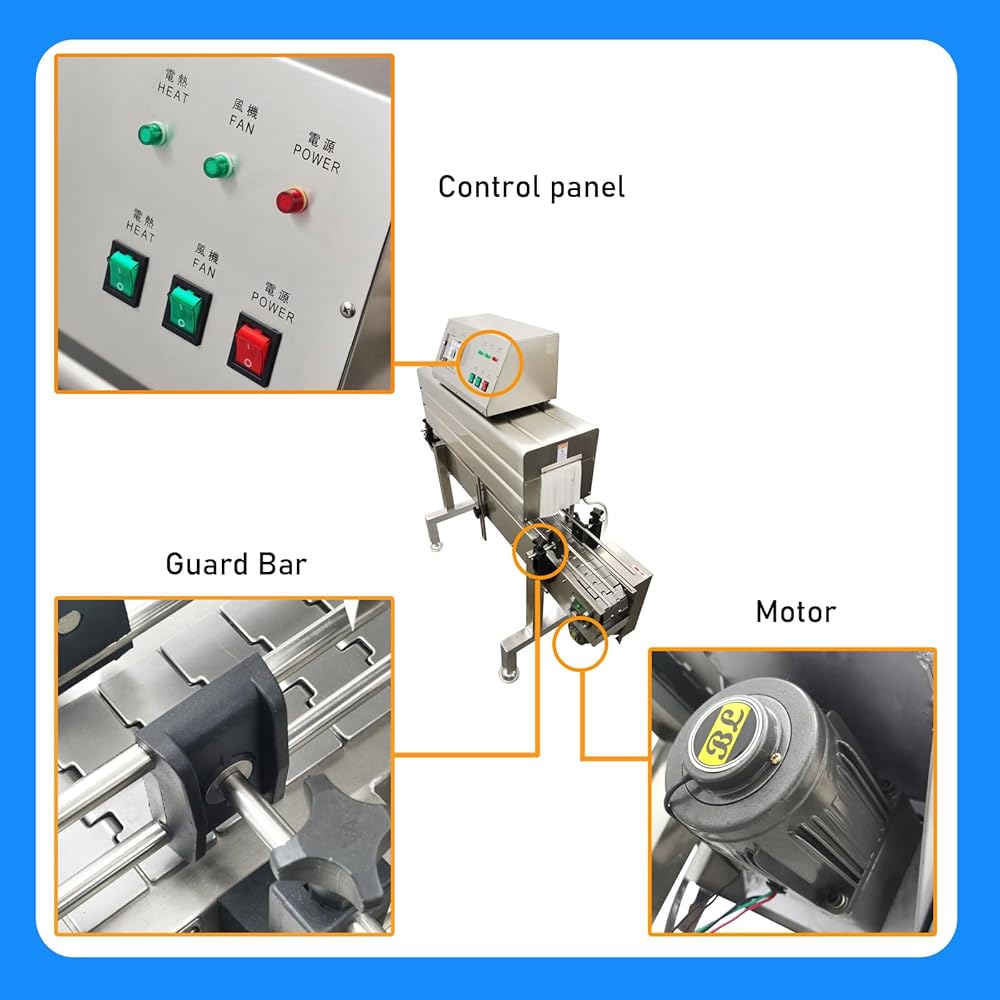

[Control Panel] The control panel integrates the transmission belt speed control and temperature control knob, heating, fan and power switch, easy to operate, at a glance.
[Motor] Transmission belt motor adopts high-quality 40W pure copper AC motor, which can run for a long time, save energy consumption, low noise; Simple structure and easy maintenance.

وصف

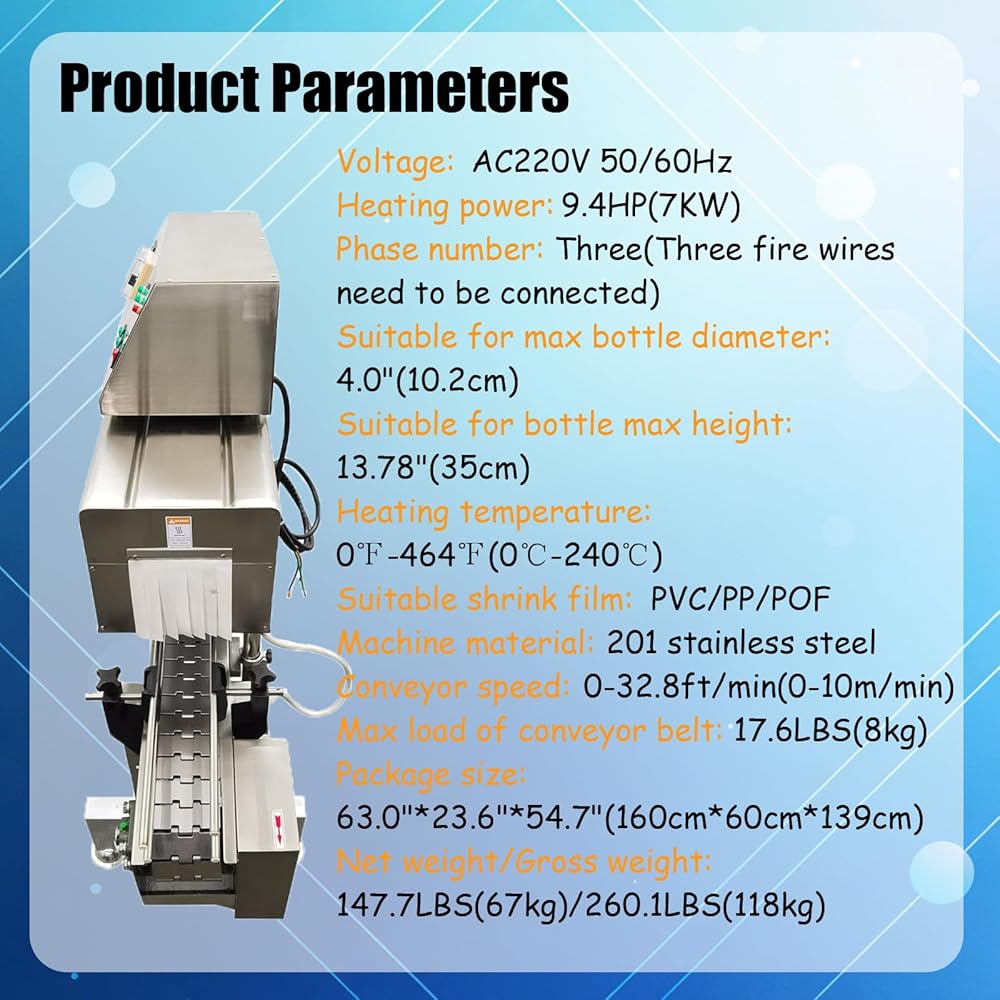

Specification
Voltage: AC220V 50/60Hz
Heating power: 9.4HP(7KW)
Phase number: Three (Three fire wires need to be connected)
Suitable for max bottle diameter: 4.0"(10.2cm)
Suitable for bottle max height: 13.78"(35cm)
Heating temperature: 0℉-464℉ (0℃-240℃)
Suitable shrink film: PVC/PP/POF
Machine material: 201 stainless steel
Conveyor speed: 0-32.8ft/min(0-10m/min)
Max load of conveyor belt: 17.6LBS(8kg)

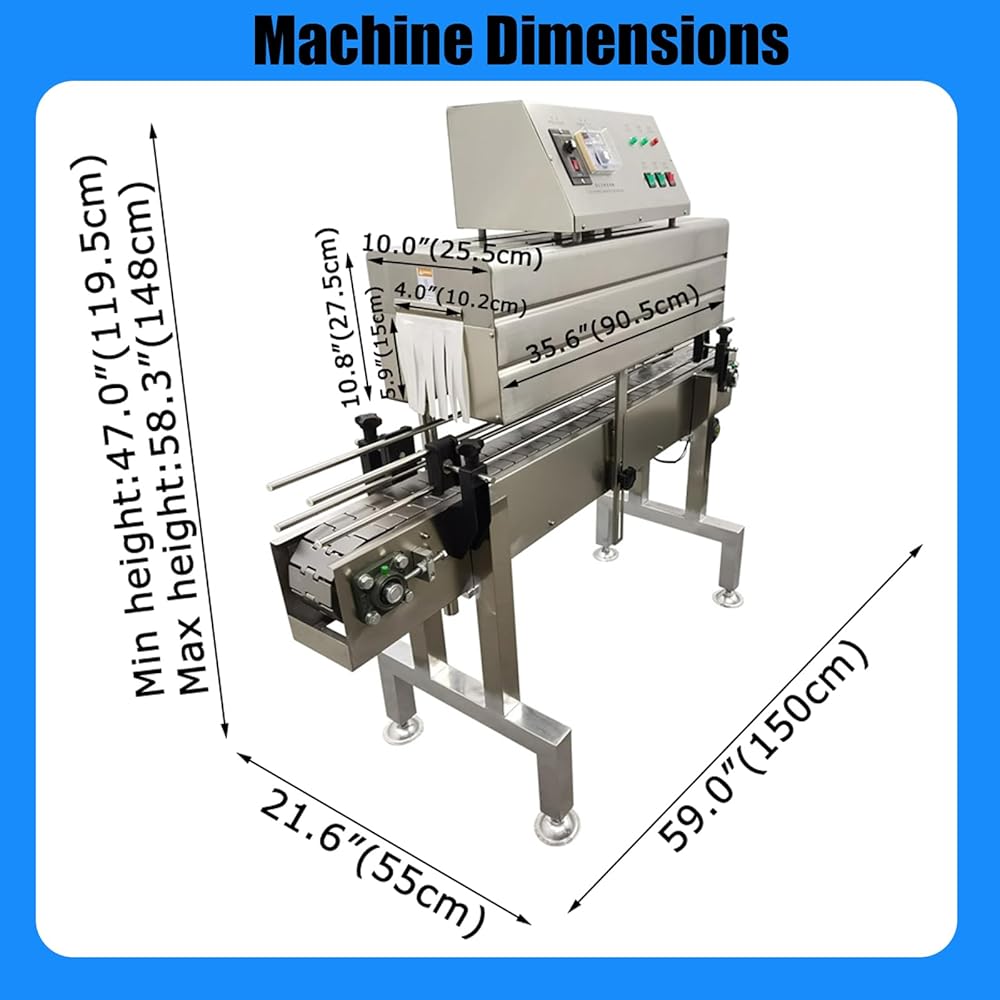

Package Dimensions
63"*24"*55"; 260pounds
