converters
NOTE:
1. Avoid power on when No load.You must adjust the appropriate distance for high-voltage terminal before power on.The longer Arcing distance the higher input voltage and battery capacity.
2. It is prohibited exceed the maximum arcing distance.Otherwise Energy can not be released due to high pressure easily damaged modules.
3. Can not work long time.
4. Please connect it to metal after test to release surplus energy!
5. It is a high-pressure arc generator and not high temperature arc generator so it can not ignite paper or cigarette
Description:

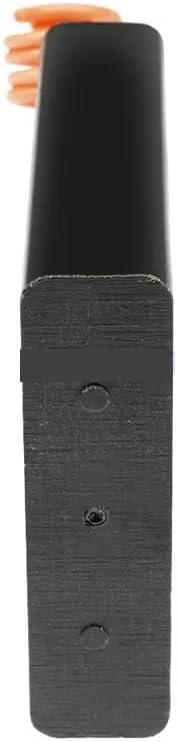

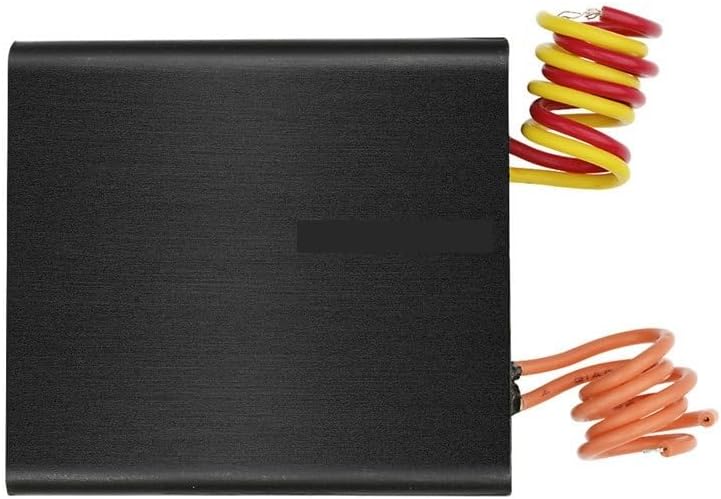

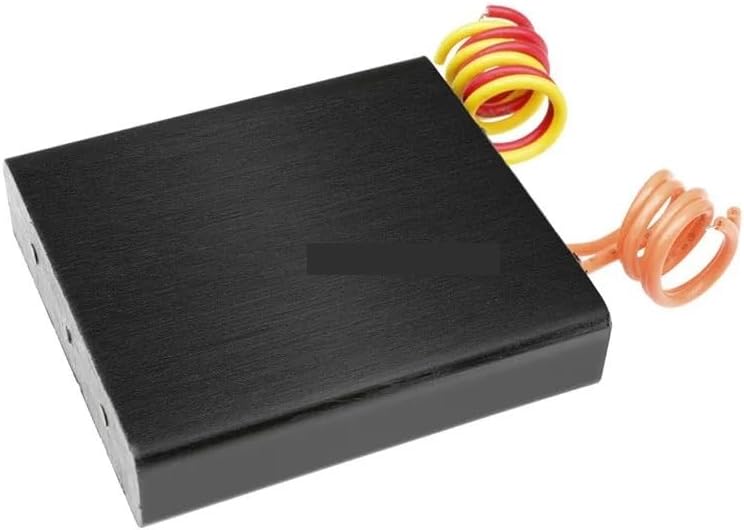

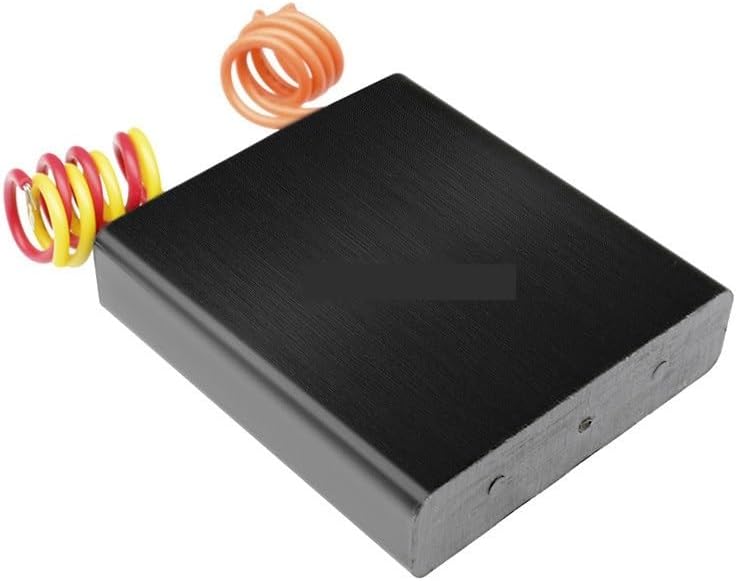

1. Module Model: MC-CBPG

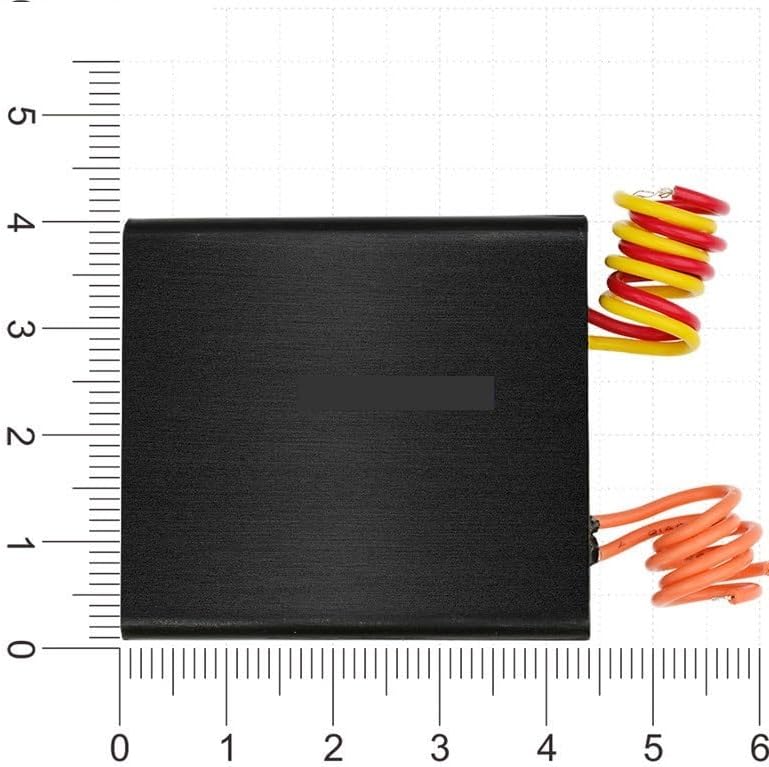

2. Physical Volume: 40*36.5*8mm
3. Input voltage: 3.7V-6V
4. Input Current: 0.5A-1A
5. Input line length: about 4cm
6. High pressure type: pulsed DC type
7. Output voltage: about 400KV (please pay attention to safety when used)
8. High voltage poles discharge distance: 1.5cm-2cm
9. About Power supply:recommend 6V and above 2000mAh for best results
Feature:
1. High voltage pulse current output
2. Small size
3. high efficiency
4. Simple peripheral circuits(just need button and battery)
Appliction:
1. Science experiments
2. Electronic Instruments
3. Ionizer
4. DIY Kit
