Features

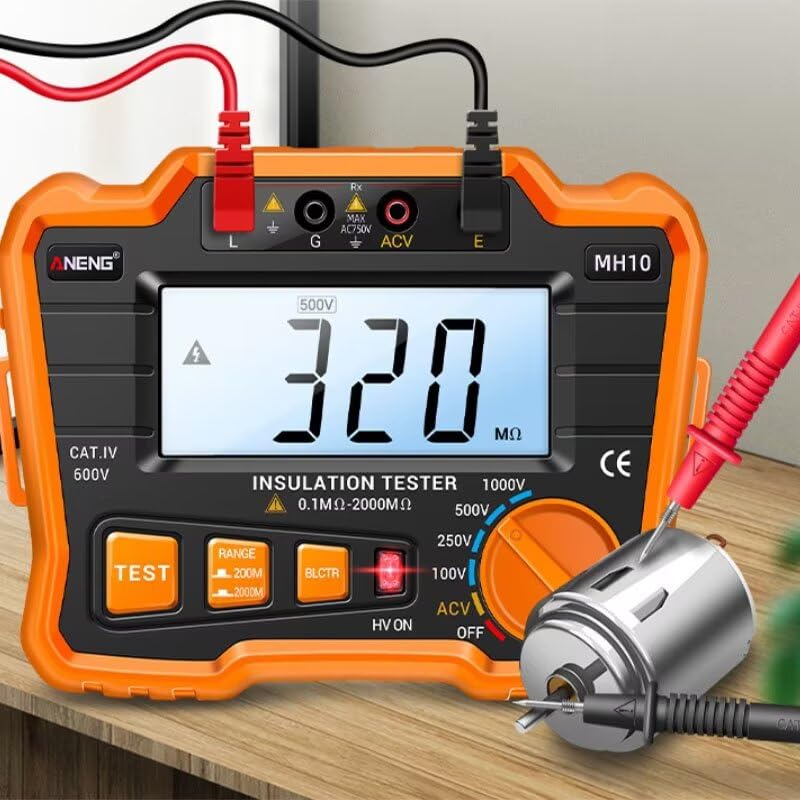

MH10 is an electronically controlled miniature instrument, in which the high-voltage insulation resistance test has 4 rated test voltages to measure the insulation resistance.
1.Suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as transformers, motors, cables, switches, electrical appliances, etc. It is suitable for maintenance, repair, test and verification of various electrical equipment.
2.The rated output voltage can use the function knob, MH10 is at 100V, 250V, 500V, 1000V.

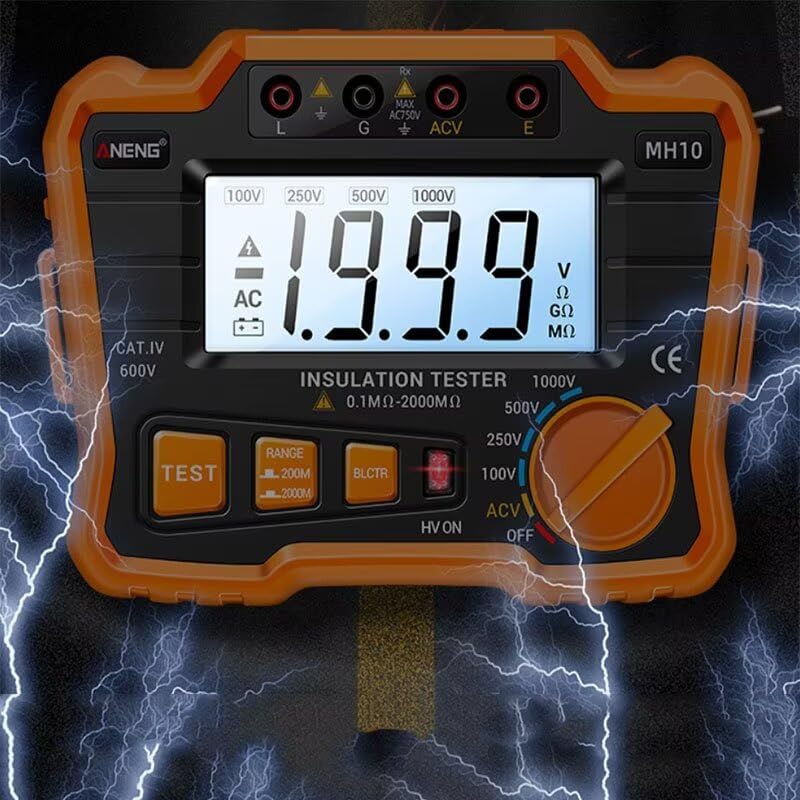

3.High pressure indication
The LED lamp (HV ON) and the "HV" on the left of the display indicate the high pressure output in the instrument and the danger of electric shock. The operator should pay special attention to safety.

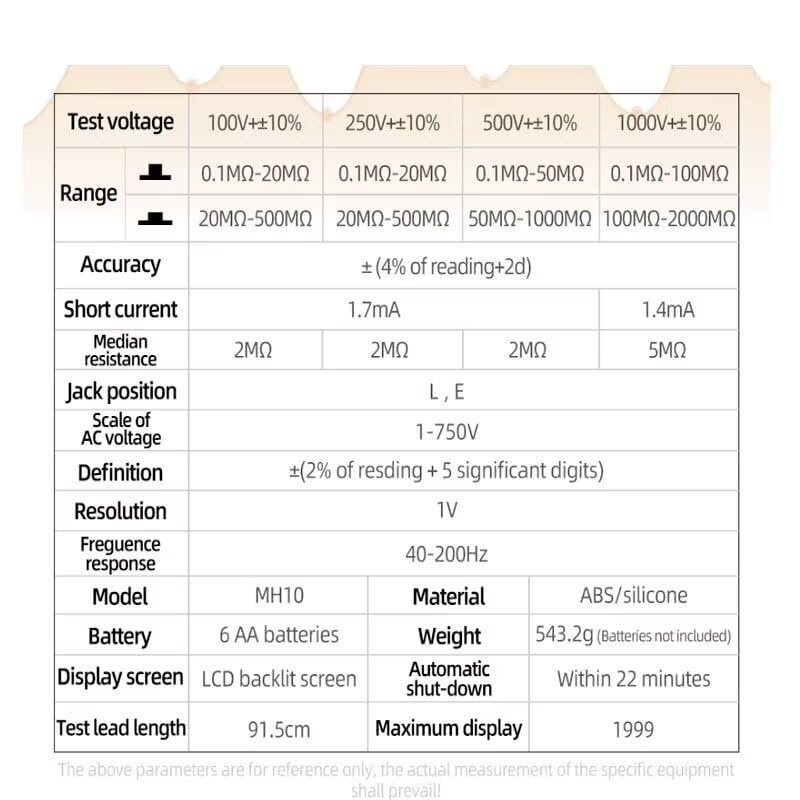

4.Measuring range MH10 is 0.1MΩ-1999MΩ, and the range is changed manually.
5.Strong load capacity, output short-circuit current greater than 1.0mA.
6.It can measure AC voltage from 1V to 750V, and the frequency of AC voltage is from 40Hz to 70Hz

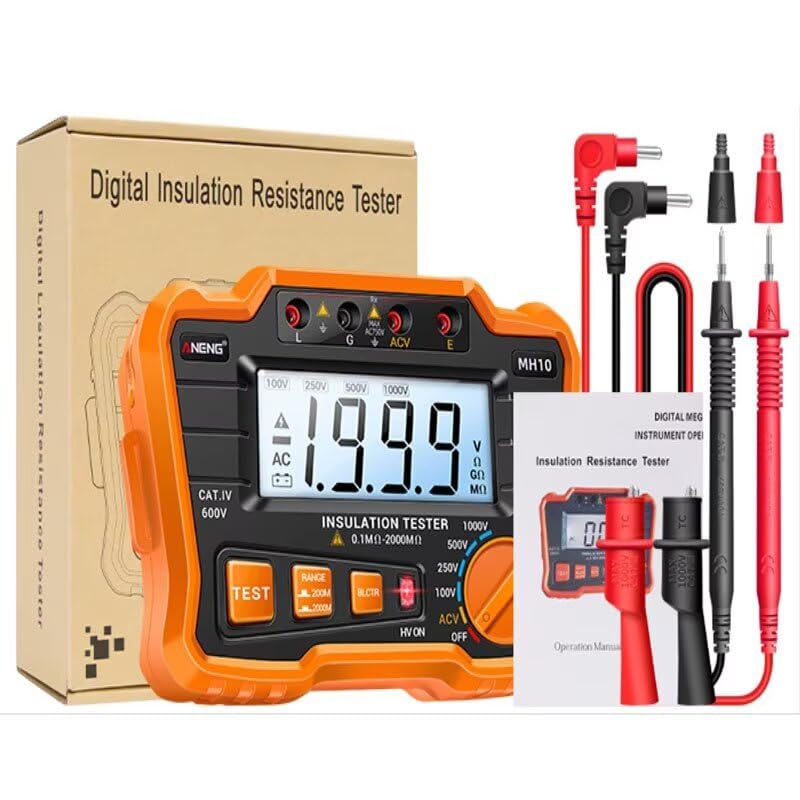

Product List:

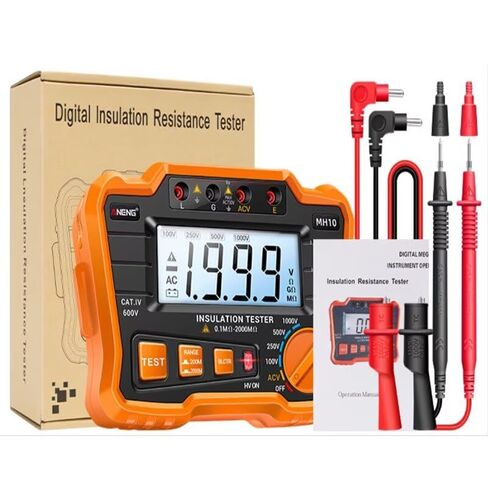

1X Resistance megohm meter (Battery not include)
Battery Type：AA*6 battery
Material：ABS+Silicone

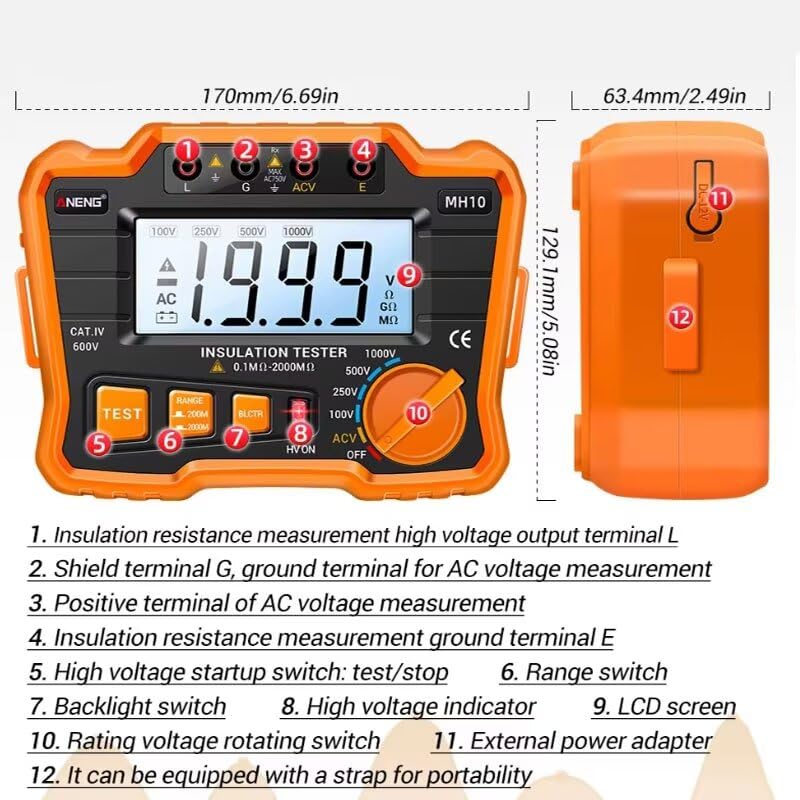

Size:170mm*129.1mm*63.4mm
Color:Orange

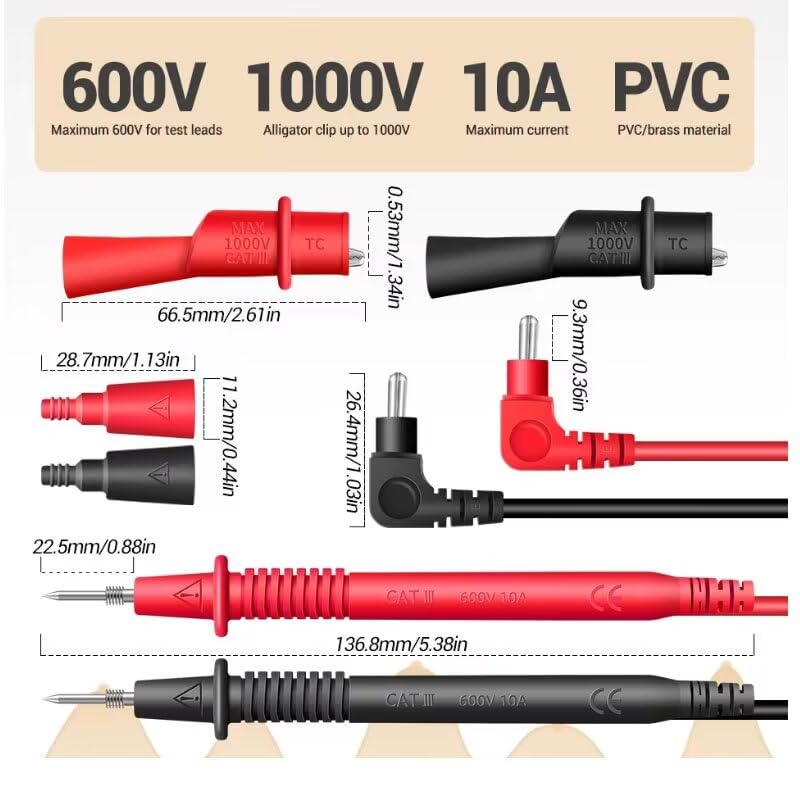

1X Test line
1X Instruction manual
1X Alligator clip
