Description
Our impressive electric wenches for trailers are capable of towing a 5000lbs boat, making it an ideal choice for towing work. Its premium materials, fine spray molding process, strong construction, and quality permanent magnet motor give this product strong performance, low noise, smooth operation, and long service life, adding convenience and efficiency to your work!
Specifications
Color: Black
Material: Steel Iron, Copper, Plastic
Process: Spray Molding
Winch Direction: Bidirectional
Motor Type: Permanent Magnet Motor
Control Mode: Wired Switch
Assembly Required: Yes
Pulling Capacity: 907.18kg/2000lbs
Working Load: 907.18kg/2000lbs
Breaking Strength: 998kg/2200lbs
Suitable Maximum Size of the Boat: 5.5m/18ft
Suitable Maximum Weight of the Boat: 2268kg/5000lbs
Hook Size: 1/4"
Voltage: 12V
Motor Power: 300W
Gear Reduction Ratio: 465:1
No-load Speed: 1.83m/6ft/min
Steel Wire Rope Size: Φ4.8mm*9.2m/Φ0.19in*30.18ft
Wired Remote Control Cable Length: 3m/9.84ft
Battery Cable Length: 5m/16.4ft

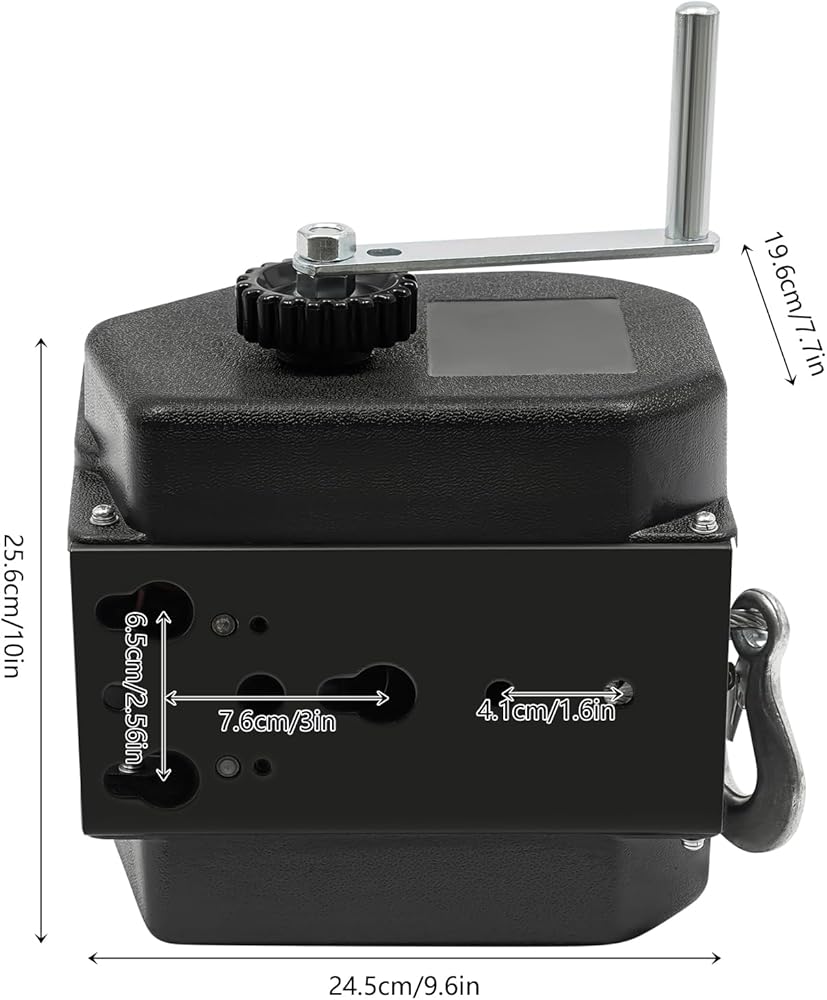

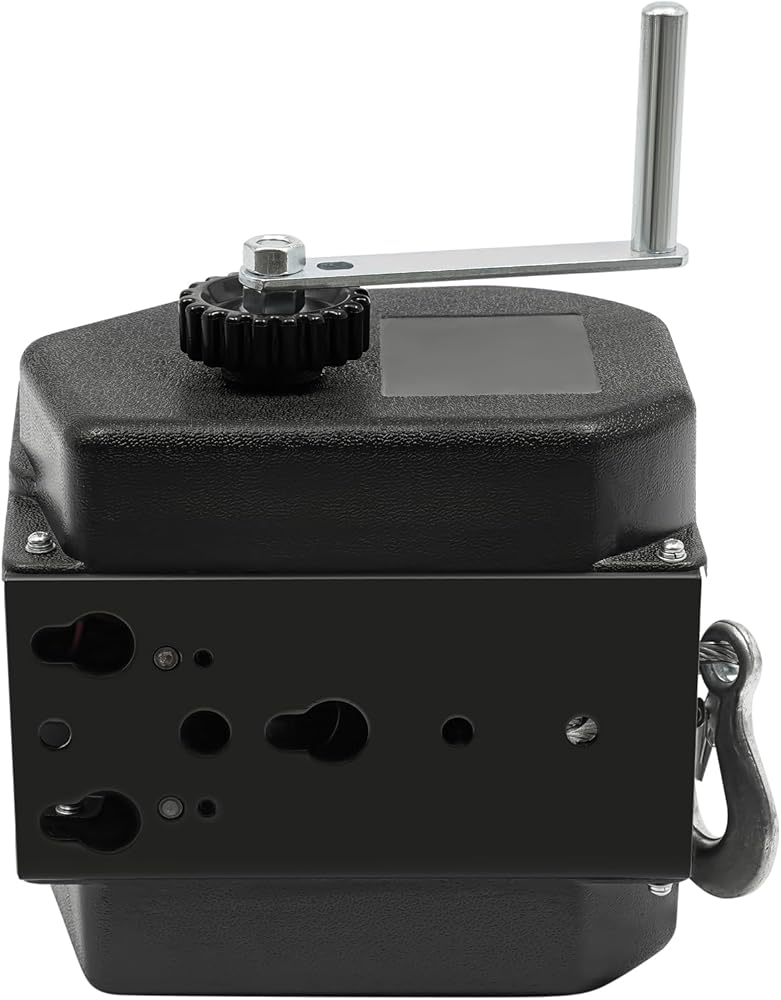

Hole Spacing: 6.5cm/2.56in; 7.6cm/3in; 4.1cm/1.6in
Product Size: 24.5*19.6*25.6cm/9.6*7.7*10in
Package Size: 39.5*29.5*26cm/15.55*11.61*10.24in
Gross Weight: 12kg/26.46lbs
Net Weight: 11kg/24.25lbs

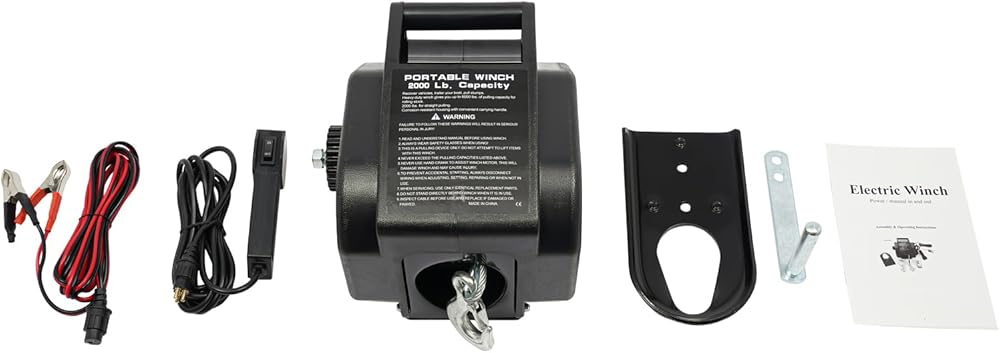

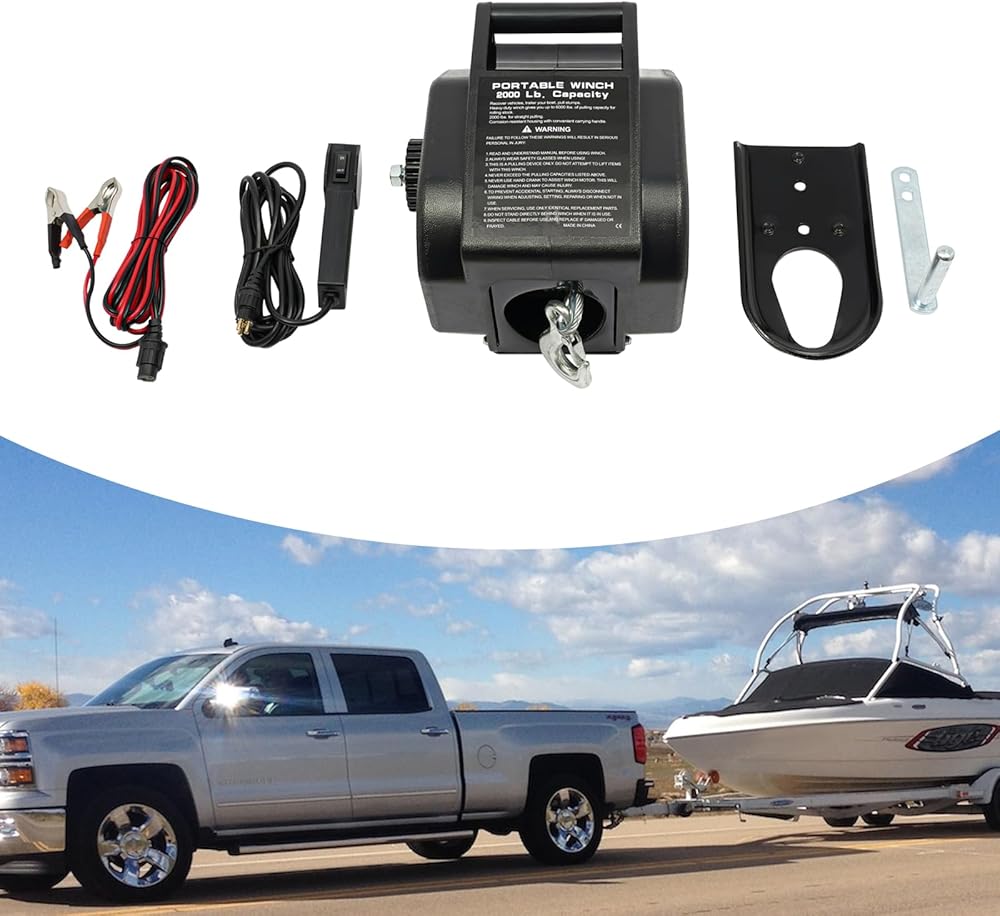

Package Included
1* Electric Winch
1* Hand Crank
1* Mounting Plate
1* Wired Remote Control
1* Battery Cable
1* English Manual
Notes
1. Please do not overload the winch.
2. Please read the operating manual and product label completely before use. And pay particular attention to the safety instructions included.
3. Please note that this winch is electric-powered rope retracting and manual rope releasing. Please do not use the crank to assist an operating winch, this will damage the winch and may cause personal injury.
4. Before pulling, the clutch must be tightened all the way clockwise. You may encounter a problem caused by the clutch not being tightened:
1) If the tension is too low, you cannot pull the boat. The machine will make the sound of gears falling off.
2) The boat winch will stop working regularly.
3) The cable will not be locked and the wires may slide out.
4) The winch may pull for a few seconds and then stop working.
5. Please do not pull the boat directly after tightening the clutch. After tightening the clutch, first, roll the cable all the way in to release tension. If this is not done, the winch can be restored to normal use.
