Needle-Bearing
SNH030 Specifications (Standard)
Contact material: precious metal brush, silver-plated ring
Rated current 20A/per circuit
Number of circuits 4
Operating speed 400 rpm* continuous
Wire UL Awg28, Awg22, Awg16, Awg10 (200 mm)
Voltage 400 VAC
Operating temperature: -40°C to 80°C
Working humidity 60%RH
Torque: about 8.95 g (for reference)
Dielectric strength between circuits 800V@50Hz
Insulation resistance 800M@400VDC
Noise level less than 60 m @ 6 VDC, 50 mA, 5 rpm
Shell material Aluminum alloy
Protection grade IP54

Compatible/Model: No

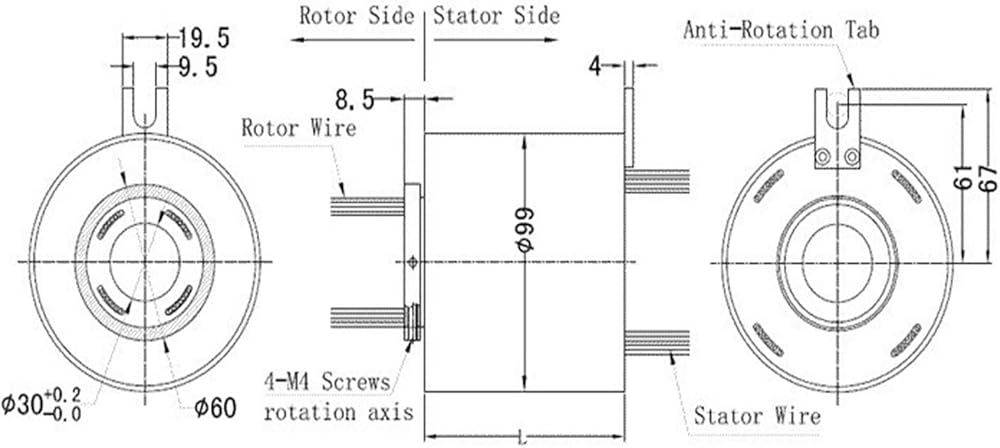

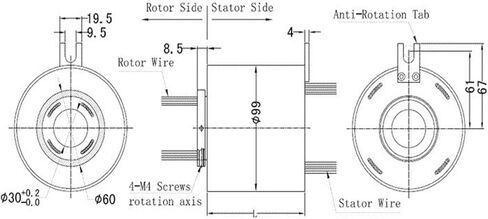

Hole size: 30mm
Outer diameter: 99 mm
Power circuit: 4 circuits, 20A each
Model: SNH030-0420

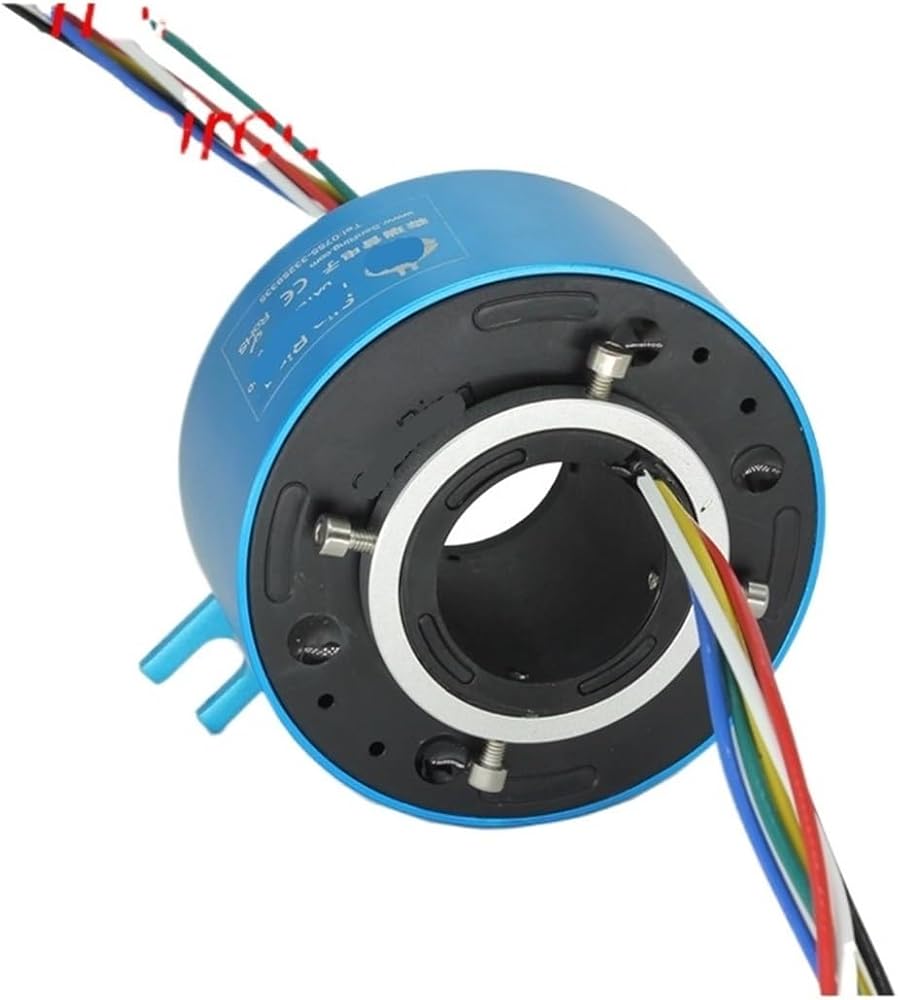

Product Name: Through Hole Slip Ring
Type: Hollow shaft slip ring
Features: Slip ring 4 wire
Waterproof rating: IP54
Cable length: 300mm
