Needle-Bearing

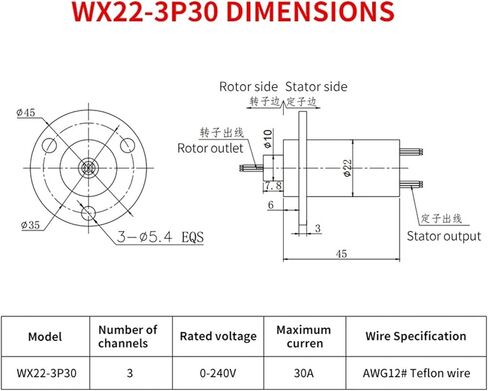

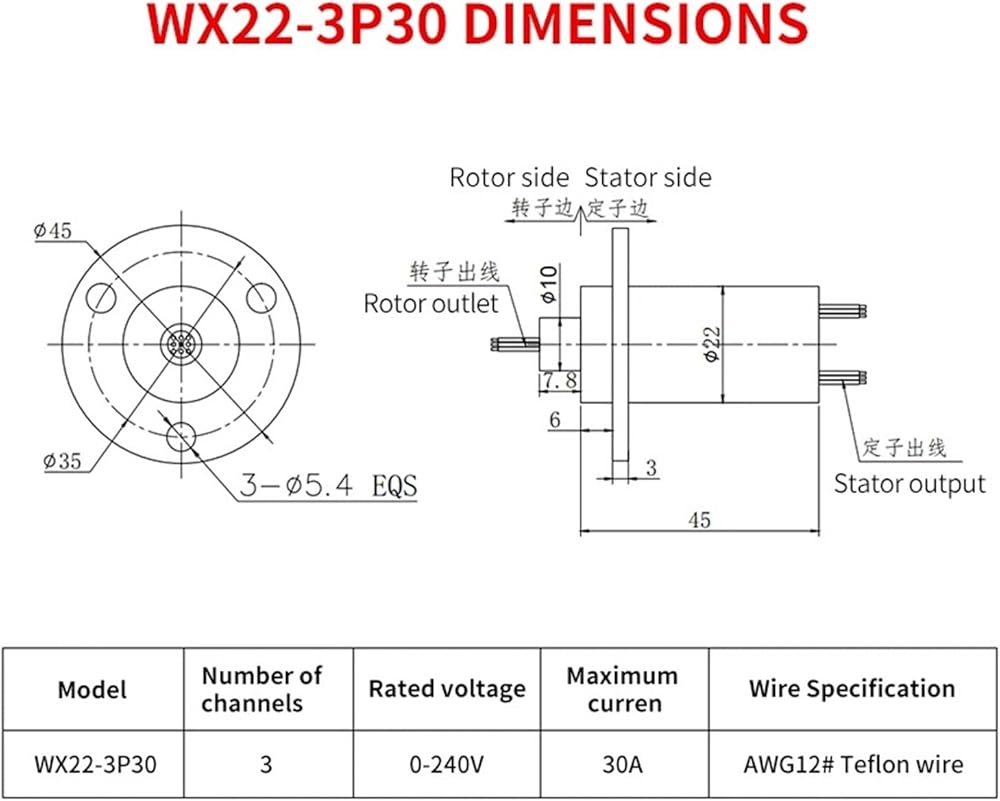

Model/Specification: WX22-3P30

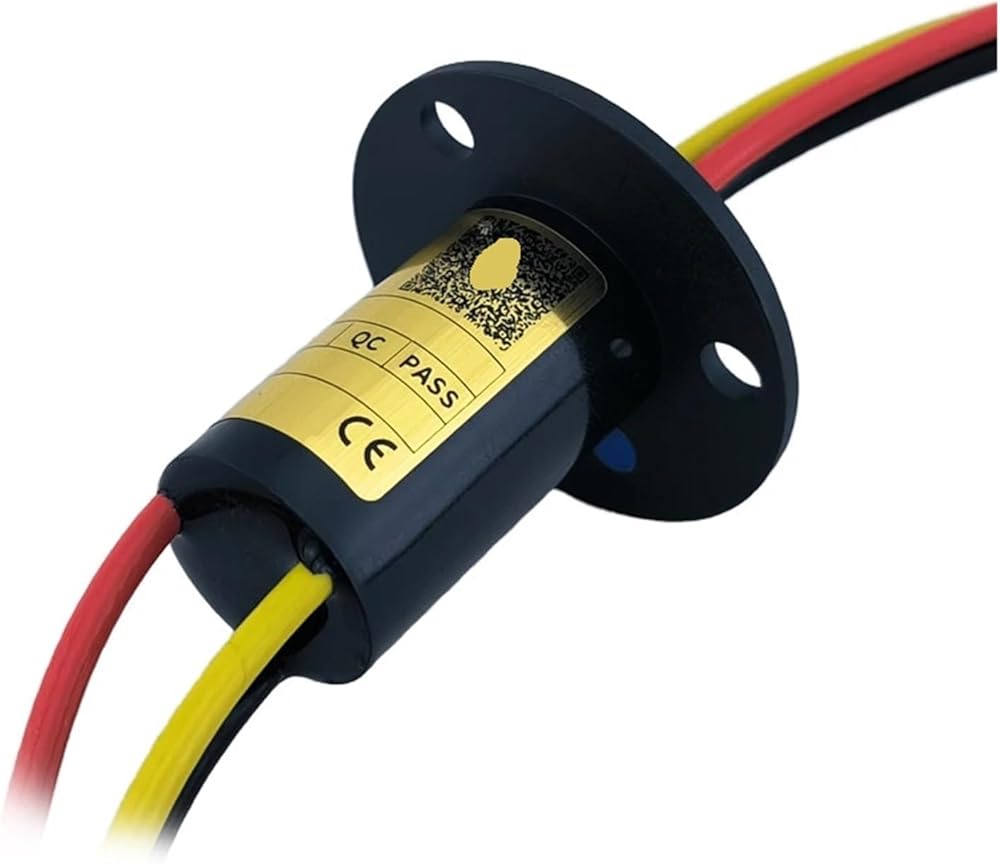

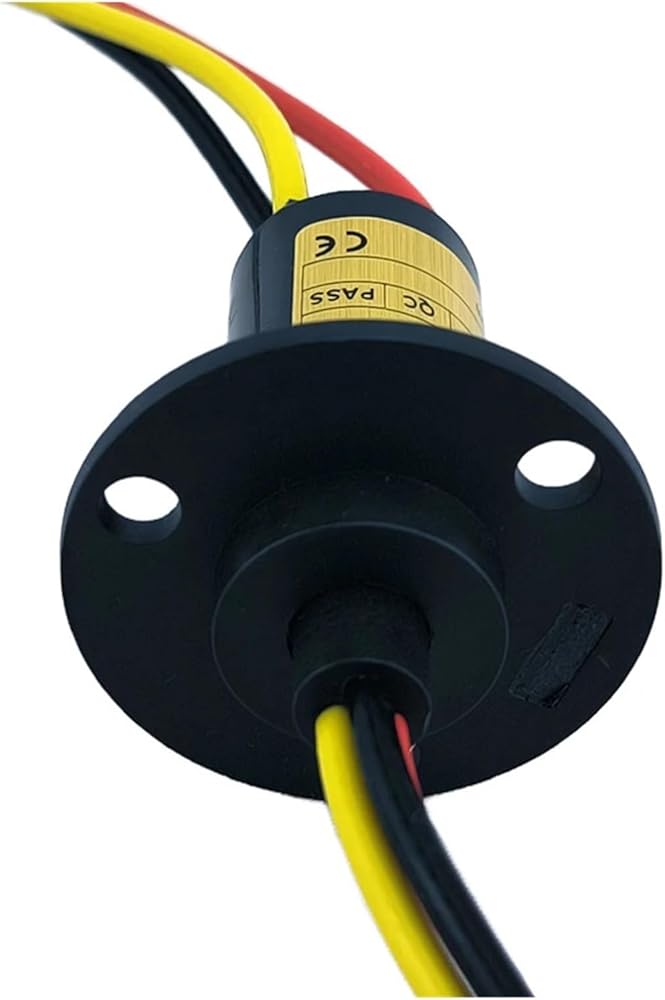

Product name: Slip ring cap/compact type
Circuit: 3-wire
Ampere/Current: 30 amps
Working speed: 1 - 250RPM
Voltage: 0-600VAC/VDC
OD size: 22mm/0.866in.
Length: 45mm/1.77in
Cable length: 300mm
Protection level: IP51
Signal: Unable to transmit signal
Rotation life: 60 million rpm (affected by working speed)
Contact Material:
Operating temperature: -40℃ to +80℃
Torque: 0.1Nm+0.03Nm/6 lines
Operating humidity: 10% to 85% RH
Wire specification: UL Teflom@AWG#12
Compressive strength: 1000VDC@50Hz
Dielectric strength: 1000M@600VDC
Shockproof grade: MIL-SID-810E
