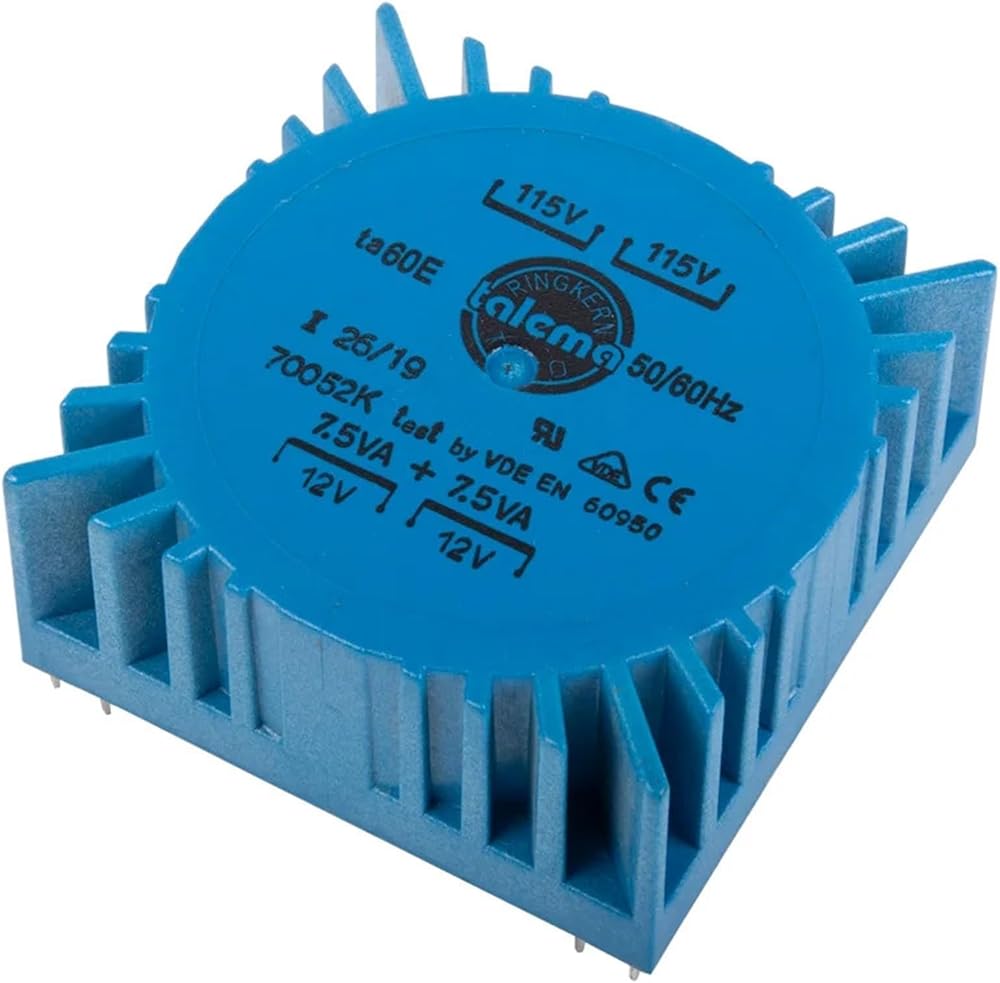

15VA TALEMA square PCB welding plate sealing ring cattle transformer 7V/9V/12V/15V/18V
Talema high performance transformer with a pair of 115V AC, 50/60Hz primary windings connected in series for 230V or in parallel for 115V. A pair of secondary windings can be connected in series or in parallel. Ideal for applications where space costs are high and low noise and radiated magnetic interference are required. Designed for easy installation on printed circuit boards with M4 center bushings
PCB backplane purchased separately
Low profile and compact design
Enclosed is fully UL94-V0 compliant
Very low radiated magnetic field
Very low beep and noise
High efficiency and low temperature rise
easy to install
Electrical and Insulation Tested
Number of outputs: 2
Weight: 304g
Rated power: 15VA
Maximum operating frequency: 60Hz
Minimum operating frequency: 50Hz
Maximum temperature: +60°C
Primary rated voltage: 115V
Fixing hole diameter: M4
Construction: Sealed square ring cow
Approvals: Listed, VDE
Mounting Type: Printed Circuit Board Mount
Dimensions: 60 x 60 x 26.3mm
Secondary rated voltage: 7V, 9V, 12V, 15V, 18V optional
Standards: EN60950, VDE0805, UL506, UL1950, UL6500
Condition: (RS source)
